Description

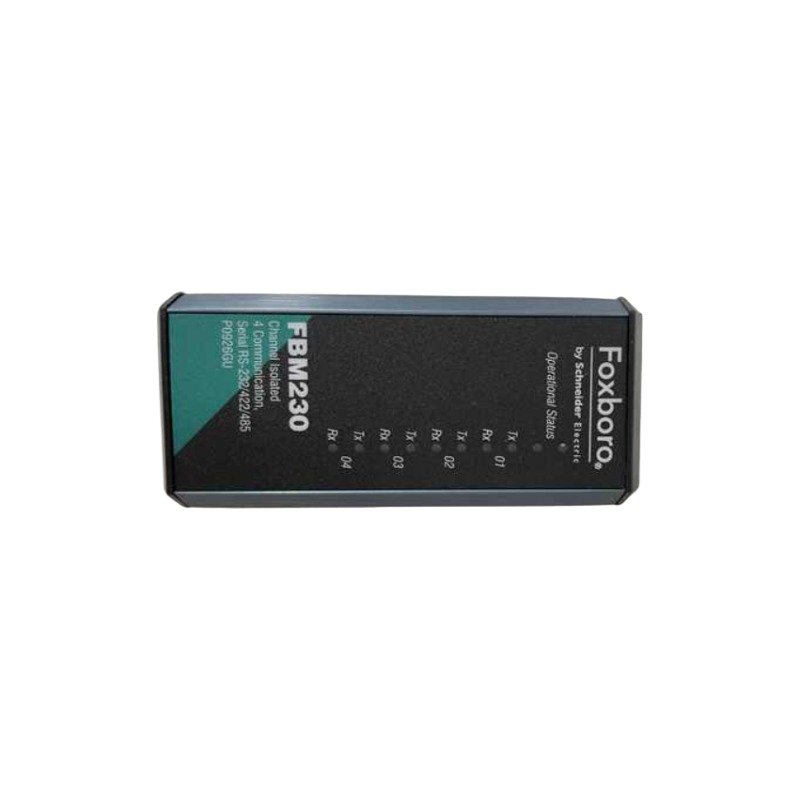

The Foxboro FBM230 P0926GU, also cataloged as the FBM230 Field Device System Integrator module, operates as a dedicated hardware component for serial protocol conversion and field instrument integration within Foxboro I/A Series DCS networks. The hardware provides four serial ports, each individually configurable via software for RS-232, RS-422, or RS-485 physical interface standards. Communicating with host controllers via a redundant 2 Mbps module fieldbus, the module executes serial data translation across up to 2000 DCI block connections to map field instrument variables into the control system database.

Hardware Specifications

Process Control & Serial Communication Dynamics

The Foxboro FBM230 P0926GU integrates field serial communication loops directly into the central DCS database using downloadable protocol software drivers. Operating across 4-20 mA HART loop protocol translation architectures or native serial device streams, the module’s independent serial channels maintain signal separation to eliminate cross-talk and common-mode electrical noise. The onboard interface drivers translate asynchronous field data into deterministic backplane cycles across the redundant 2 Mbps module fieldbus, securing cyclic updates to host control processors.

Frequently Asked Questions

Q: What are the physical cabling distance limits for the serial interfaces on the FBM230 P0926GU?

A: According to EIA standards, RS-232 connections support line lengths up to 15 m (50 ft), whereas RS-422 and RS-485 interfaces support extended field runs up to 1200 m (3937 ft).

Q: What host controllers and communication modules interface directly with the FBM230 P0926GU over the module fieldbus?

A: The module connects to host control infrastructure via a redundant 2 Mbps fieldbus linked to FCM100ET, FCM100E, FCP270, or FCP280 control processors.

Q: How many total field devices can be managed by a single FBM230 P0926GU module?

A: The hardware supports up to 64 multi-drop RS-485 serial devices, or up to 4 point-to-point direct-connected RS-232 or RS-422 field devices.

Field Installation Guidelines

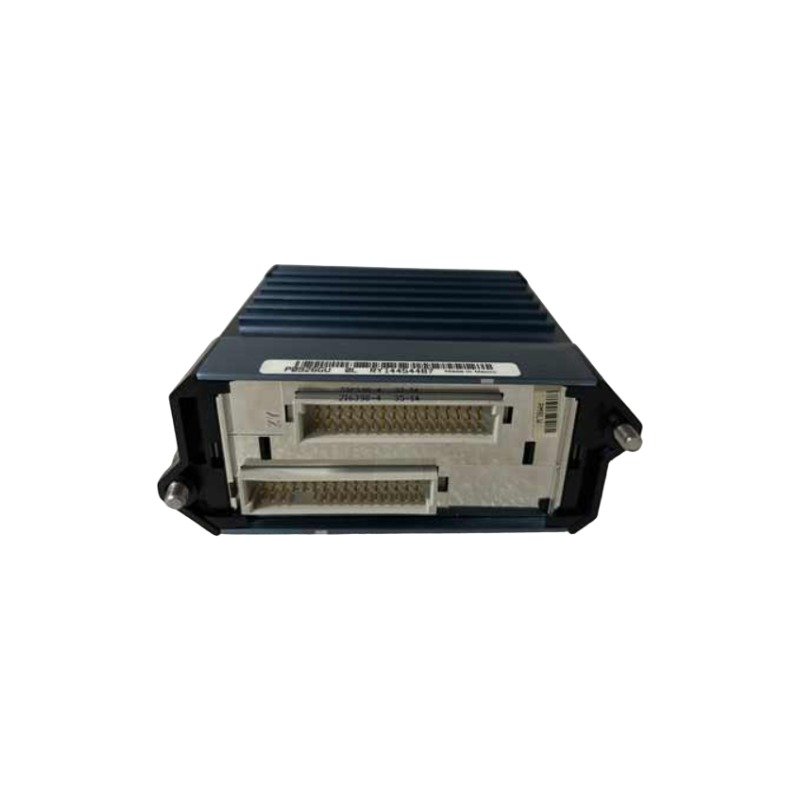

Mount the Foxboro FBM230 P0926GU onto its designated baseplate slot. Prior to insertion, clear the backplane card guide slots of foreign contaminants and inspect the pin connectors. Slide the module firmly along the alignment tracks until the retaining latch seats flush against the baseplate frame to ensure full power and signal connection.

Connect all field serial interface cabling to the corresponding termination assembly (such as the P0926PA or RH926GH) using shielded twisted-pair cables. Ground the cable drain shields at a single dedicated earth grounding point inside the control panel to mitigate electromagnetic interference. Maintain physical separation between serial data wires and high-voltage AC conductors to ensure signal integrity across Class G3 operating environments.
