Description

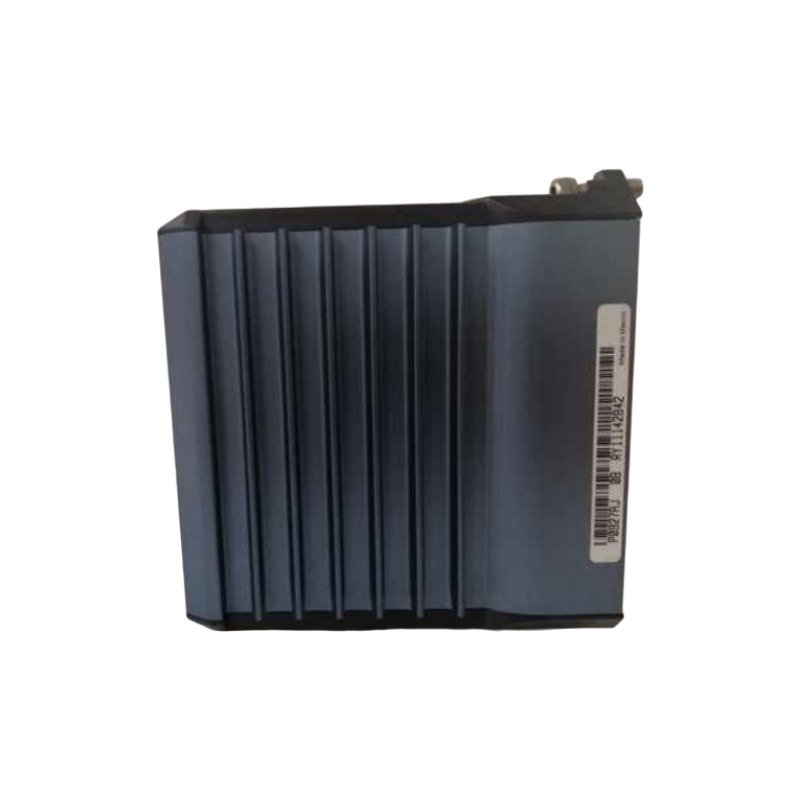

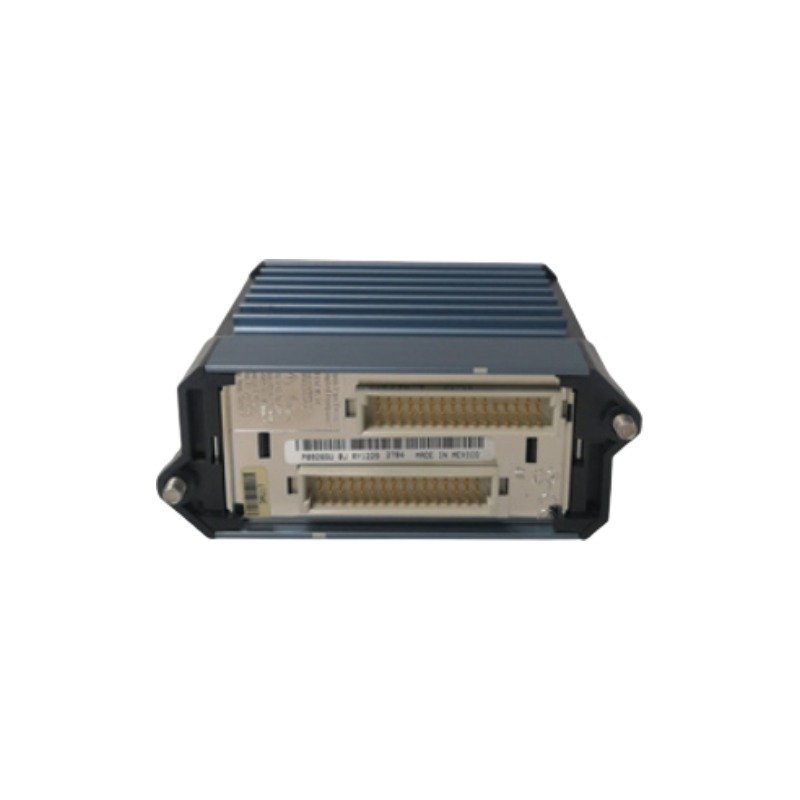

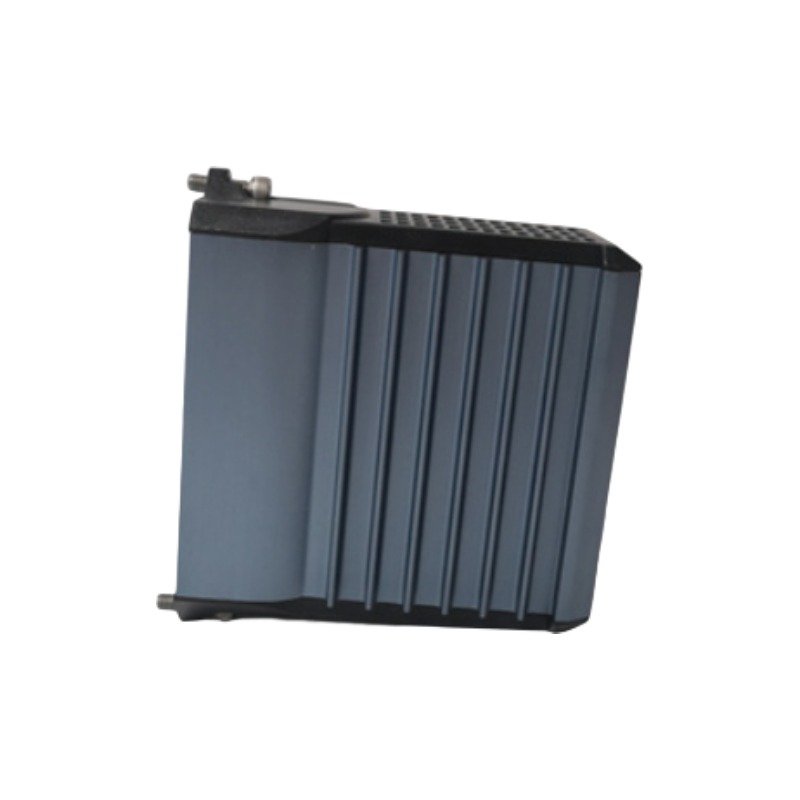

The Foxboro FBM216B P0927AJ, also cataloged as the FBM216B redundant HART communication input module, operates as a dedicated hardware component for multi-channel sensor input processing and HART telemetry decoding within Foxboro I/A Series architectures. The unit accepts standard 4-20 mA analog signals superimposed with digital HART Frequency Shift Keying (FSK) data across 8 individually isolated channels. Configured for master-tracker redundancy over dual 2 Mbps fieldbus links, the module executes signal conversion at 15-bit resolution and provides real-time digital update rates down to 100 ms.

Hardware Specifications

Process Control & Channel Isolation Dynamics

The Foxboro FBM216B P0927AJ incorporates channel-to-channel galvanic isolation across its 8 input channels to preserve high-precision signal processing in electrically noisy environments. Operating within standard 4-20 mA HART loop protocol topologies, the module extracts FSK dynamic data while concurrently processing continuous analog currents. The channel isolation design prevents ground loops, maintains high common-mode rejection ratios (>100 dB at 50/60 Hz), and mitigates electrical noise coupling across independent field sensor loops.

Frequently Asked Questions

Q: How does module redundancy function between a pair of FBM216B P0927AJ units?

A: Two FBM216B P0927AJ modules interface with a common termination assembly in a master-tracker configuration, continuously transferring channel state and HART telemetry across redundant fieldbus channels to ensure fail-over operation without process interruption.

Q: What power input and thermal limits apply to the FBM216B P0927AJ?

A: The module requires a 24 VDC nominal power supply (+5%/-10%), consumes up to 7 W, dissipates a maximum of 4 W as heat, and operates within a -40 to +70 deg C ambient temperature range.

Q: What noise rejection mechanisms protect input accuracy?

A: The module relies on independent galvanic isolation per channel, an integration time of 500 ms, a Common Mode Rejection Ratio exceeding 100 dB at 50/60 Hz, and a Normal Mode Rejection Ratio exceeding 35 dB at 50/60 Hz.

Field Installation Guidelines

Mount the Foxboro FBM216B P0927AJ directly onto a compatible Foxboro I/A Series baseplate slot. Before insertion, clear baseplate connectors of foreign particles and inspect card edge contacts. Align the module card guide rails with the chassis and push the assembly firmly until the mechanical locking latch seats completely into the backplane structure.

Connect all incoming 4-20 mA and HART field loop cables to the designated termination assembly using twisted shielded-pair wiring. Secure cable drain wires to a single cabinet earth ground point to prevent ground potential circulation. Maintain clear physical separation between field I/O signal cables and high-voltage AC power lines to avoid inductive noise coupling. Torque all field terminal screws to standard engineering limits to maintain low-resistance contact stability.
