Description

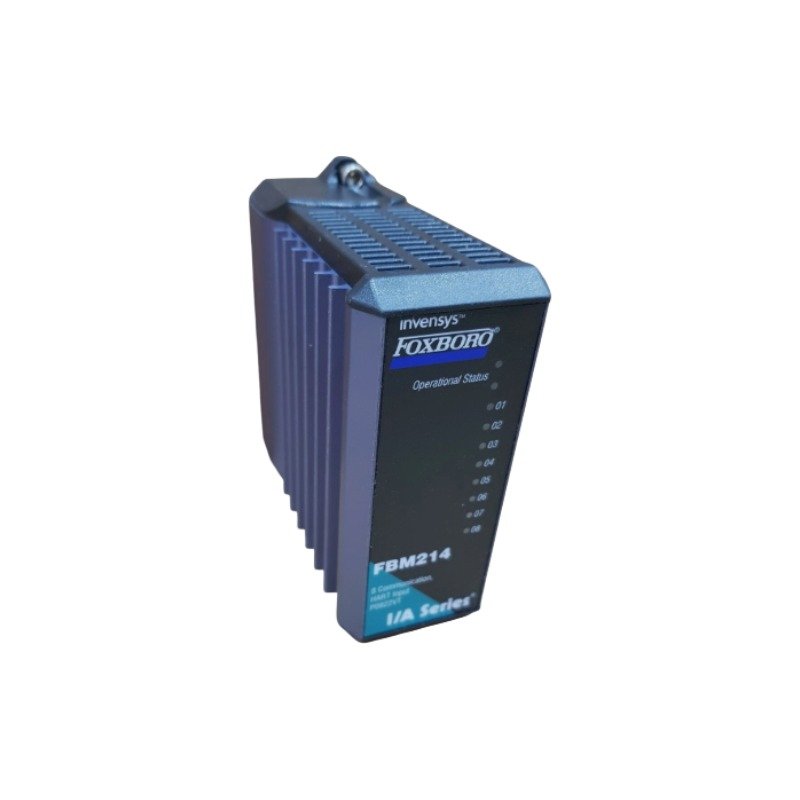

The Invensys FBM214 P0922VT, also cataloged as the FBM214 HART Communication Input Module, operates as a dedicated hardware component for multi-channel HART signal acquisition and analog current measurement within Foxboro I/A Series DCS networks. The unit accepts standard 4-20 mA analog signals superimposed with digital HART Frequency Shift Keying (FSK) data across 8 individually isolated channels. Internal conversion circuitry processes real-time field instrument telemetry and transfers discrete process values across the backplane bus to central control processors.

Hardware Specifications

Process Control & Channel Isolation Dynamics

The Invensys FBM214 P0922VT incorporates channel-to-channel galvanic isolation across its 8 input channels to preserve high-precision signal processing in electrically noisy environments. Operating within standard 4-20 mA HART loop protocol topologies, the module extracts FSK dynamic data while concurrently processing continuous analog currents. The channel isolation design prevents ground loops, maintains high common-mode rejection ratios, and mitigates electrical noise coupling across independent field sensor loops.

Frequently Asked Questions

Q: How does the FBM214 P0922VT process digital HART data simultaneously with analog current loop signals?

A: The module utilizes active FSK filtering on each of its 8 channels to decode high-frequency digital HART communication signals superimposed onto the standard 4-20 mA analog current loop without interrupting continuous analog signal conversion.

Q: What is the benefit of channel-to-channel isolation on the FBM214 P0922VT module?

A: Galvanic channel-to-channel isolation prevents ground loop currents between independent field sensor wiring circuits, protecting internal backplane logic and preventing transient electrical spikes on one loop from corrupting adjacent channel measurements.

Q: How is the FBM214 P0922VT physical module mounted within the enclosure chassis?

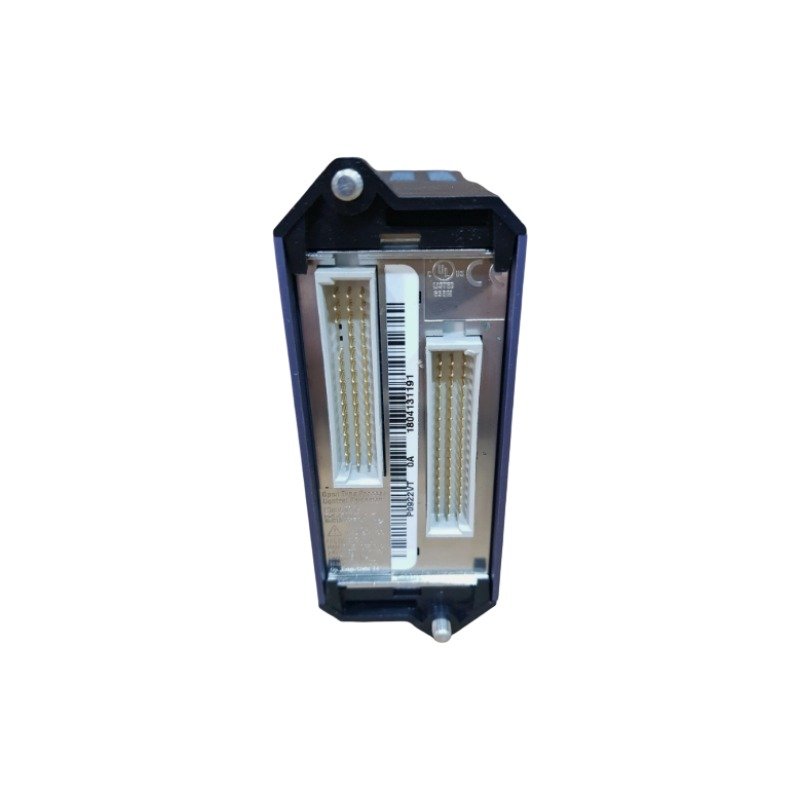

A: The module slides into an assigned baseplate slot within a Foxboro I/A Series enclosure, directly engaging backplane bus connectors for power supply and digital data exchange.

Field Installation Guidelines

Mount the Invensys FBM214 P0922VT directly into an available slot on the Foxboro I/A Series mounting baseplate. Prior to insertion, verify that the baseplate card guide tracks and backplane pin connectors are clean and free of physical debris. Align the module card edges with the guide rails and push the unit firmly into the slot until the retention latch snaps securely onto the frame.

Connect all incoming 4-20 mA and HART field loop cables to the designated termination assembly using shielded twisted-pair conductors. Terminate all cable drain shields at a single chassis earth ground point inside the cabinet to prevent stray ground potential circulation. Maintain strict physical separation between field I/O signal wiring and AC power distribution cables to suppress inductive noise coupling.
