Description

Brief Product Description

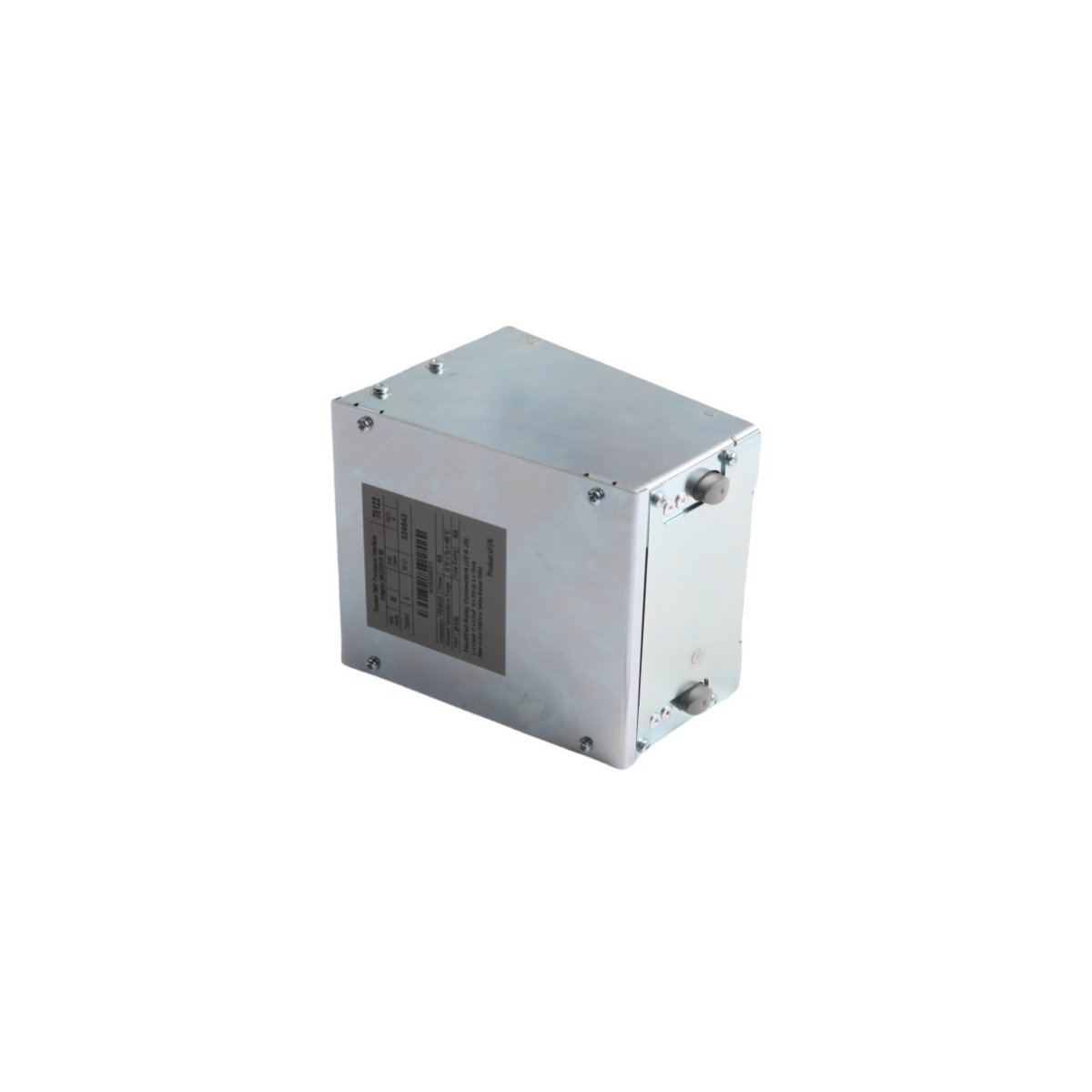

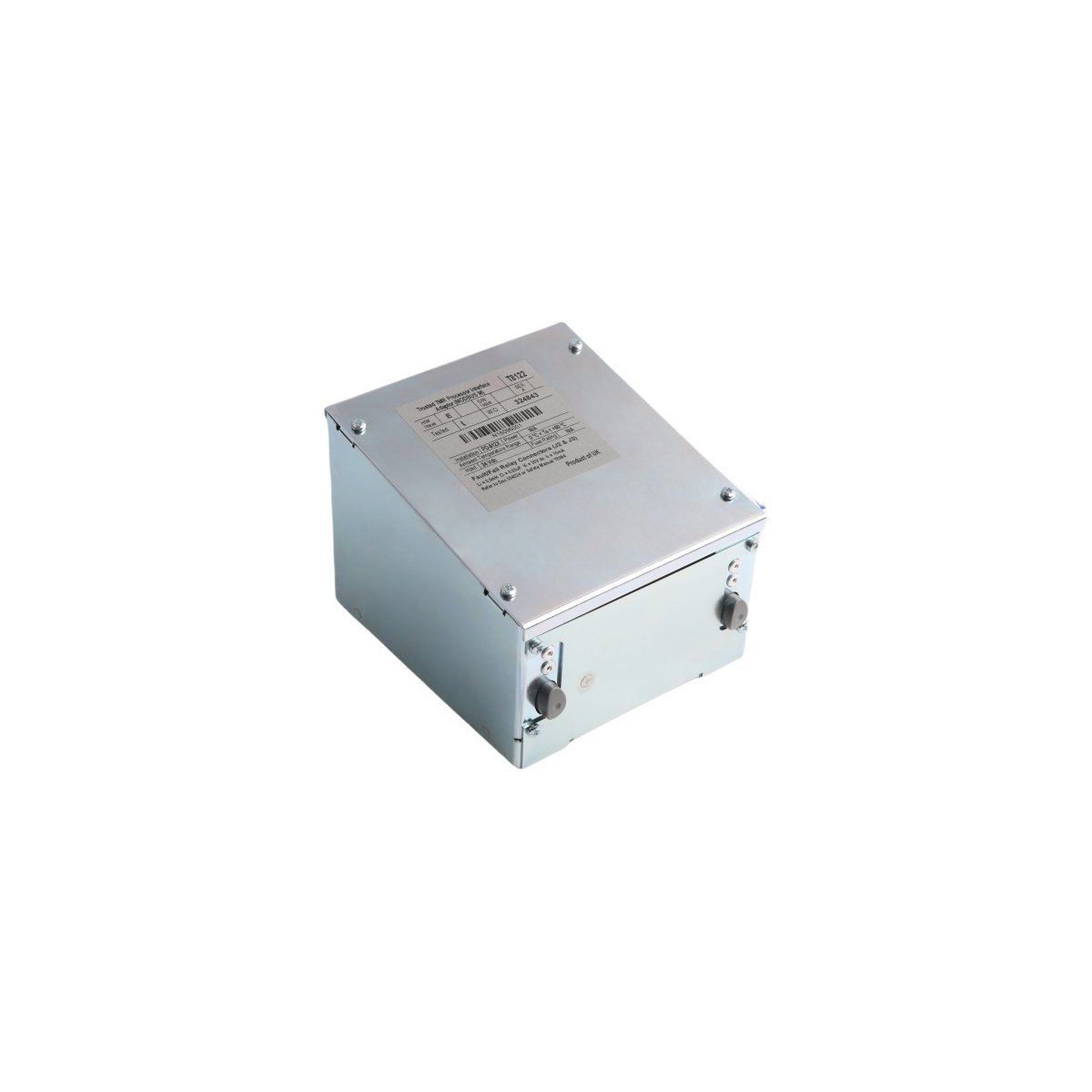

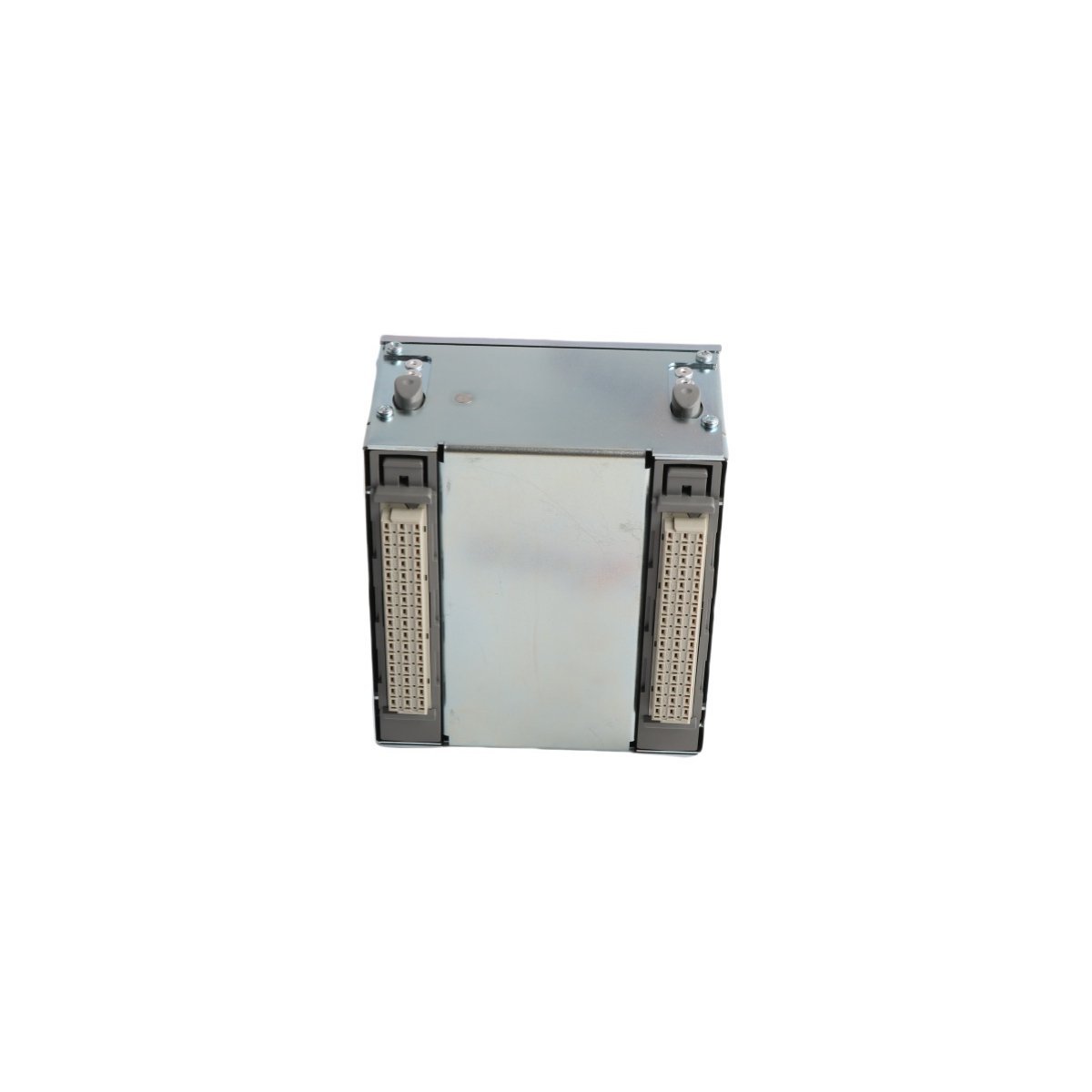

The ICS Triplex T8122 is a high-integrity Processor Interface Adapter designed specifically for the Trusted Triple Modular Redundant (TMR) system. It provides the essential physical and electrical interface for the TMR processor, facilitating secure, high-speed data exchange across the safety controller backplane.

High-Integrity System Connectivity

The T8122 Trusted TMR Processor Interface Adapter functions as a critical bridge within the Rockwell ICS Triplex safety architecture. This module provides the necessary hardware interface to link the Trusted processor with the broader system infrastructure, ensuring that high-speed data remains consistent and uncorrupted. By utilizing advanced Triple Modular Redundant (TMR) technology, the T8122 eliminates single points of failure at the connection level. This architectural choice guarantees that safety-critical processes in the oil, gas, and power sectors maintain operational continuity even when hardware faults occur.

Robust Hardware Design and Resilience

Industrial environments often subject control hardware to extreme thermal and electrical stress. Consequently, the T8122 features a durable construction using high-grade aluminum alloy, which offers superior heat dissipation and structural integrity while maintaining a lightweight profile. This ruggedized design allows the adapter to function reliably in the harshest settings, from offshore platforms to remote processing plants. Furthermore, the module’s versatile port configuration supports seamless integration with existing field wiring and secondary control components, significantly reducing the complexity of system commissioning and maintenance.

Compliance and Operational Versatility

Safety remains the top priority for the T8122, as the module adheres to rigorous international safety standards and industrial protocols. This compliance ensures that the interface adapter integrates smoothly with various software platforms and third-party control systems without compromising the SIL (Safety Integrity Level) of the overall loop. Moreover, the modular design of the T8122 allows for straightforward hardware upgrades and system customization. Because it supports multiple communication protocols and high-speed data transmission, plant operators can modernize their industrial control systems with minimal downtime and maximum cost-effectiveness.

Key Technical Characteristics

• TMR System Optimization: Specifically engineered to interface with Trusted Triple Modular Redundant processors.
• High-Speed Data Throughput: Minimizes latency to ensure real-time response for safety-instrumented functions.
• Advanced Material Engineering: Constructed from high-grade aluminum alloy for durability and thermal management.
• Broad Protocol Compatibility: Supports a wide range of industrial communication standards for flexible networking.
• Fault-Tolerant Interface: Maintains secure and stable connections even under extreme environmental vibration or heat.
• Simplified Maintenance: Features a modular form factor that facilitates rapid hot-swapping and system updates.

Technical Specifications
