Description

Brief Product Description

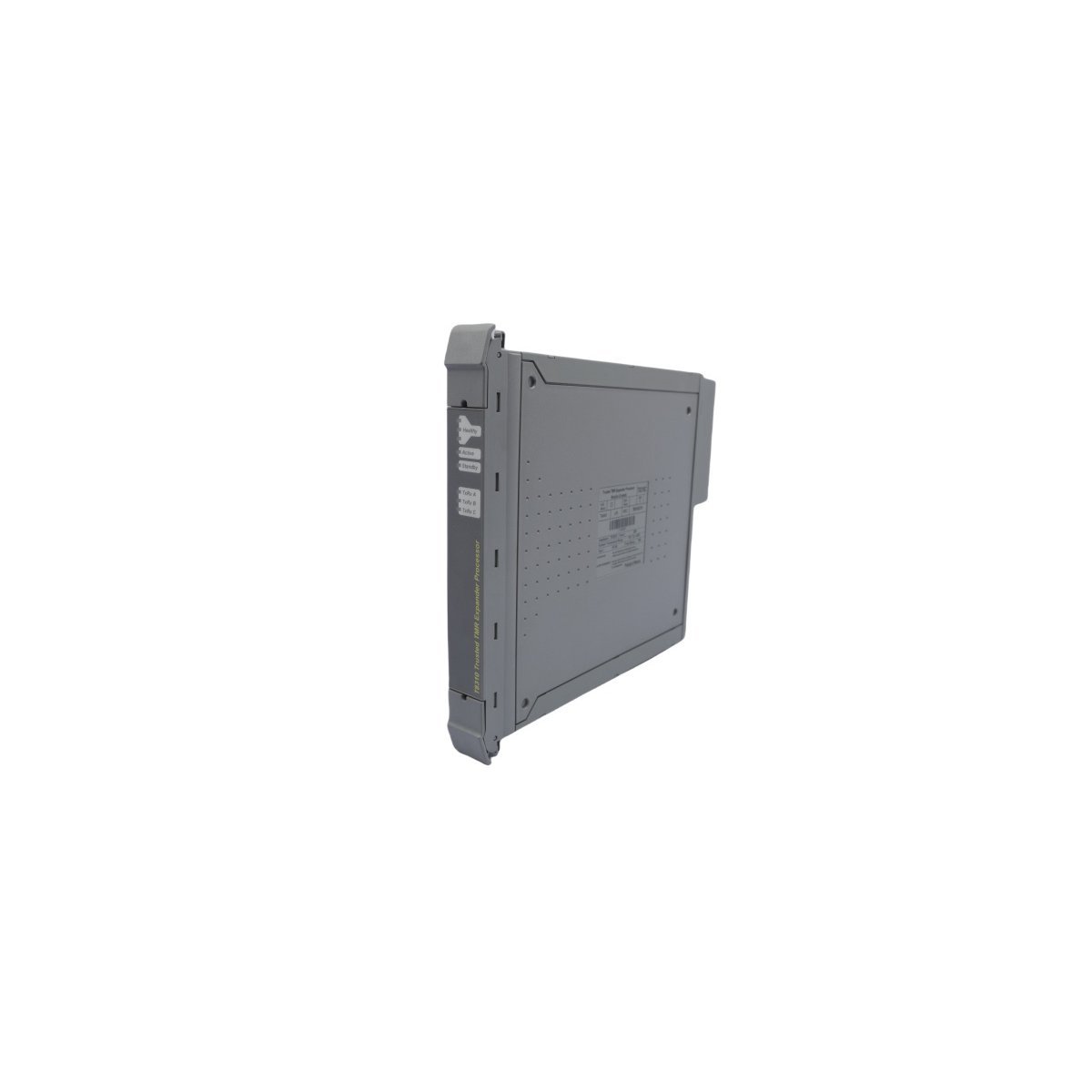

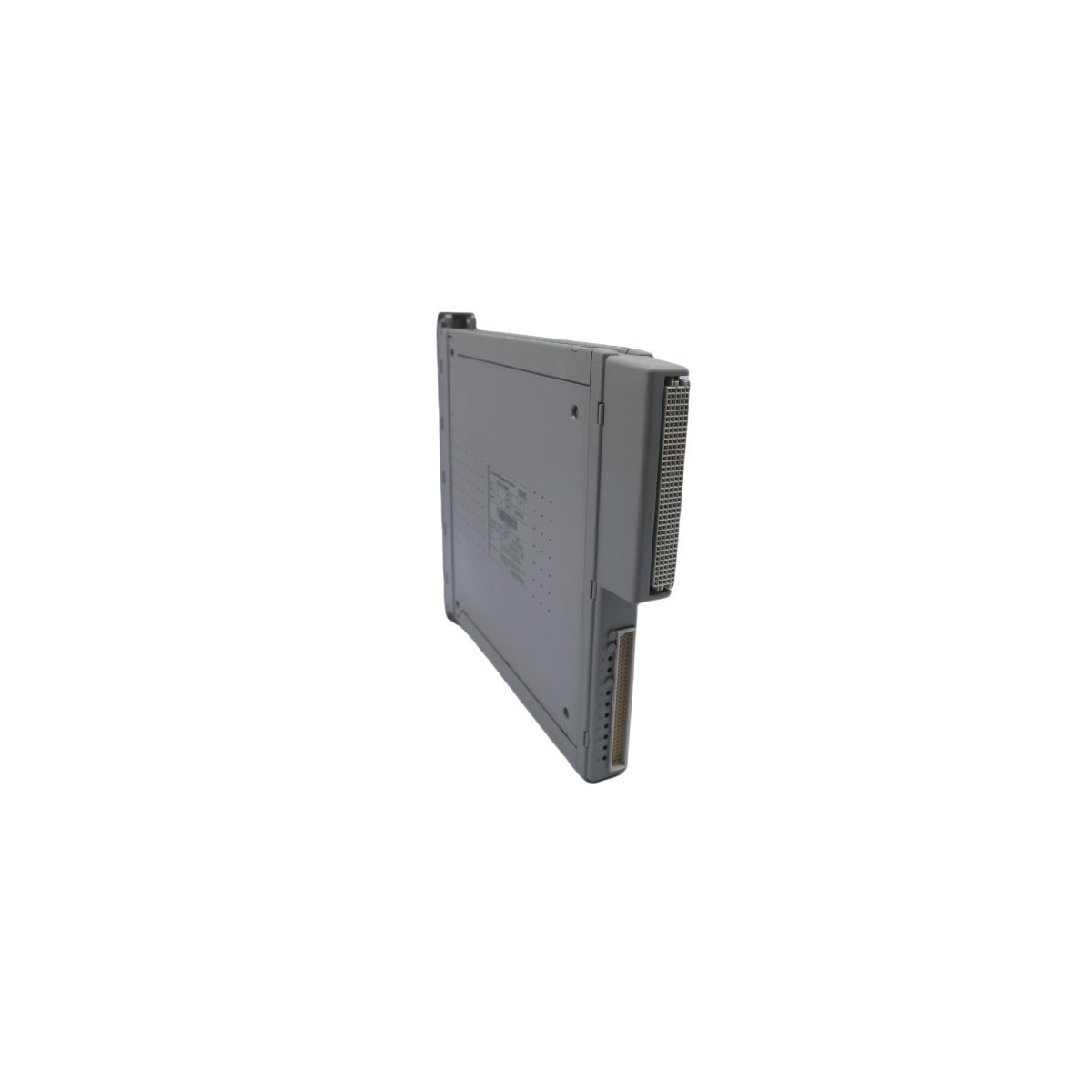

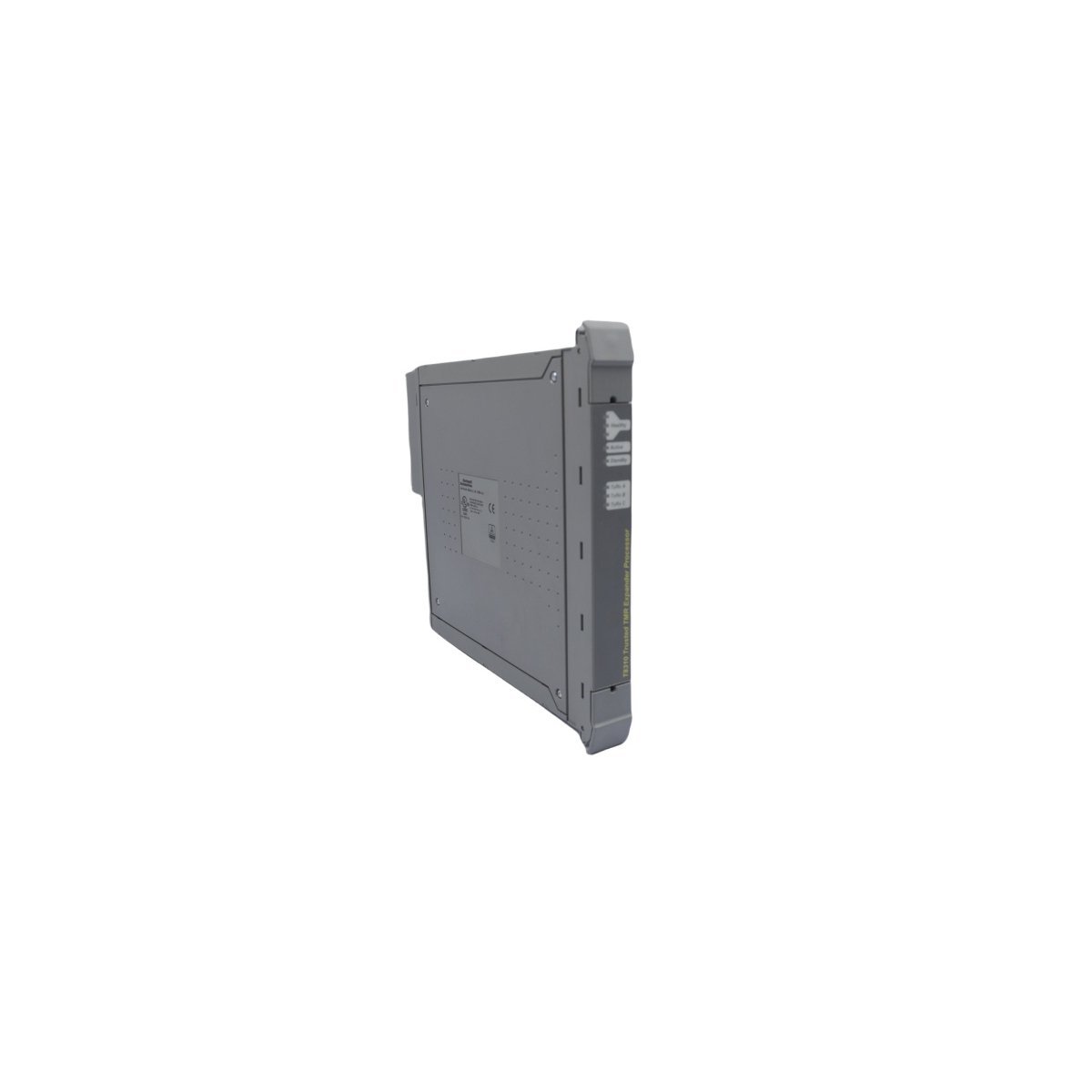

The ICS Triplex T8310CX is a high-performance Trusted Expander Processor designed to extend the computational capacity and chassis connectivity of Triple Modular Redundant (TMR) safety systems. It provides the essential processing power required to manage complex control logic and real-time data synchronization across expanded I/O architectures.

High-Performance Computational Expansion

The T8310CX Trusted Expander Processor serves as the secondary computational engine for sophisticated safety-instrumented functions. By offloading complex logic tasks from the main controller, this module ensures that the system maintains peak execution speeds even as the I/O count increases. The processor handles high-density data crunching and intricate control algorithms with ease, making it indispensable for large-scale operations in the petrochemical and power generation sectors. Furthermore, the unit facilitates seamless communication between the central processing unit and remote expansion racks, ensuring that all safety loops remain synchronized and responsive.

Fault-Tolerant Architecture and System Integrity

Reliability drives the design of the T8314CX, which fully supports the Triple Modular Redundant (TMR) philosophy. This module utilizes specialized hardware voting and error-correction techniques to maintain system stability in the event of a localized hardware failure. Consequently, the processor protects mission-critical processes from unexpected interruptions while providing a Safety Integrity Level (SIL) 3 capable environment. Its robust synchronization capabilities ensure that data remains consistent across all processing channels, effectively eliminating the risk of divergent logic states during high-stress operational phases.

Industrial Durability and Diagnostics

Rockwell Automation engineered the T8310CX to thrive within the demanding environments of heavy industry. The module features a ruggedized physical chassis that resists the effects of electromagnetic interference and mechanical vibration. Meanwhile, integrated diagnostic tools continuously monitor internal health and bus connectivity, delivering real-time status reports to the maintenance console. This proactive monitoring allows technicians to identify potential hardware degradation before it impacts plant safety. Because the T8310CX supports hot-swapping, operators can replace modules without powering down the system, thereby maximizing total equipment availability and reducing the cost of ownership.

Key Technical Characteristics

• Expanded Processing Power: Provides additional CPU resources to handle complex, high-speed safety logic.

• TMR System Integration: Fully compatible with the Trusted controller range for seamless expansion.

• Advanced Fault Tolerance: Features internal voting and diagnostics to ensure continuous operation.

• High-Speed Bus Synchronization: Maintains precise data alignment between the main chassis and expander racks.

• Ruggedized Construction: Designed for reliable performance in extreme thermal and electrical environments.

• Hot-Swap Capability: Facilitates live hardware replacement to minimize process downtime.
