Description

Brief Product Description

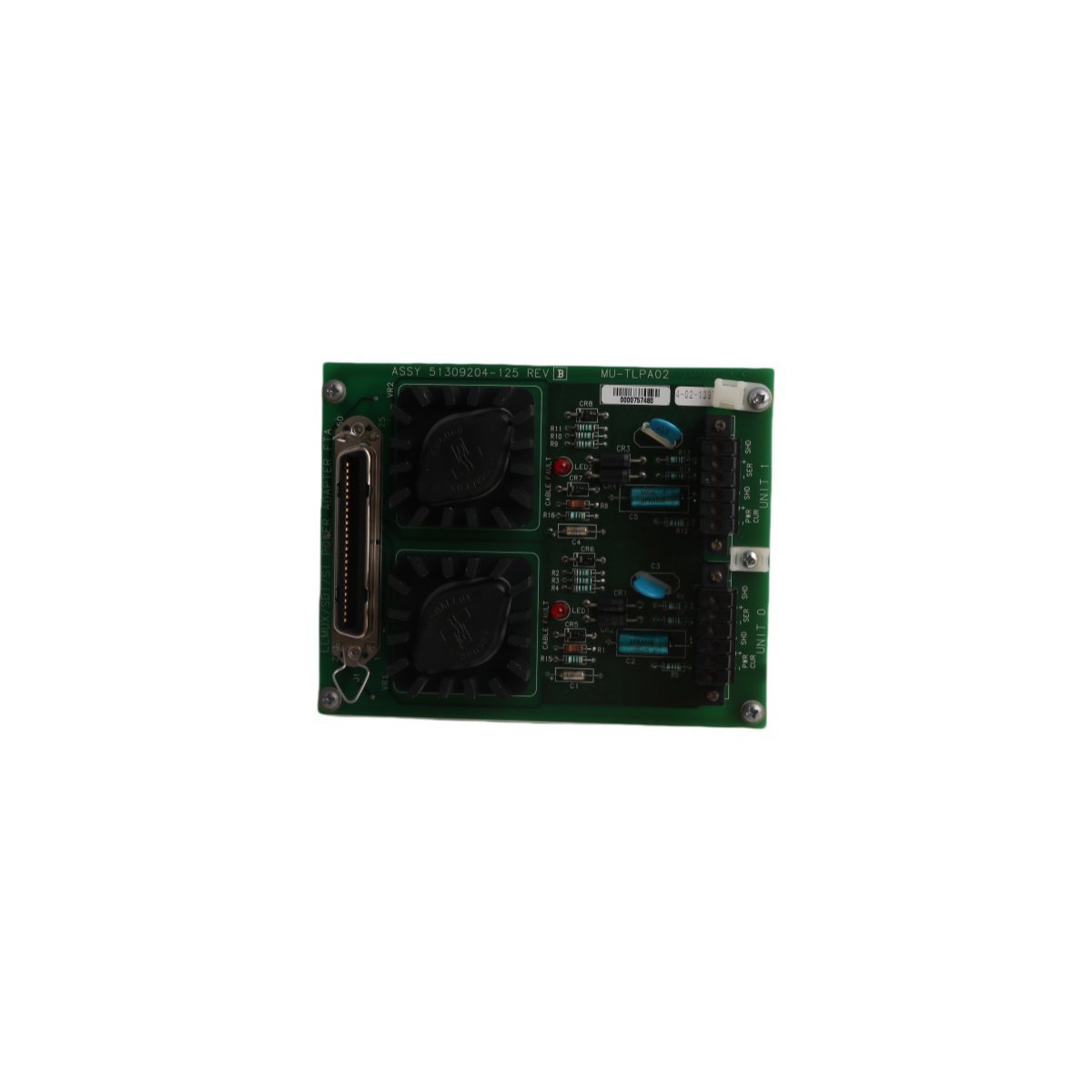

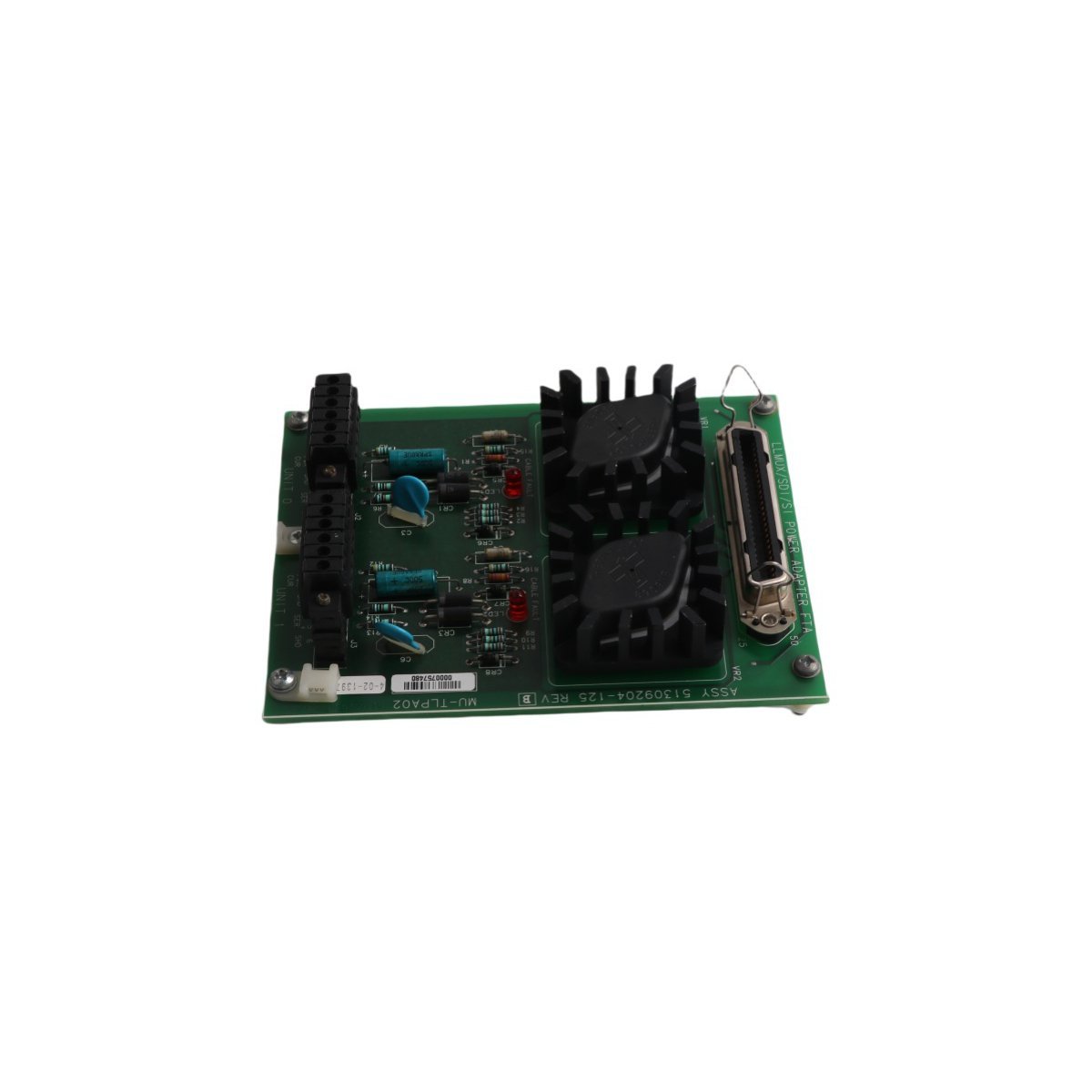

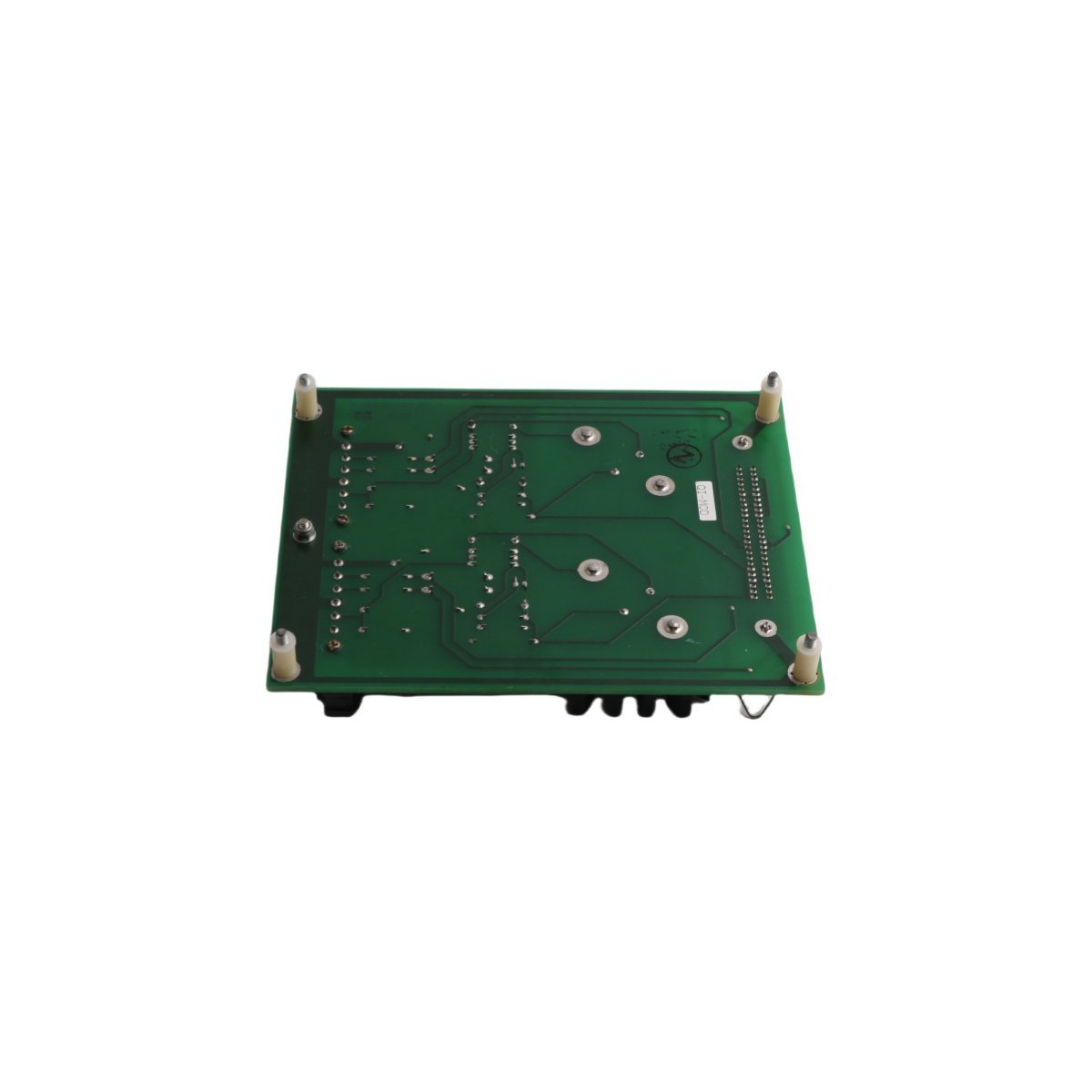

The Honeywell MU-TLPA02 (51309204-125) is a specialized power adapter board designed for the TDC 3000 and Experion PKS process control systems. It facilitates stable power distribution and interface management between field termination assemblies and system power supplies.

Product Description

The MU-TLPA02 operates as a vital power distribution component within the Honeywell Distributed Control System (DCS) infrastructure. Specifically categorized under the MU-T series, this adapter board manages the delivery of regulated power to various I/O processors and Field Termination Assemblies (FTAs). By providing a centralized point for power adaptation, the module ensures that sensitive control electronics receive consistent voltage, which prevents signal drift and hardware malfunctions during critical process operations.

Engineering Design and System Resilience

Honeywell engineers constructed the MU-TLPA02 to meet the rigorous demands of continuous-process industries. The board utilizes high-grade industrial components that withstand the thermal stresses of enclosed control cabinets. Furthermore, the circuitry includes protective measures against electrical transients, effectively shielding the downstream logic modules from power surges. This resilience proves essential in sectors like petrochemical refining and power generation, where even minor power fluctuations can lead to significant operational downtime.

Integration and Field Maintenance

The modular design of the 51309204-125 allows for straightforward integration into existing Honeywell cabinet architectures. It interfaces directly with the system’s power bus, distributing necessary current to low-power components throughout the rack. Consequently, technicians can perform maintenance or system expansions with minimal disruption to the overall control loop. The board also features clear identification markings and a standardized footprint, which simplifies the replacement process in legacy systems that require active lifecycle support.

Key Technical Characteristics

• System Role: Functions as a dedicated power adapter for TDC 3000 and related DCS platforms.
• Operational Stability: Maintains reliable performance across an extended temperature range.
• Protection Circuitry: Features integrated suppression to manage voltage irregularities.
• Form Factor: Compact footprint designed for high-density cabinet mounting.
• Compliance: Manufactured to meet UL, CE, and CSA standards for industrial control equipment.
• Legacy Support: Fully compatible with existing MU-T series termination and distribution hardware.
