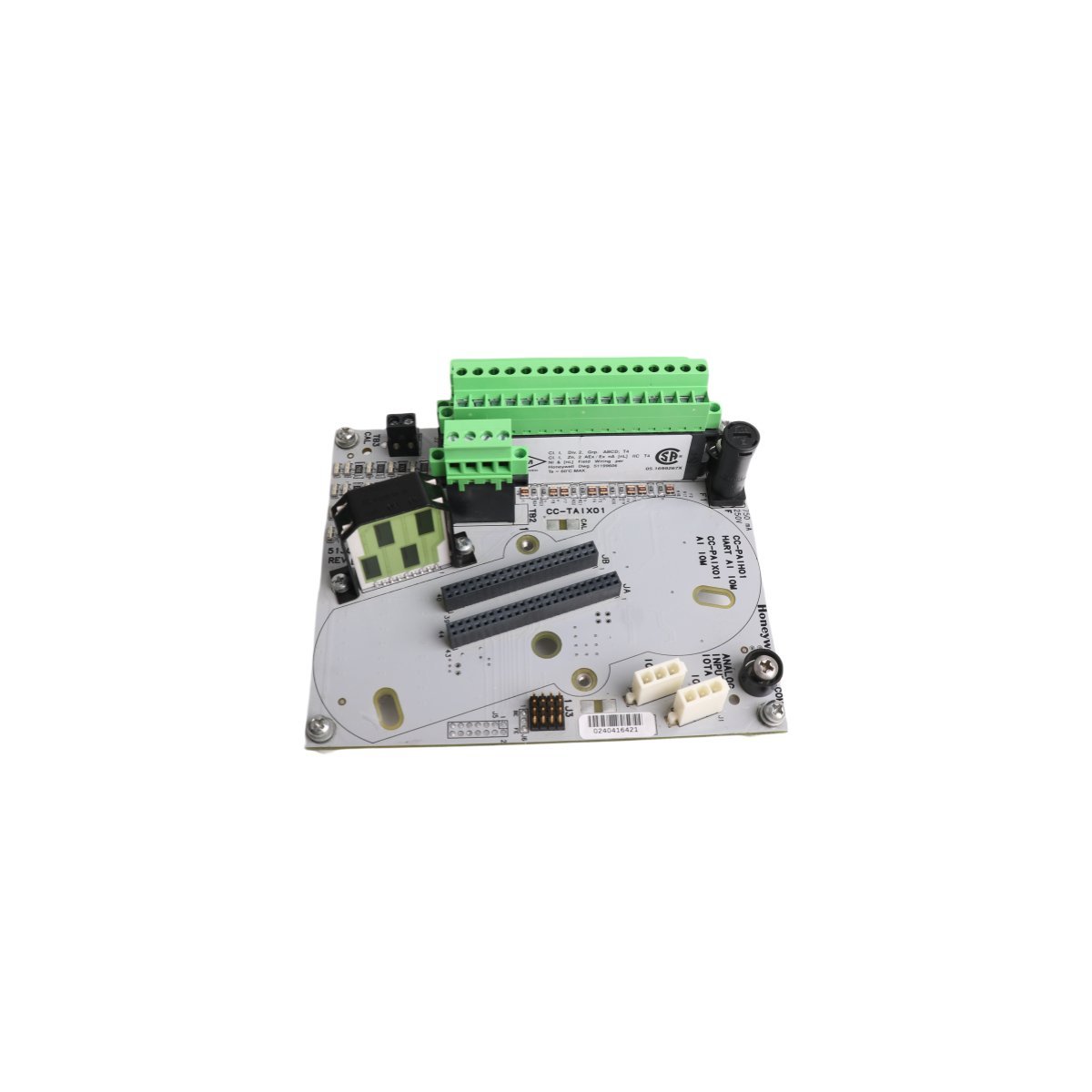

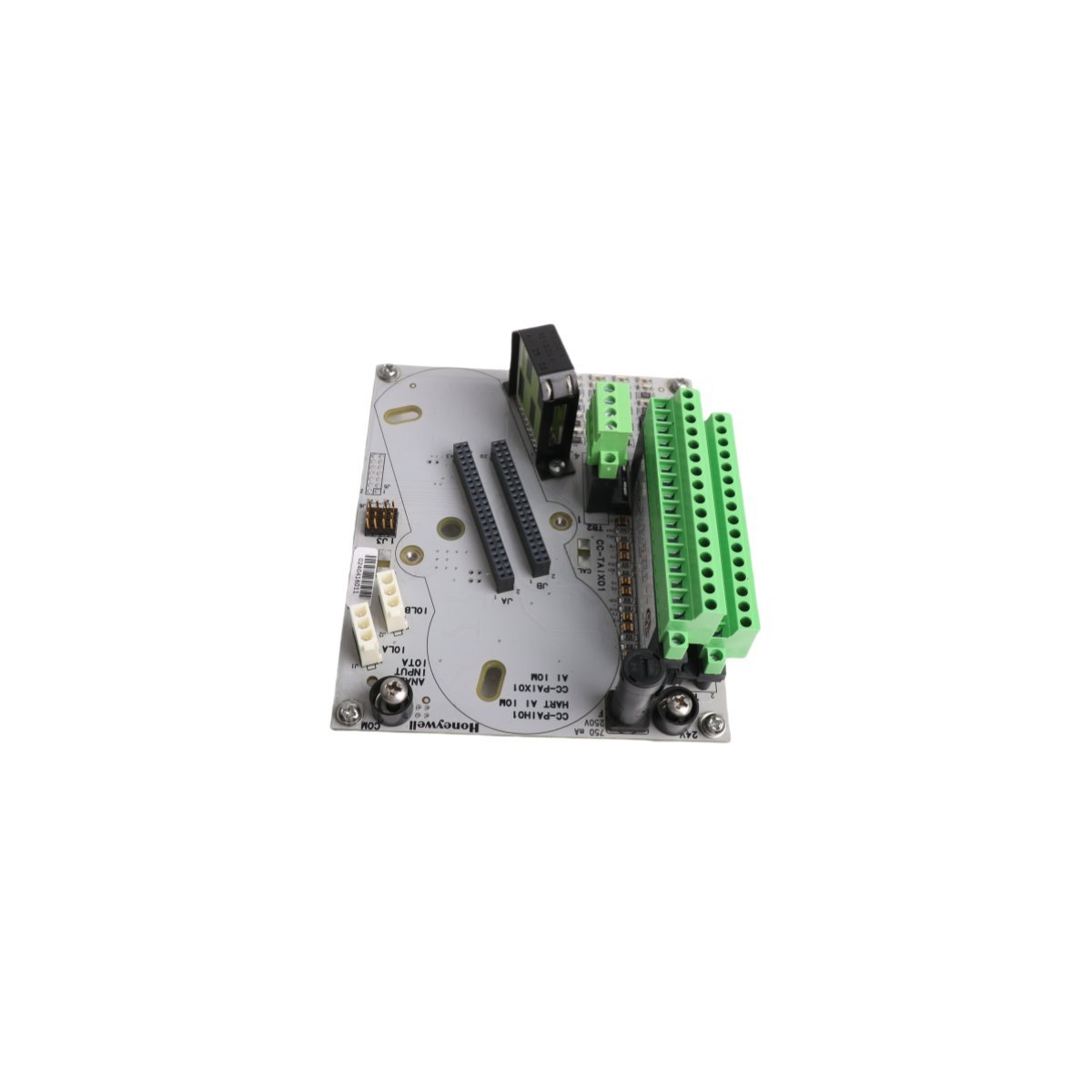

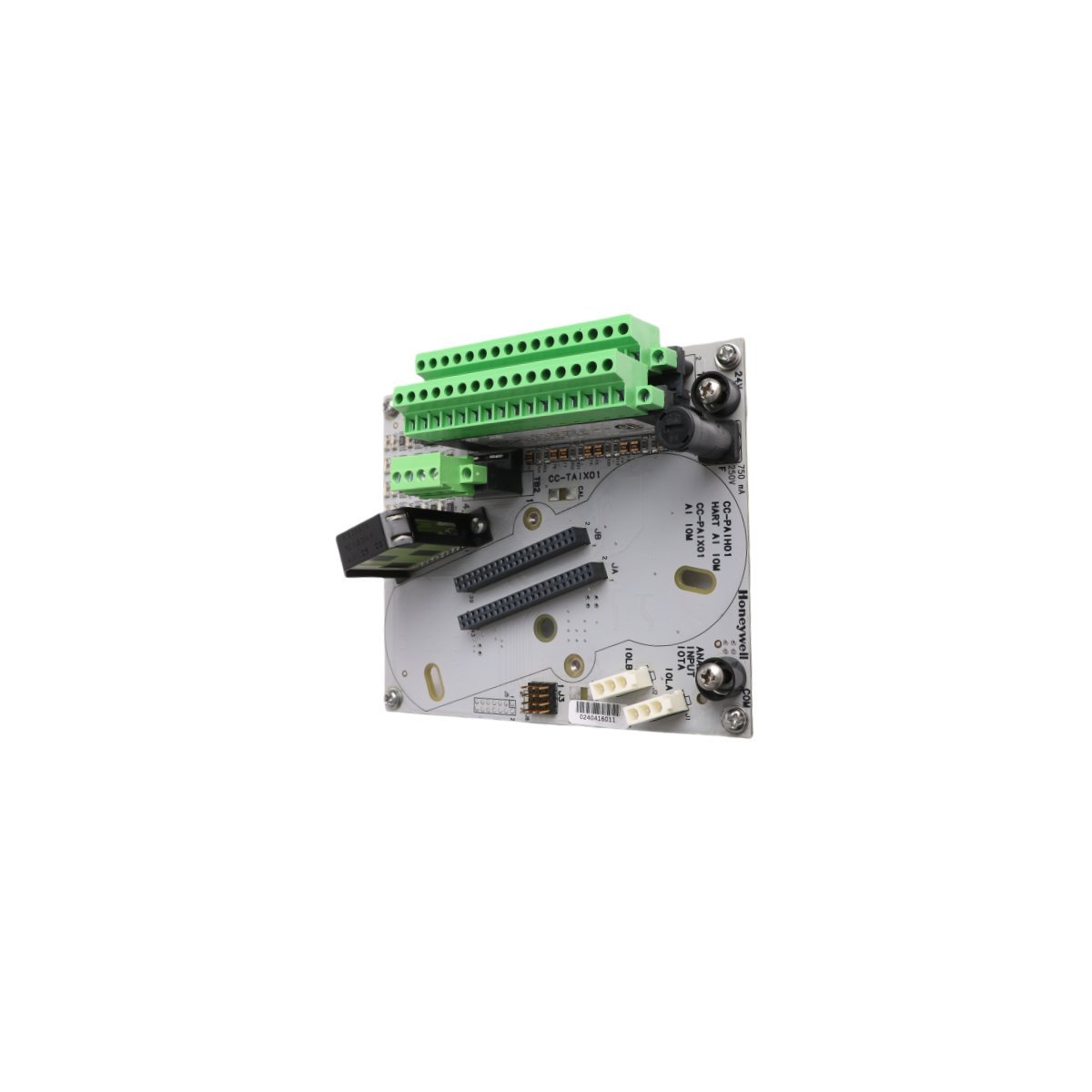

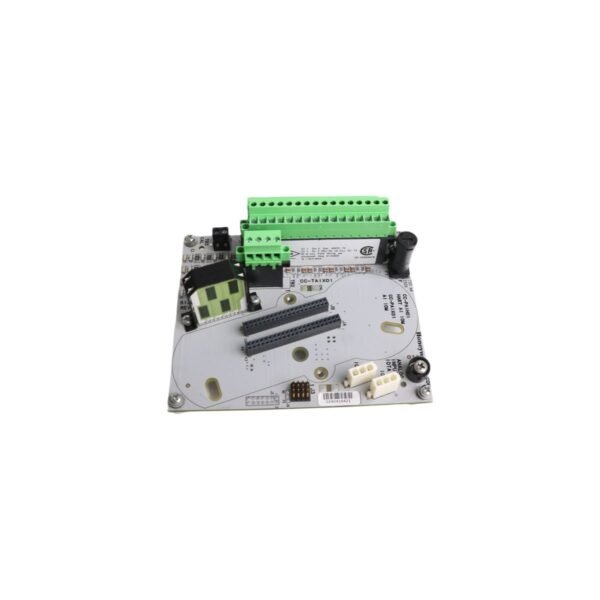

The Honeywell CC-TAIX01 (51308363-175) is a high-performance Analog Input I/O Termination Assembly (IOTA) designed for the Experion PKS C300 controller system. This module provides a secure, organized interface for field wiring, facilitating precise analog signal acquisition for critical industrial processes.

Product Description

The CC-TAIX01 serves as the foundational interface between field instrumentation and the Series C Analog Input Modules. As part of the Experion Process Knowledge System (PKS) architecture, this IOTA provides the physical mounting and electrical termination for 16-channel analog input signals. By decoupling the field wiring from the active electronic modules, the CC-TAIX01 allows for easy module replacement and enhances system maintenance without disturbing the integrity of the permanent field connections.

High-Precision Signal Acquisition and Safety

This assembly supports standard 4-20 mA current loops and various voltage signals, making it highly versatile for monitoring temperature, pressure, flow, and level transmitters. Because it is engineered for high-availability environments, the CC-TAIX01 incorporates robust filtering components to minimize electromagnetic interference (EMI) and signal noise. Consequently, the control system receives clean, accurate data, which is essential for maintaining safety and efficiency in chemical, energy, and manufacturing facilities.

Hardware Architecture and Scalability

The CC-TAIX01 features a compact vertical footprint, specifically optimized for high-density Series C cabinet installations. The design includes redundant power feed support to ensure that single power supply failures do not interrupt the signal path to the controller. Furthermore, the assembly supports HART (Highway Addressable Remote Transducer) digital communication, enabling the transmission of secondary diagnostic data from smart field devices directly to the DCS maintenance station.

Key Technical Characteristics

• System Compatibility: Primarily designed for Honeywell Series C I/O and C300 controllers.
• Channel Density: Provides terminations for up to 16 analog input channels.
• Safety Hardening: Features non-incendive circuit protection for use in classified hazardous locations.
• I/O Redundancy: Supports both non-redundant and redundant configurations to maximize system uptime.
• Communication Support: Transparently passes HART digital signals for advanced instrument asset management.
• Mechanical Design: Utilizes standard Series C mounting and locking mechanisms for secure vibration resistance.
