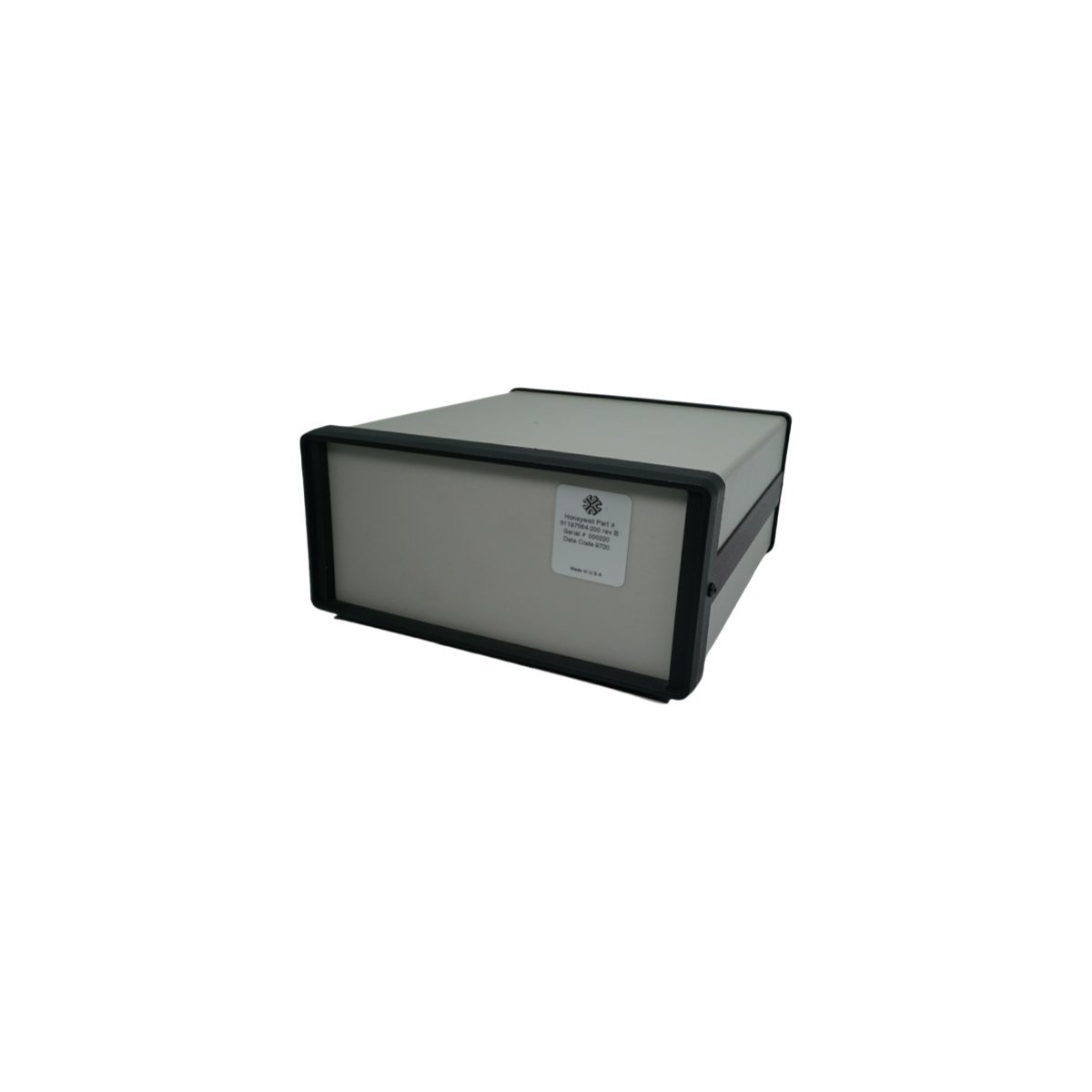

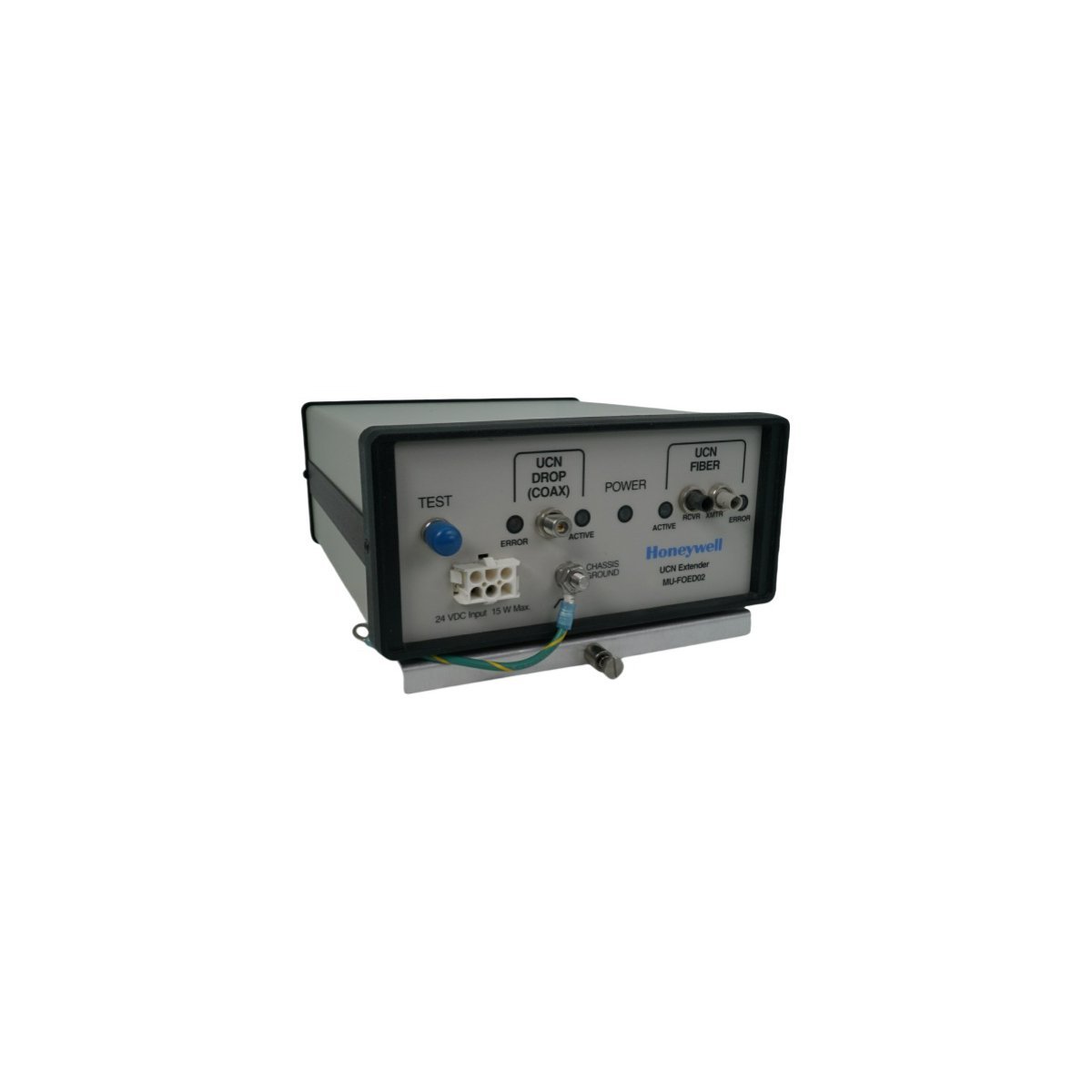

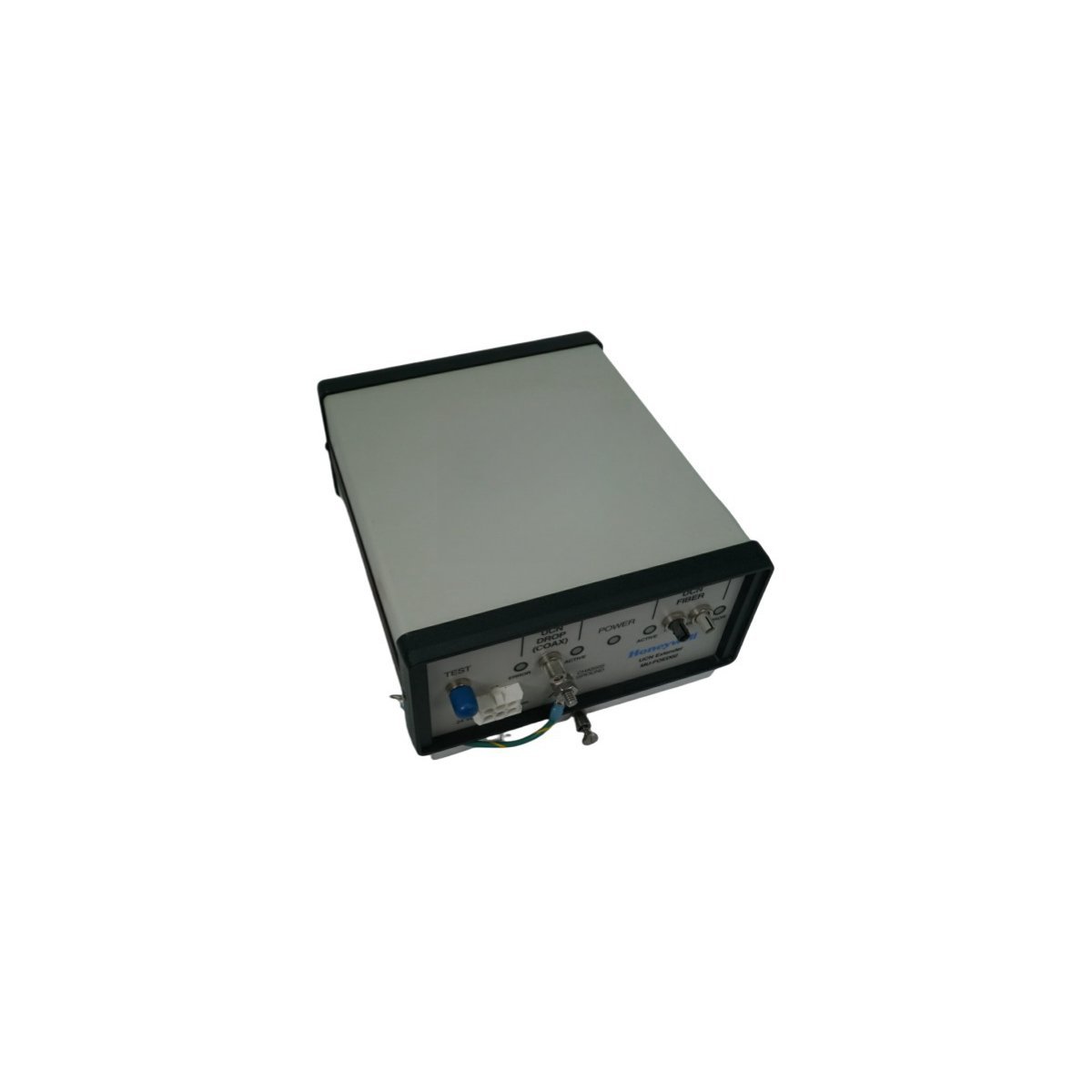

The Honeywell MU-FOED02 (Part Number: 51197564-200) serves as a specialized UCN Fiber Optic Extender within the Honeywell DCS ecosystem. This module primarily extends the range and integrity of Universal Control Network (UCN) communications by converting electrical signals into optical pulses. By utilizing fiber optic media, the device effectively eliminates electromagnetic interference (EMI) and lightning-induced surges that typically plague traditional copper cabling in heavy industrial zones. Consequently, this unit ensures high-speed data consistency across expansive plant layouts.

Advanced Connectivity and Protocol Support

This extender module integrates seamlessly with modern industrial architectures by supporting several key communication standards. While it functions as a core component of the MU-T series, it maintains broad compatibility with MODBUS-TCP and OPC-UA protocols. This multi-protocol approach facilitates smoother data bridging between legacy control hardware and contemporary supervisory systems. Furthermore, the inclusion of Ethernet routing capabilities allows engineers to implement more complex network topologies without sacrificing signal latency or bandwidth.

Reliability in Demanding Environments

Engineers designed the MU-FOED02 to withstand the rigors of mission-critical processing plants. The module incorporates sophisticated optical power management, which automatically compensates for signal attenuation over long distances. This proactive management guarantees a stable link budget even when environmental temperatures fluctuate. The ruggedized chassis protects the internal circuitry from dust and moisture, significantly extending the mean time between failures (MTBF) and reducing the necessity for frequent maintenance interventions.

Key Technical Characteristics

• Product Series: MU-T Series
• Application: Universal Control Network (UCN) Extension
• Signal Media: Fiber Optic (Immune to EMI/RFI)
• Protocol Support: MODBUS-TCP, OPC-UA, and Ethernet Routing
• Construction: Industrial-grade materials for high-durability performance
• Safety Compliance: Built-in protection against overcurrent and short-circuit faults
• Origin: Manufactured in the USA

Physical Configuration and Data

• Brand: Honeywell
• Model Number: MU-FOED02
• Part/Order Number: 51197564-200
• Net Weight: 1.66 kg
• Unit Dimensions: 19 cm x 23.5 cm x 10.5 cm

Industrial Applications

The MU-FOED02 is an essential tool for large-scale facilities such as oil refineries, chemical plants, and power generation stations. It excels in scenarios where controllers and field I/O racks are separated by distances that exceed standard coaxial limits. By deploying this extender, operators can maintain centralized control while distributing hardware across a wide geographic footprint, thereby enhancing both safety and operational flexibility.
