Brief Product Description

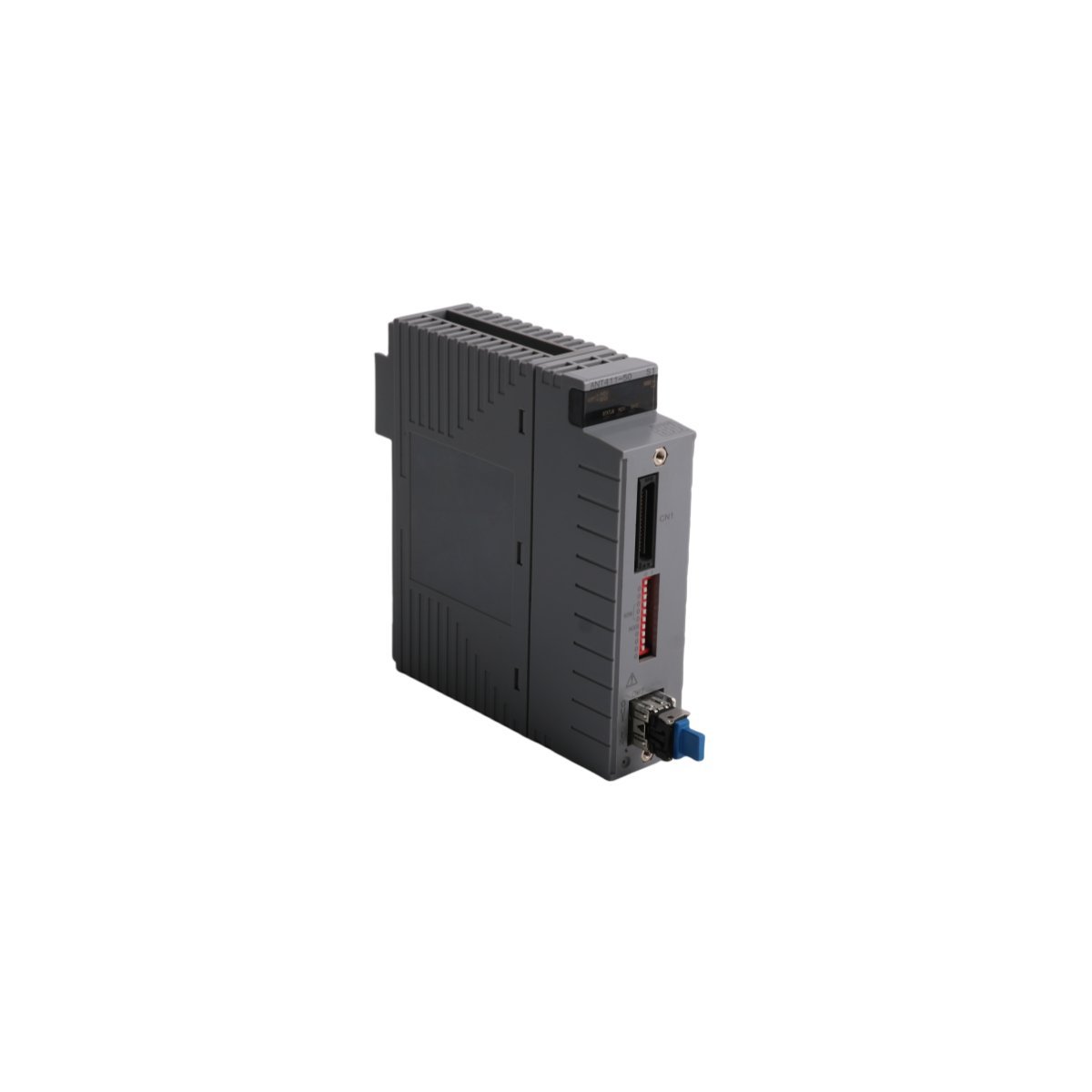

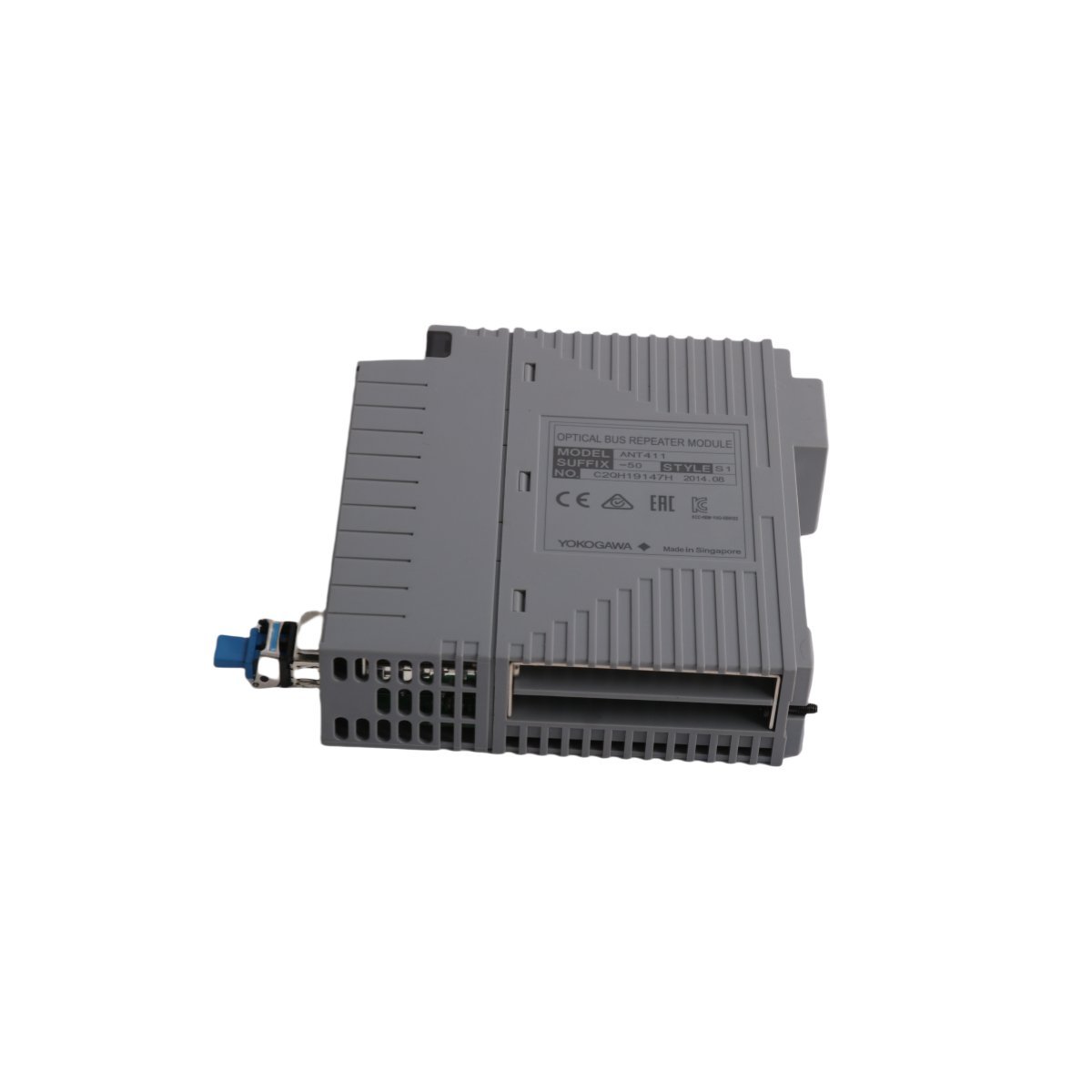

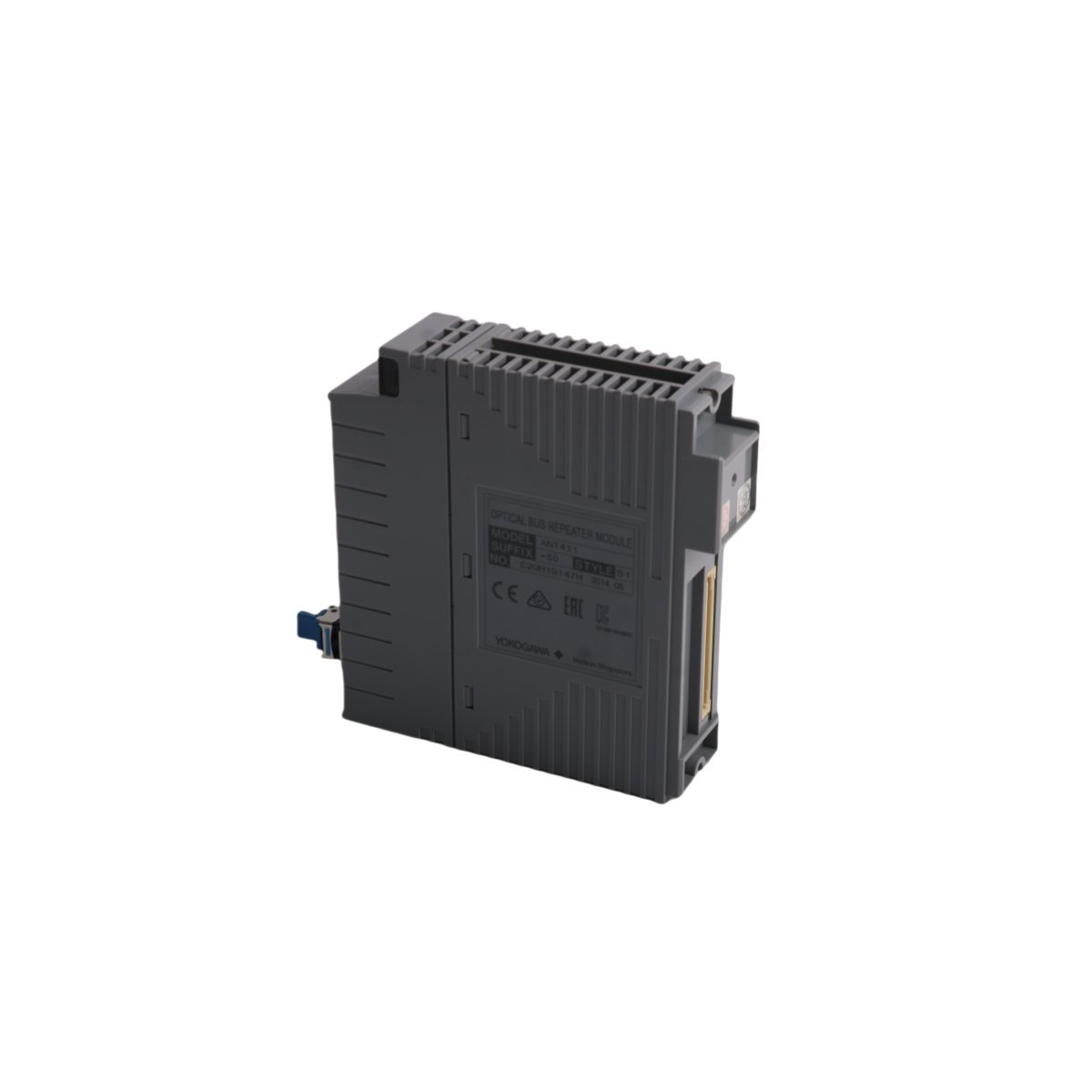

The Yokogawa ANT411-50 S1 is a high-performance optical ESB bus repeater module designed to extend the communication distance between a Field Control Station and I/O nodes via fiber optic cabling. It ensures high-speed, noise-immune data transmission within the Centum VP Distributed Control System (DCS).

High-Speed Optical Extension for Distributed Control

The Yokogawa ANT411-50 S1 serves as a vital communication bridge within the Centum VP architecture, facilitating the extension of the Extended Serial Backplane (ESB) bus. While standard copper-based ESB connections are limited by distance and susceptible to electromagnetic interference, this optical repeater utilizes fiber optic technology to bridge significant gaps between hardware racks. By converting electronic signals into light pulses, the ANT411-50 S1 allows for the placement of I/O nodes in remote locations far from the central Field Control Station (FCS). This capability is essential for large-scale industrial sites where process units are geographically dispersed across a facility.

Enhanced Signal Integrity and Noise Immunity

Reliability remains the primary objective of the ANT411-50 S1 design. The shift from electrical to optical transmission provides total galvanic isolation between connected racks, effectively eliminating ground loop issues and protecting the system from lightning strikes or high-voltage surges. Furthermore, fiber optic cabling is inherently immune to radio frequency interference (RFI) and electromagnetic interference (EMI), which ensures consistent data throughput in environments with heavy machinery or high-power electrical equipment. Transitioning to an optical backbone with the ANT411-50 S1 guarantees that critical process data remains uncorrupted during high-speed transmission.

Industrial Durability and System Integration

Yokogawa engineers the ANT411-50 S1 to meet the rigorous demands of sectors such as oil and gas, chemical processing, and power generation. The module features a robust digital processing engine that minimizes signal latency, ensuring that remote I/O remains as responsive as locally mounted hardware. The “S1” suffix denotes a specific revision level tailored for high-availability configurations, often used in redundant bus setups to prevent single points of failure. Moreover, its compact form factor allows for seamless integration into standard Yokogawa FIO (Field network I/O) environments, simplifying both the initial deployment and future system expansions.

Key Technical Characteristics

• Optical Fiber Transmission: Extends ESB bus distances significantly beyond the limits of copper cabling.
• Total Galvanic Isolation: Protects control systems from electrical noise, surges, and ground loops.
• Centum VP Compatibility: Optimized for seamless integration with Yokogawa’s premier DCS platform.
• High-Speed Data Throughput: Maintains real-time responsiveness for remote I/O modules.
• Dual-Link Redundancy Support: Facilitates high-availability system designs to maximize plant uptime.
• Robust Revision Level: The S1 version ensures enhanced stability and long-term component lifecycle support.
