Product Overview

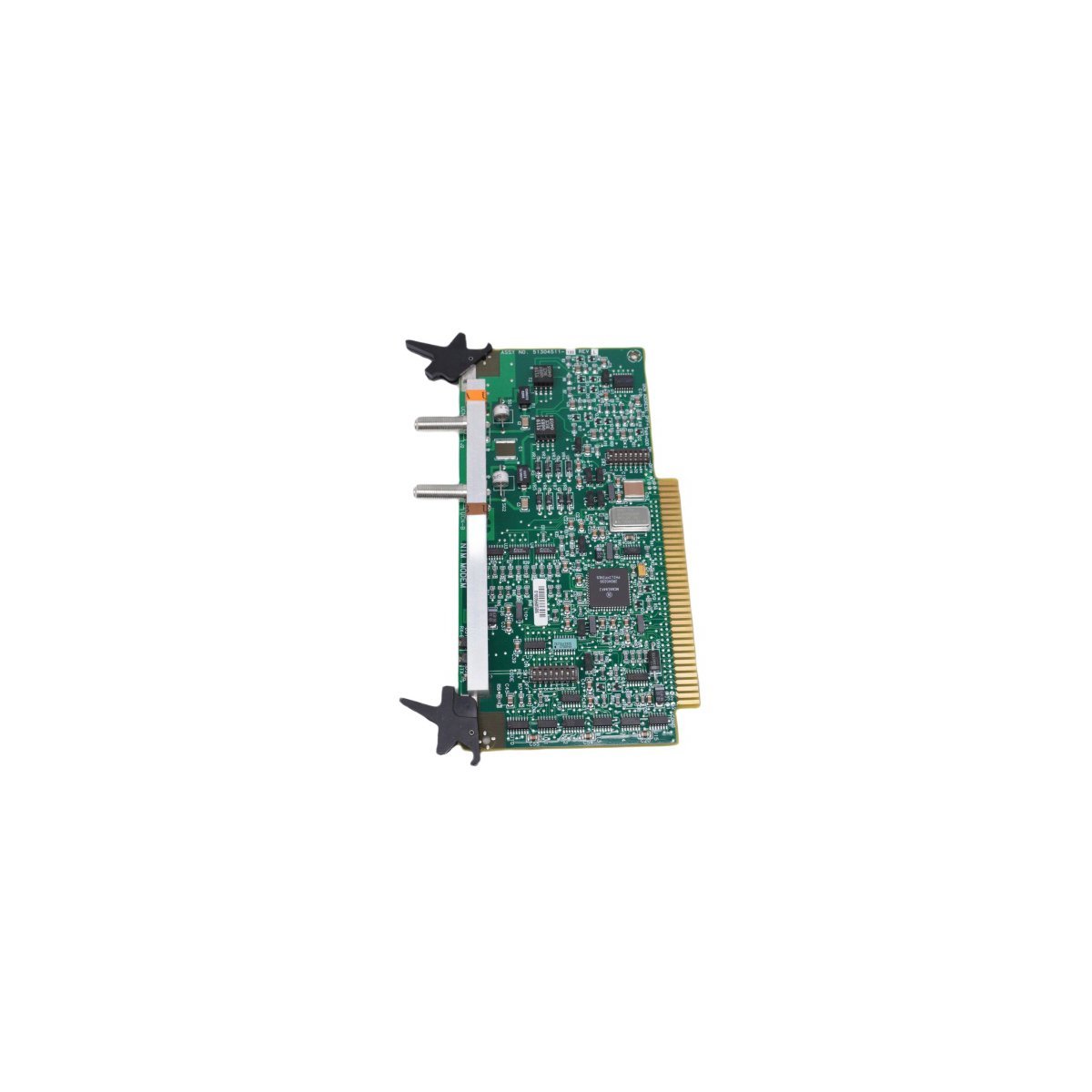

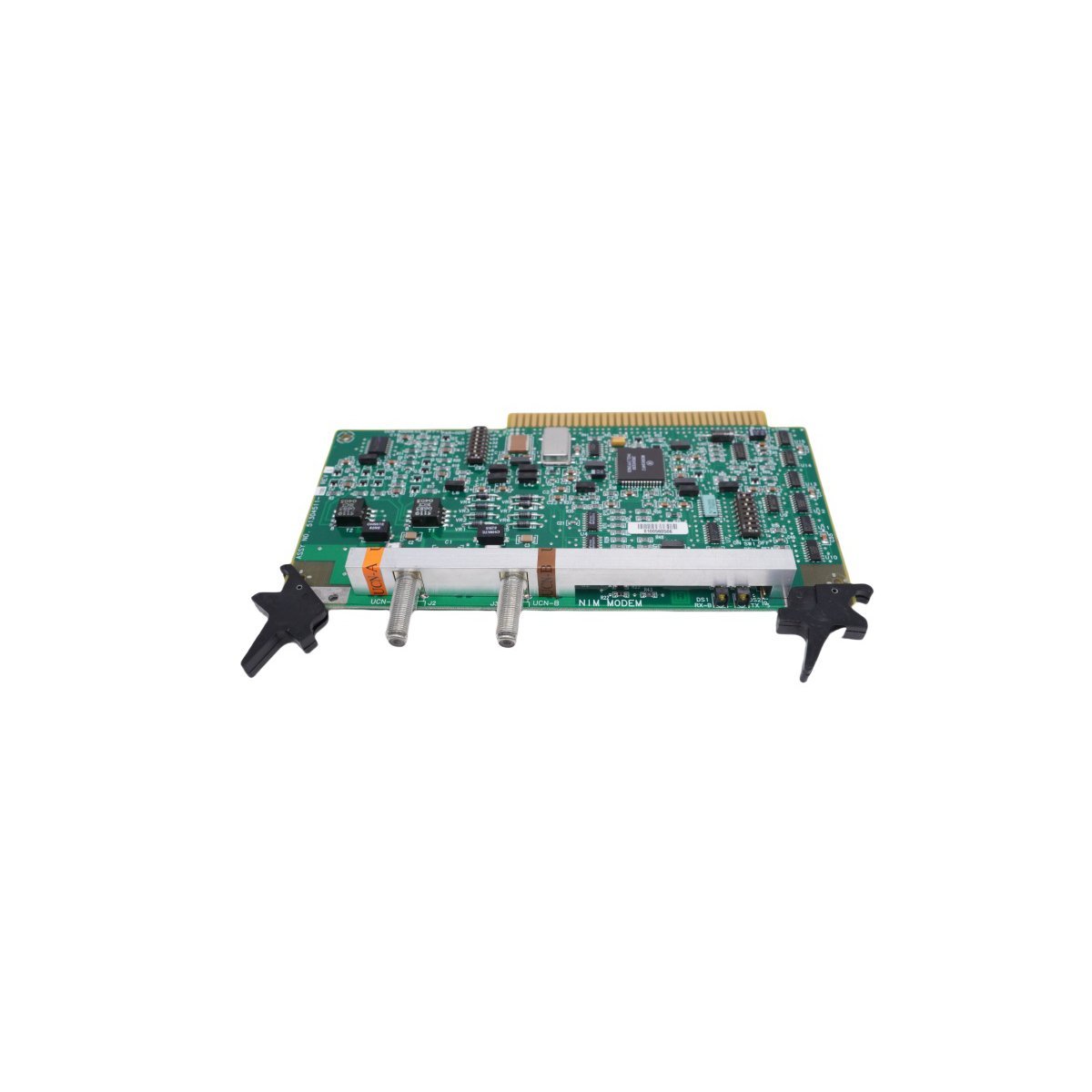

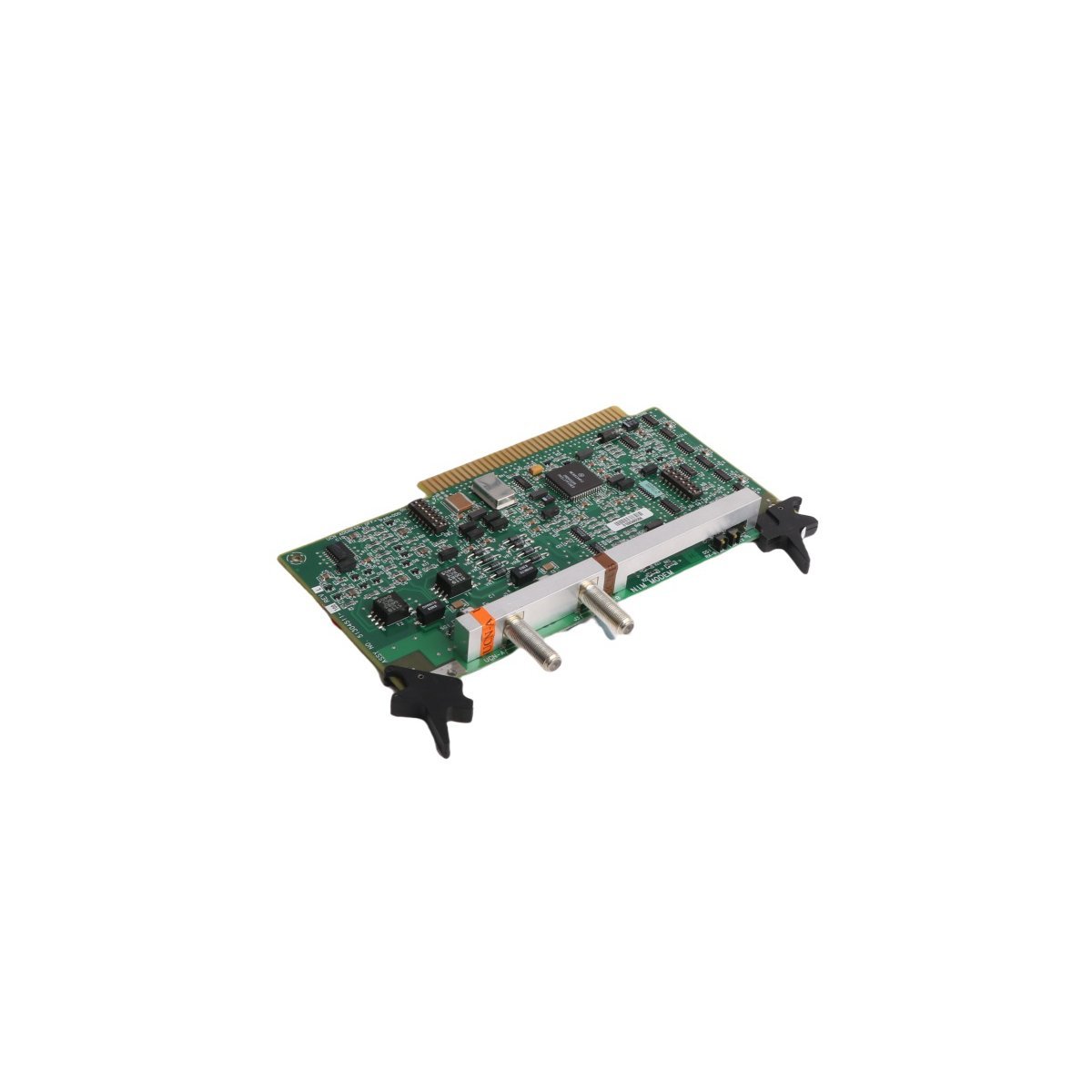

The Honeywell 51304511-100 operates as a high-performance Network Interface Module (NIM) specifically engineered for the TDC 3000 Distributed Control System (DCS). This module serves as the primary gateway for data exchange across the Universal Control Network (UCN), effectively bridging communications between field-level control devices and supervisory monitoring stations. By processing data packets with high precision, the 51304511-100 ensures seamless information flow across complex automation architectures.

Technical Specifications

• Model Number: 51304511-100
• Manufacturer: Honeywell
• System Compatibility: TDC 3000 Series
• Module Type: Network Interface Module (NIM)
• Communication Service: Universal Control Network (UCN)
• Weight: 0.24 kg
• Dimensions: 2 cm x 13.3 cm x 23.7 cm
• Country of Origin: USA
• Status: Active
• HS Code: 8537101190

Functional Capabilities and System Integration

Engineers utilize the 51304511-100 to manage robust network traffic within legacy TDC 3000 environments. Because the module supports redundant network path configurations, it prevents communication disruptions, which consequently maximizes process availability in mission-critical facilities like chemical refineries and power generation plants. Furthermore, the unit consolidates various legacy interface functions into a single, streamlined hardware footprint, which significantly reduces cabinet complexity and maintenance requirements.

The module demonstrates exceptional resilience when exposed to electromagnetic interference and thermal fluctuations. Moreover, its design maintains strict backward compatibility with existing TDC 3000 infrastructure. This feature allows operators to modernize their network interfaces without requiring extensive system overhauls. Consequently, facility managers preserve their initial hardware investments while simultaneously achieving reliable, high-speed data transmission across the control network.
