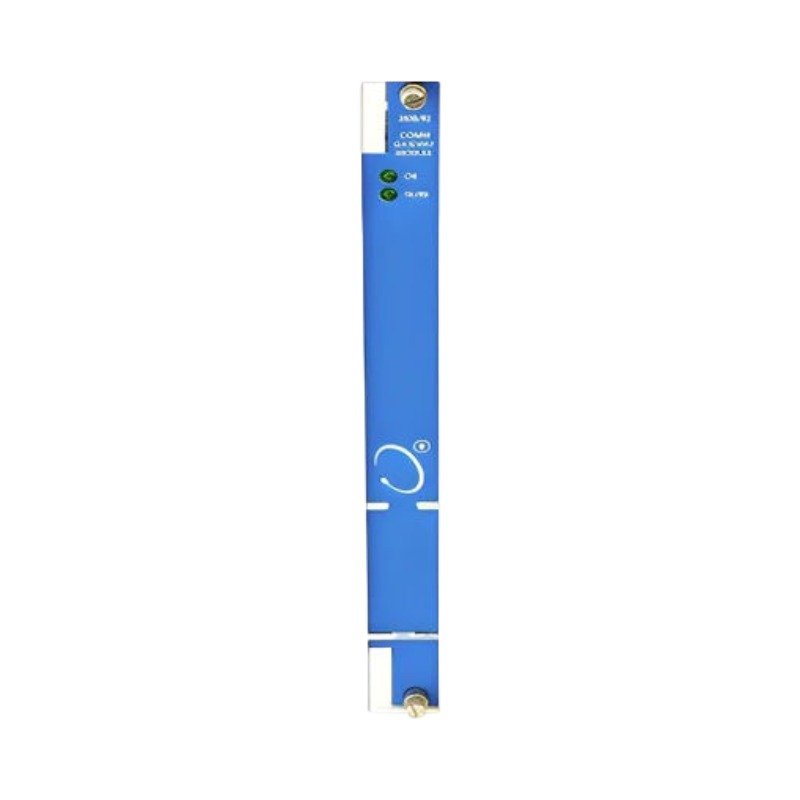

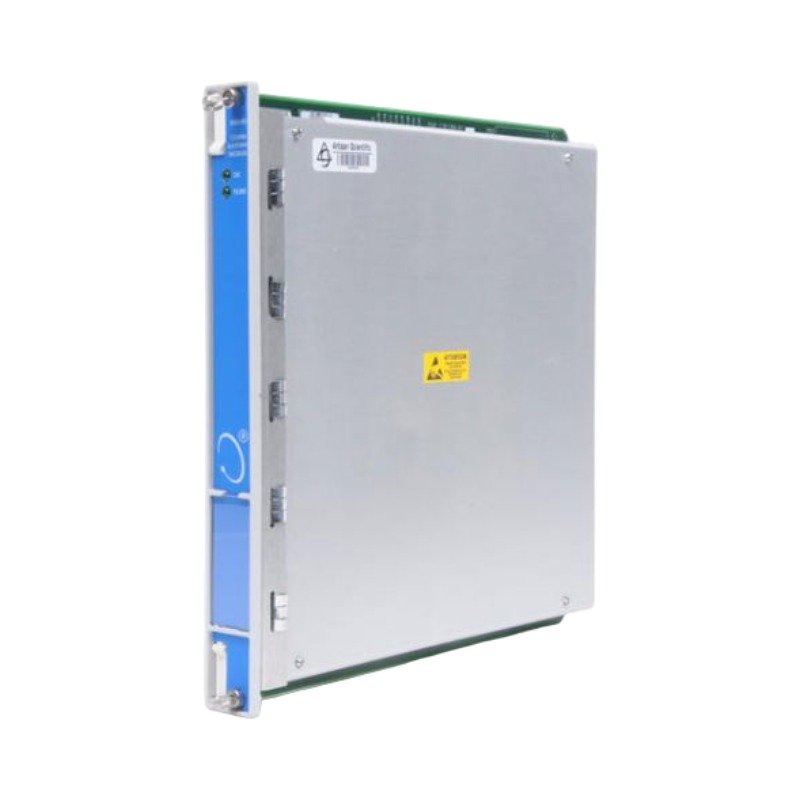

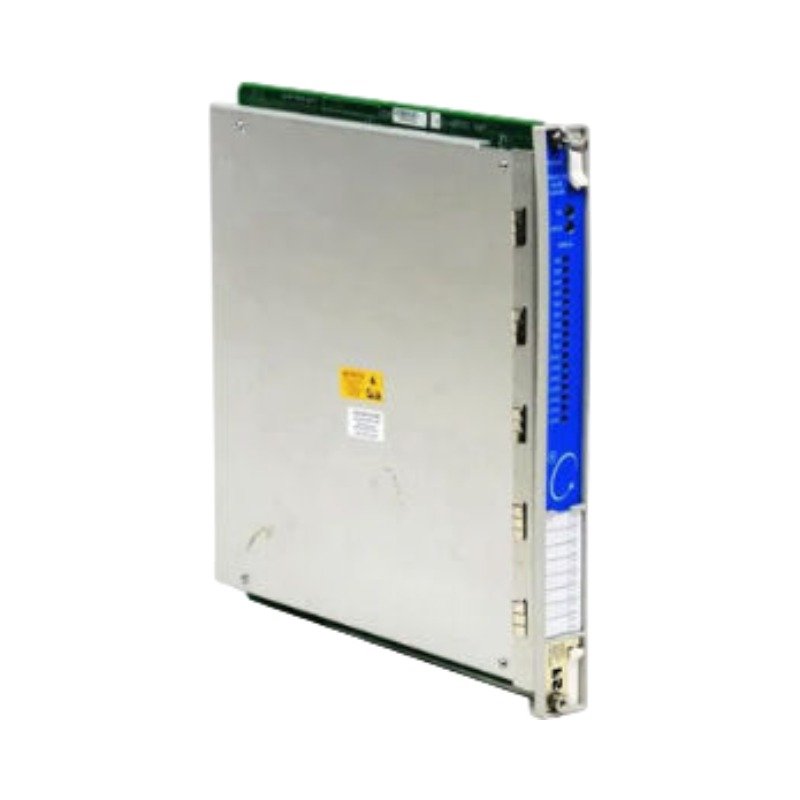

Bently Nevada 136180-01 3500/92 Communication Gateway Module
136180-01 is available as brand new, original factory stock. Our logistics system routes this communication module worldwide with fast delivery options.
Description
Configured for high-speed industrial data concentration and protocol routing within the 3500 Machinery Protection System, the Bently Nevada 136180-01 (136180-01 Communication Gateway Module) provides direct physical/electrical execution. This main front-panel processing card gathers static data variables, time-stamped machine parameters, and system alarm registers across the internal backplane networks. Consequently, by operating as a centralized data translator, the device updates and packages rack metrics for direct transmission to external plant automation architectures and machinery diagnostic platforms.
Hardware Specifications
| Parameter | Specification |
| Model | 136180-01 |
| Brand | Bently Nevada |
| Origin | United States |
| Weight | 0.80 kg |
| Dimensions | 241.3 mm x 24.4 mm x 103.1 mm |
| Operating Temp | -30 to +65 deg C |
| Power Consumption | 5.0 W to 5.6 W typical (depending on rear I/O pairing) |
| Data Update Time | Less than 1.0 second for all rack modules combined |
| Protocol Support | Modicon Modbus (Serial), Modbus/TCP (Ethernet), Proprietary BN Protocol |
| Internal Base | High-speed internal bus connector interface |
| Slot Requirement | Full-height, installs in any non-power monitor slot |
Rotor Dynamics and Cross-Talk Suppression Engineering
The Bently Nevada 136180-01 integrates a dedicated processing engine to coordinate real-time register mapping for high-speed rotor dynamics variables. Specifically, the card queries adjacent vibration and speed monitors via the backplane, implementing localized cross-talk suppression to preserve digital data integrity during peak bus traffic. While external distributed control systems (DCS) read structured Modbus registers, internal isolation loops protect backplane communications from external line noise. Additionally, the gateway correlates probe metrics with factory eddy-current probe scaling files, cross-checking current variables against gap voltage validation targets near -10 VDC to confirm correct channel diagnostic flags before transferring data packets over external networks.
Frequently Asked Questions
Q: Does the 136180-01 gateway processor function as a standalone card inside the 3500 chassis?
A: No, the 136180-01 serves as the fixed front card assembly. To establish a complete operational link, technicians must pair it with an appropriate rear I/O module, such as the 136188-01 (Ethernet/RS232) or 136188-02 (Ethernet/RS485) module.
Q: How do engineers modify or customize the specific register addresses exported by the 136180-01 module?
A: Engineers must utilize the Configurable Modbus Register Utility within the standard 3500 Rack Configuration Software. This software tool alters the internal memory map of the 136180-01 processor, allowing operators to match specific parameters with existing plant data frameworks.
Field Installation Guidelines
Slide the full-height 136180-01 processor card into the designated slot from the front of the 3500 chassis, ensuring it mates cleanly with the matching rear I/O termination card.
Secure the faceplate to the chassis framework by tightening the upper and lower screws to a maximum torque specification of 0.6 N m.
Connect network cables exclusively to the associated rear I/O connections, routing the signal wires through isolated conduits to prevent electromagnetic induction from nearby motor leads.
Ground the chassis framework securely to the centralized plant instrument ground bus before connecting active Ethernet or serial lines to the module assembly.
Additional information
| Weight | 0.55 kg |
|---|---|
| Dimensions | 26 × 13 × 12 mm |
