Description

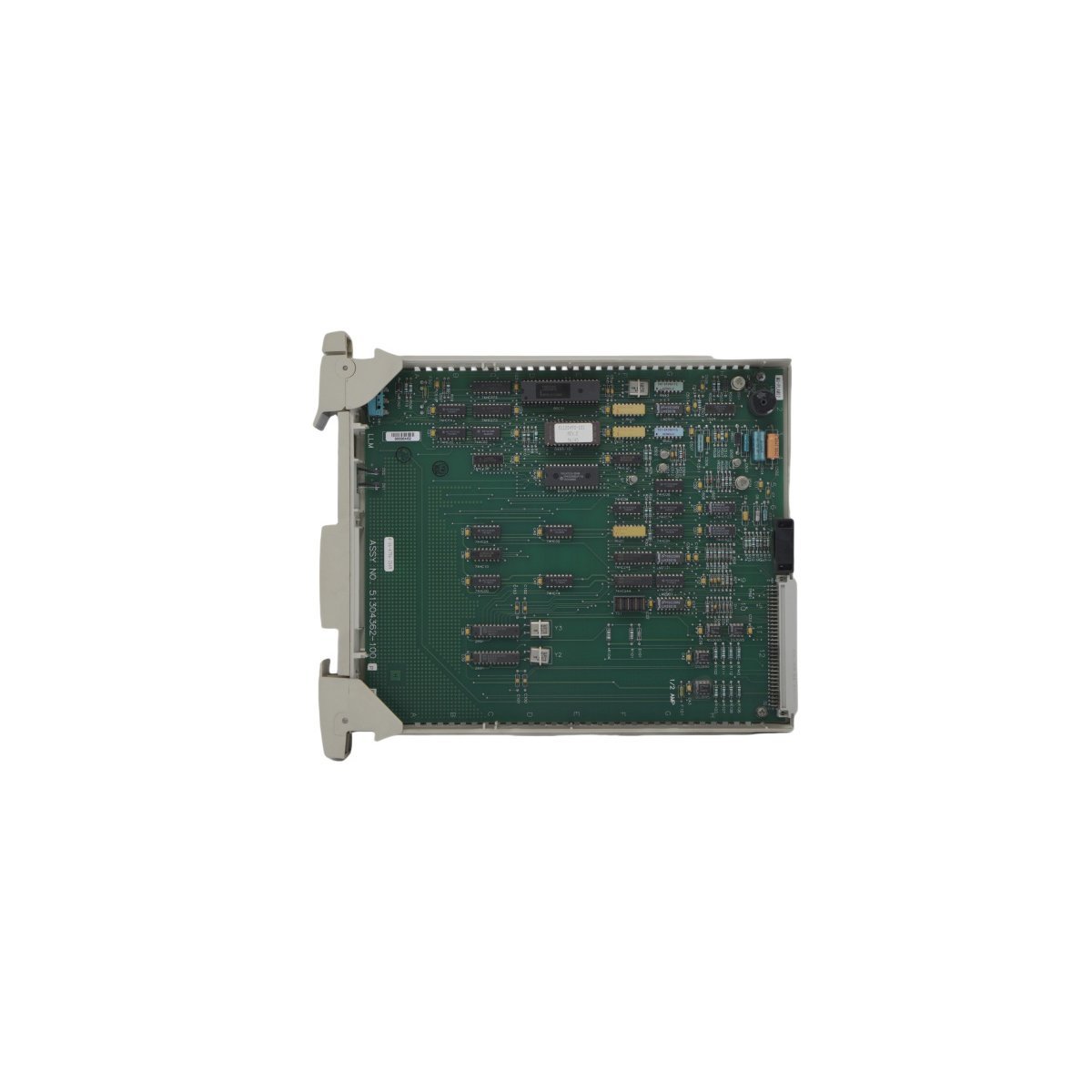

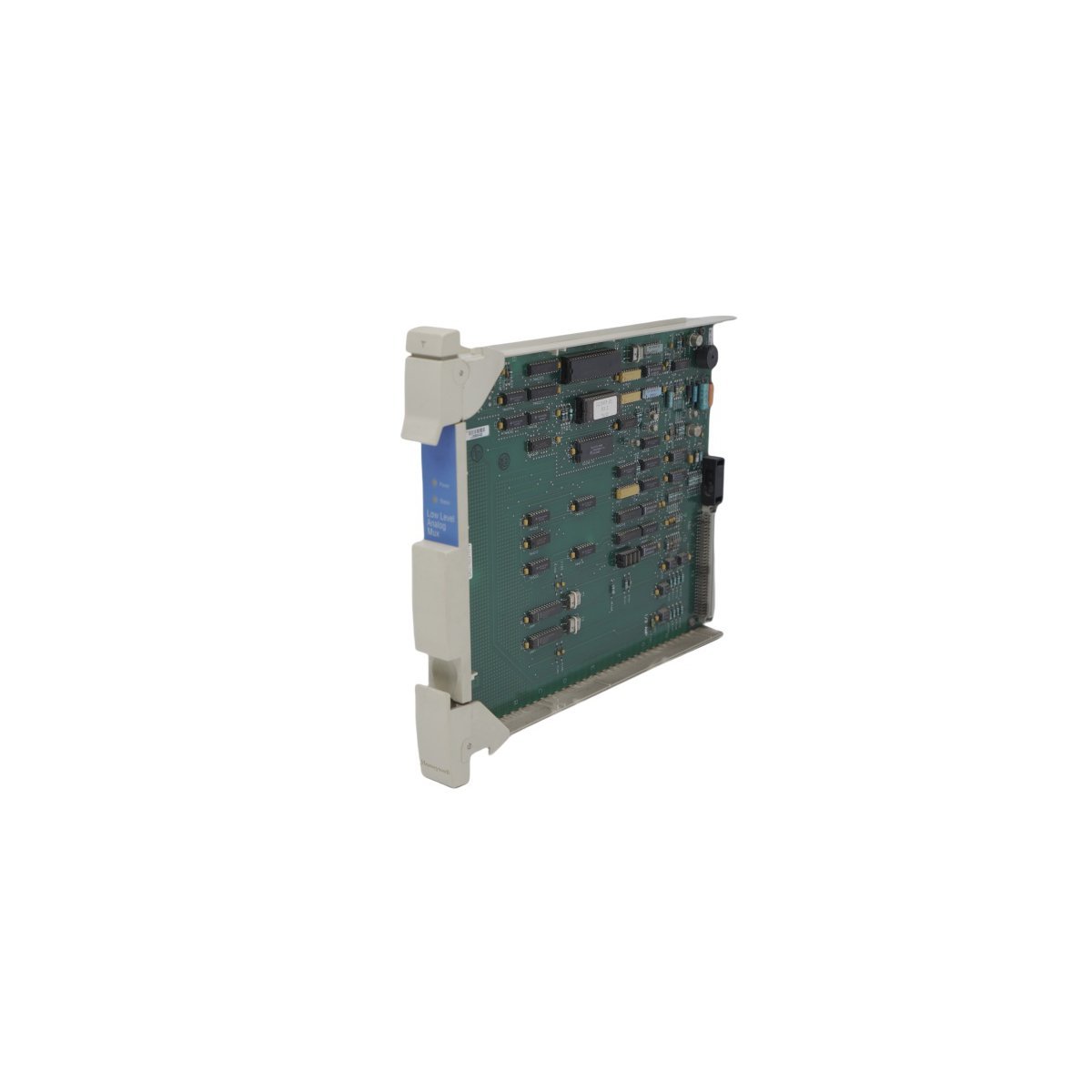

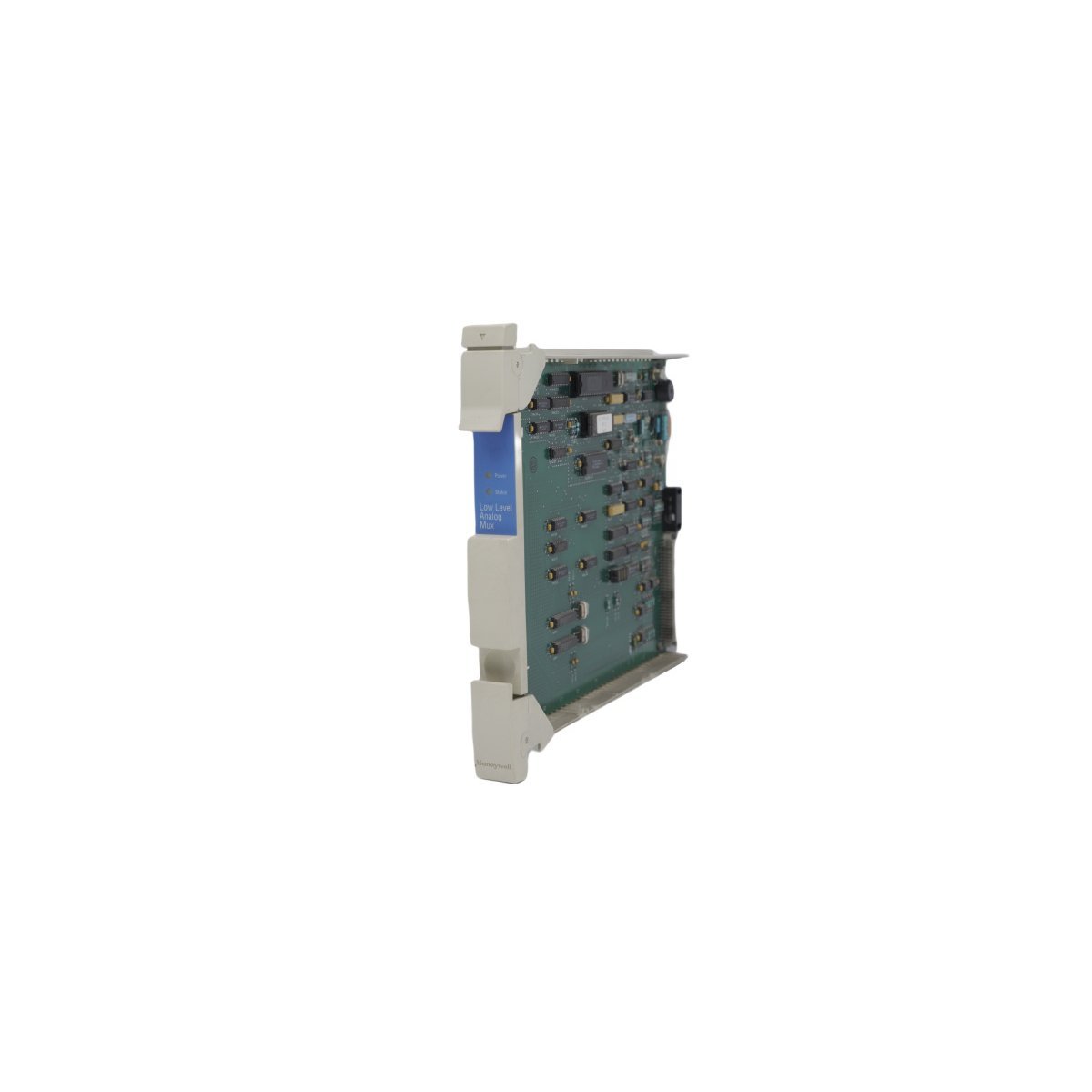

The Honeywell MU-PLAM02 51304362-100 operates as a high-precision Low Level Analog Input Multiplexer (LLAM). This module processes weak signals from temperature sensors such as thermocouples and RTDs. It serves as a critical bridge between field instruments and the distributed control system. By managing multiple input channels through a single processor, the unit optimizes hardware density. It converts low-voltage analog data into accurate digital information for process monitoring. Consequently, this multiplexer improves data acquisition efficiency in large-scale industrial plants.

Technical Specifications and Hardware Data

Signal Conditioning and Acquisition Performance

The 51304362-100 utilizes advanced circuitry for signal conditioning and amplification. This design ensures that the system captures even the smallest voltage variations accurately. Furthermore, the module filters out electromagnetic noise common in heavy industrial environments. It provides high-resolution conversion to maintain the integrity of sensitive thermal measurements. Because it handles various low-level inputs, it offers great flexibility for diverse sensor arrays. This capability is vital for maintaining safety in oil, gas, and chemical processing.

Operational Reliability and System Maintenance

The MU-PLAM02 module features onboard diagnostics to identify input channel failures quickly. These status checks allow maintenance teams to perform proactive repairs before data loss occurs. Moreover, the robust hardware architecture supports continuous operation in high-demand process cycles. The unit integrates seamlessly with existing Honeywell controller racks for easy expansion. Technicians benefit from the standardized mounting which simplifies the replacement of older hardware. Therefore, the 51304362-100 provides a reliable and cost-effective solution for long-term process management.
