Description

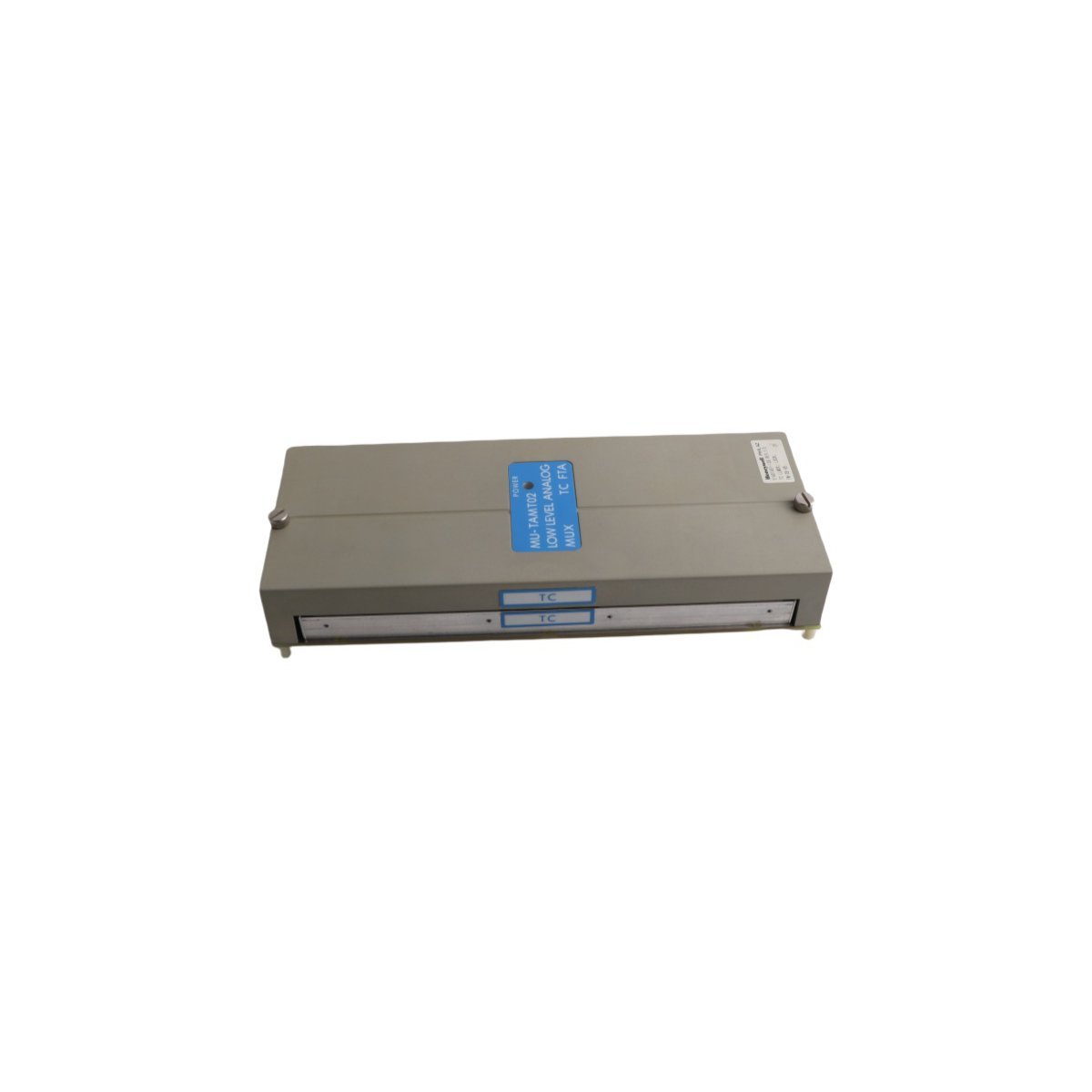

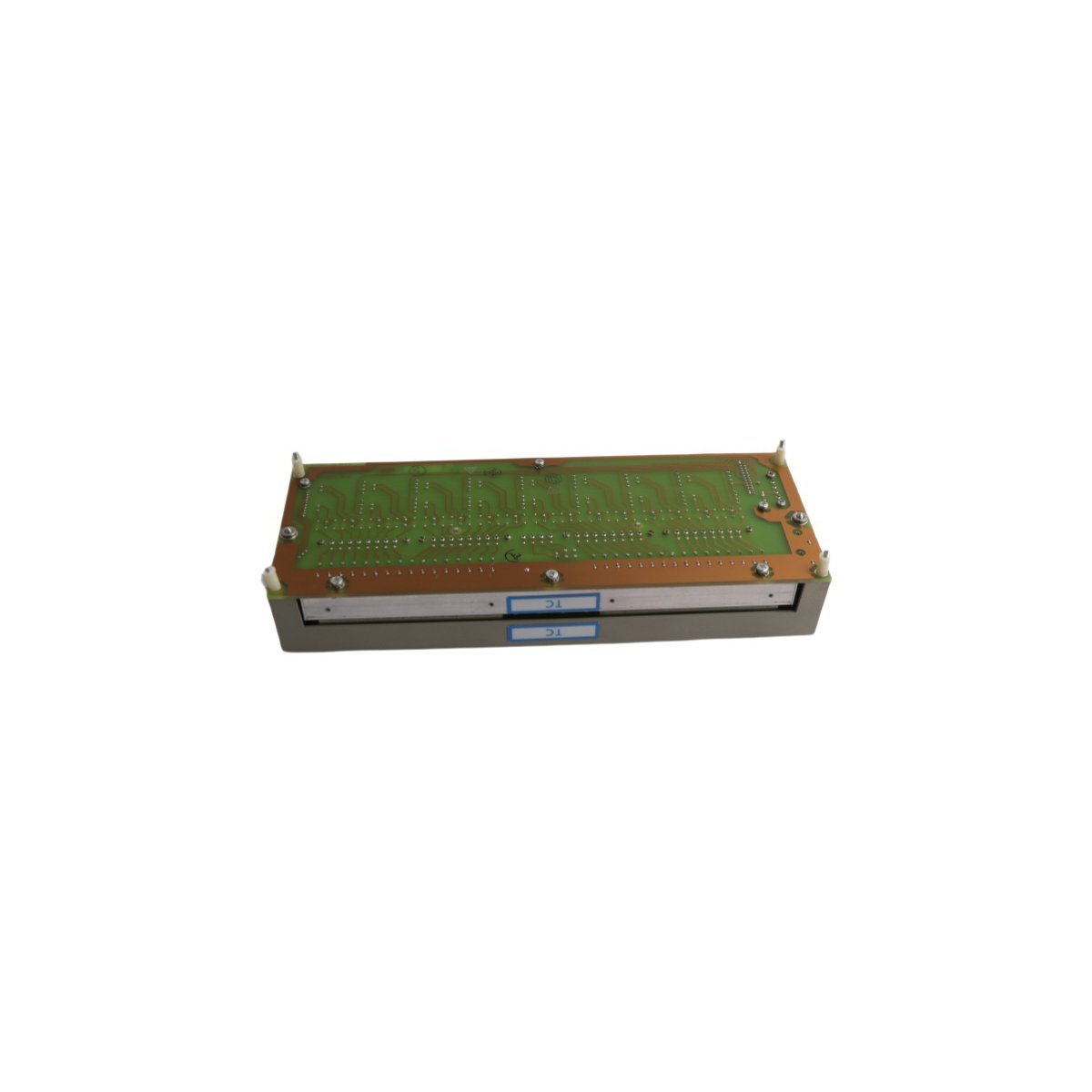

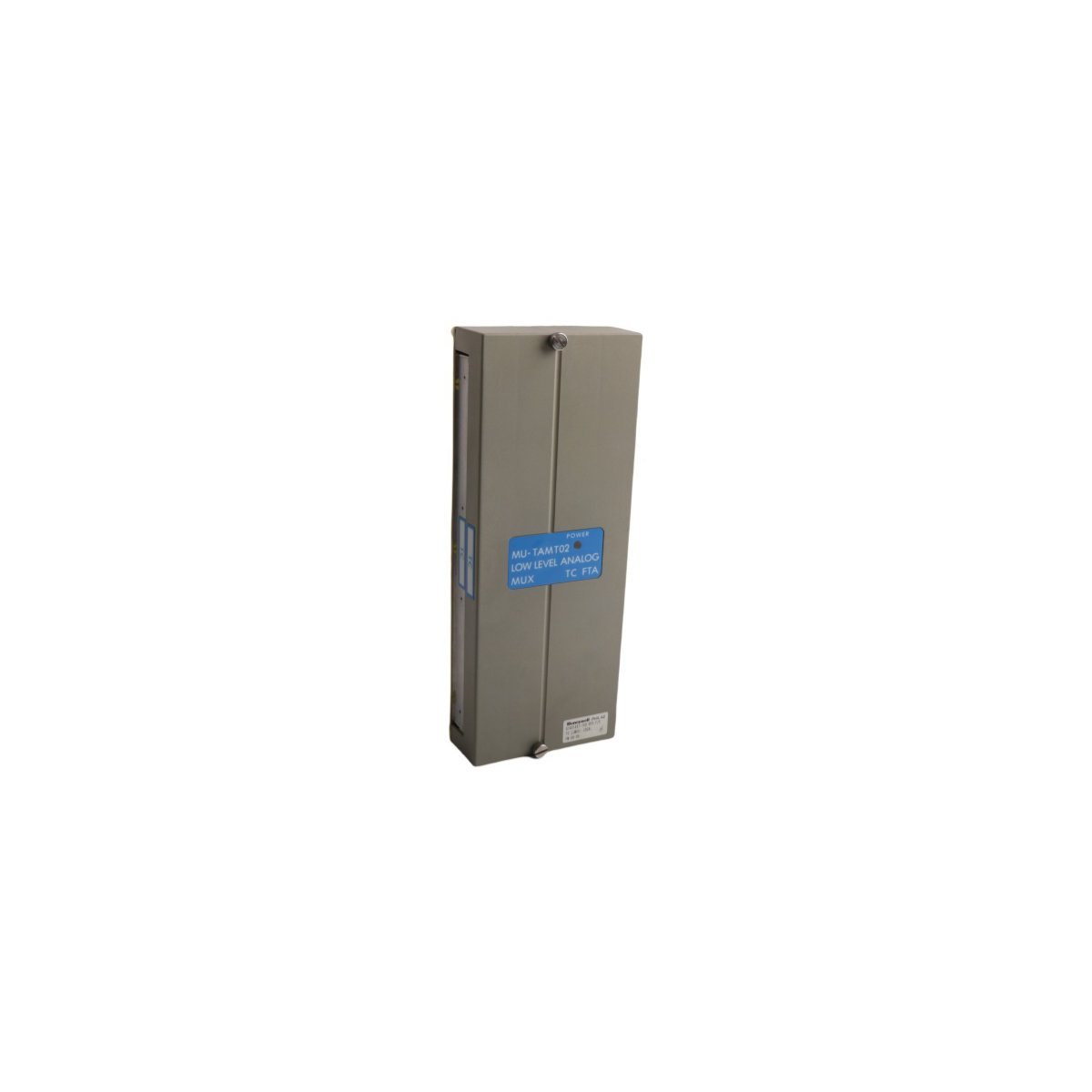

The Honeywell MU-TAMT02 functions as a high-precision interface for low-level signal acquisition. This multiplexer efficiently consolidates multiple analog inputs into a single data stream for the controller. It primarily handles millivolt signals from thermocouples and other sensitive sensors. Because the module utilizes advanced switching technology, it maintains signal purity across all channels. The hardware effectively eliminates common-mode noise in busy industrial environments. Consequently, the DCS receives accurate thermal and electrical data for critical process loops.

Engineering Reliability and Architecture

Honeywell designed this unit for the TDC 3000 and Experion PKS migration environments. The MU-TAMT02 resides within the I/O rack to optimize cabinet wiring density. Furthermore, the robust circuit design supports stable operation under extreme thermal stress. It operates reliably in ambient temperatures ranging from -40°C to +85°C. The module also features localized diagnostics to identify sensor failures or wiring breaks. These built-in safety checks prevent incorrect data from affecting autonomous control decisions.

Key Technical Characteristics

• Low-Level Precision: Specifically tuned for millivolt and low-voltage analog signal ranges.
• Channel Efficiency: Multiplexes various field inputs to reduce the required number of controller ports.
• Environmental Resilience: Industrial-grade components withstand high humidity and temperature fluctuations.
• Standard Integration: Fully compatible with Honeywell MU-T series termination assemblies.
• Compliance Standards: Meets international safety and quality benchmarks including CE and UL certifications.

Product Specifications

Industrial Implementation

This multiplexer excels in sectors requiring massive temperature monitoring arrays. Typical applications include large-scale furnace control, chemical reactors, and distillation columns. It allows engineers to scale sensor networks without excessive hardware costs. Since the module simplifies complex wiring, it reduces installation time for new projects. The MU-TAMT02 remains a cornerstone for high-density analog data collection in global refineries. It provides a stable bridge between delicate field sensors and robust digital control logic.
