Description

Brief Product Description

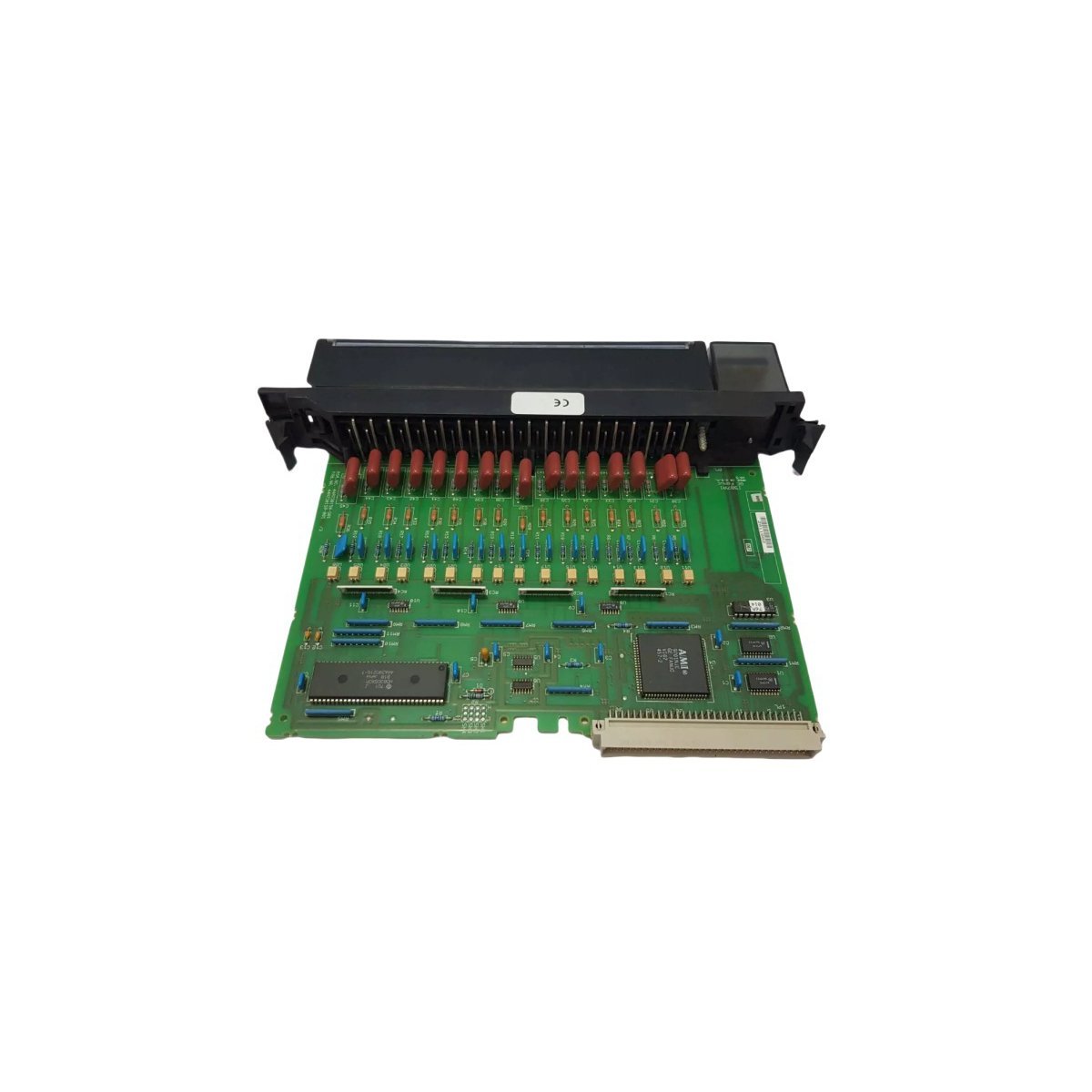

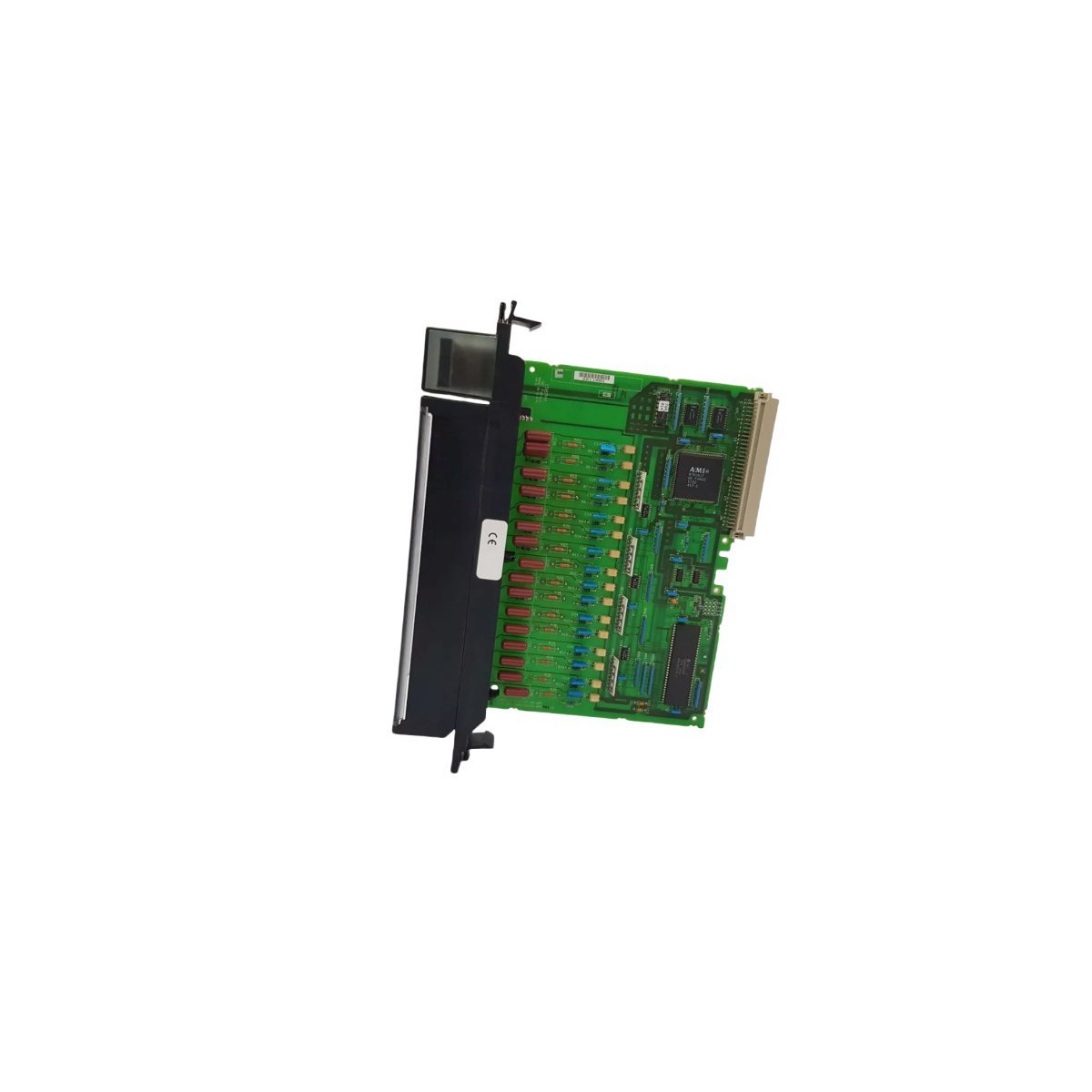

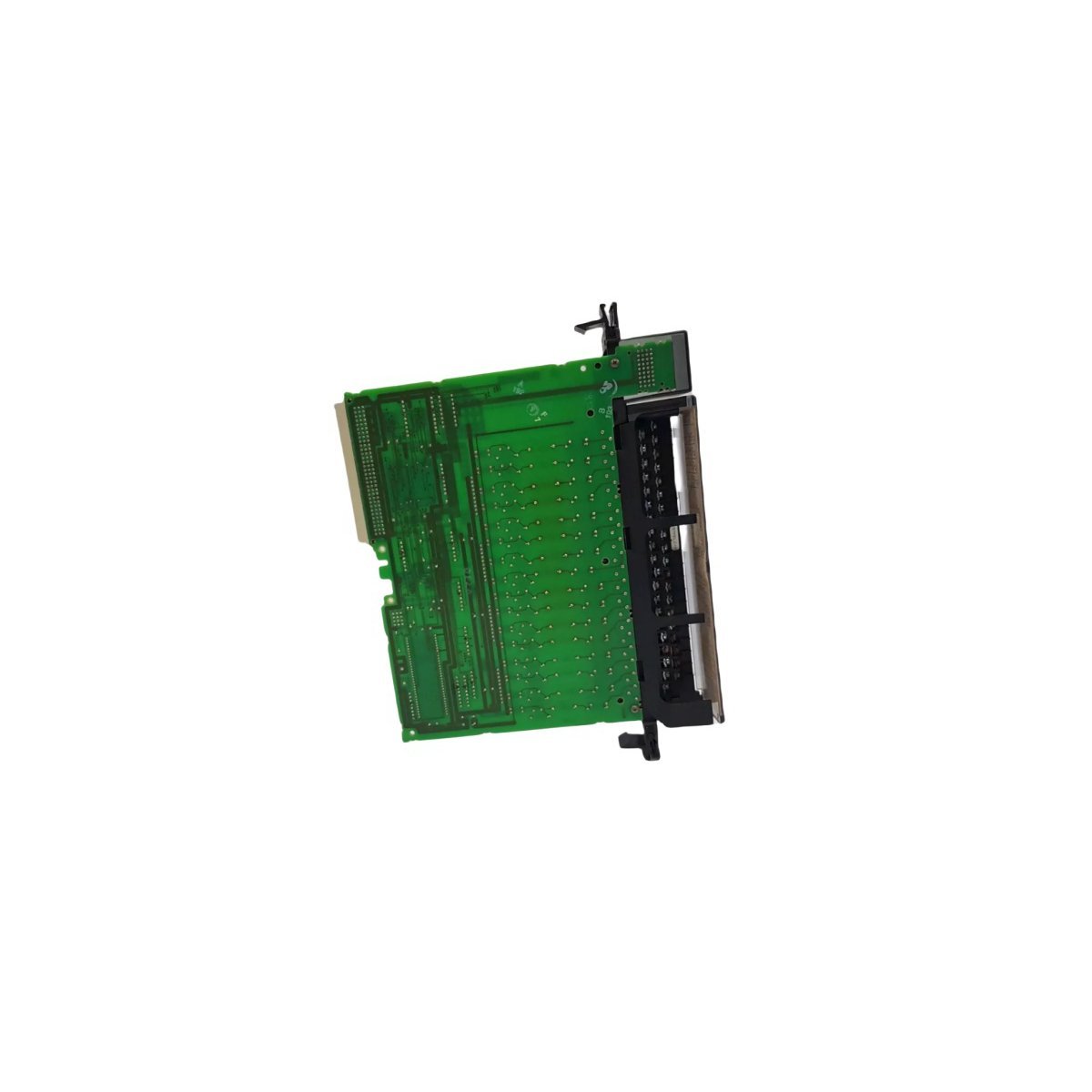

The GE Fanuc IC697MDL240 is a high-performance discrete input module for the Series 90-70 PLC, featuring 16 fully isolated 120V AC channels. This module utilizes capacitive circuitry to minimize heat generation while providing 20ms filtering for reliable signal detection in noisy industrial environments.

Advanced AC Signal Processing and Isolation

The GE Fanuc IC697MDL240 functions as a rugged interface between field-level AC signals and the Series 90-70 PLC backplane. This module provides 16 discrete input points, each meticulously isolated to allow the system to interface with different AC power phases simultaneously. By utilizing capacitive input circuitry, the hardware significantly reduces internal heat dissipation compared to traditional resistive designs, which extends the operational life of the electronic components. Furthermore, an integrated 20-millisecond filter delay effectively suppresses contact bounce and electrical noise, ensuring that the CPU receives only stable and accurate process data.

Robust Integration and System Security

Installation and configuration of the IC697MDL240 emphasize user convenience and hardware protection. The module features a unique mechanical keying system that interfaces with the backplane’s center rail, preventing the accidental insertion of the wrong module type into a configured slot. Because the Series 90-70 platform supports software-based configuration, technicians can set up the module parameters via Ethernet TCP/IP or SNP ports using Windows-based programming tools. This approach eliminates the need for manual jumpers or DIP switches, thereby reducing the risk of human error during commissioning or field replacement.

Diagnostic Monitoring and Power Efficiency

To assist maintenance personnel with real-time troubleshooting, the IC697MDL240 includes a dedicated array of 16 LEDs located at the top of the module. These indicators provide immediate visual confirmation of the ON/OFF status for every individual input point. During active operation, the module draws a modest 0.25 Amps from the 5V backplane bus, maintaining high efficiency. The reactive input characteristics are specifically tuned to support compatibility with standard 2-wire and 3-wire proximity switches. While in the “ON” state, each point typically draws 10mA, yet the circuitry is robust enough to handle up to 4mA of leakage current in the “OFF” state without triggering a false positive.

Key Technical Characteristics

• 16 Isolated AC Points: Enables the safe monitoring of inputs across multiple AC power phases within a single module.
• Capacitive Input Design: Optimizes thermal management by reducing power consumption and heat output during operation.
• Enhanced Signal Filtering: Incorporates a 20ms hardware delay to eliminate signal noise and mechanical contact chatter.
• Mechanical Keying Protection: Ensures hardware-level security by preventing incorrect module placement in the rack.
• Real-Time LED Diagnostics: Features 16 front-facing status indicators for rapid channel-level verification.
• Broad Proximity Switch Support: Optimized current-voltage characteristics allow for seamless integration with industrial sensors.

Technical Specifications
