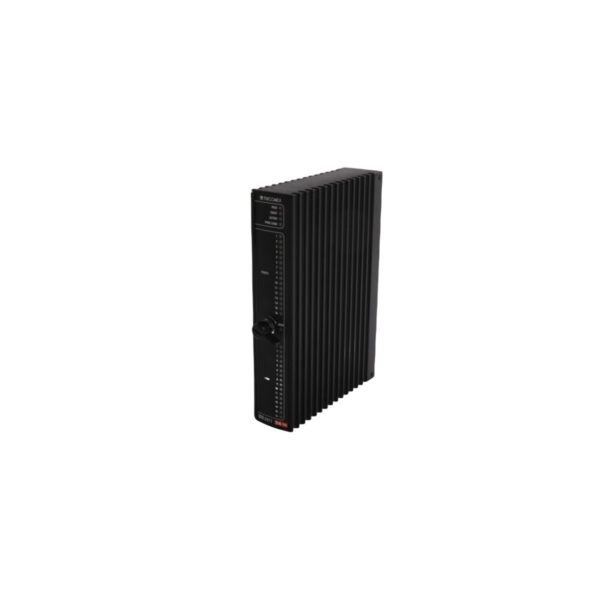

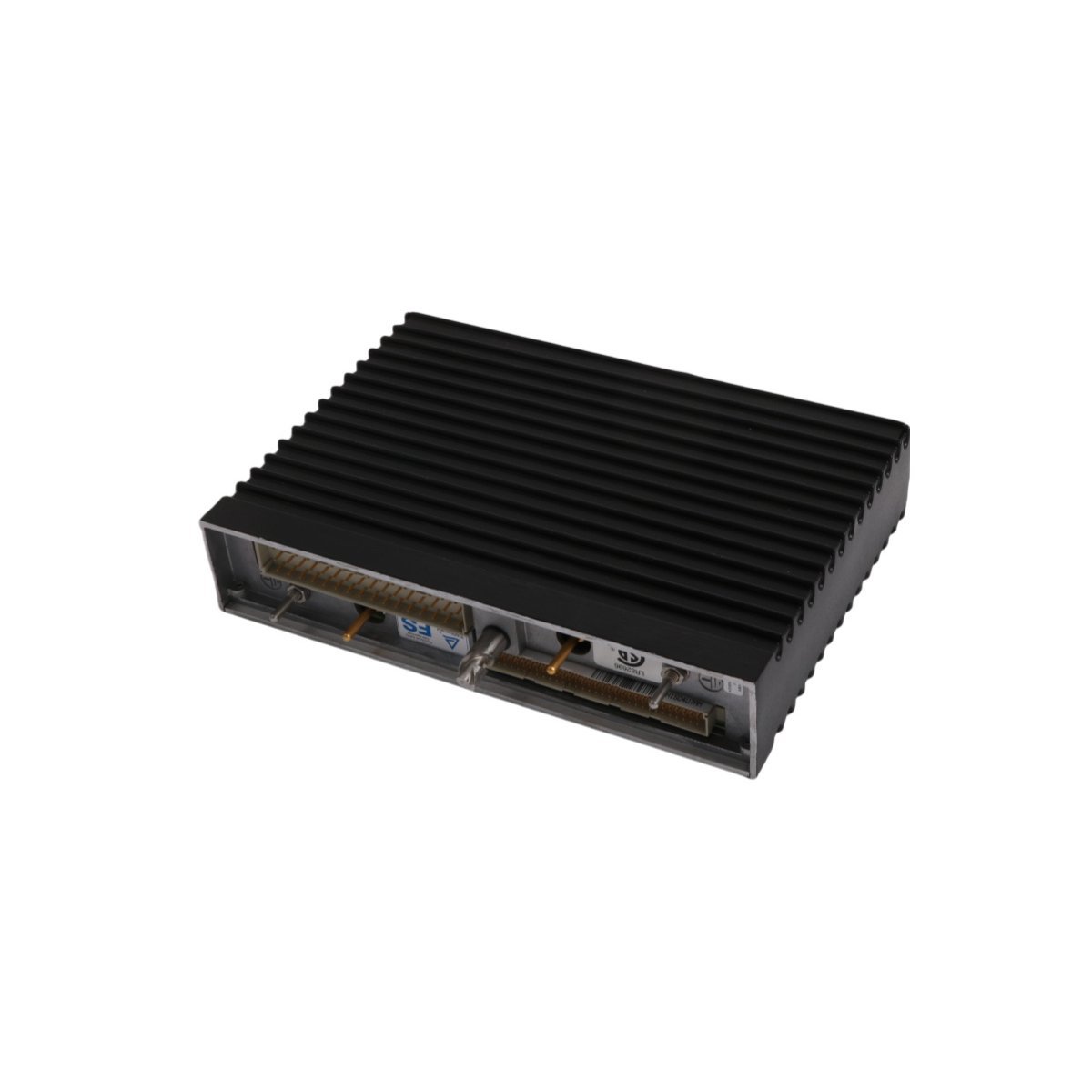

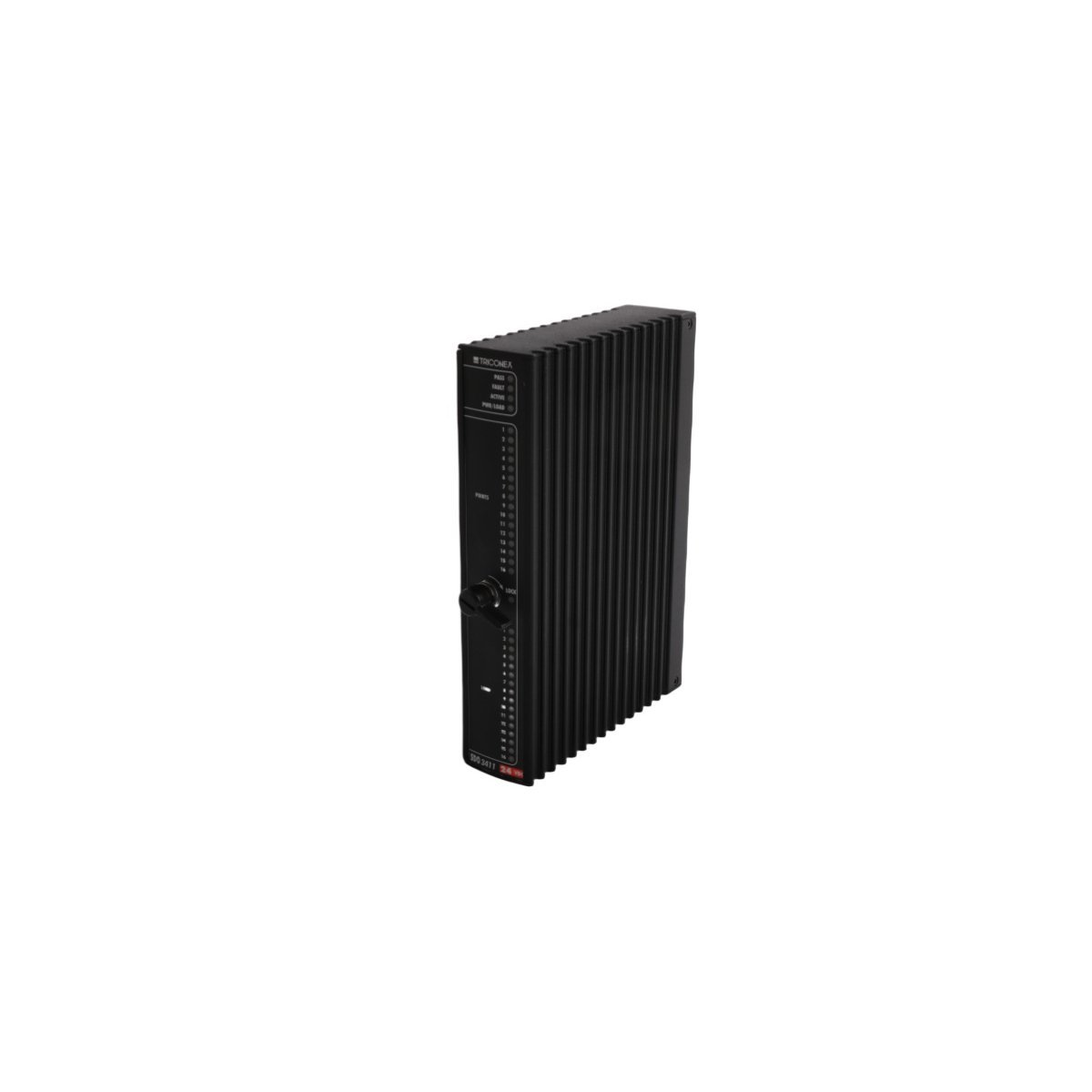

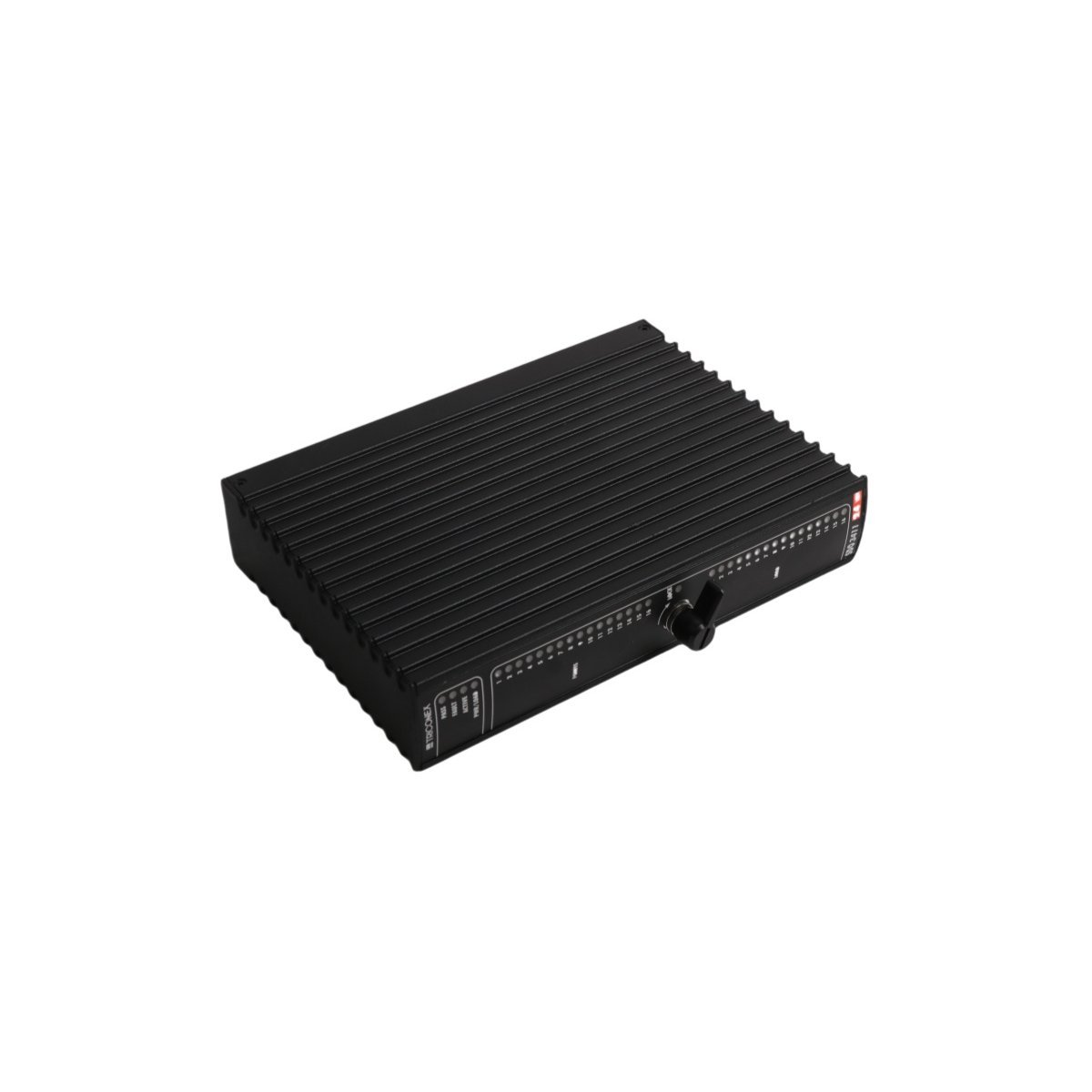

The Triconex SDO 3411 is a 16-channel, fault-tolerant Supervised Digital Output (SDO) module engineered for Triple Modular Redundant (TMR) safety systems. It provides high-integrity 24 VDC switching for critical final control elements, ensuring maximum process uptime through a hardware-based two-out-of-three voting architecture.

Fault-Tolerant Architecture and Safety Integrity

The Triconex SDO 3411 serves as a high-reliability interface between the Tricon controller and critical field actuators. By leveraging Triple Modular Redundancy (TMR), the module eliminates single points of failure that could otherwise lead to unscheduled shutdowns or safety compromises. Each of the 16 output channels features three independent circuits that continuously execute a hardware-based two-out-of-three (2oo3) vote. Consequently, the system maintains accurate output states even if a single channel component fails. This high level of redundancy makes the SDO 3411 a cornerstone for SIL 3-certified Safety Instrumented Systems (SIS), particularly in high-stakes environments like chemical processing and offshore oil platforms.

Proactive Diagnostics and Supervised Logic

Distinguishing itself from standard relay units, the SDO 3411 incorporates “supervised” output logic to monitor the health of the entire safety loop. The module continuously performs sophisticated internal diagnostics to verify that both the internal electronics and the external field wiring remain intact. Furthermore, it executes periodic “light tests” to ensure the switching elements remain capable of changing state on demand. Because the module identifies faults such as open circuits or short circuits in real-time, operators can transition from reactive to proactive maintenance. This transparency ensures that final control elements, such as solenoid valves or motor starters, respond instantly during an Emergency Shutdown (ESD) event.

Seamless Operational Continuity and Integration

Operational efficiency remains a primary design focus, as evidenced by the SDO 3411’s support for hot-swapping. Maintenance personnel can replace a faulty module while the system is live and the process is running, which significantly reduces the mean time to repair (MTTR). The module synchronizes automatically with the three parallel processing channels of the Tricon controller, ensuring a smooth handover of control logic. Additionally, the compact 24 VDC design fits standard Tricon chassis, providing a scalable solution for expanding safety segments without re-engineering the primary control architecture. By integrating this module, facilities achieve a robust safety layer that balances rigorous protection with the demands of 24/7 industrial production.

Key Technical Characteristics

• Triple Modular Redundancy: Hardware-based 2oo3 voting across all 16 channels ensures error-free signal delivery.
• Supervised Diagnostics: Continuously monitors field wiring and output relay health for immediate fault detection.
• SIL 3 Certified: Meets the highest global standards for functional safety in industrial automation.
• Hot-Swap Support: Allows for online module replacement without interrupting the safety loop or process.
• Isolated Channels: Provides electrical separation to protect the main controller from field-side transients.
• Industrial Durability: Engineered for reliable performance in harsh B2B environments including oil, gas, and power.
