Description

Brief Product Description

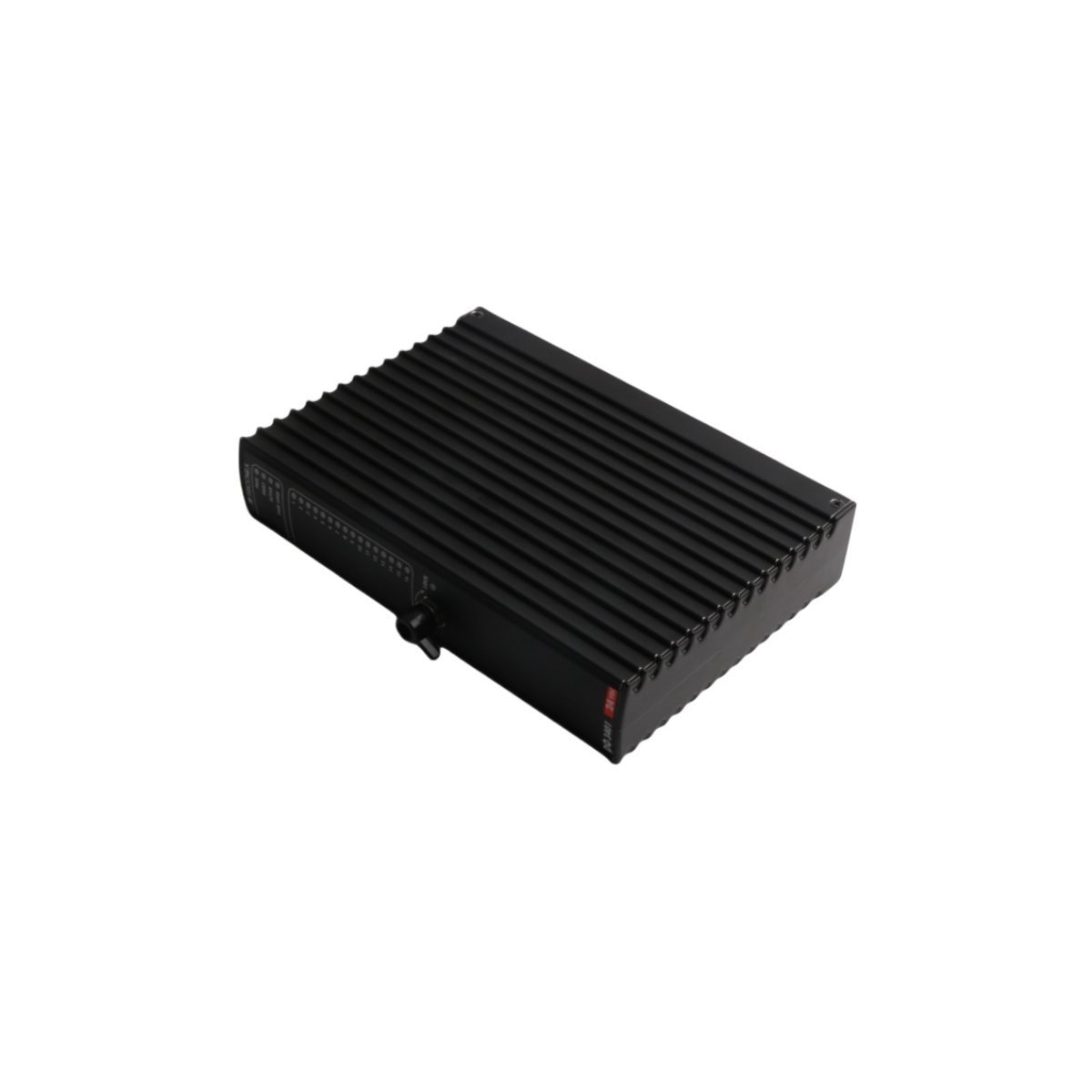

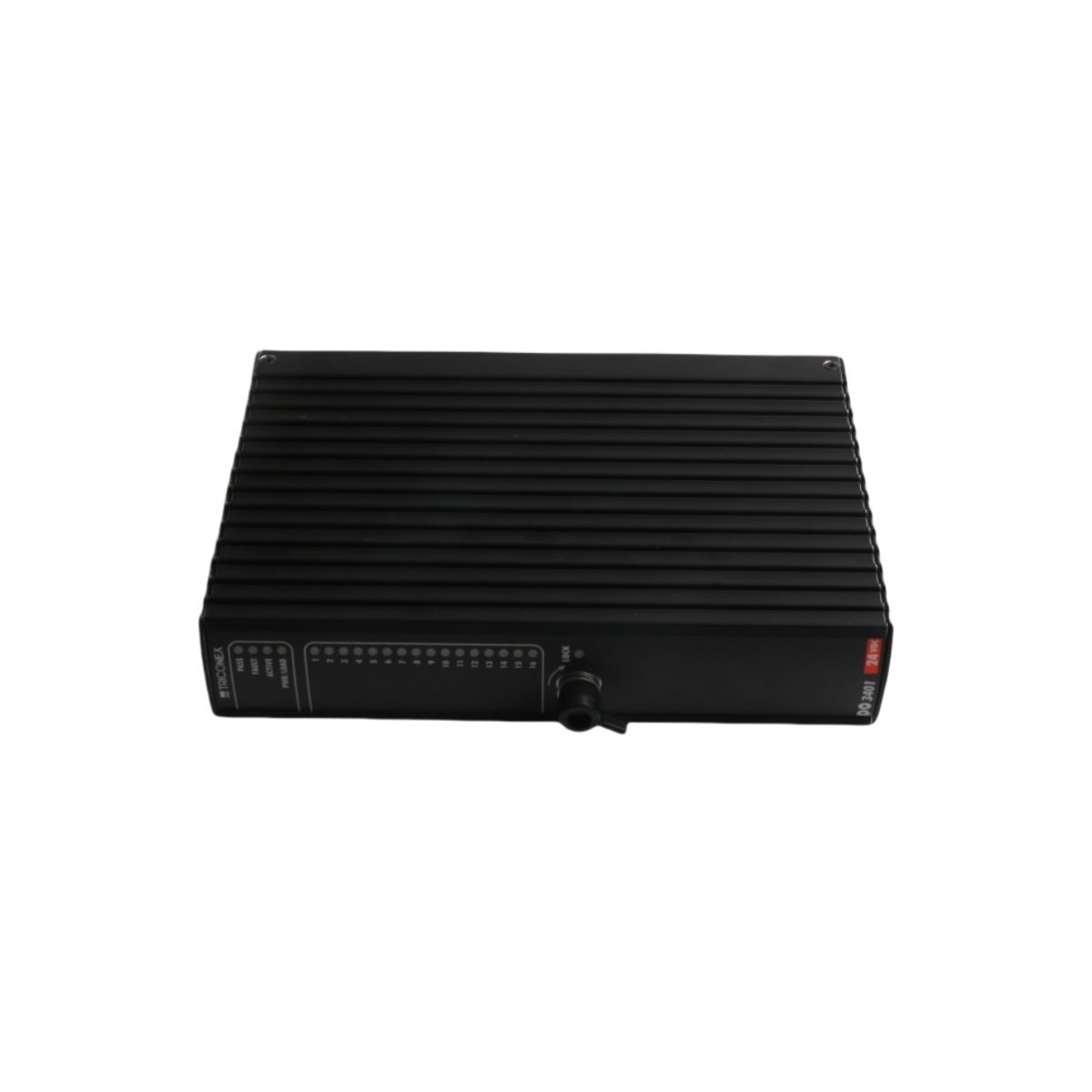

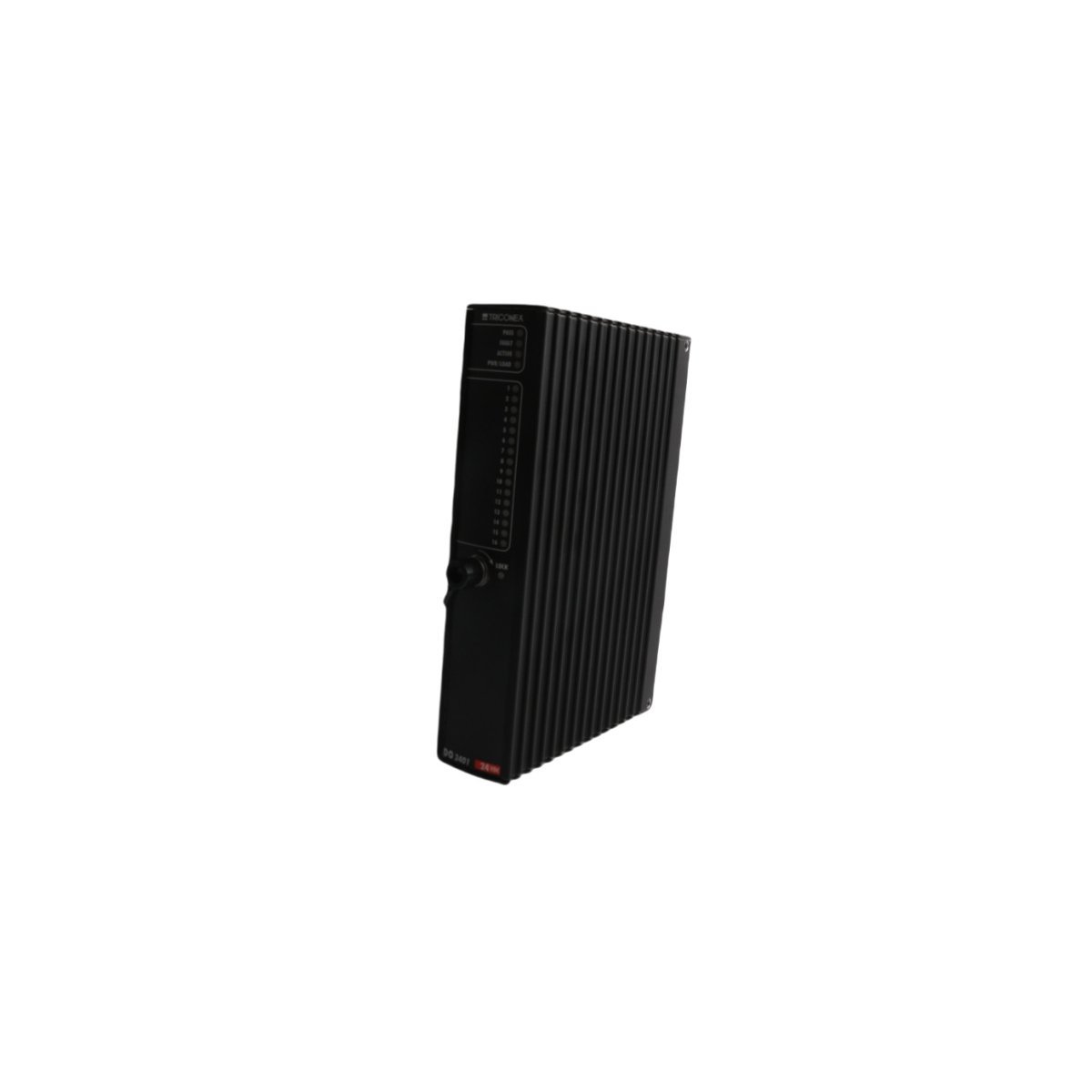

The Triconex 3401 is a 16-channel Triple Modular Redundant (TMR) digital output module designed to drive 24 VDC field devices in safety-critical applications.² This high-availability module provides reliable switching for final control elements while maintaining the strict fault tolerance required for Emergency Shutdown (ESD) systems.³

High-Availability Control for Critical Actuators

The Triconex 3401 functions as a primary command interface for industrial actuators, solenoid valves, and motor starters within the Tricon platform. This module utilizes a Triple Modular Redundant (TMR) architecture to ensure that a single component failure does not result in an accidental trip or a failure to command. By employing an internal “quad” output voting circuit, the 3401 cross-checks signals from three independent main processors.⁴ This design ensures that the final state of the field device remains correct and stable, effectively maximizing plant safety and process uptime in high-risk sectors like power generation and petrochemical refining.⁵

Intelligent Load Monitoring and Diagnostics

System reliability increases significantly through the 3401 module’s sophisticated diagnostic capabilities.⁶ The hardware continuously monitors the status of each of its 16 output points to detect potential issues such as field-side short circuits or open loops.⁷ Furthermore, the module performs routine “light tests” on the output switches to verify their ability to change state without impacting the process. Because these diagnostics occur in real-time, the system can identify and report latent faults before they compromise the safety function.⁸ This proactive transparency allows maintenance teams to schedule repairs during planned outages rather than responding to emergency failures.

Robust Integration in Safety Instrumented Systems

Triconex engineered the 3401 for seamless physical and logical integration into standard Tricon chassis. The module supports hot-swapping, which enables technicians to replace units without powering down the system or interrupting the active safety loop.⁹ Additionally, the unit is designed for 24 VDC common-grounded operation, making it compatible with a vast array of industrial field devices.¹⁰ By centralizing the control logic and output switching within this high-integrity hardware, operators achieve a streamlined safety instrumented system (SIS) that meets rigorous global certification standards for functional safety.

Key Technical Characteristics

• Triple Modular Redundancy: Uses internal voting logic to maintain fail-safe operation and high availability.¹¹
• Comprehensive Self-Testing: Executes periodic output functional tests to ensure hardware integrity.
• Hot-Swap Capability: Facilitates online module replacement to eliminate process downtime.¹²
• 16-Channel Density: Manages up to 16 independent digital outputs in a single high-reliability unit.¹³
• Field Protection: Includes integrated circuitry to safeguard the module against field-side electrical anomalies.
• Status Visualization: Features front-panel LED indicators for quick identification of “Pass,” “Fault,” and “Active” states.
