Description

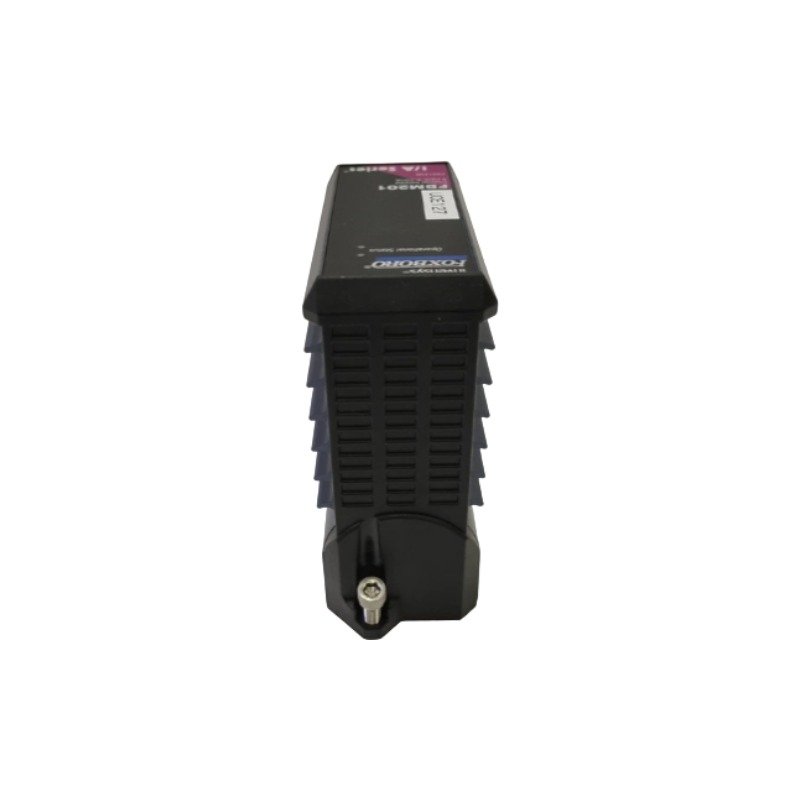

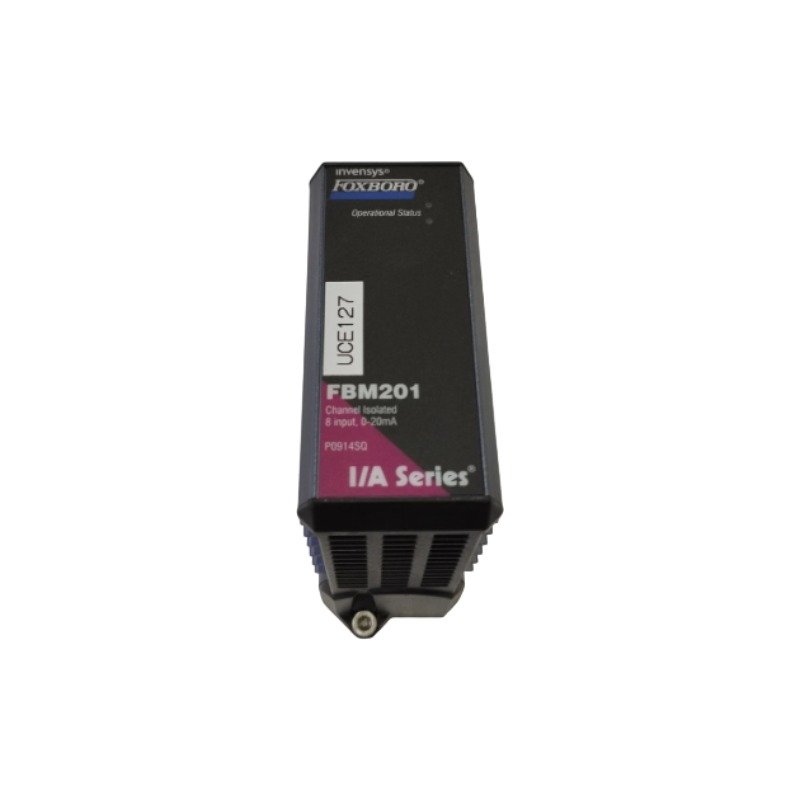

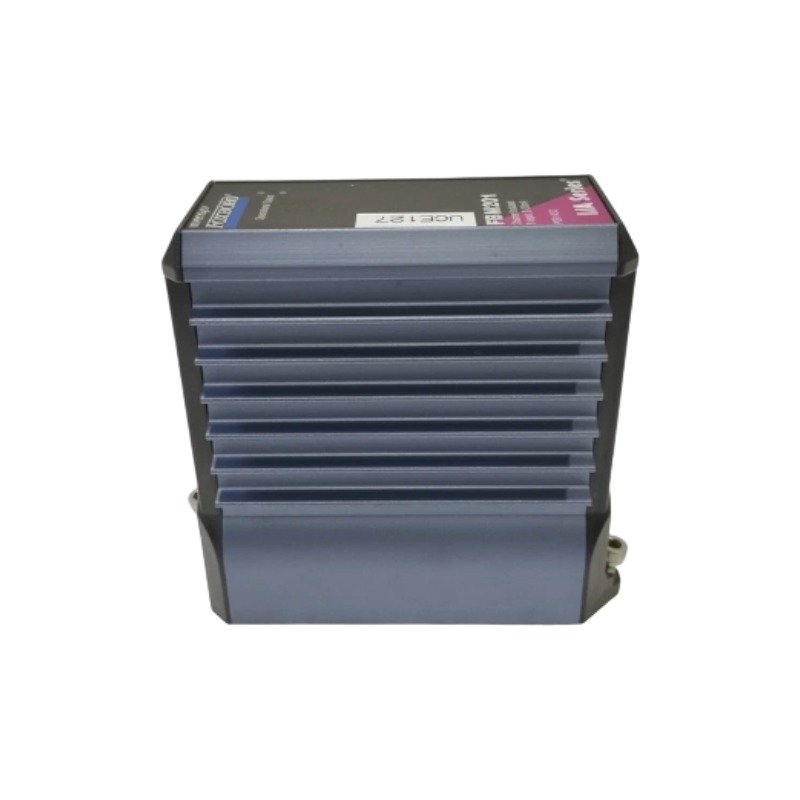

The Foxboro FBM201 P0914SQ, also cataloged as the FBM201 Analog Input Module, operates as a dedicated hardware component for 0-20 mA analog signal conversion within Foxboro I/A Series and EcoStruxure DCS platforms.

Hardware Specifications

Channel-to-Channel Isolation and Analog Loop Performance

The Foxboro FBM201 P0914SQ module processes high-accuracy analog signals for continuous process loops. Furthermore, galvanic isolation between field terminal connections and internal backplane processing logic prevents ground loop currents from corrupting analog conversion cycles. In addition, integrated analog filtering and high-resolution analog-to-digital conversion ensure accurate signal sampling across all 8 input channels under variable electromagnetic field conditions.

Frequently Asked Questions

Q: Can maintenance engineers replace the Foxboro FBM201 P0914SQ module while the system baseplate is powered?

A: Yes, the module supports hot-swapping on 200 Series baseplates, allowing removal or insertion without interrupting power or signal flow to adjacent modules.

Q: How does the Foxboro FBM201 P0914SQ handle redundant fieldbus communications?

A: The module communicates simultaneously over dual 2 Mbps module fieldbus paths (Path A and Path B), ensuring uninterrupted data transfer if one path suffers network degradation.

Field Installation Guidelines

• First, insert the module into its designated 200 Series baseplate slot and push until the latching tabs lock into position.
• Next, verify that field transmitter loops match the 0 to 20 mA input range requirements before energizing the loop power supply.
• Additionally, connect field signal cable shields to the designated earth grounding bus to preserve input signal accuracy.
• Consequently, route low-level 0-20 mA analog cables in separate cable ducts away from high-voltage AC power wiring to avoid noise coupling.
