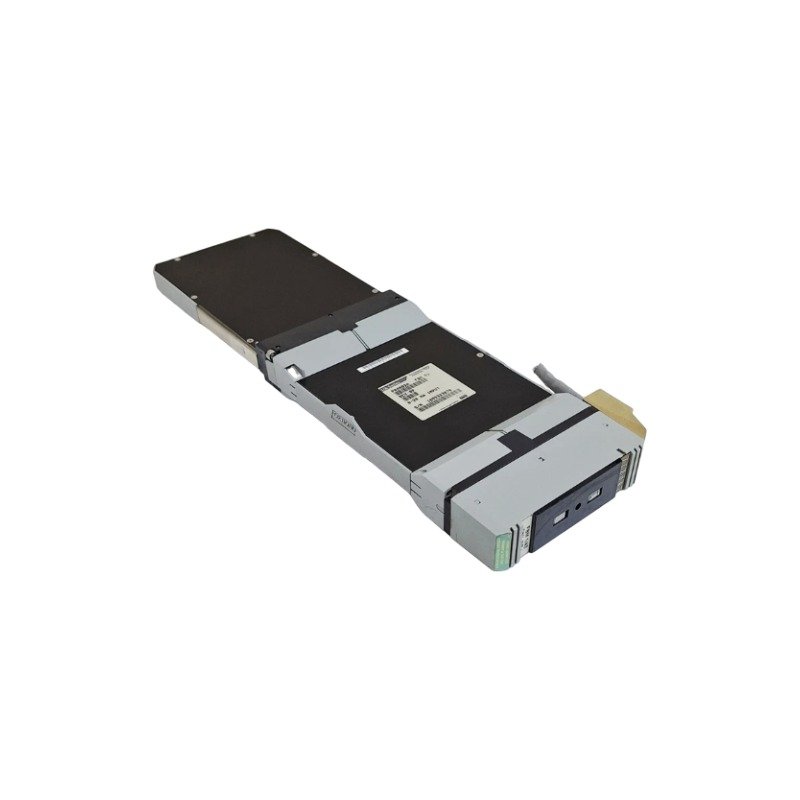

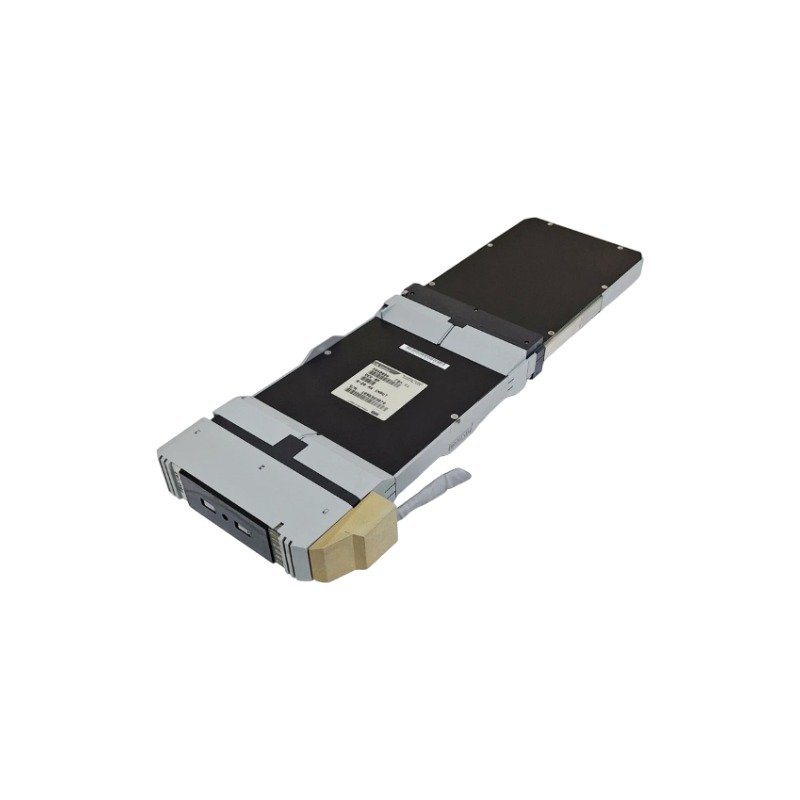

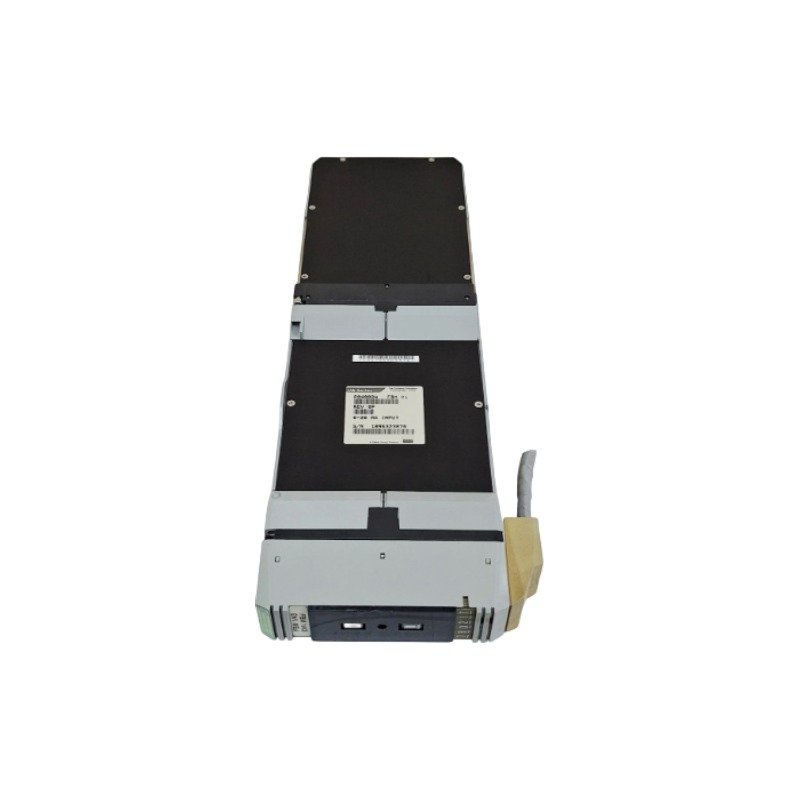

Foxboro P0400DA FBM01 Analog Input Module
Foxboro P0400DA FBM01 8-channel 0-20 mA input module in Brand New condition from Original Stock with Global Shipping.
Description
The Foxboro P0400DA, also cataloged as the FBM01 Analog Input Module, operates as a dedicated hardware component for processing 8-channel direct current measurement signals within Foxboro DCS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | P0400DA |
| Brand | Foxboro |
| Module Type | FBM01 Analog Input Module |
| Input Channels | 8 independent, galvanically isolated channels |
| Input Signal Range | 0 to 20.4 mA DC per channel |
| Measurement Accuracy | +/- 0.05% of full scale |
| Fieldbus Communication | Redundant fieldbus connectivity |
| Input Power Voltage Range | 26 to 42 VDC (Redundant) |
| Power Consumption | 14 W maximum |
| Heat Dissipation | 12 W maximum |
| Input Wiring Connections | 2 termination configurations available |
| Conversion Time | Software-configurable |
| Channel-to-Channel Isolation | 600 VAC for 1 minute |
| Channel-to-Ground Isolation | 600 VAC for 1 minute |
Channel-to-Channel Isolation and Loop Protocol Execution
The P0400DA FBM01 module incorporates individual channel-to-channel and channel-to-ground galvanic isolation rated up to 600 VAC. This architecture prevents ground loop currents from skewing analog-to-digital conversions when taking differential measurements across distinct process grounds. Configured to interface with 4-20 mA loop circuits and standard 0-20.4 mA transmitter outputs, the module maintains signal integrity across long field cabling runs without requiring inter-channel signal conditioners or external isolators.
Frequently Asked Questions
Q: What insulation rating does the P0400DA FBM01 provide between individual channels?
A: The module provides high-potential electrical isolation rated to withstand 600 VAC applied between any channel and ground, or between separate input channels, for a duration of 1 minute without dielectric breakdown.
Q: How is input conversion timing managed across the 8 analog input channels?
A: Conversion time for the input circuitry is fully software-configurable via system software routines, allowing adaptation to specific process response times and filter requirements.
Field Installation Guidelines
- Ensure input power supply buses are de-energized or verified within the 26 to 42 VDC range prior to module seat insertion into the baseplate interface.
- Connect field wiring to one of the two available input termination assembly configurations according to system loop diagrams.
- Terminate signal cable shielding at designated grounding bars to minimize common-mode electromagnetic interference.
- Verify that field signal currents remain within the rated 0 to 20.4 mA DC spectrum for proper analog processing.
- Provide adequate cabinet ventilation to manage thermal dissipation loads up to 12 W per module under full current operation.
Additional information
| Weight | 0.64 kg |
|---|---|
| Dimensions | 65 × 70 × 34 mm |
