Description

Functional Overview

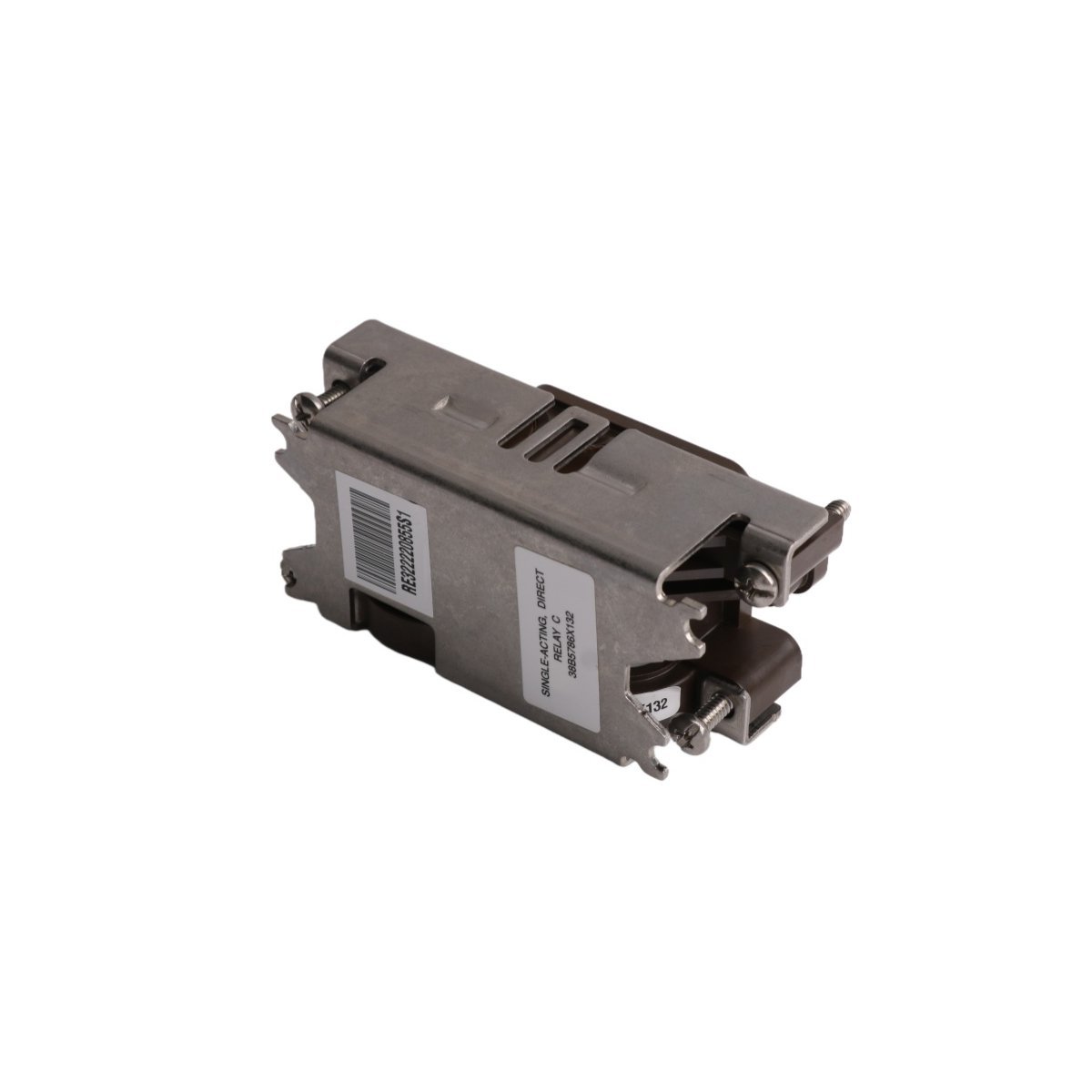

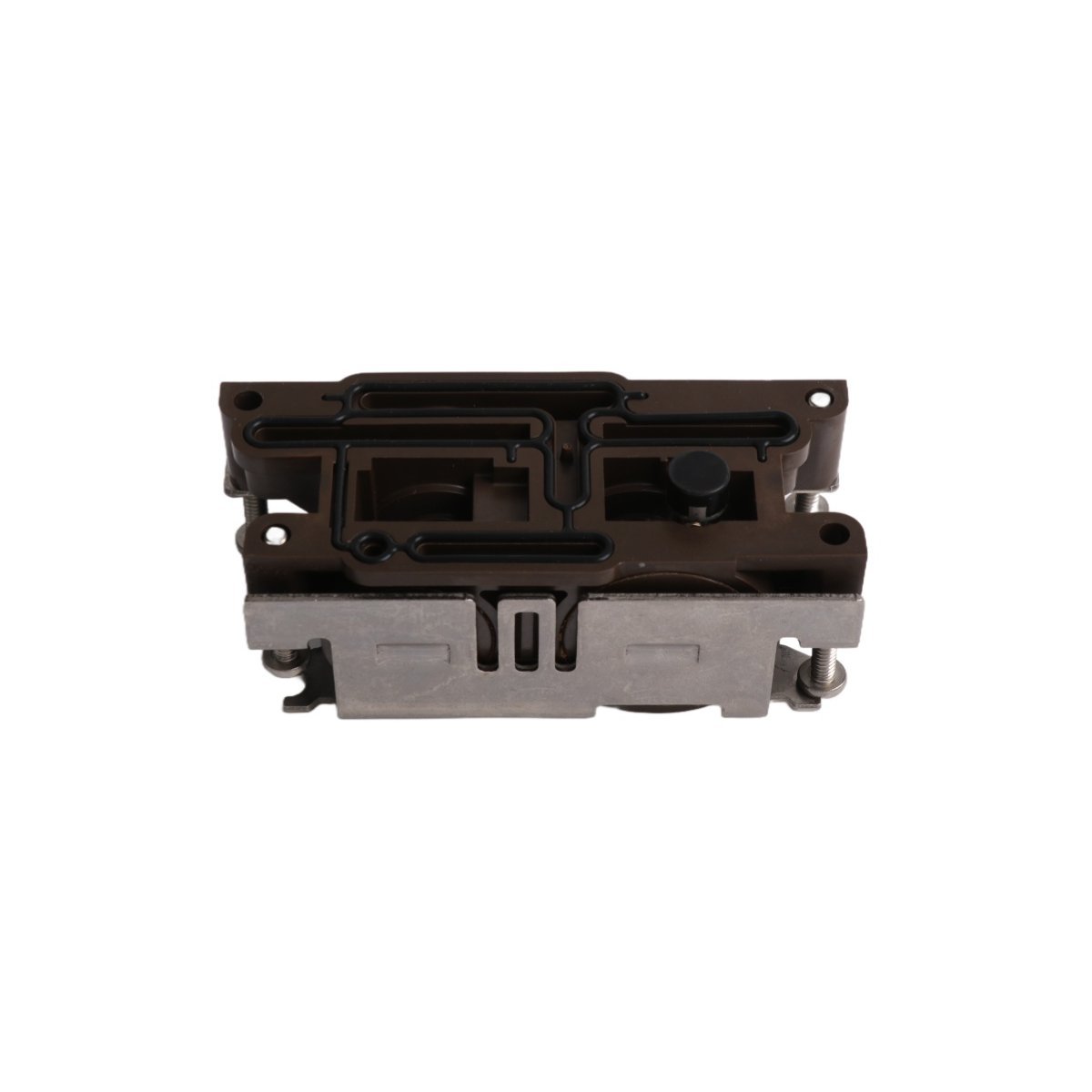

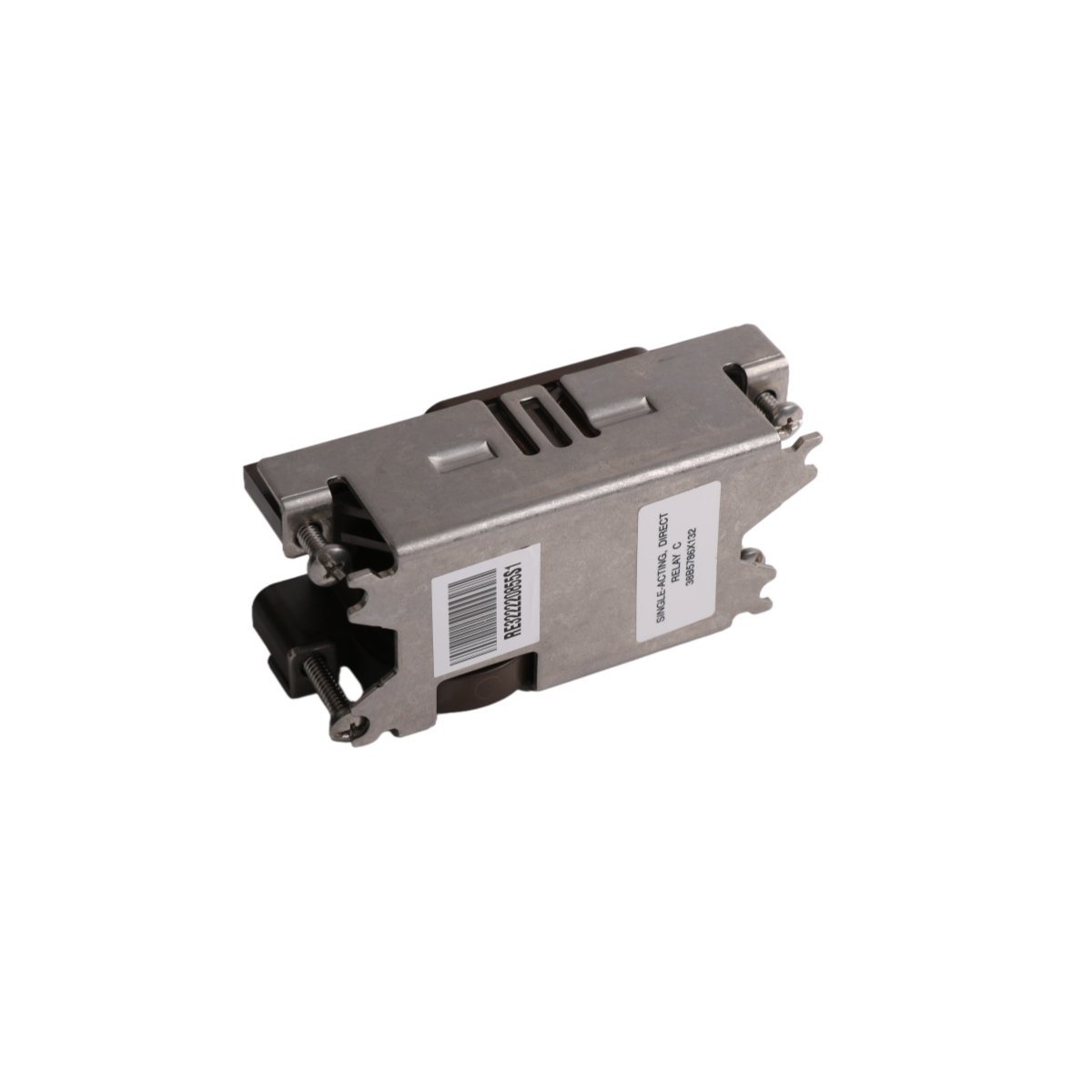

The Emerson 38B5786X132 is a precision-engineered Pneumatic Relay designed specifically for integration with the FieldVue DVC6000 series of digital valve controllers. As a critical component in the pneumatic signal chain, this relay actively converts low-flow pilot signals into high-flow output signals, thereby driving the actuator with enhanced speed and accuracy. Consequently, this capability significantly improves the dynamic response of the control valve, ensuring tight shutoff and precise process variable regulation in industrial automation environments.

Furthermore, the relay employs a single-acting, direct control configuration with a standard bleed design, which actively manages the supply pressure to deliver reliable and stable operation. Since process efficiency often depends on rapid valve stroking, the unit delivers a fast response time of less than one second for a full stroke, minimizing process deviation during transient events. Additionally, the device operates effectively within a broad supply pressure range of 20–100 psig (1.4–6.9 bar) and offers a high flow capacity exceeding 5 Cv, accommodating a wide variety of load conditions. By maintaining steady-state air consumption below 5 SCFH, the 38B5786X132 also contributes to overall energy efficiency within the plant air system, making it an ideal solution for advanced process control and machinery management applications.

Technical Specifications
