Description

Functional Overview

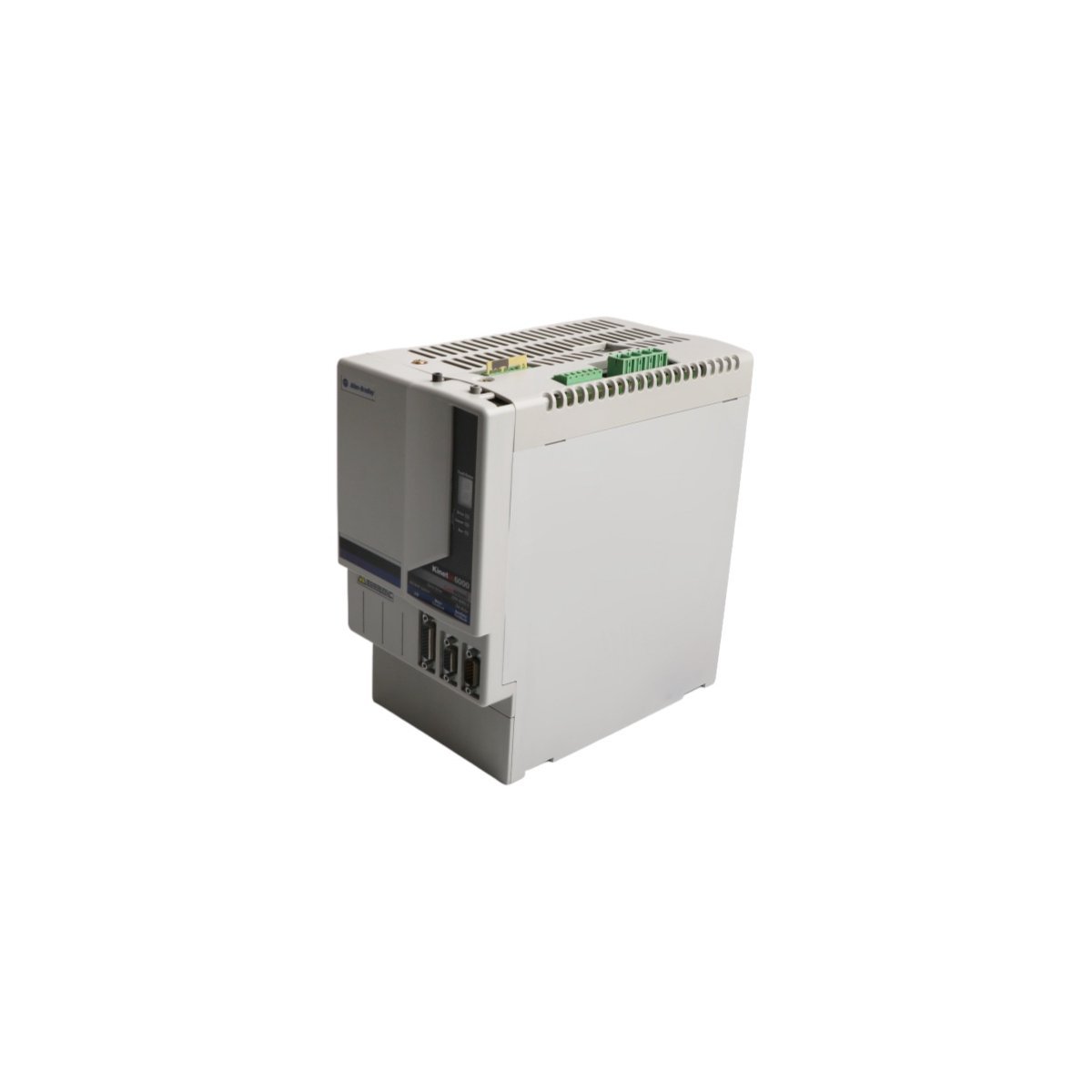

The Allen Bradley 2094-BM03-S is a high-performance Servo Drive belonging to the Kinetix 6000 family, engineered to deliver precise control for rotary and linear motors in demanding industrial motion applications. As a modular axis drive, this unit actively manages motor dynamics by converting DC bus power into regulated AC current, thereby ensuring accurate positioning and velocity control. Consequently, its high dynamic response and flexible overload capabilities make it an ideal solution for applications requiring rapid acceleration and deceleration, significantly enhancing machine throughput.

Furthermore, the drive integrates advanced safety functions directly into its architecture, actively contributing to a safer working environment without compromising performance. Since operational continuity is critical in automated systems, the unit supports multi-turn absolute encoders, which maintain precise position feedback even during power loss events. Additionally, the module mounts directly to the power rail and interfaces seamlessly with ControlLogix or other compatible controllers via standard communication protocols, facilitating easy integration into existing automation networks. By offering a peak current capacity of 53.0 A and a continuous output of 13.5 kW, the 2094-BM03-S empowers engineers to design highly efficient and responsive motion control systems.

Technical Specifications
