Description

Functional Overview

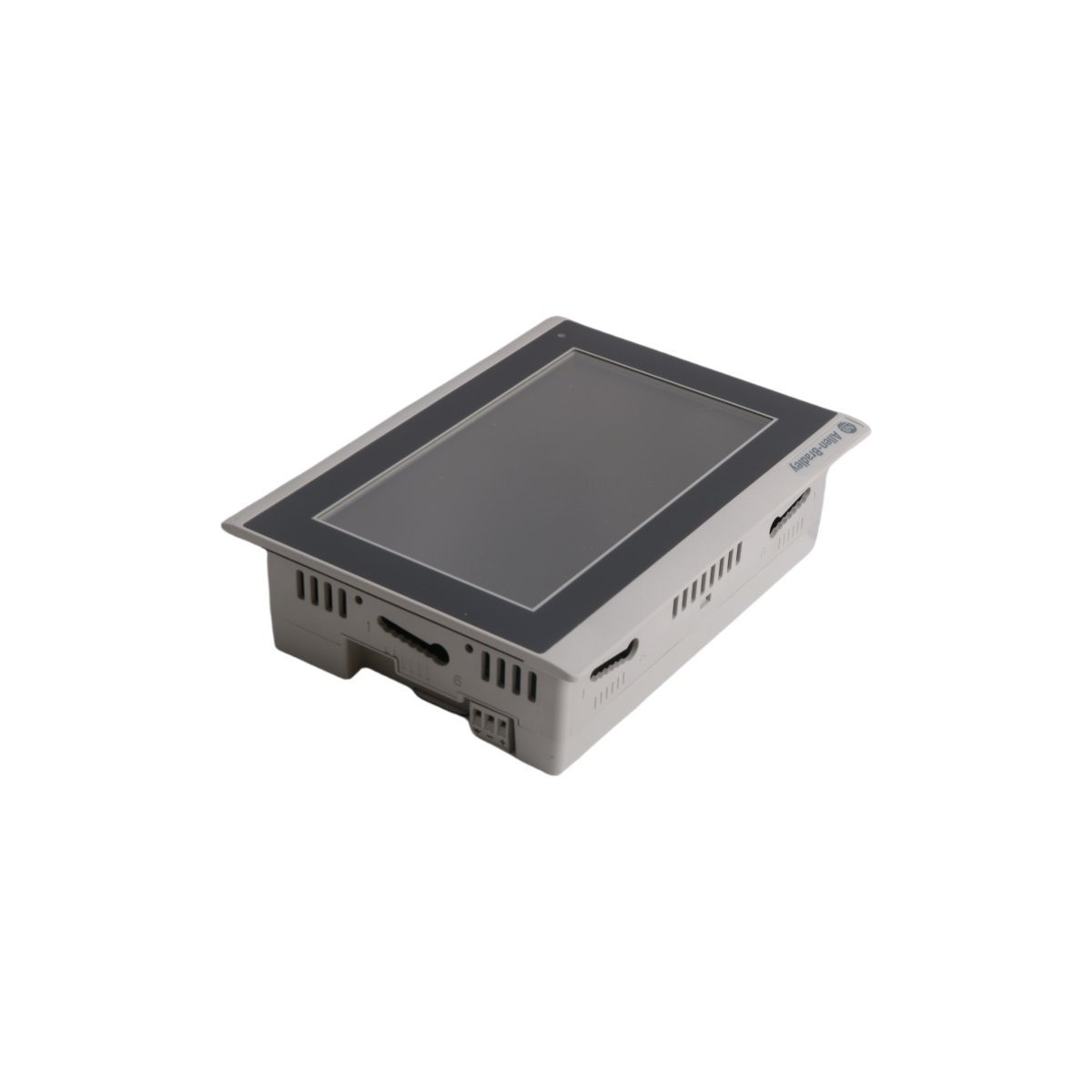

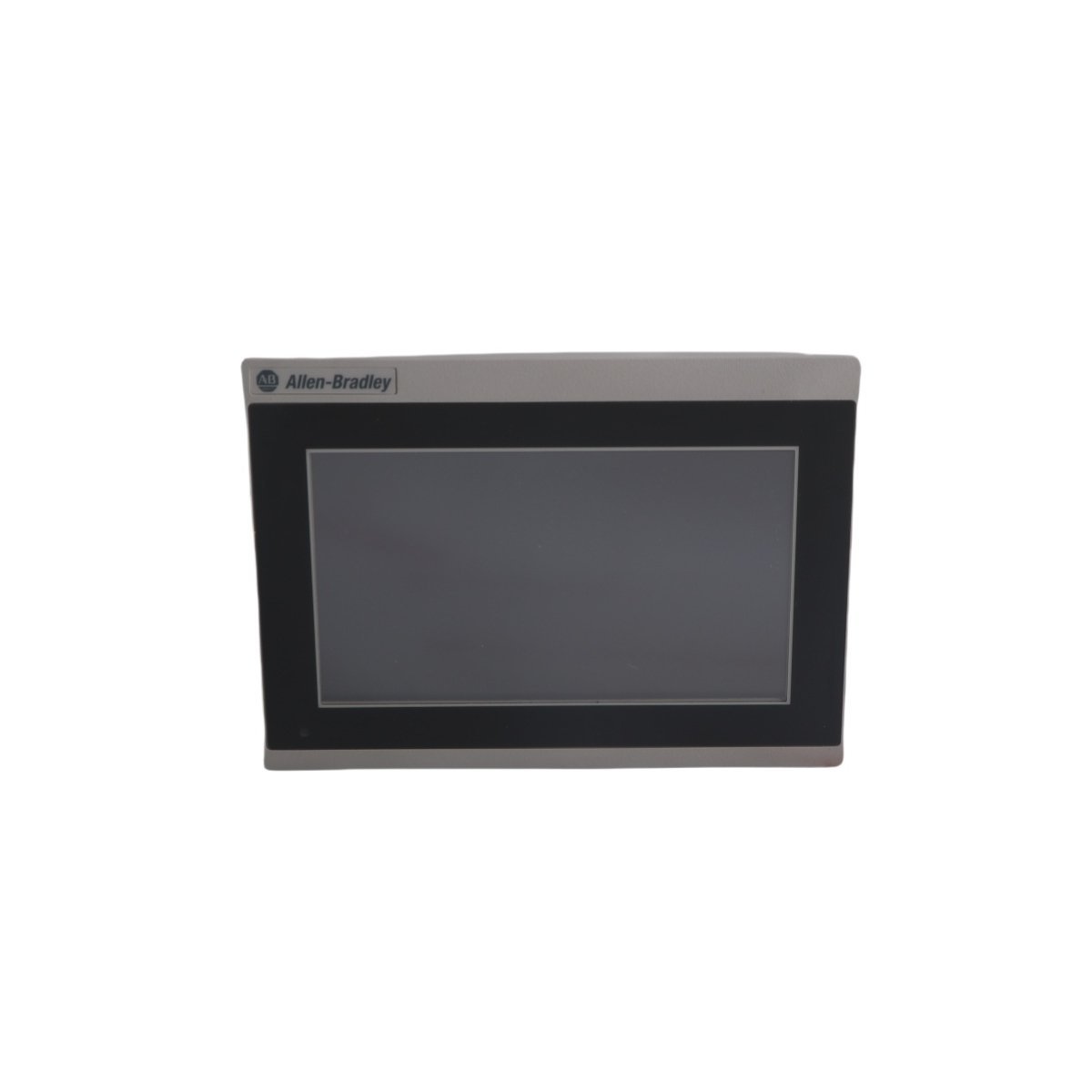

The Allen-Bradley 2711R-T7T is a high-performance Human-Machine Interface (HMI) panel from the PanelView™ 800 product family. Featuring a 7-inch widescreen thin-film transistor (TFT) liquid-crystal display, this operator interface panel bridges the gap between complex machine control and human operators.

It handles intensive, localized automation tasks by rendering real-time process monitoring animations, user-interactive control pushbuttons, multi-state indicators, dynamic alarms, and historical data trending windows. By utilizing an analog-resistive touchscreen interface, operators can inputs commands safely and precisely, even while wearing heavy industrial gloves.

Core Processing and Hardware Architecture

The internal architecture of the 2711R-T7T is optimized for efficient boot times, snappy screen-to-screen transitions, and complex graphic rendering. It houses a balanced high-speed processor paired with 256 MB of non-volatile Flash memory and 256 MB of volatile DDR RAM. This onboard storage comfortably accommodates substantial runtime applications, specialized font tables, local alarm history logs, and data recipes.

For applications requiring expanded storage capability, the panel features a built-in microSD™ expansion slot that supports industrial-grade storage cards up to 32 GB. This expansion capacity is ideal for executing prolonged data logging trends or carrying out large-scale firmware updates.

Multi-Protocol Connectivity and Integration

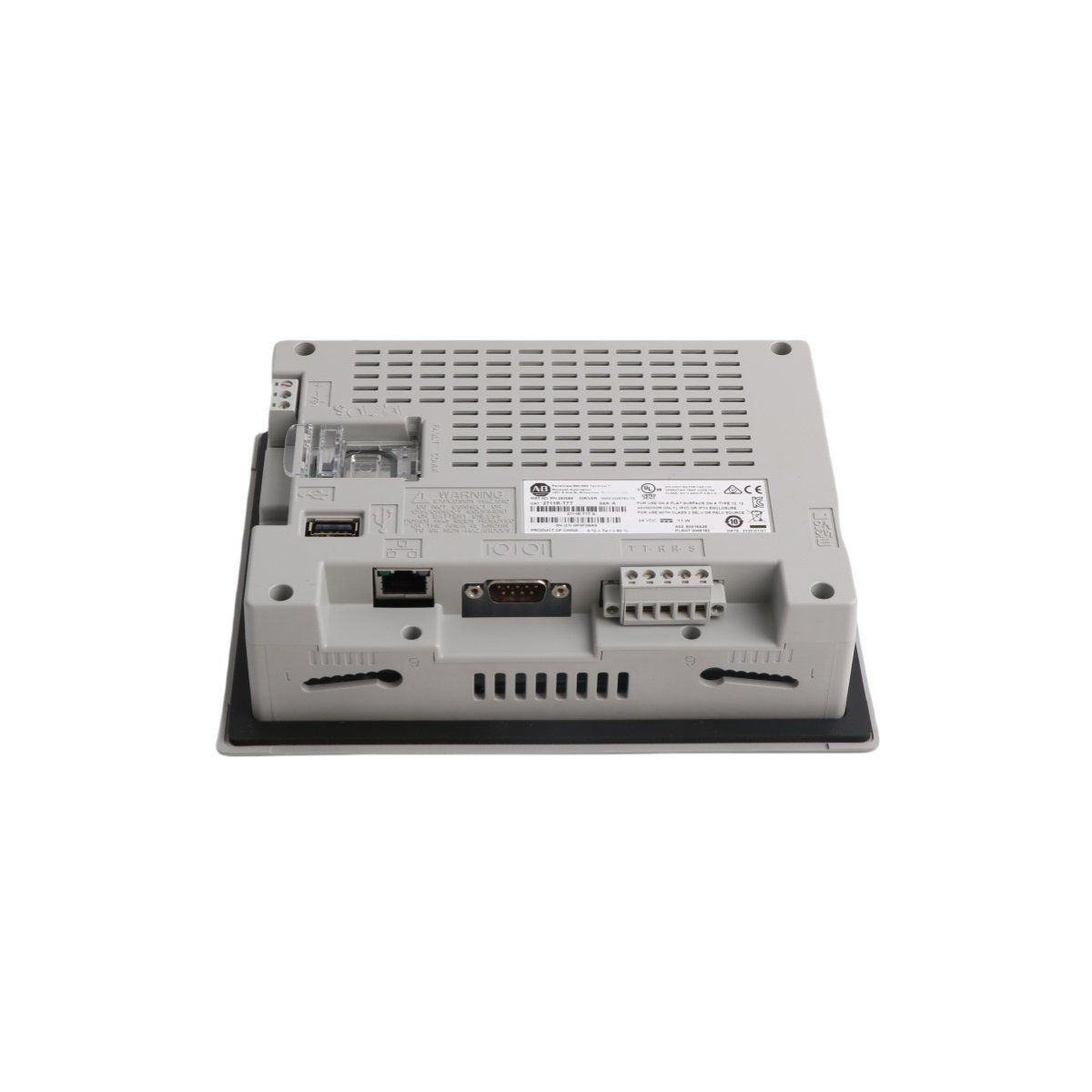

Designed for broad versatility across automated plant networks, the 2711R-T7T offers a rich suite of embedded communication ports and software driver packages. It handles multi-vendor control architectures via:

• Ethernet/IP (10/100 Mbps RJ45 Port): Providing rapid peer-to-peer data synchronization with contemporary controllers like the Micro800®, CompactLogix™, and MicroLogix™ platforms.
• Legacy Serial Channels (RS-232 & RS-422/RS-485 Ports): Preserving integration paths to older generation devices over legacy industrial networks.
• Diverse Built-In Drivers: Supporting industrial communication protocols such as Common Industrial Protocol (CIP), Modbus RTU, Modbus TCP/IP, and serial DF1 configurations.
• USB 2.0 Host Port: Allowing operators to attach standard external peripherals, including an industrial keyboard, mouse, or external flash drive for field-level recipe transfer.

Industrial Ruggedness and Environmental Ratings

The 2711R-T7T is engineered to withstand severe, uninterrupted factory conditions. When installed correctly into a panel enclosure cutout using the included mounting clips and compression gaskets, the face of the unit achieves an IP65 and NEMA Type 4X (indoor) enclosure rating. This certifies that the display face is impervious to airborne dust, oil splatters, non-corrosive liquids, and direct water sprays.

The panel incorporates a reliable LED backlight rated for more than 40,000 hours of half-life operation and a resistive touchscreen rated to endure over 1 million physical actuations. Furthermore, it resists mechanical vibration up to 2G and operates safely across an ambient temperature spread of 0°C to 50°C.

Technical Data

Key Operational Capabilities

• Flexible Screen Orientation: Supports both portrait (vertical) and landscape (horizontal) panel mounting layouts, enabling optimization for tight physical spaces or long process-flow overviews.
• Local Recipe Management: Supports configuration and memory storage for up to 50 distinct batch recipe files, allowing operator-led product changeovers directly from the HMI screen.
• Battery-Backed Real-Time Clock: Logs critical factory event warnings, alarm triggers, and process faults with precise date and time tracking.
• Simplified Engineering: Configured using Connected Components Workbench™ (CCW) software, allowing control designers to build HMI screens and PLC code tags within a single environment.
