Description

Functional Overview

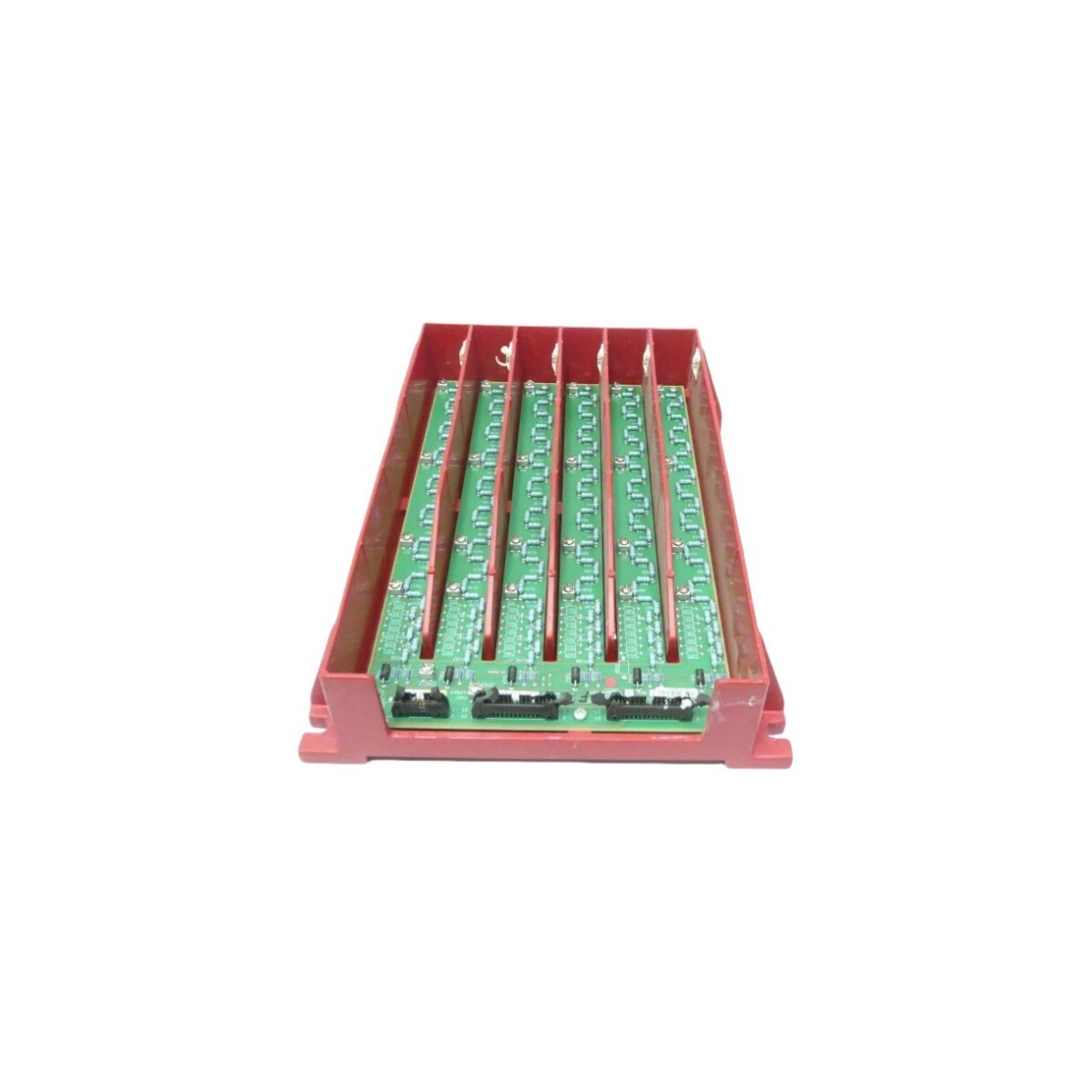

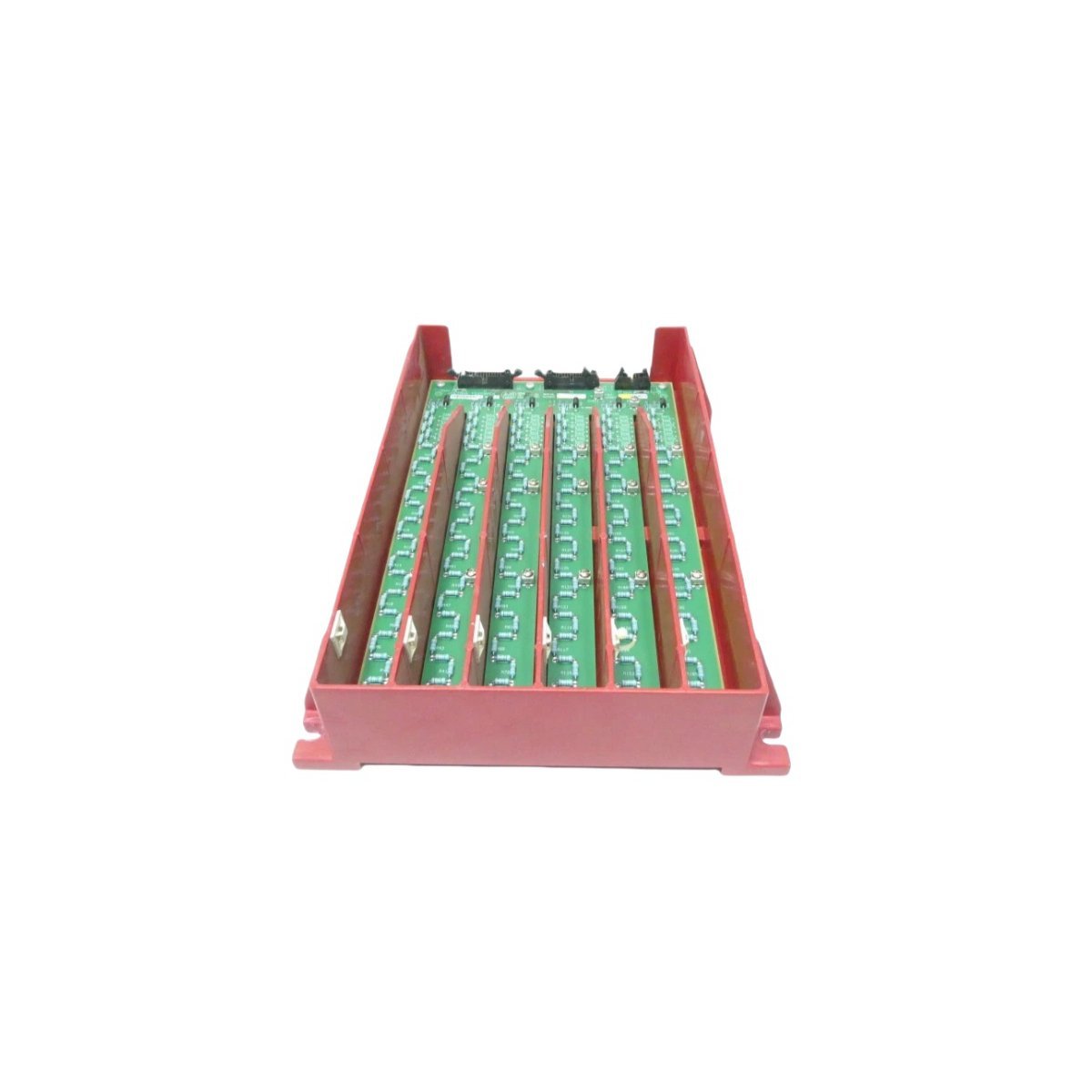

The Allen-Bradley 81007-465-51-R functions as a high-precision Voltage Sensing and Feedback Board built for advanced industrial control loops and heavy-duty switching power environments. Acting as a critical link in the system’s regulation chain, this board monitors dynamic electrical changes on main power buses or output lines. It feeds real-time voltage data back to the primary control processor, ensuring the system can make rapid power corrections and maintain precise operational balance.

Power Regulation and Efficiency

Equipped with advanced switching topologies, the board helps deliver a stable, clean 24VDC, 5A output with a nominal energy efficiency rating of 92%. By converting power with minimal loss, it drastically reduces thermal dissipation inside enclosed electrical cabinets—averting localized heat build-up and lowering long-term energy costs.

To cope with unpredictable or unstable mains grids, the board features a wide universal input threshold spanning 85V AC to 264V AC. This wide range protects the system against severe line sags or surges, ensuring continuous, flicker-free operation for downstream hardware.

Circuit Protection and Noise Filtering

To safeguard sensitive internal components, the 81007-465-51-R features an array of hardware-level defensive circuits:

• Overvoltage & Overcurrent Protection: Actively clamps voltage spikes and restricts current runaway to shield connected downstream loads.
• Short-Circuit Protection: Instantly decouples or chokes output current during a fault state to prevent thermal damage to the PCB tracks.
• Advanced Electromagnetic Filtering: Integrates high-attenuation filters to strip away high-frequency line ripples and electromagnetic interference (EMI). This guarantees clean power delivery to sensitive Programmable Logic Controllers (PLCs), Human-Machine Interfaces (HMIs), and delicate instrumentation units.

Mechanical Layout and Durability

The hardware is housed in a compact, space-saving 45mm wide form factor engineered for standard industrial DIN-rail mounting. Its vertical ventilation design promotes natural convection cooling, eliminating the need for mechanical cooling fans.

Built to survive extreme industrial environments, the board is rated to operate flawlessly across a wide temperature window from -25°C to +70°C. Its heavy-duty, vibration-resistant construction ensures complete electrical contact and steady operation even when mounted directly onto high-vibration machinery beds.

Technical Data

Industrial Applications

The reliability and clean output of the 81007-465-51-R make it a vital component in high-throughput production lines where unexpected shutdowns cause costly delays. It is commonly deployed within:

• Automotive Assembly: Powering multi-axis robotic control panels and inductive welding systems.
• Food & Beverage Processing: Supporting automated filling, sorting, and high-temperature pasteurization control systems.
• Packaging & Material Handling: Maintaining smooth voltage distribution for high-speed conveyor sorting networks and packaging lines.
