Description

Functional Overview

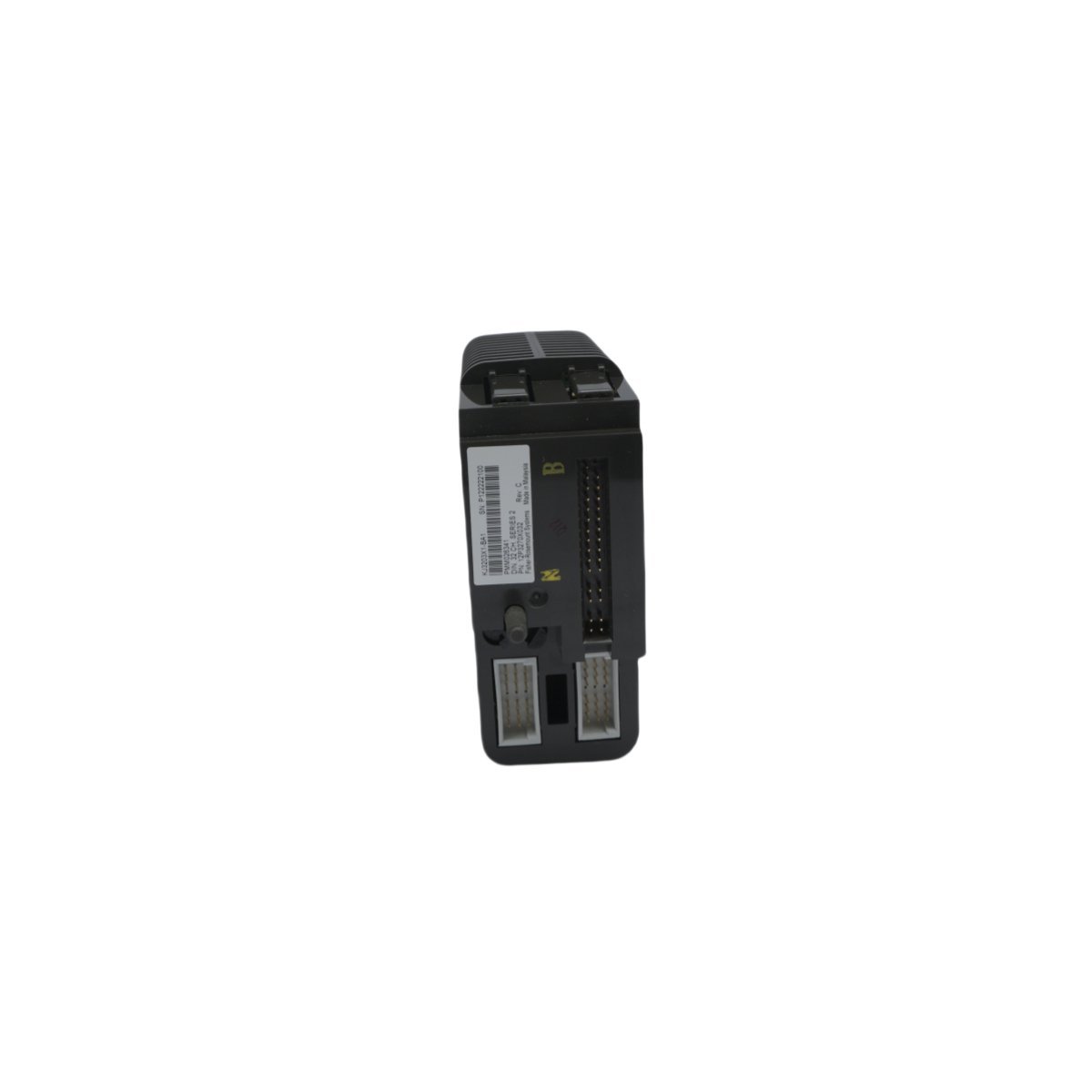

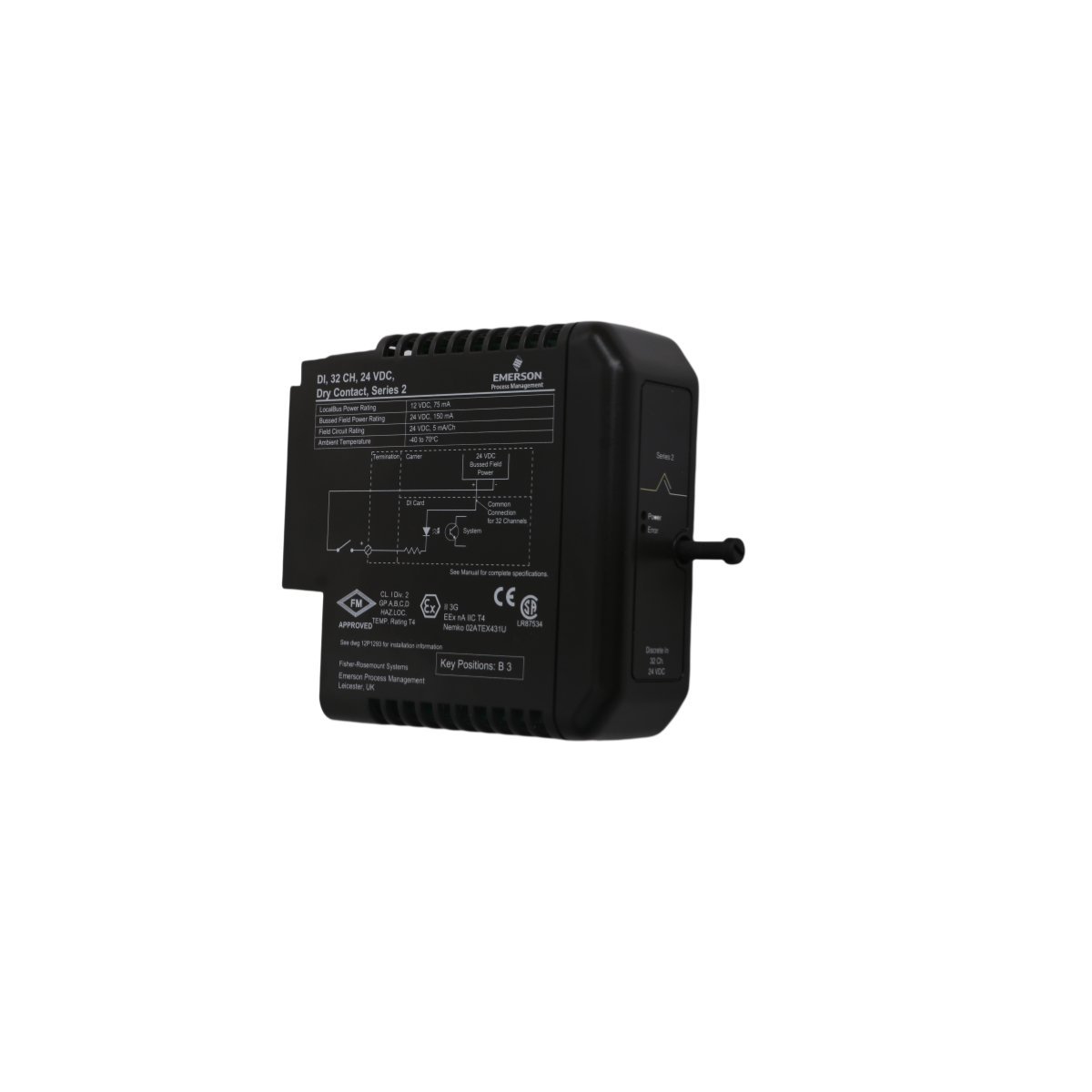

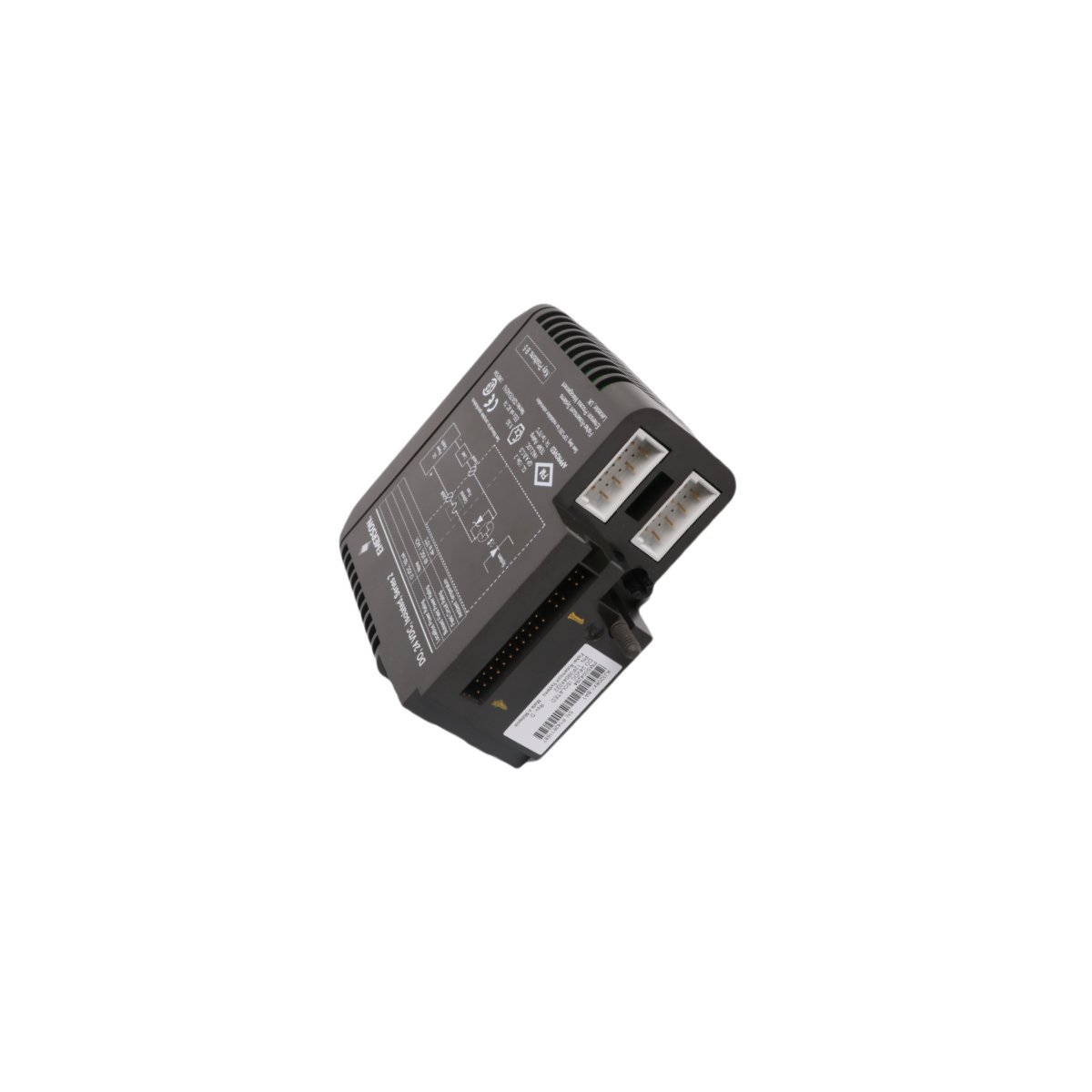

The Emerson KJ3203X1-BA1 is a high-density, 32-channel discrete input module belonging to the DeltaV M-series Traditional I/O Subsystem framework. Configured explicitly as a dry contact card, this industrial component interface acts as an isolated sensory gate for binary field inputs. It safely registers external electrical states—such as switch contact closures, mechanical limit trips, and circuit breaker status indicators—without needing external wet voltage loop injection from the control rack.

Processing Architecture and Hardware Redundancy

To facilitate high-speed data transmission and reliable process control, the module incorporates dedicated onboard signal conditioning circuitry. It continuously samples all 32 channels with strict anti-bounce filtration, ensuring that noisy physical switch transitions do not trigger false digital states within the Distributed Control System (DCS).

The card’s design features highly advanced diagnostic capabilities engineered to isolate channel-level electrical faults or wiring open-circuits rapidly. This localized troubleshooting minimizes facility downtime by preventing broad systemic upsets. Furthermore, the hardware configuration inherently supports 1-to-1 redundant mounting topologies, ensuring un-interrupted input scanning even if a primary module requires a hot-swappable replacement.

Rugged Industrial Design

Constructed for severe deployment contexts, the KJ3203X1-BA1 features robust anti-interference isolation parameters to shield internal processing components from field-side voltage spikes or electromagnetic field distortion. Its space-saving, modular form factor snaps cleanly into standard M-series I/O carriers, mating securely with corresponding terminal blocks to provide convenient, scalable installation and long-term wiring protection.

Technical Data

• Manufacturer: Emerson
• System Product Line: DeltaV M-series Traditional I/O Subsystem
• Module Sub-Type: 32-Channel Discrete Input Dry Contact Card
• Model Identification Code: KJ3203X1-BA1
• Alternate Factory Part Numbers: 12P3270X022 / VE4001S2T2B4
• System Architecture Application: Distributed Control System (DCS)
• Hardware Physical Dimensions: 16.8 cm x 8.7 cm x 4.4 cm
• Shipping Weight: 0.2 kg
• Backplane Bus Communication: Localized Carrier Plane Interconnect
• Harmonized Export Classification (HS CODE): 8537101190
• Official Lifecycle Milestone: Legacy Component (Discontinued December 31, 2018)

Operational Applications

This 32-channel discrete dry contact module serves a vital function in industrial facilities where extensive discrete point tracking is required to safely manage automation routines. Key sectors utilizing this hardware include petrochemical refining, thermal and hydro-generation utilities, pharmaceutical synthesis plants, and water handling structures. The module reliably tracks critical interlocking mechanisms, emergency stop circuits, valve positions, and auxiliary machinery states, maintaining optimal workflow stability across the plant.
