Description

Functional Overview

The Allen-Bradley 1492-AIFM6S-3 is an Analog Interface Module (IFM) designed as part of the Bulletin 1492 Digital/Analog Wiring System. It acts as a dedicated pre-wired termination and isolation interface that bridges field instrumentation with programmable logic controller (PLC) I/O modules, specifically optimized for Rockwell Automation’s ControlLogix® and CompactLogix™ platforms.

Rather than executing internal analog-to-digital conversions on its own, the 1492-AIFM6S-3 functions as a high-density, feed-through isolation panel. It streamlines field loop architecture by routing signals through multi-conductor pre-wired cables directly to the controller’s I/O cards, drastically reducing manual point-to-point enclosure wiring and potential installation errors.

Isolation Barriers and Signal Management

The standout engineering feature of the 1492-AIFM6S-3 is its strict channel-to-channel galvanic isolation. Equipped with six isolated channels, each signal path is electrically separated from the others and from the control logic backplane. This protects against ground loop currents, which can occur when field sensors are grounded at different physical locations and potentials across a plant.

System Integration and Space Optimization

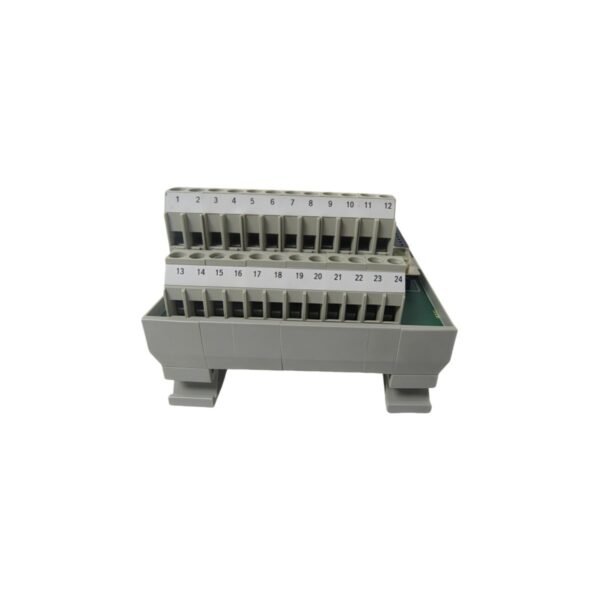

Mechanically, the 1492-AIFM6S-3 is designed to maximize space within high-density control cabinets. It features a compact, rugged housing that clips directly onto standard 35 mm DIN rails. Field wires connect via heavy-duty screw terminals, which provide secure, vibration-resistant copper clamping points.

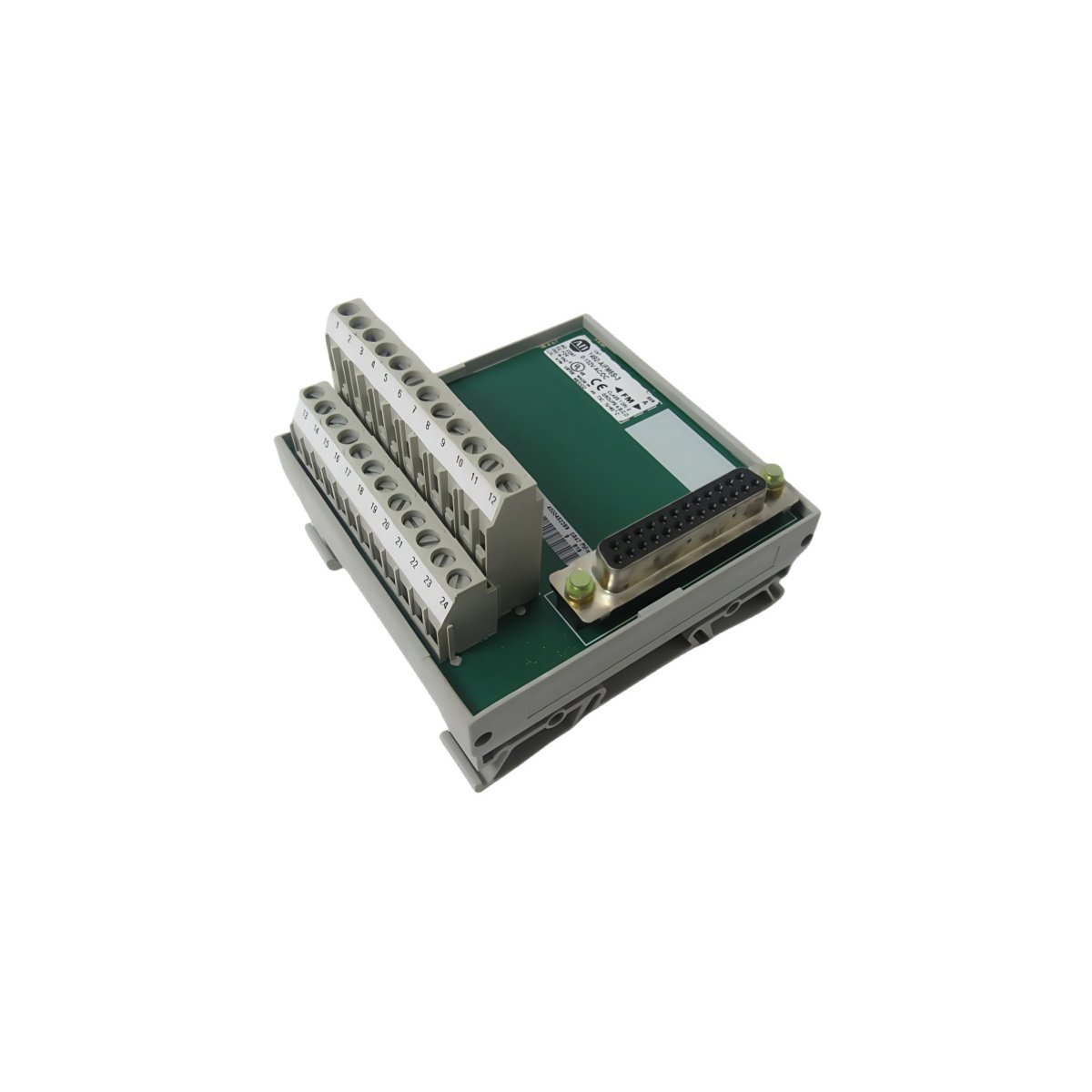

On the system side, the module uses a dedicated multi-pin D-shell or header connector. This layout allows installers to use an Allen-Bradley pre-wired cable to connect all six channels to a paired PLC analog module in a single click. Integrated LED status indicators provide immediate visual diagnostics, helping maintenance personnel quickly locate active field loops or identify open-fuse/fault states.

Industrial Durability and Resilience

Built for 24/7 continuous operation in harsh environments, the module’s housing is molded from high-impact, flame-retardant industrial plastics. This material repels common airborne chemical contaminants, dust, and moisture. By managing thermal dissipation effectively across its surface, the module maintains strict signal accuracy and prevents temperature-induced drift in precision instrumentation lines.

Technical Data

Key Applications

The superior electrical isolation and multi-signal versatility of the 1492-AIFM6S-3 make it an ideal interface layer in demanding process automation applications:

• Petrochemical Processing: Isolating long-distance analog return loops from tank level gauges and temperature transmitters to prevent cross-channel interference.
• Power Generation Facilities: Routing critical turbine supervisory metrics into ControlLogix chassis while protecting the processors from high-voltage field faults.
• Municipal Water Treatment: Connecting scattered flow meters and chemical dosing pumps back to a centralized PLC panel over varying ground potentials.
• Heavy Manufacturing Lines: Safeguarding feedback signals from hydraulic positioners and load cells near heavy switching equipment that causes electromagnetic interference.
