Description

Functional Overview

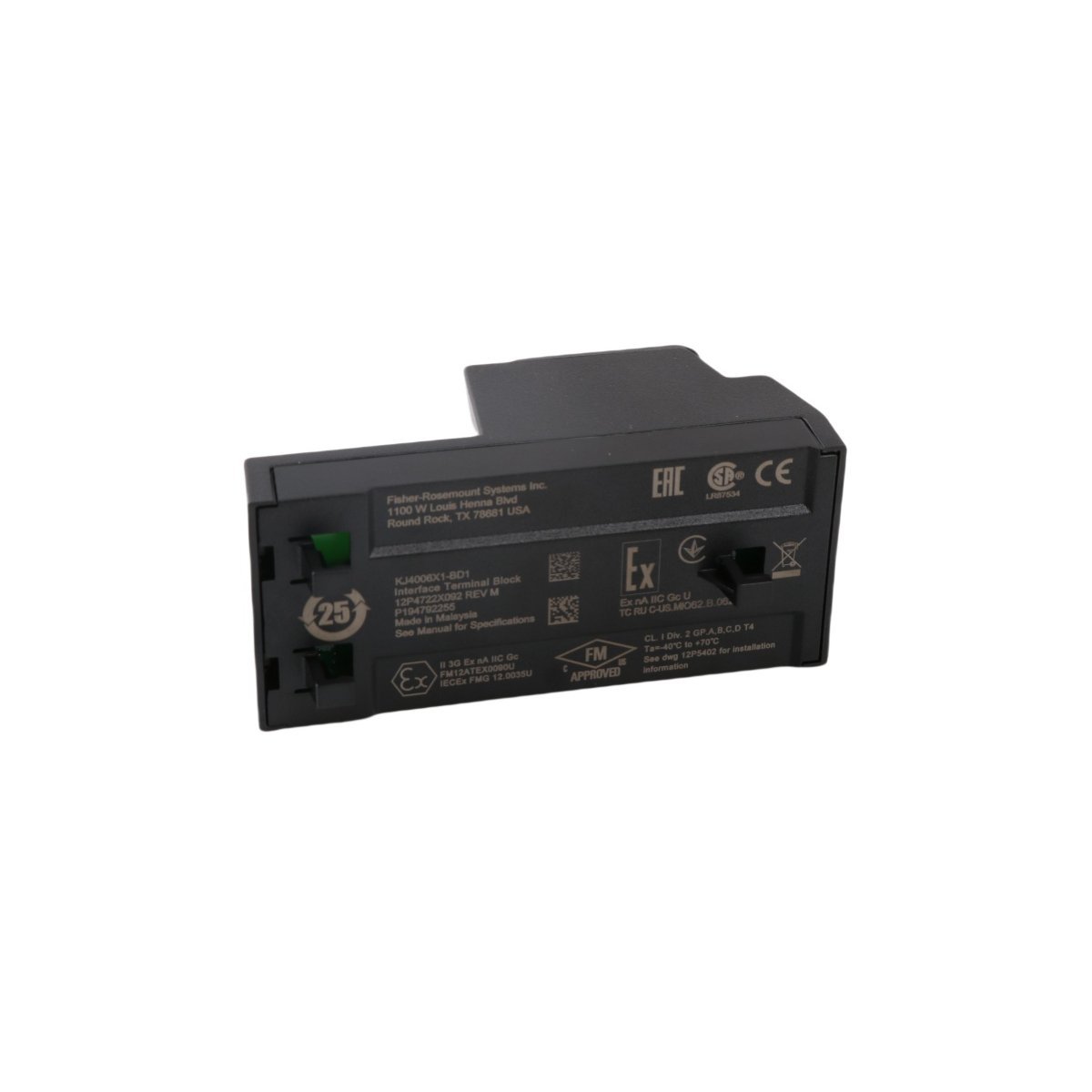

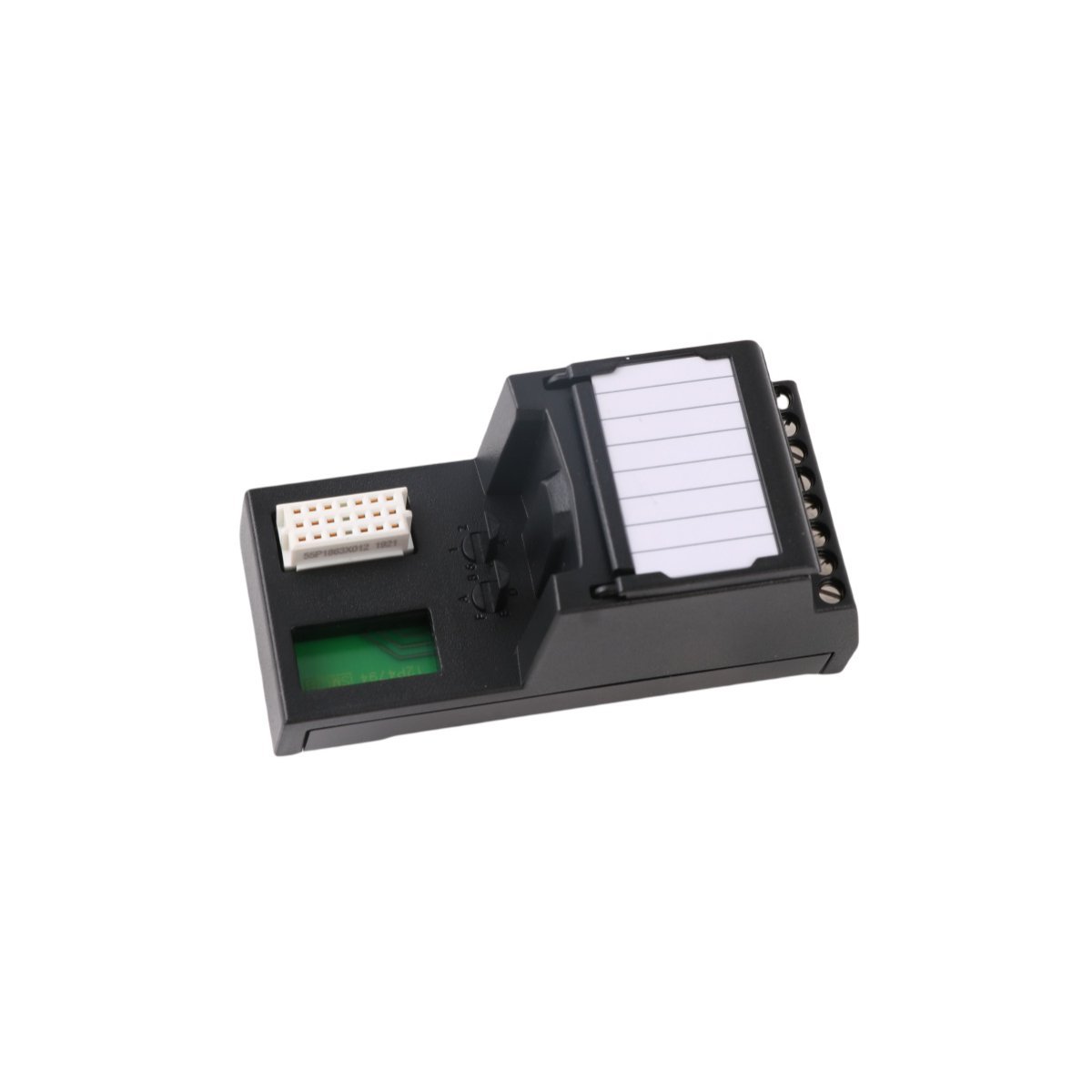

The Emerson KJ4006X1-BB1 (also identified by part number 12P4721X112) is a specialized 8-channel terminal block designed for the DeltaV™ M-series I/O Subsystem. In a Distributed Control System (DCS) architecture, this module serves as the physical interface layer between field instruments and the internal electronic backplane of DeltaV I/O cards.

Rather than functioning as an active processing CPU or independent power supply unit, the KJ4006X1-BB1 provides a secure, organized, and fused termination point for up to eight distinct signal channels. It routes essential loop power and analog/discrete signals to paired I/O cards, making it an indispensable part of process isolation and connection management.

System Integration and Cabinet Optimization

The mechanical architecture of the KJ4006X1-BB1 is optimized for compact, high-density control cabinets. It mounts directly onto standard DeltaV horizontal or vertical I/O carriers without complex tools. This terminal block features an innovative passive pass-through design that connects directly to the I/O interface card inserted above it.

By removing field-wiring connections from the active electronic module and placing them onto this dedicated terminal block, Emerson allows for Removal and Insertion Under Power (RIUP). This means maintenance personnel can unclip and replace active I/O cards hot without needing to disconnect any copper field wires, saving valuable time during plant turnarounds and preventing connection mistakes.

Electrical Integrity and Diagnostic Capabilities

Designed to manage field loops operating at standard ratings up to 30 VDC and 100 mA per channel, the KJ4006X1-BB1 provides clear electrical paths that safeguard data integrity against electromagnetic interference (EMI). When paired with smart, diagnostic-enabled DeltaV I/O cards, this terminal block supports comprehensive field loop monitoring.

It helps track loop health and alerts control room operators via DeltaV hardware alarms if a field line experiences an open-circuit fault or short-circuit anomaly. This rapid detection reduces the risk of unexpected downtime by isolating electrical faults to an individual channel, preventing them from destabilizing adjacent process loops.

Environmental Design and Industrial Durability

The KJ4006X1-BB1 is engineered to meet severe environmental demands, allowing it to be deployed in field-mounted cabinets close to primary process equipment.

• Extended Temperature Rating: Operates reliably across an extreme ambient temperature window from -40°C to +70°C (-40°F to +158°F).
• Vibration and Shock Resilience: Built to withstand mechanical stress, featuring a certified shock rating of up to 10g (half-sinewave for 11 ms).
• Corrosion Resistance: The housing is constructed from rugged, flame-retardant industrial plastics designed to repel dust, moisture, and airborne chemical contaminants common to heavy process corridors.

Technical Data

Key Applications

The reliable termination and rugged build of the KJ4006X1-BB1 make it a vital connection layer in heavy-scale industrial control loops across many sectors:

• Oil & Gas Extraction: Terminating field signals from offshore platform pressure transmitters and emergency shutdown switches.
• Chemical Processing Plants: Routing low-current analog loops from temperature sensors and control valve positioners into safety instrumentation systems.
• Power Generation Facilities: Managing binary alarm contact points from boiler auxiliary control loops and steam turbine feed subsystems.
• Water & Wastewater Treatment: Organizing high-density I/O distributions from flow meters and wet-well level switches back to central DCS racks.
