Description

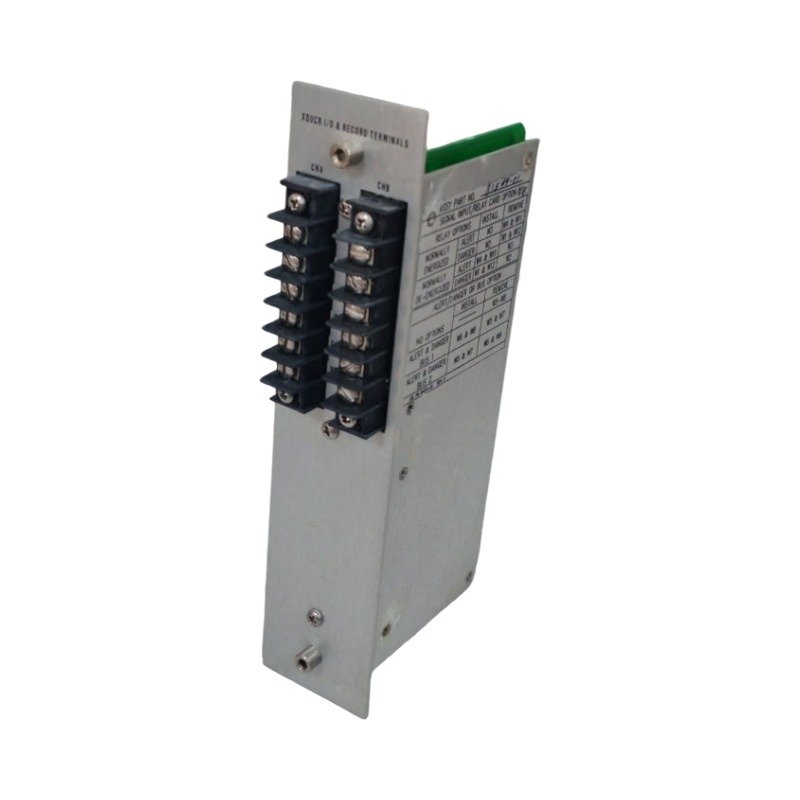

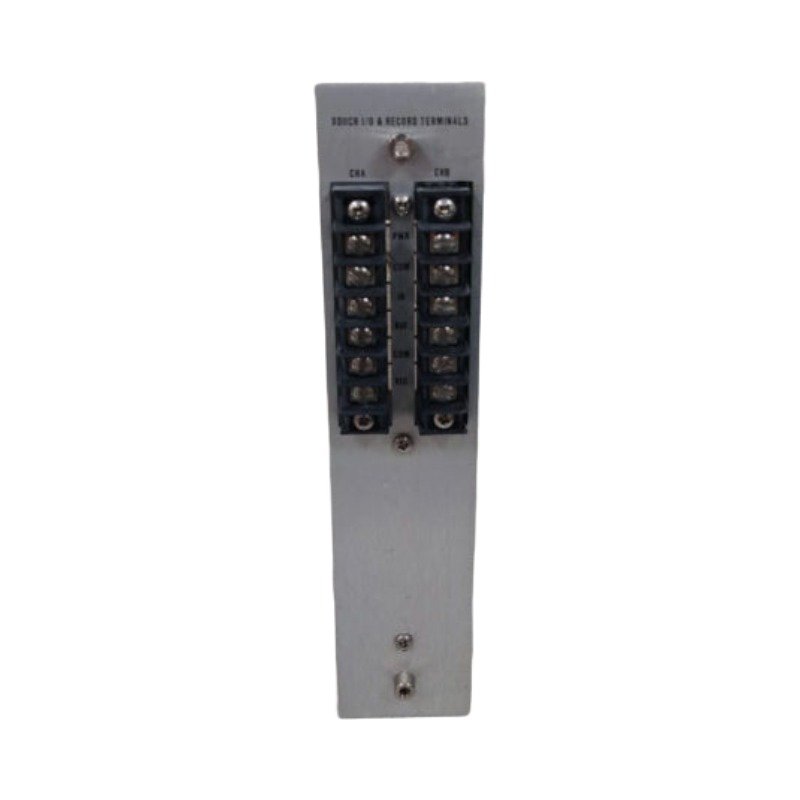

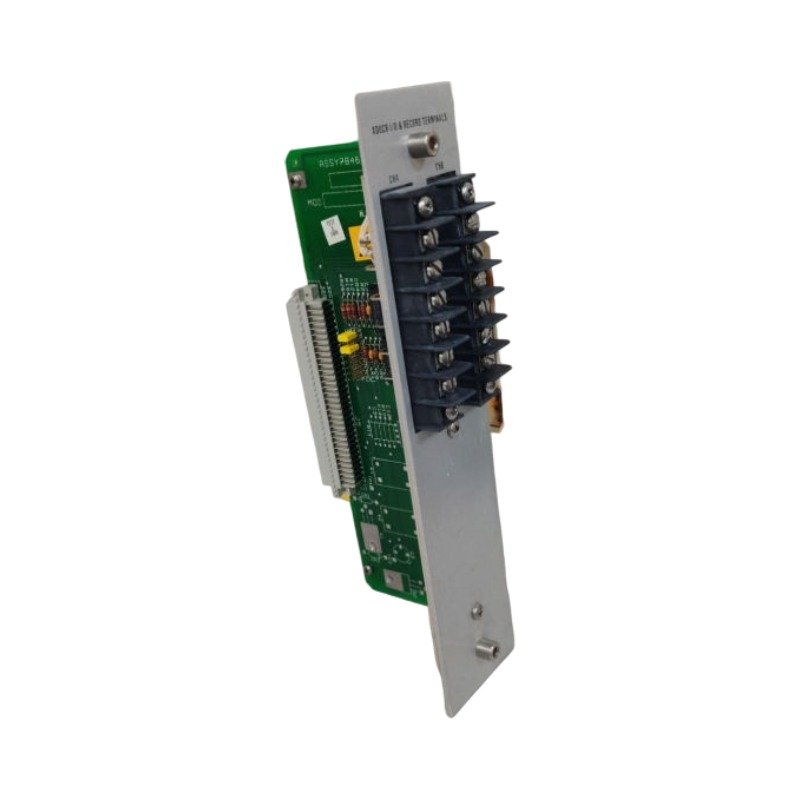

The Bently Nevada 81544-01, also cataloged as the 81544-01 Transducer (XDUCR) I/O and Record Terminals Module, operates as a dedicated hardware component for dual-channel sensor interfacing and analog record routing within 3300/45 Dual Differential Expansion Monitor networks.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The rear-mounting terminal board forms the raw interface path for critical differential expansion Turbine Supervisory Instrumentation (TSI) setups. Specifically, the card handles raw transducer signals to maintain structural linearity during continuous eddy-current probe scaling configurations. The processing pathways route raw electrical inputs through isolated traces, which enables stable gap voltage validation targeting -10 VDC baseline settings for exact thermal expansion tracking. To isolate weak sensor voltages from harsh electrical interference, the architecture enforces strict cross-talk suppression metrics between the dual-channel lines. Consequently, this shielding structure preserves the mechanical data integrity needed to assess rotor dynamics and prevent friction boundaries between expanding rotors and machine casings.

Frequently Asked Questions

Q: How does this termination module route alarm conditions if it lacks onboard mechanical relays?

A: The board functions exclusively as an I/O interface layer that transfers raw electrical lines back to the primary 3300/45 monitor module. Therefore, the main monitor handles all logic processing and triggers its own rack-mounted or backplane-connected relay components when limits are exceeded.

Q: Can this terminal block accommodate mixed proximity probe inputs, such as pairing a 5 mm probe with an 8 mm probe?

A: The hardware backplane circuits accept standard -20 VDC to 0 VDC proximity probe ranges. However, the front-panel 3300/45 monitor module configuration dictates the final sensor calibration; thus, operators must ensure that matching probe types are deployed to prevent scaling errors.

Field Installation Guidelines

Technicians must fix the termination card directly onto the back of the assigned 3300 instrument rack slot using the integrated fastening screws. To prevent external noise injection across the sensitive 10 k ohm inputs, land the transducer coaxial outer braid shields solely on the dedicated terminal strip positions. Furthermore, path layouts must separate low-voltage transducer signal runs from heavy power distribution conduits to eliminate electromagnetic induction loops. Finally, verify that the local enclosure airflow keeps the ambient installation environment below +85 deg C to ensure stable long-term operation of the passive circuit components.
