Description

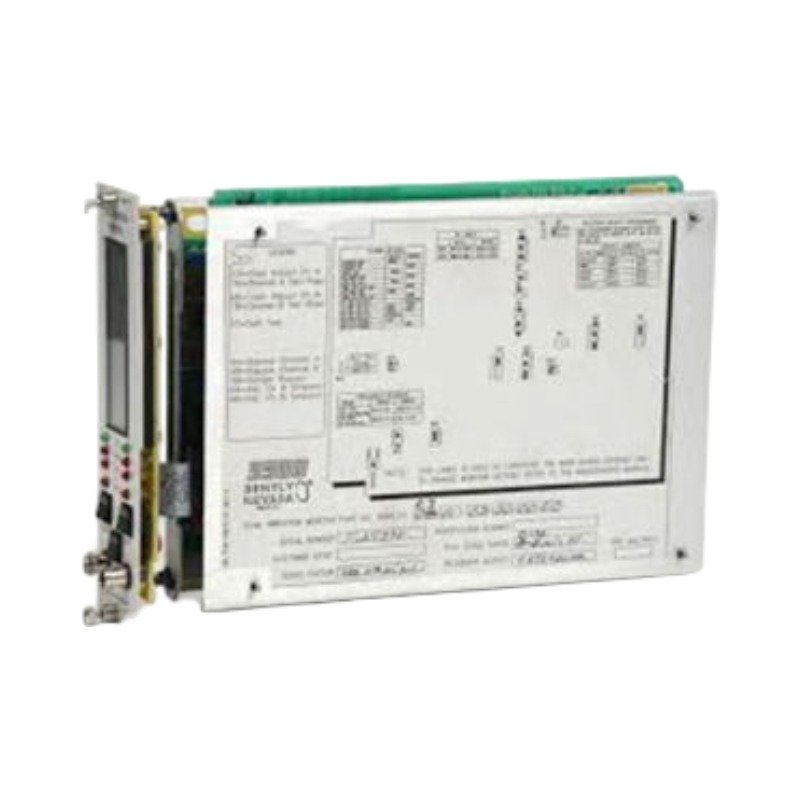

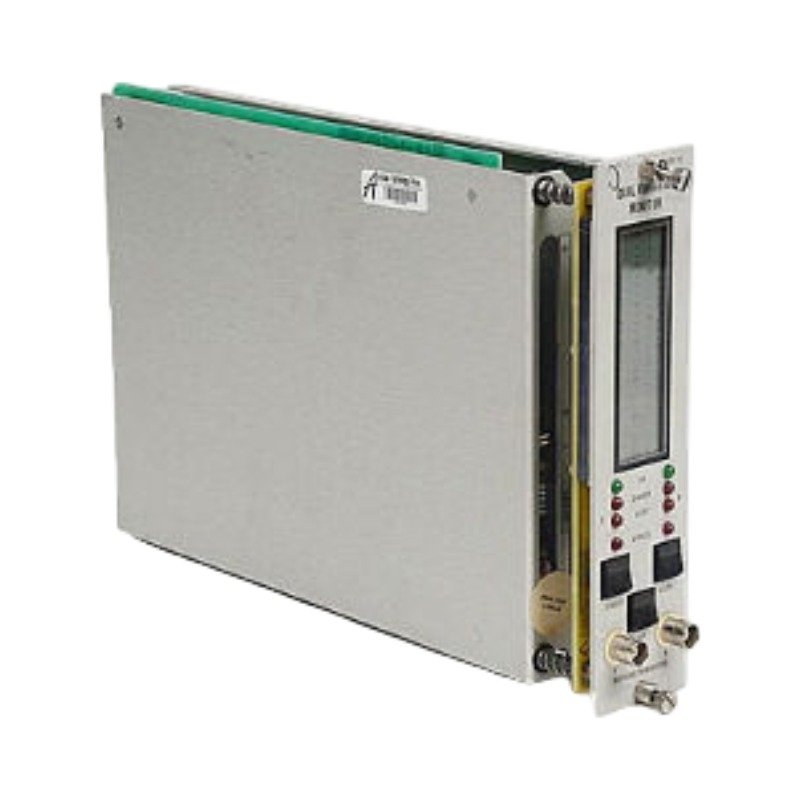

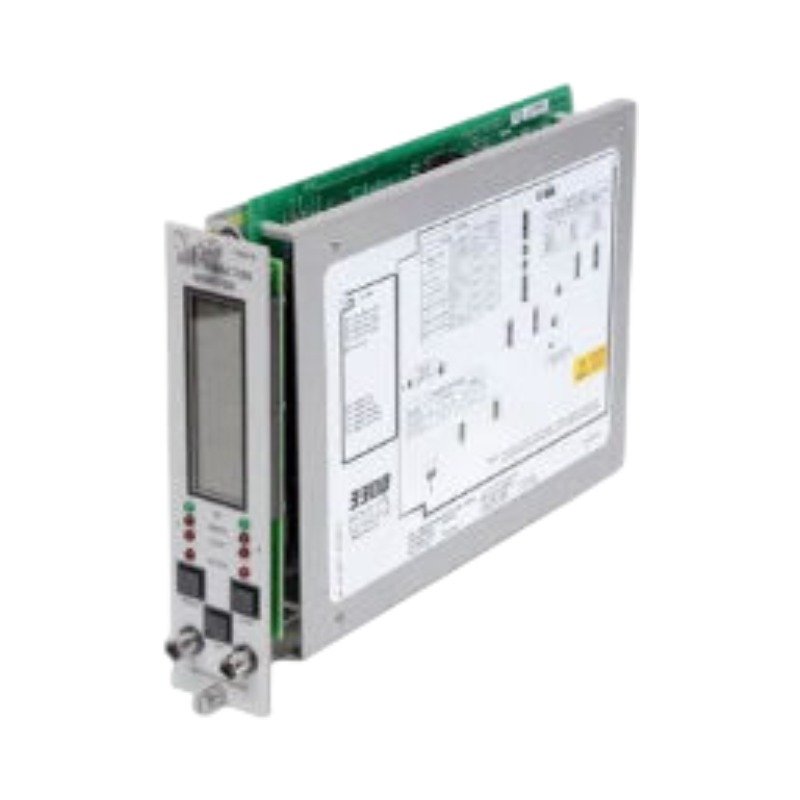

The Bently Nevada 3300-15-03-01-01-00-00-00 serves as the primary 3300/15 Dual Vibration Monitor utilized to execute continuous radial vibration amplitude tracking across 3300 Monitoring System platforms.

Suffix Breakdown & Model Matrix

The structured configuration options define the exact full-scale measurement limits, input options, and electrical hardware variants built into this specific assembly:

• 03 (Full-Scale Range Option): Programs an engineering scale range of 0-10 mils peak-to-peak for standard industrial displacement observation.
• 01 (Transducer Input Option): Sets input conditioning circuits to accept standard 3300 or 7200 Proximitor sensor systems with a native calibration scale of 200 mV/mil.
• 01 (Alarm Relay Option): Integrates dedicated epoxy-sealed dry contact relays to actuate supervisory interlocks.
• 01 (Agency Approval Option): Mandates basic electrical safety compliance certifications for non-hazardous industrial areas.
• 00-00-00 (Safety Barriers & Custom Modifications): Indicates no internal safety barriers or specialized hardware modifications are selected.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The internal microprocessor leverages precise eddy-current probe scaling to decode continuous shaft motion patterns into real-time digital display values. Consequently, the monitor maintains high tracking stability by executing an autonomous gap voltage validation sequence when operators depress the front-panel manual switches. This dual-channel framework protects complex turbine configurations against catastrophic imbalances; furthermore, the integrated filtering logic isolates true machinery anomalies to suppress structural noise and cross-talk between adjacent cards. As a result, the hardware streams accurate analog trends to remote processing hubs while managing independent latching Alert and Danger setpoints to preserve the integrity of critical rotor dynamics measurements.

Frequently Asked Questions

Q: How does the monitor respond if field transducer wiring breaks during machinery operation?

A: An integrated Timed OK/Channel Defeat loop continuously scans input continuity. Consequently, the monitor automatically illuminates the Bypass indicator, disables active alarm relays within 30 seconds, and drops the corresponding recorder output to a zero-scale condition to eliminate false trips.

Q: What specific maintenance function does the circuit board Danger Bypass switch provide?

A: Setting the internal slide switch to the active position isolates the final drive coils of the output shutdown relays. Therefore, maintenance technicians can perform live calibration verifications and loop tests without causing an accidental machinery shutdown.

Field Installation Guidelines

Slide the chassis module into the assigned slot of the 3300 System Rack until the rear multi-pin plug seats completely into the backplane. To minimize stray ground loop currents, land the probe outer shields exclusively on the designated terminal strip locations rather than establishing local earth points inside the machine casing. Furthermore, engineers must separate transducer wiring paths from high-power switching cables to block electromagnetic noise induction. Finally, operators must verify that cabinet ventilation systems keep the local ambient temperature below +65 deg C to prevent localized heat stress from reducing the lifecycle of the internal processing components.
