Description

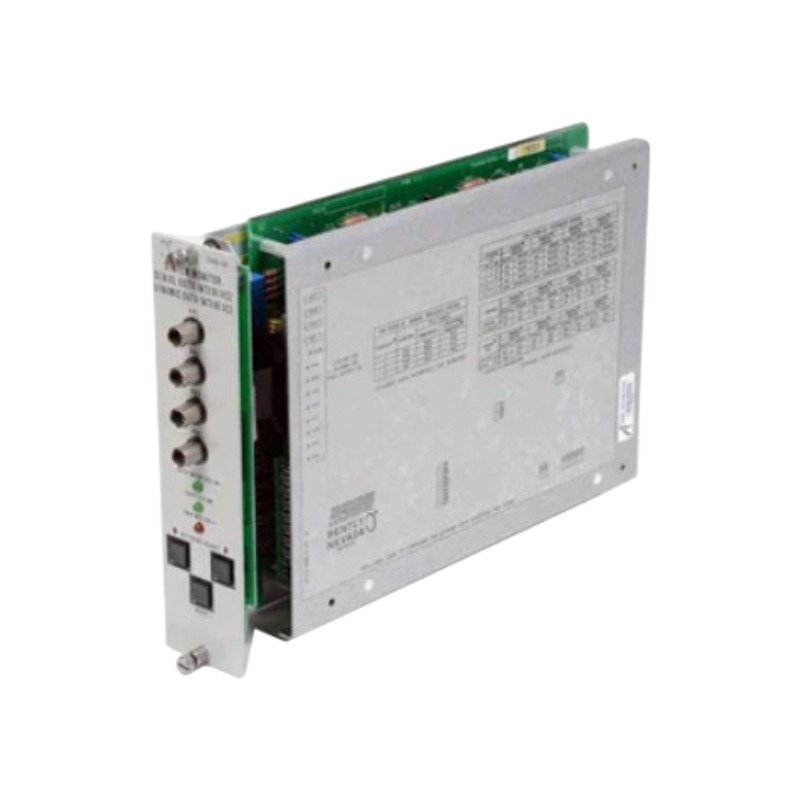

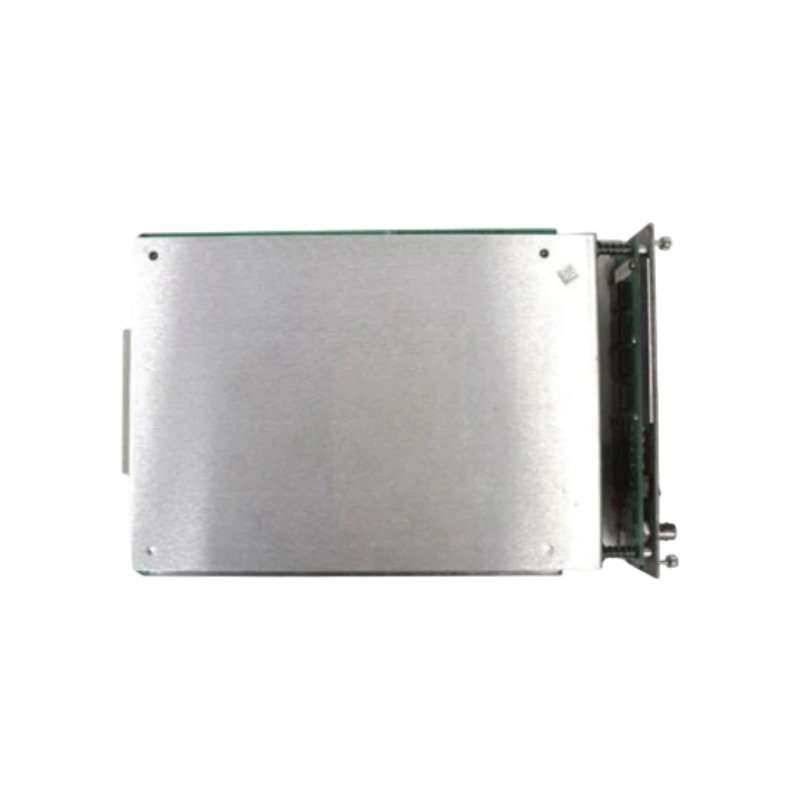

The Bently Nevada 3300/53-03-02-00-60-20-00-00-00 serves as the primary 3300/53 Overspeed Detection Module utilized to execute high-speed rotational velocity trip monitoring across 3300 Machinery Protection System platforms. It inputs raw pulse frequencies generated by proximity transducers or magnetic pickups to track real-time angular velocity and trigger emergency mechanical trip loops if rotor speeds exceed strict design constraints.

Hardware Specifications

Machinery Monitoring and TSI Integration

The 3300/53-03-02-00-60-20-00-00-00 configuration processing card samples dynamic multi-event gear frequencies without introducing digital distortion into adjacent Turbomachinery Instrumentation (TSI) modules. Specifically, the onboard microcircuitry enforces rigorous eddy-current probe scaling to convert analog pulse transitions into precise timing metrics. Consequently, this method eliminates tracking errors caused by tooth-to-tooth geometry variations on the target wheel.

Furthermore, the module conducts strict gap voltage validation (-10 VDC targets) across the sensor terminal block to verify transducer health. This layout optimizes cross-talk suppression between close-proximity magnetic or eddy-current sensors. As a result, turbulent rotor dynamics or external magnetic interference cannot bleed into the speed calculation path, enabling the hardware to execute trip relay voting criteria safely.

Frequently Asked Questions

Q: How does the module handle transient speed bursts during machine startup phases?

A: The internal logic evaluates peak frequency spikes against configured threshold margins. Specifically, it buffers non-critical transient surges using intentional response delays while prioritizing instantaneous trip execution if the rotor surpasses the absolute limit.

Q: Can maintenance teams pull this module out of a live rack without affecting other monitors?

A: Yes. The 3300 power distribution system isolates the slots. Therefore, technicians can execute an online extraction of this module card without interrupting backplane communication or dropping power to neighboring vibration monitors.

Field Installation Guidelines

1. Slide the 3300/53-03-02-00-60-20-00-00-00 module along the plastic guide tracks of the target rack slot position.
2. Push the faceplate firmly until the rear multi-pin male arrays click completely into the passive system backplane.
3. Secure the module mechanically by turning the upper and lower panel screws to a torque limit of 0.7 N-m.
4. Route all multi-event transducer input cabling inside separate low-voltage wireways. In doing so, maintain a 30 cm minimum clearance from high-amp AC supply lines to prevent electrical induction.
5. Secure the field shield drain wires exclusively to the designated instrumentation grounding bus. Finally, apply primary rack power to run the speed channel self-test sequence.
