Description

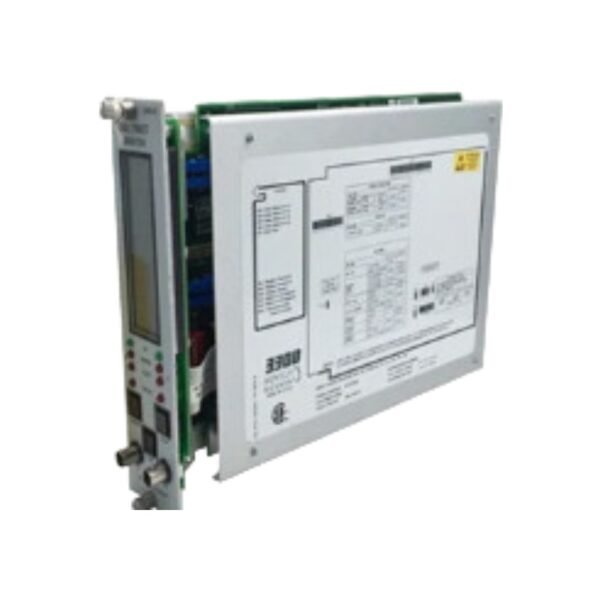

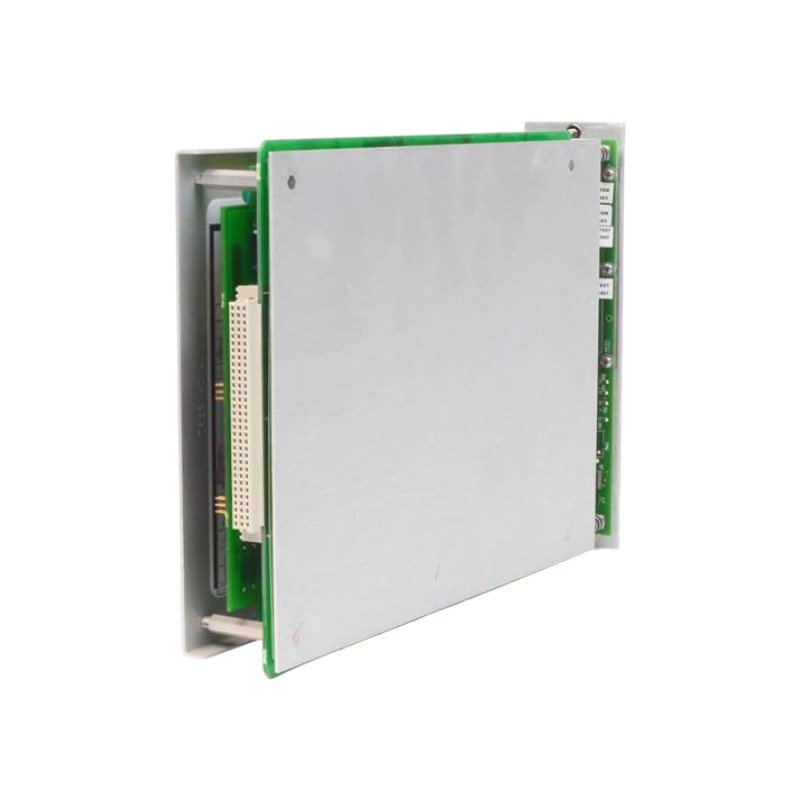

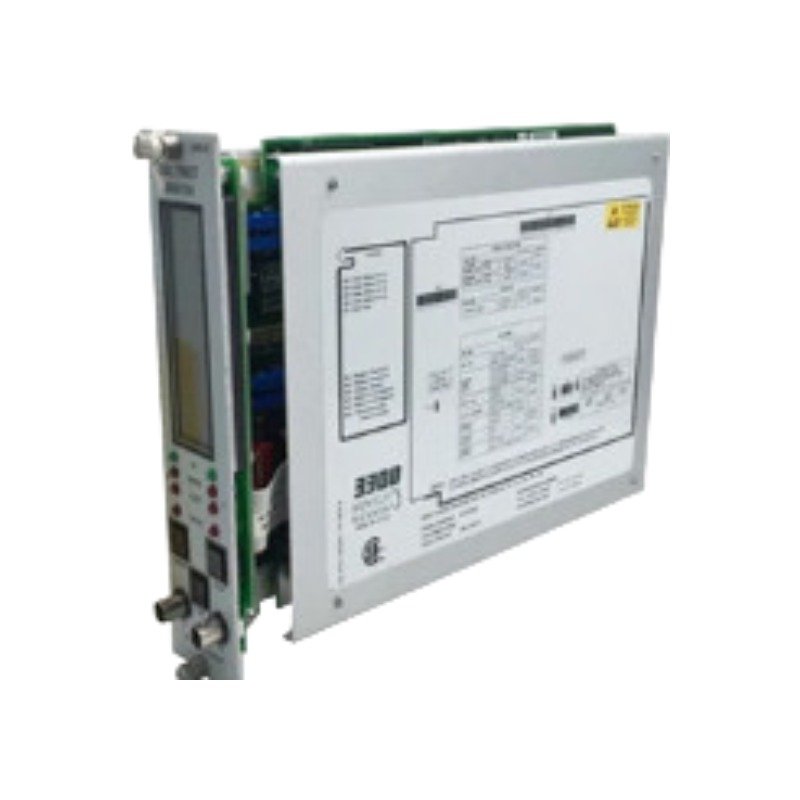

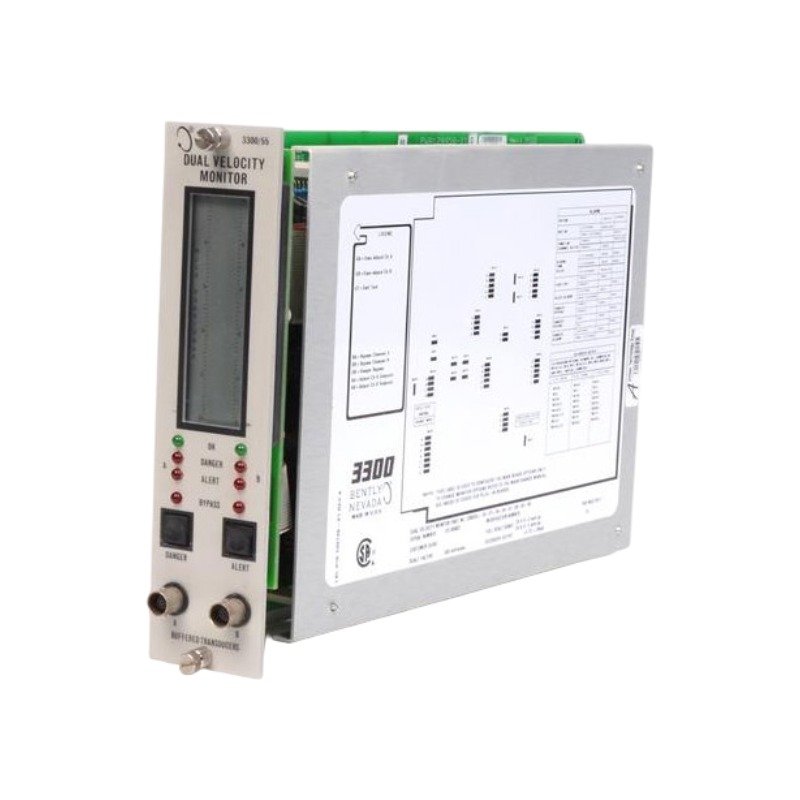

The Bently Nevada 3300/55-03-04-14-14-00-00-04-00, also cataloged as the 3300/55 Dual Velocity Monitor, operates as a dedicated hardware component for continuous machinery vibration monitoring and protection within turbine supervisory instrumentation (TSI) networks. The module executes precise real-time signal conditioning of inputs derived from velocity transducers, translating physical casing vibration velocities into proportional electrical metrics for alarm limit comparison and analog transmission.

Hardware Specifications

Transducer Verification and Cross-Talk Suppression

The monitor enforces rigorous cross-talk suppression via active multi-stage filtering circuitry across high-density backplane configurations. To preserve signal integrity across long-distance field cable runs, the system performs ongoing gap voltage validation and transducer bias monitoring. Transducer validation circuits verify that the operating bias point remains within standard tolerances, ensuring that external EMI or electromagnetic coupling does not induce false trips or degrade the vibration measurement scale factors.

Frequently Asked Questions

Q: Can the 3300/55 monitor be hot-swapped while the 3300 rack is powered?

A: No. Power down the 3300 rack or isolate the specific slots before removing or inserting the monitor module to avoid backplane current surges and unintended relay state changes.

Q: What happens if a transducer fault or open circuit occurs on one channel?

A: The monitor automatically identifies the out-of-bounds bias voltage, illuminates the front-panel NOT OK LED, clamps the corresponding 4-20 mA loop output below 2.0 mA, and inhibits the associated protection relays to prevent false tripping.

Field Installation Guidelines

1. Backplane Insertion: Align the plastic guide rails of the 3300/55 module with the designated rack slot. Slide the module firmly into the backplane connector, then secure the top and bottom thumbscrews to ensure proper chassis grounding.
2. Shielded Cable Termination: Terminate field wiring from the velocity transducers using twisted, shielded pairs. Connect the cable shield at the 3300 rack framework ground terminal blocks only. Leave the transducer end of the shield floating and insulated.
3. Relay Setup Verification: Ensure the physical configuration jumpers located on the circuit board match the required fail-safe or non-fail-safe operational logic prior to inserting the monitor into the live protective loop.
