Description

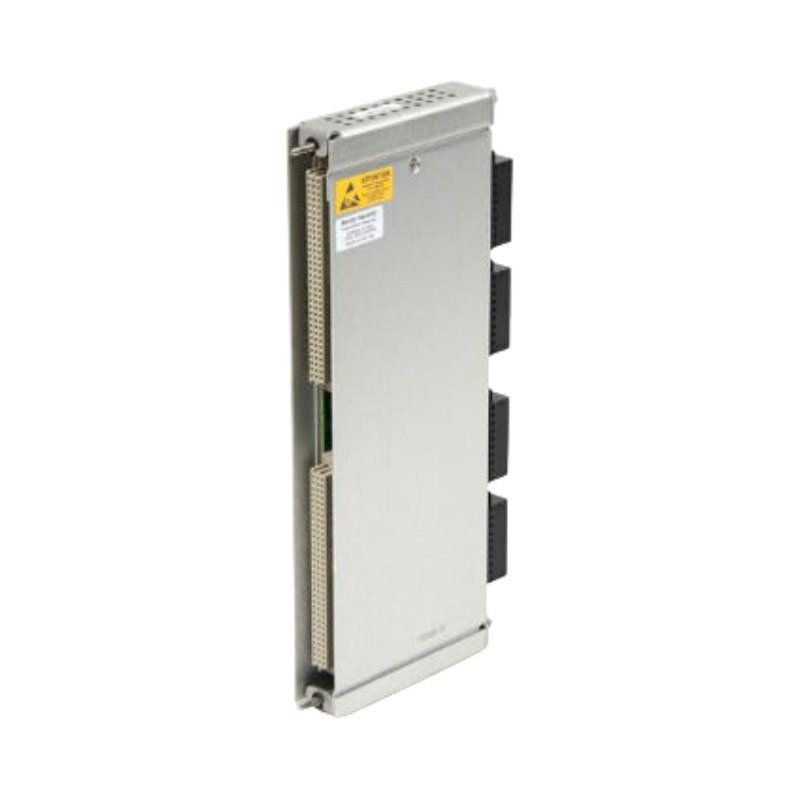

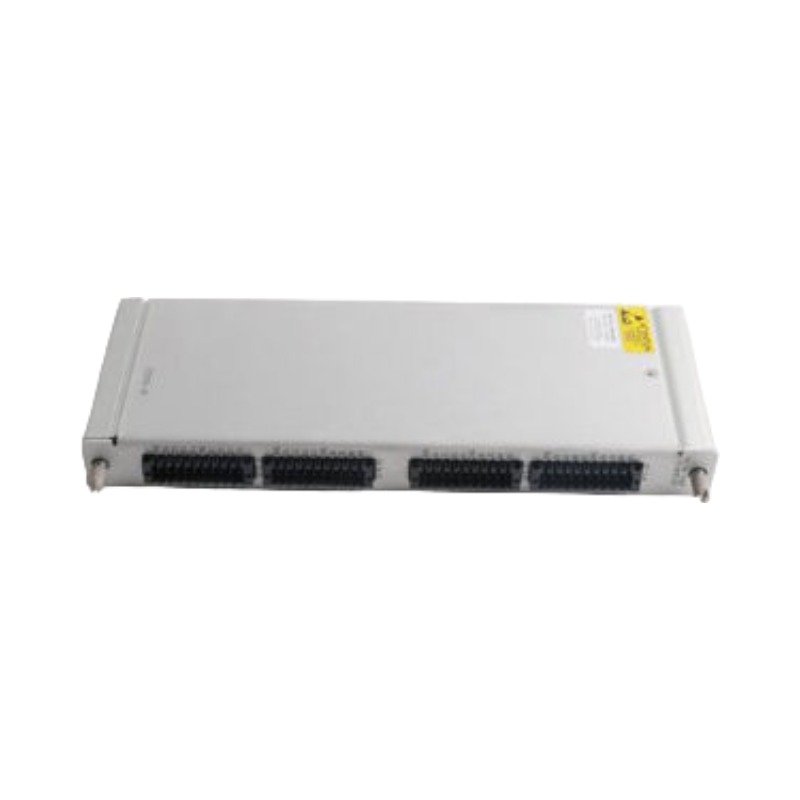

The Bently Nevada 3500/65 172109-01, also cataloged as the 172109-01 RTD/Isolated Tip TC I/O Module, operates as a dedicated hardware component for interfacing temperature sensors within 3500 Machinery Protection System platforms. This module supports external terminations, providing a robust interface for multi-channel thermal inputs across critical rotating machinery applications.

Suffix Breakdown & Model Matrix

Hardware Specifications

Mechanical Monitoring & Rotor Dynamics Validation

The 3500/65 172109-01 module enables high-density thermal data acquisition through its specialized external termination design. First, the unit receives signals from field sensors, which the external interface board then routes to the primary monitor module. Consequently, the monitor performs signal conditioning to ensure thermal data aligns with mechanical rotor dynamics analysis. To minimize signal interference, the module provides a high common-mode rejection ratio of 120 dB. Engineers must maintain proper cable shielding to prevent potential cross-talk, especially when routing temperature feedback alongside vibration transducer signals. Ultimately, these features support precise alarm setpoint evaluation and machinery health protection.

Frequently Asked Questions

Q: How does the external termination design affect installation compared to internal versions?

A: The external termination design requires a separate terminal block assembly, which facilitates easier field wiring maintenance without needing to access the rear of the rack directly.

Q: What steps must be taken to ensure the stated measurement accuracy?

A: Technicians should verify that the sensor type (RTD or TC) is correctly selected in the 3500 configuration software, as accuracy depends on proper linearization curves for each input.

Field Installation Guidelines

Installation begins by mounting the external terminal block assembly in the cabinet, followed by connecting the signal wires to the designated terminal points. Once the wiring is secured, route the interface cable from the terminal block to the rear connector of the 172109-01 module within the rack. Technicians must then seat the module firmly into the slot to ensure solid backplane communication. Subsequently, perform a check to confirm that all shields are properly terminated to a clean chassis ground. Finally, initiate a loop test through the 3500 Configuration Software to validate that all 16 channels report expected ambient or process temperatures.
