Description

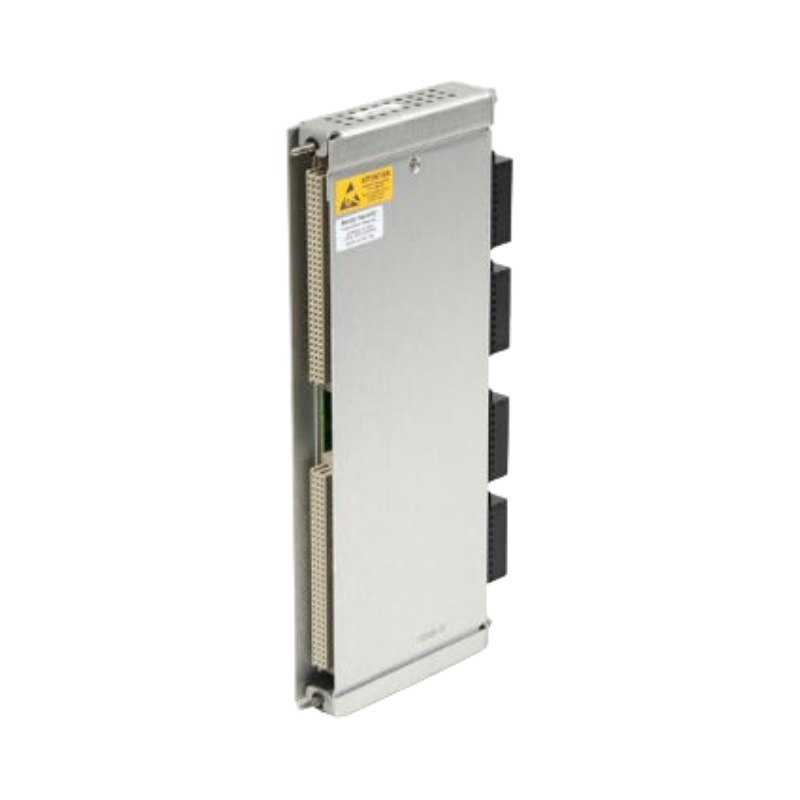

The Bently Nevada 3500/65 172103-01, also cataloged as the 172103-01 RTD/Isolated Tip TC I/O Module, operates as a dedicated hardware component for interfacing temperature sensors within 3500 Machinery Protection System platforms. This module provides direct physical termination for multi-channel temperature inputs, facilitating thermal monitoring for critical rotating machinery.

Hardware Specifications

Mechanical Monitoring & Rotor Dynamics Validation

The 3500/65 172103-01 module enables high-density thermal data acquisition for critical assets. Initially, the I/O module receives raw signals from field-mounted RTDs or thermocouples. Subsequently, it directs these inputs to the monitor module for signal conditioning and alarm processing. Engineers must verify that the 3-wire or 4-wire RTD configurations match the system programming to maintain accurate rotor dynamics analysis. Furthermore, the unit performs internal cross-talk suppression to isolate sensitive thermal signals from adjacent high-voltage lines. Ultimately, this integration ensures that thermal data remains consistent with vibration inputs, supporting comprehensive machinery protection profiles.

Frequently Asked Questions

Q: Does the 172103-01 module support direct internal wiring terminations?

A: Yes, this specific I/O module version utilizes internal terminations, allowing field cables to connect directly to the rear of the module assembly.

Q: Can this module accommodate both 3-wire and 4-wire RTD sensors?

A: Yes, the hardware supports both configurations, provided that the technician configures the software and wiring loops according to the specific sensor requirements.

Field Installation Guidelines

Installation requires the operator to align the 172103-01 module with the rear slot of the 3500 rack. Once the connector aligns with the rack backplane, push the module forward until the rear pins fully engage. Consequently, tighten the retention screws on the front panel to ensure secure mechanical stability during operation. Before connecting field wiring, technicians should verify that all RTD or thermocouple leads are properly shielded. Finally, perform a visual inspection of the terminal connections to prevent contact resistance, as this ensures precise thermal data transmission.
