Description

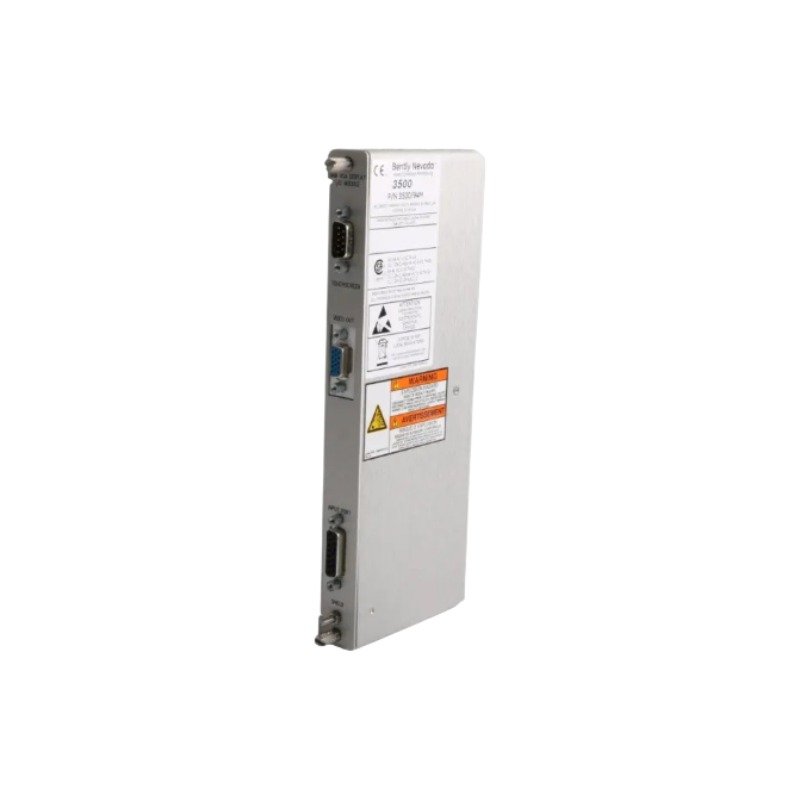

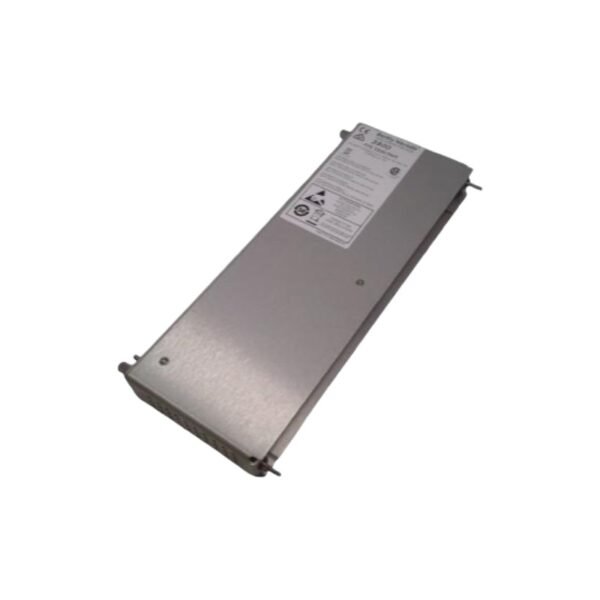

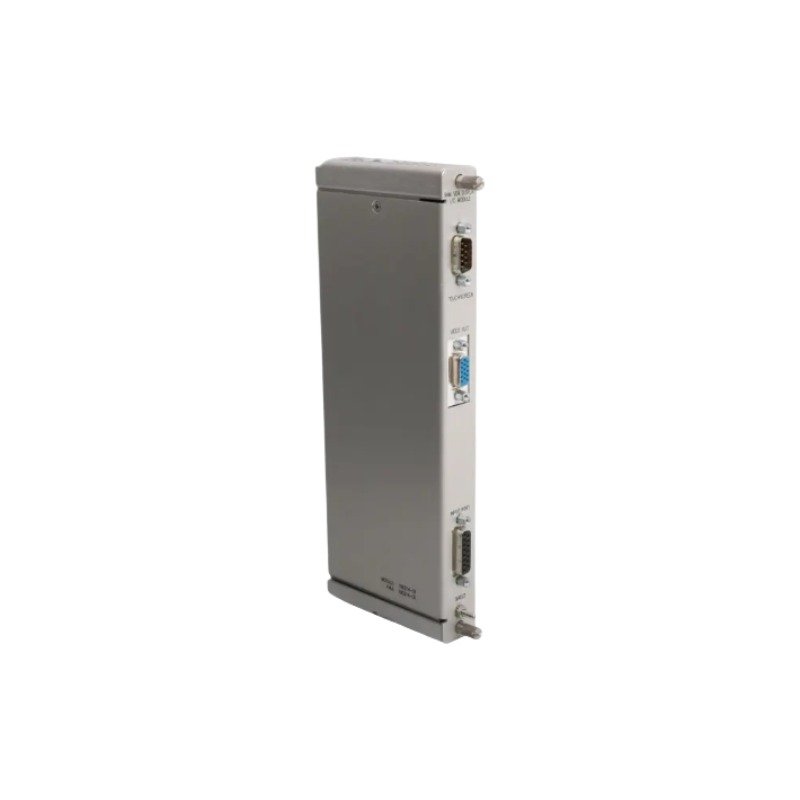

Configured for field transducer signal termination in the 3500 Machinery Protection System, the Bently Nevada 190214-01 (190214-01 Input/Output Module) provides direct physical/electrical execution.

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation Interface

The 190214-01 functions as the physical wire-termination boundary, transferring field transducer waveforms directly to the active front-slot processing circuitry. Specifically, it routes voltage signals derived from proximity systems, ensuring that eddy-current probe scaling remains linear across the entire dynamic range. Additionally, the low-impedance trace layout on the board assists field engineers in executing exact gap voltage validation (-10 VDC targets) without introducing signal bias or loop attenuation. Consequently, raw inputs representing high-speed rotor dynamics pass into the conditioning matrix without frequency distortion. Furthermore, the component traces are physically spaced to optimize internal cross-talk suppression, preventing channel-to-channel degradation when multiple proximity lines run parallel within the same terminal cluster.

Frequently Asked Questions

Q: Can the 190214-01 rear I/O module be hot-swapped while the 3500 rack is fully powered?

A: No. Unlike front-facing monitor modules, rear I/O termination cards must not be unseated while the system is live. Consequently, powering down the rack or bypassing the associated protection loop is required to prevent transient spikes from triggering false machinery trips.

Q: How is the transducer shield wire handled on the terminal strip of the 190214-01?

A: The terminal strip provides dedicated shield terminals that ground the field wiring to the rack frame. Subsequently, this single-point grounding design effectively shields the raw inputs from electromagnetic interference before they reach the main processor.

Field Installation Guidelines

• First, verify that the 3500 rack power is turned off before sliding the 190214-01 into the designated rear chassis slot.
• Second, tighten the retaining screws to ensure proper physical connection and frame grounding between the plate and the rack frame.
• Third, strip the field wiring insulation to the recommended length and secure the wires into the Euro-style terminal block. Subsequently, check that no loose strands bridge adjacent channels, maintaining complete isolation for cross-talk suppression.
