Description

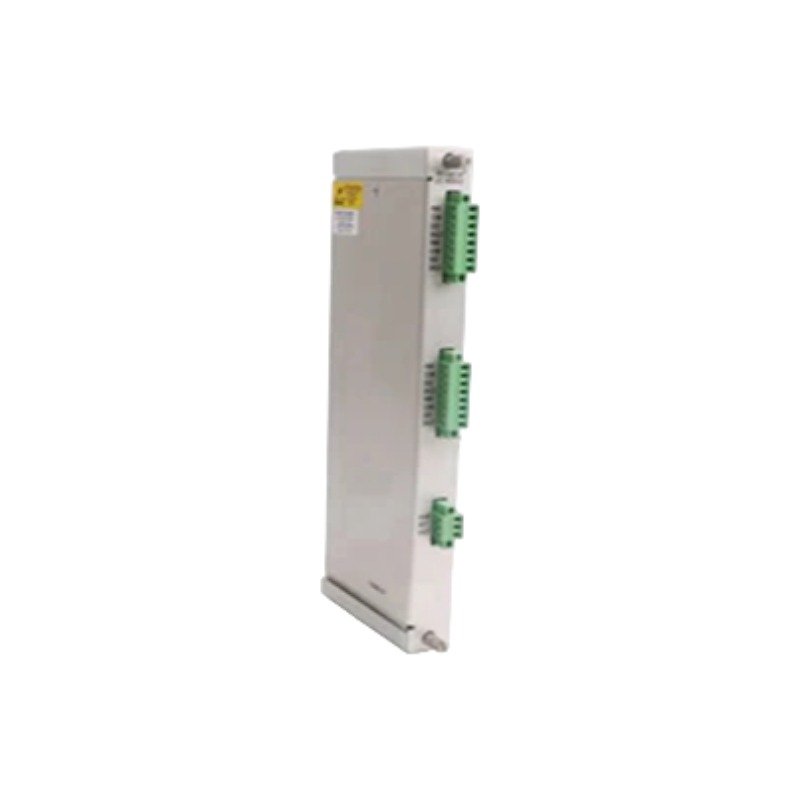

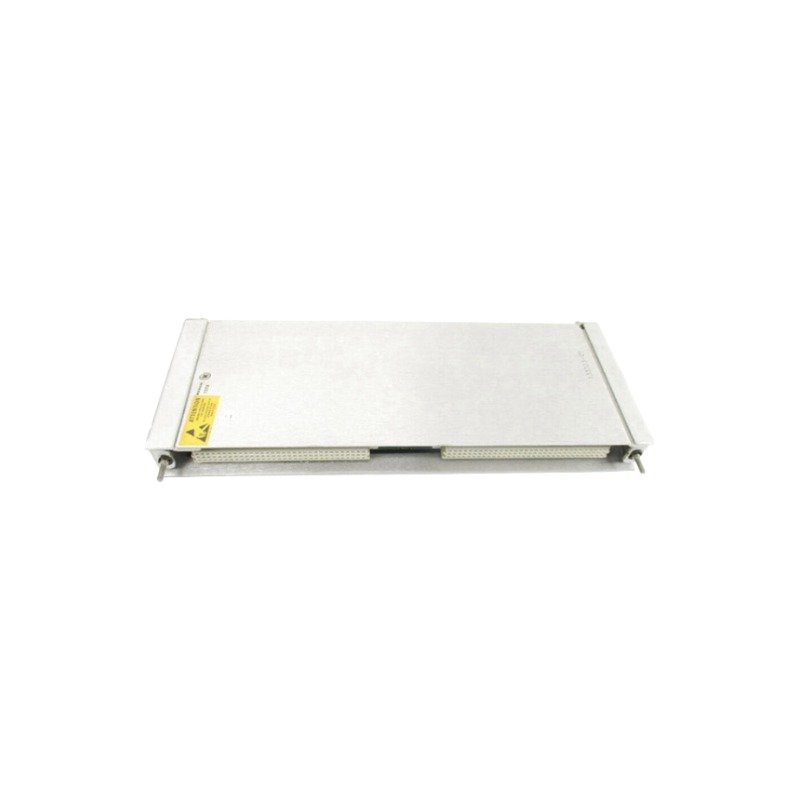

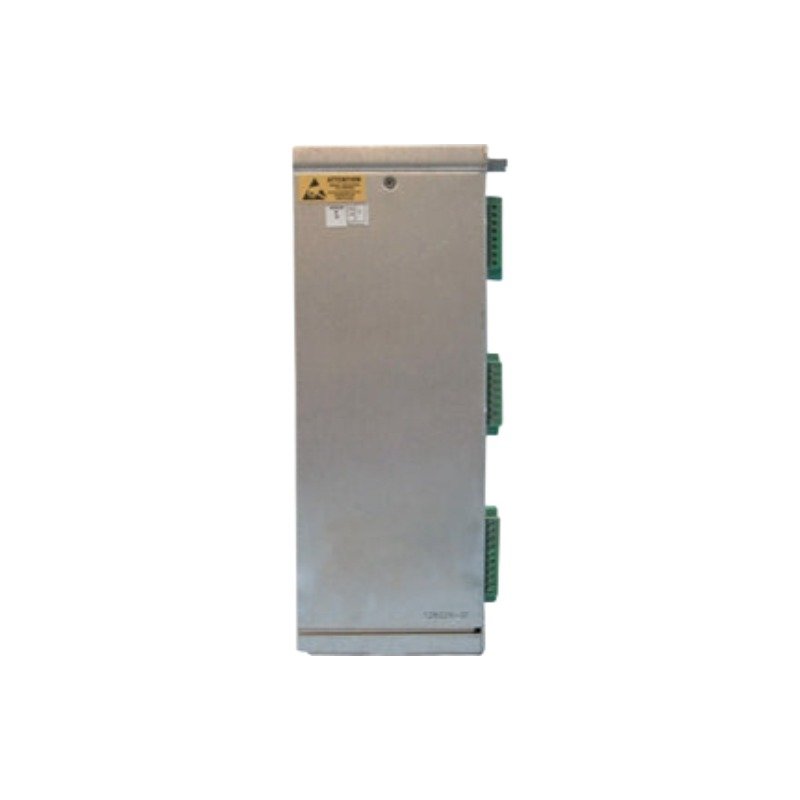

Configured for dynamic signal conditioning and rear interface routing of proximity and casing vibration sensors in the Bently Nevada 3500 Series Machinery Protection System, the Bently Nevada 128228-01 (128228-01 Proximitor Seismic I/O Module) provides direct physical/electrical execution.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 128228-01 module directly processes dynamic sensor inputs to evaluate complex rotor dynamics. Specifically, when interfacing with proximity probes, operators must configure the correct eddy-current probe scaling within the rack software to map voltage variations to physical displacement. Additionally, field engineers must execute gap voltage validation, targeting a nominal -10 VDC gap voltage, to verify the proximity probe operates within its linear region before commissioning. Consequently, these settings protect the dynamic signal from clipping. Furthermore, the internal circuitry applies cross-talk suppression filters across the input channels. Therefore, this filtering prevents high-frequency noise from adjacent transducers from corrupting the raw vibration waveforms.

Frequently Asked Questions

Q: Can the 128228-01 module accept signals from both casing vibration and shaft relative displacement sensors simultaneously?

A: Yes. The hardware supports multi-transducer configuration. Specifically, the operator can configure individual channels to interface with proximity probes for shaft relative displacement or accelerometers, Velomitors, and Seismoprobes for absolute casing vibration.

Q: What are the distinct voltage outputs provided by the 128228-01 to power external transducers?

A: The module supplies specific power levels depending on the sensor type. Specifically, for Prox, Accel, or Velomitor configurations, it delivers 23.9 V at up to 45.5 mA (1.09 W max). Conversely, for Seismoprobe sensors, it scales down the output to 6.82 V at 2.75 mA (0.02 W max).

Q: Does the 128228-01 module support hot-swap installations within the 3500 chassis?

A: Yes. The backplane bus design supports hot-swap replacement. Consequently, technicians can extract or insert this I/O module without shutting down rack power, provided they first place the corresponding monitoring channel in bypass mode to prevent false alarms.

Field Installation Guidelines

• First, slide the 128228-01 into the designated full-height rear slot of the 3500 rack. Subsequently, tighten the rear panel screws to establish a secure ground path with the chassis frame.
• Second, route the field transducer cables through separate conduits to avoid electromagnetic noise. Additionally, terminate the cable shields at the module’s terminal block to enable maximum noise attenuation.
• Third, ensure that the external sensor current draw does not exceed the hardware limit of 45.5 mA. Otherwise, overcurrent conditions will disrupt loop execution and drop the transducer power supply.
• Finally, check that the operating voltage inputs match the system guidelines. Consequently, verifying these terminal connections prevents component stress and guarantees signal-to-noise ratio performance.
