Description

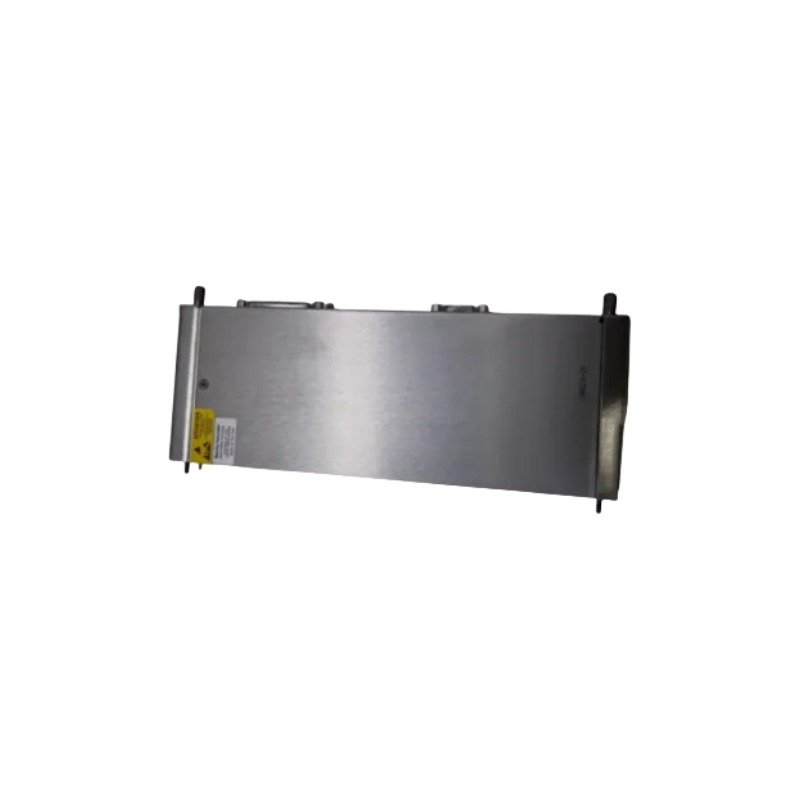

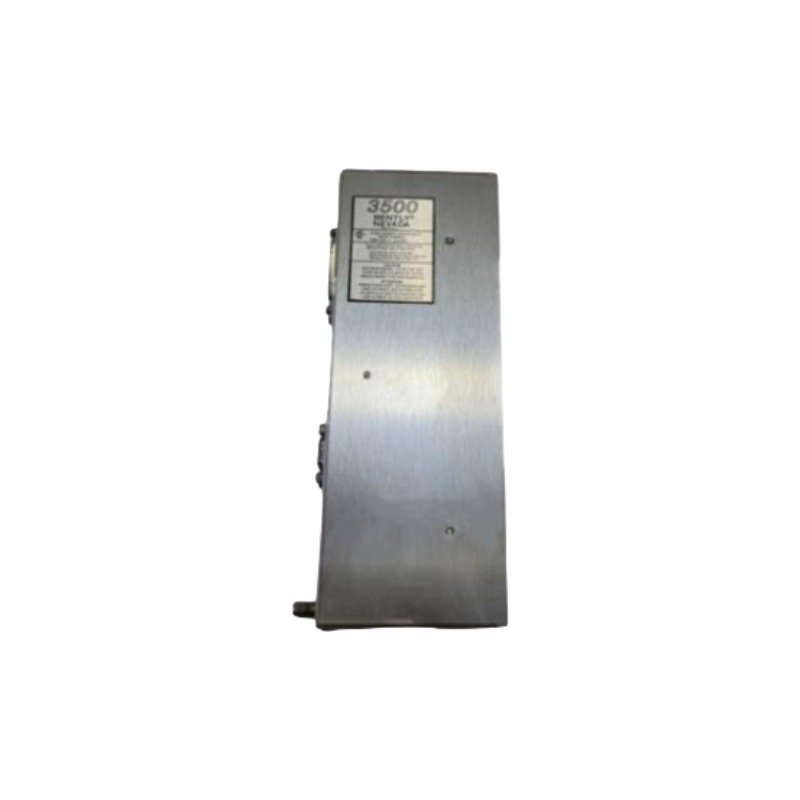

The Bently Nevada 126623-01 serves as the primary 126623-01 Aero GT Vibration I/O Module utilized to execute high-speed dynamic signal processing across machinery monitoring network platforms. Specifically, it executes real-time data acquisition of raw vibration signals from dual independent channels. The module routes the processed sensor inputs directly to external automation architectures and control loops via native analog current loops.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The hardware subsystem enforces rigorous internal calibration protocols to govern eddy-current probe scaling accuracy. Consequently, the internal signal conditioning paths facilitate continuous gap voltage validation (-10 VDC targets) across both instrumentation loops to verify probe orientation. The 24-bit resolution analog-to-digital converter tracks complex rotor dynamics up to a 100 kHz sampling rate. Furthermore, the physical chassis layout embeds active shielding mechanisms to achieve cross-talk suppression, preventing mutual signal distortion between high-frequency dynamic channels.

Frequently Asked Questions

Q: Does the 126623-01 Aero GT Vibration I/O Module support direct input from IEPE accelerometers?

A: Yes. The input stage accepts +10 V IEPE signals directly on its independent input channels, and it also supports standard 4-20 mA velocity transducer loops.

Q: Can the internal firmware perform dynamic sampling variations online?

A: The module executes static processing algorithms up to 100 kHz per channel based on its baseline hardware configuration. Therefore, changing the fundamental sampling parameters requires a complete configuration download via the host monitoring network.

Q: What are the backplane current draw restrictions during hot-swap actions?

A: The internal power circuits limit inrush current below the backplane threshold. However, operators must follow standard machinery protection bypass rules prior to physical extraction to avoid false trip signals.

Field Installation Guidelines

• Mounting Mechanics: Clip the module securely into its designated enclosure slot or DIN-rail track. Ensure all physical mounting tabs latch completely to meet the 5g vibration resistance limits defined by the ISO 10816 standard.
• Shielding Requirements: Route all IEPE and 4-20 mA transducer wiring using twisted, shielded instrumentation cables. Terminate the overall cable shields strictly at the common cabinet ground plane while leaving the field instrument end isolated.
• Wiring Separations: Maintain a physical clearance boundary of at least 200 mm between low-voltage signal lines and any adjacent AC power runs or electric motor drive cabling.
• Thermal Management: Verify that cabinet airflow loops maintain local internal temperatures between -40 deg C and +85 deg C. Ensure internal non-condensing relative humidity stays within the 5% to 95% operating envelope.
