Description

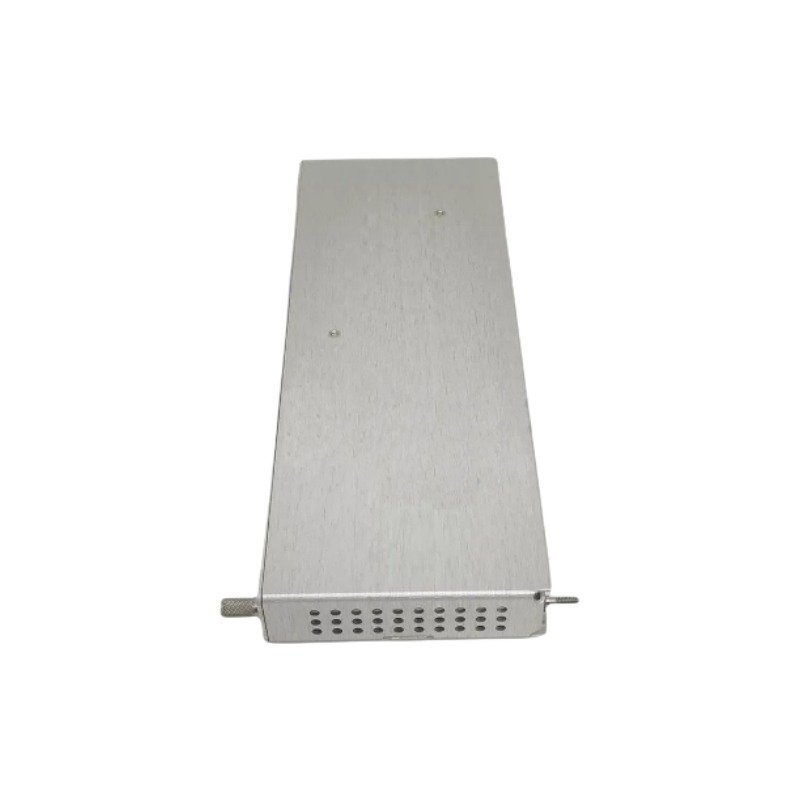

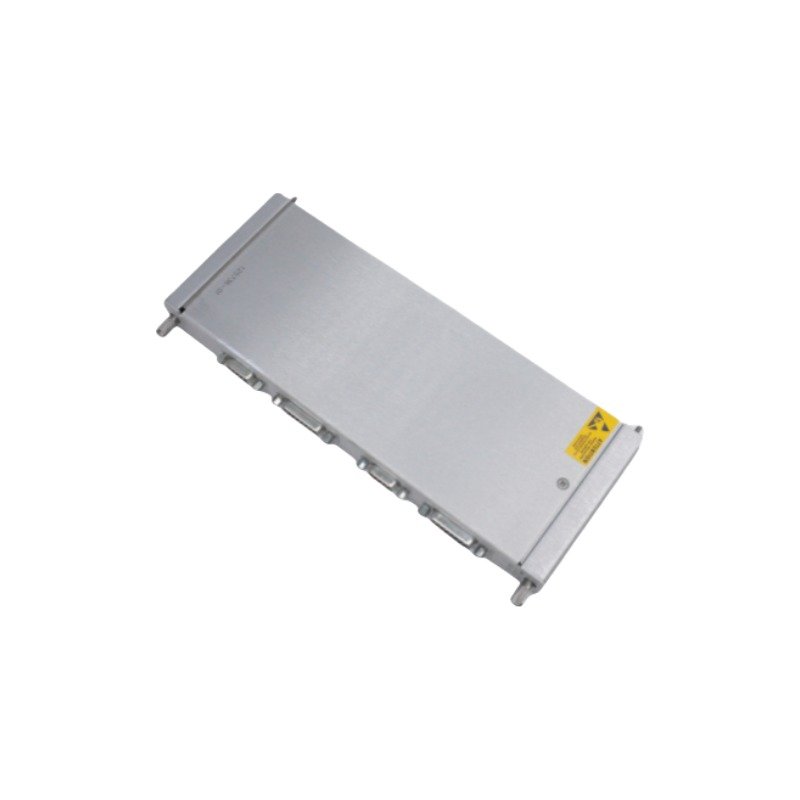

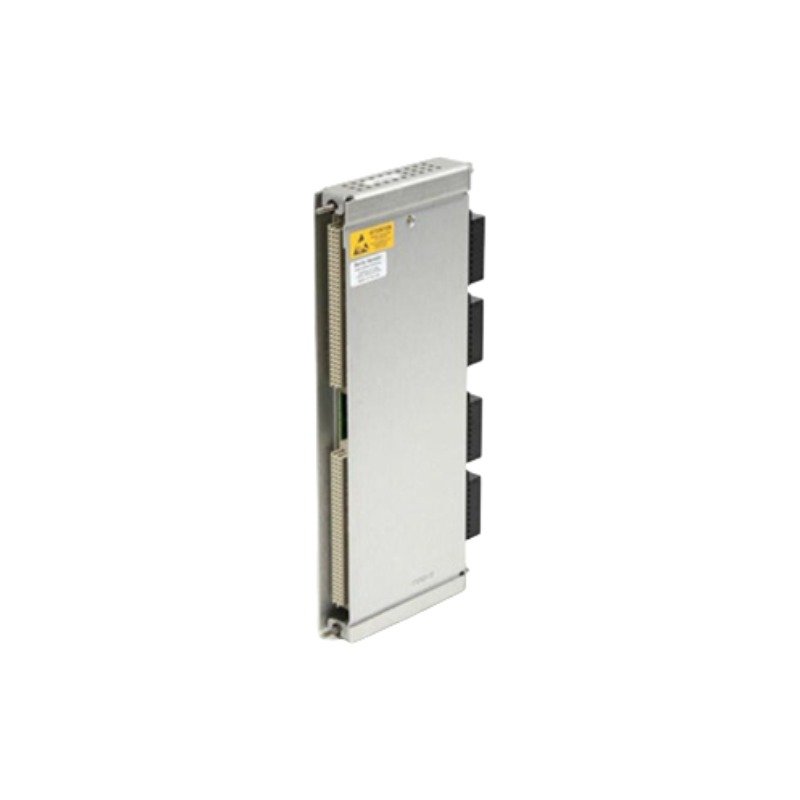

The Bently Nevada 140482-02 serves as the primary 140482-02 I/O Module utilized to execute machinery protection and monitoring across machinery protection and monitoring platforms. Specifically, it manages direct physical execution by converting dynamic sensor inputs from four independent channels into continuous electrical voltage outputs. The module subsequently transmits these processed variables across external automation structures through local termination architectures.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The module implements high-precision signal processing algorithms to execute eddy-current probe scaling across the independent input channels. Consequently, the internal diagnostics perform real-time gap voltage validation (-10 VDC targets) when interfacing with proximity sensors to monitor physical shaft displacement. The hardware configuration enables user-programmable filters to track complex rotor dynamics by tuning frequency response curves to specific machinery geometries. Furthermore, the integrated circuitry enforces robust cross-talk suppression between adjacent sensor terminations, preventing electrical signal distortion across dense vibration instrumentation networks.

Frequently Asked Questions

Q: What specific sensor types interface directly with the 140482-02 input channels?

A: The input channels support direct wiring configurations from multiple proximity probes or velocity transducers that generate raw voltage signals within the standard +/- 10 V operational range.

Q: Can the internal frequency response filters receive field parameter updates while online?

A: The configuration framework permits the optimization of user-programmable filters to match specific machinery requirements. However, technicians must apply and verify filter parameter modifications via the designated system configuration toolset during a controlled bypass state.

Q: What physical connections handle the external field signals for this hardware?

A: The module relies on dedicated external terminations that handle the physical sensor wiring inputs and the 0 to 10 V voltage outputs, offering flexible distribution inside the rack panel.

Field Installation Guidelines

• Mounting Mechanics: Insert the module firmly into its slot within the monitoring enclosure chassis and lock the panel fasteners. Verify proper mechanical alignment to avoid bend stresses on the rear connector matrix under severe 20 g peak vibration conditions.
• Shielding Requirements: Terminate all overall instrumentation cable shields at the dedicated chassis earth bus bar near the external terminations. Maintain continuous conductor isolation up to the field sensor housing to eliminate electrical ground currents.
• Wiring Separations: Separate low-voltage sensor cables and 0 to 10 V signal lines from parallel high-voltage AC electric conductors by at least 200 mm to suppress inductive noise.
• Thermal Management: Ensure enclosure environmental controls maintain localized operational temperatures within the -40 deg C to +85 deg C window. Check that non-condensing relative humidity strictly conforms to the 0 to 95% threshold limits.
