Description

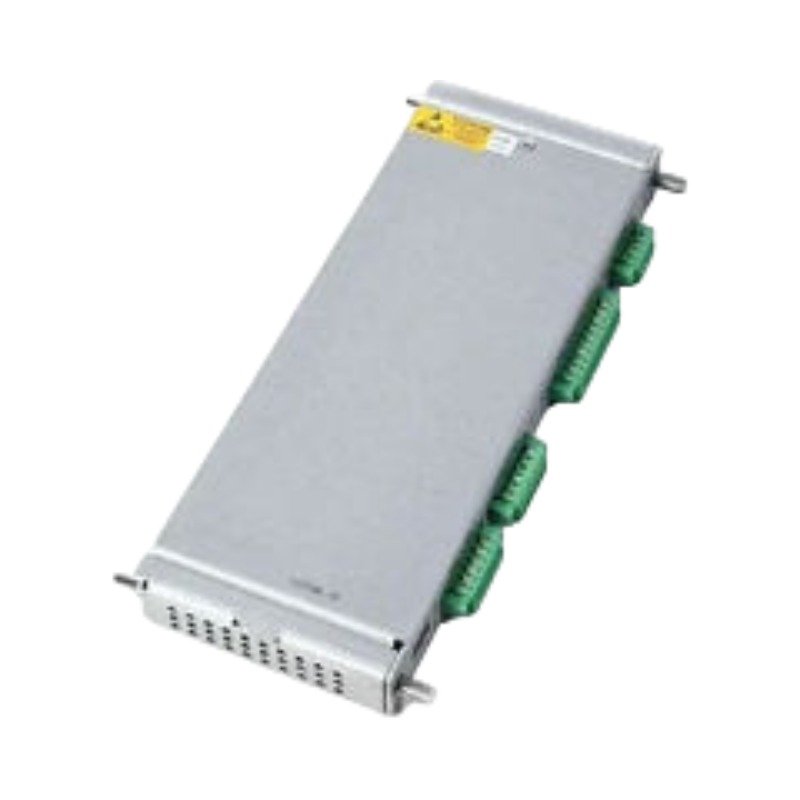

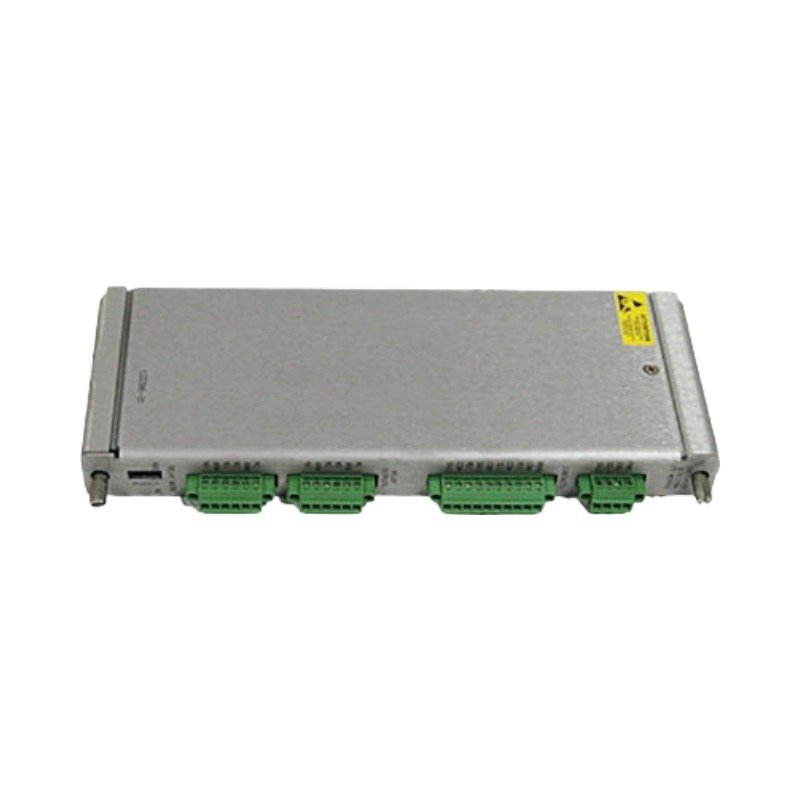

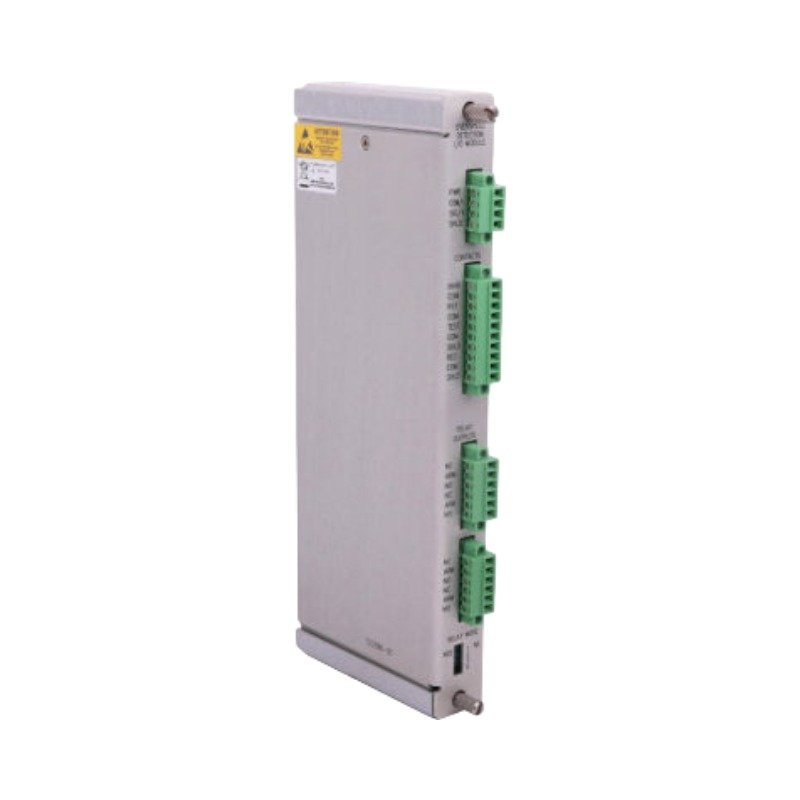

The Bently Nevada 3500/53 133396-01, also cataloged as the 3500/53 Overspeed Detection I/O Module, operates as a dedicated hardware component for continuous machinery protection by acquiring pulse-train signals from speed sensors and providing physical output connections within the Bently Nevada 3500 Electronic Overspeed Detection System.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 133396-01 I/O module conditions raw frequency waveforms directly from field-mounted magnetic sensors or proximity probes to evaluate critical rotor dynamics. To establish an accurate relationship between shaft speed and signal output, configuration procedures require appropriate eddy-current probe scaling coefficients. Consequently, the host system translates these pulse patterns into exact revolutions per minute (rpm) to track under-speed, over-speed, and acceleration parameters.

Furthermore, the circuit layout applies internal grounding methods to maintain strict cross-talk suppression between neighboring speed channels inside the rack. During field calibration cycles, engineers implement manual gap voltage validation to confirm that the proximity probe target stays within the designated -10 VDC operational profile. This precise electrical centering ensures that the module captures every speed event without triggering false overspeed events or missing genuine machine trips.

Frequently Asked Questions

Q: How does the 133396-01 module achieve redundant overspeed protection?

A: The hardware interacts with adjacent 3500/53 monitor cards across the internal backplane, allowing technicians to configure 2-out-of-2 or 2-out-of-3 voting logic to optimize system reliability and prevent false machine trips.

Q: What input frequency range does the 133396-01 module support?

A: The module accepts transducer inputs from 1 to 255 events per revolution up to a maximum input frequency of 20 kHz, which translates to a full-scale calculation limit of 99,999 rpm.

Field Installation Guidelines

1. Insert the 133396-01 I/O card straight into the selected rear chassis slot situated directly behind the main front overspeed detection monitor.
2. Secure the rear panel captive hardware directly into the frame to establish immediate electrical continuity with the chassis ground plane.
3. Keep high-voltage power lines separate from the low-voltage speed sensor wiring to minimize inductive noise distortion on the frequency pulse edges.
4. Ensure at least 5-thread engagement when threading rigid metallic NPT conduit assemblies into the terminal connection adapter housing.
