Description

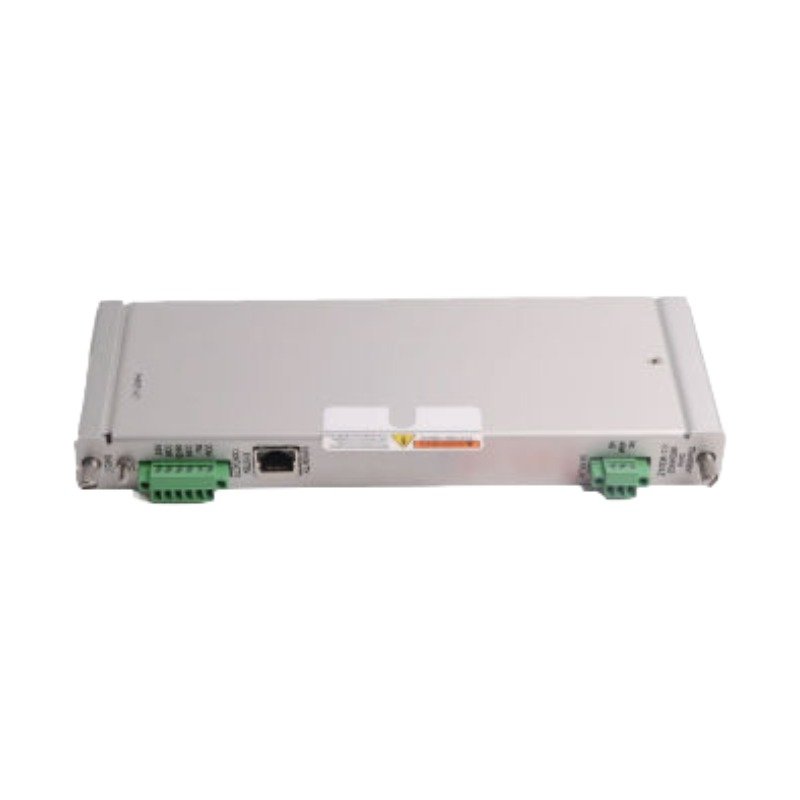

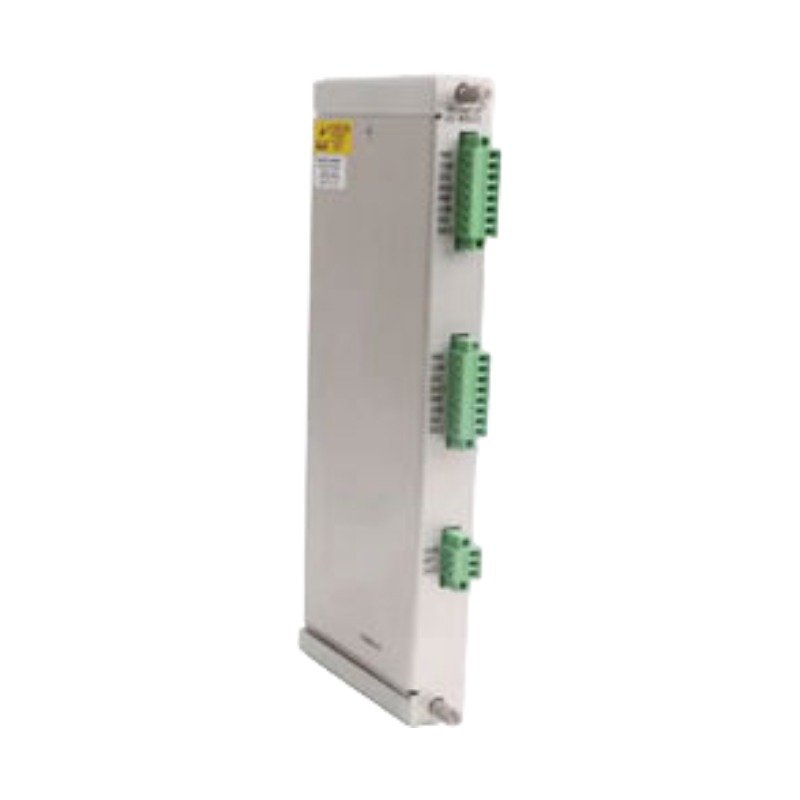

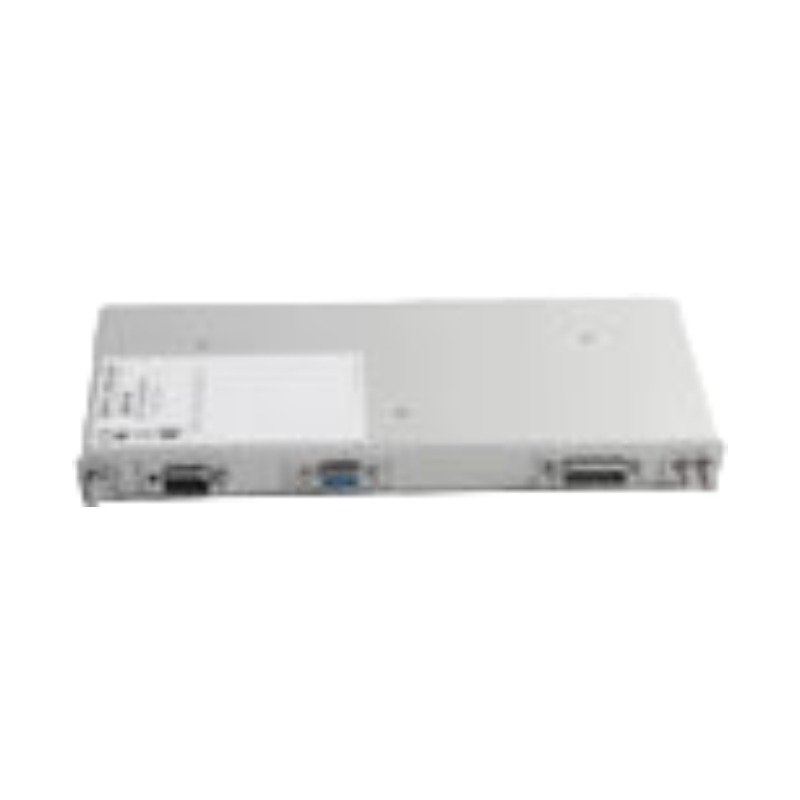

The Bently Nevada 3500/94 147663-01, also cataloged as the 3500/94 VGA Display I/O Module, serves as the primary 3500/94 interface hardware utilized to execute raw video and communication signal routing across Bently Nevada 3500 Machinery Protection System platforms. This backplane module provides the physical analog VGA interface and serial ports necessary to transmit system data directly to external touchscreen display units.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 147663-01 I/O module actively drives real-time data packets from the internal high-speed network out to remote visualization terminals, allowing operators to monitor critical rotor dynamics on local control panels. Because the module extracts values straight from adjacent monitoring nodes, the displayed bar graphs and numerical values accurately reflect the underlying eddy-current probe scaling configured within the input modules.

Simultaneously, the processing architecture ensures strict cross-talk suppression during data serialization, preventing inductive noise from distorting the video signals. While monitoring operations proceed, the external touchscreen acts as the direct platform for gap voltage validation. If a proximity sensor slips from its target -10 VDC baseline, the 147663-01 hardware instantly updates the display matrix to highlight the uncalibrated node, which enables immediate corrective adjustments.

Frequently Asked Questions

Q: What primary physical interfaces does the 147663-01 I/O module provide for touch screen connectivity?

A: The module provides an analog 15-pin D-sub VGA connector to transmit the RGB video signals and an auxiliary RS-232 serial interface port to receive touch controller input data from the external display.

Q: What is the maximum allowable physical distance between the 147663-01 card and the display monitor when using standard cabling?

A: The hardware supports a maximum distance of 8 meters (25 feet) using standard factory cabling, though operators can extend this range up to 305 meters (1000 feet) by installing an approved KVM extender kit.

Field Installation Guidelines

1. Slide the 147663-01 I/O module directly into the rear guide rails of the 3500 chassis located immediately behind the front-mounted 3500/94 display monitor card.
2. Tighten the rear captive screws firmly into the rack frame to secure the module and establish immediate electrical grounding continuity.
3. Route the VGA and RS-232 touch controller cables through separate low-voltage wireways to prevent interference from surrounding high-voltage power distribution loops.
4. Verify that all rigid metallic conduit connections achieve at least 5-thread engagement if routing the external display cables through standard NPT interface fittings.
