Description

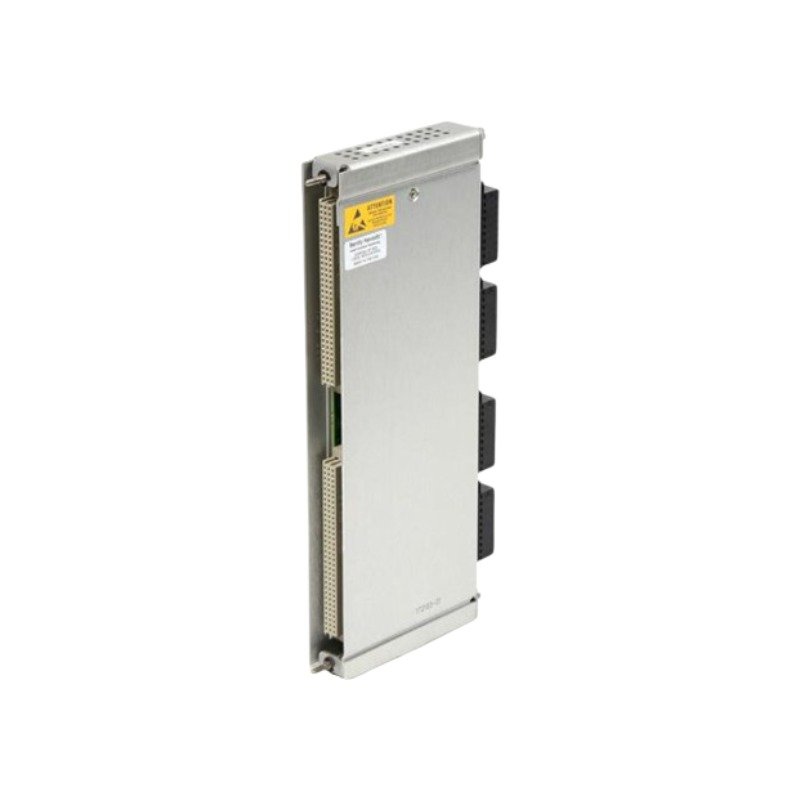

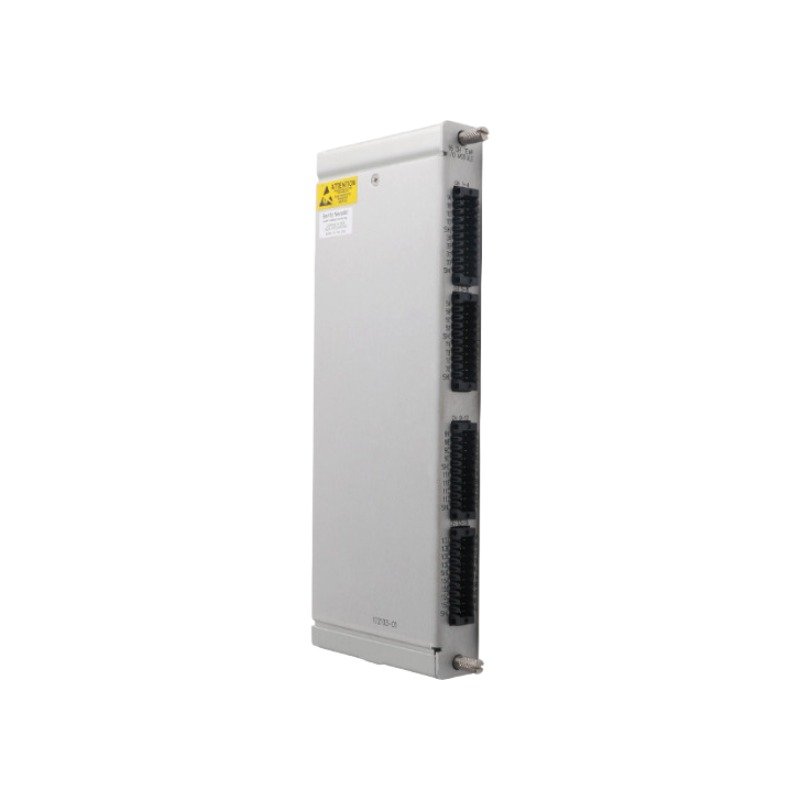

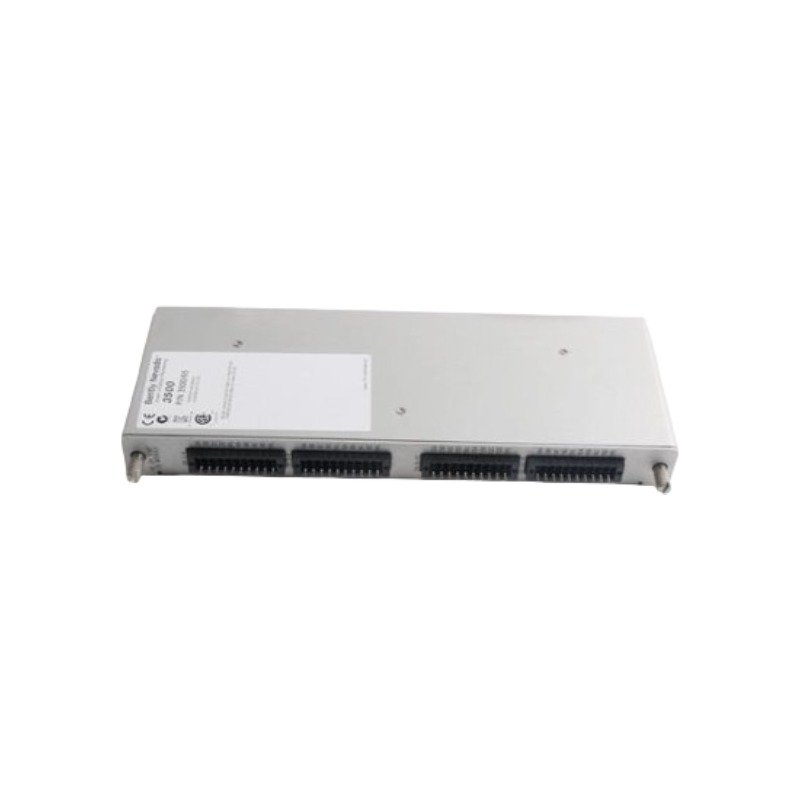

The Bently Nevada 172103-01 serves as the primary 172103 RTD/Isolated Tip TC I/O Module utilized to execute 16 channels of temperature data acquisition across Bently Nevada 3500/65 Machinery Protection System platforms. Consequently, this hardware component interfaces directly with field-mounted thermal sensors to deliver continuous conditioning and analog processing directly to the main rack backplane.

Hardware Specifications

Transducer Interface & Mechanical Monitoring Characteristics

This I/O module integrates dedicated analog front-ends designed to preserve precise eddy-current probe scaling and thermal balancing parameters. The module provides a current-source output of 913 microamps (+/- 7 microamps) to manage active sensor excitation loops while maintaining isolated tip thermocouple cold junction compensation sensor accuracy to within +/- 2 deg C. Furthermore, structural multi-channel separation provides robust cross-talk suppression between adjacent sensor terminations, isolating raw signals monitoring critical high-speed rotor dynamics from stray field currents.

Frequently Asked Questions

Q: What processing sequence prevents a hardware fault when swapping out an older revision for the 172103-01 card?

A: Technicians must upgrade the main 3500/65 monitor firmware to the matching released layout. The installation protocol requires physically extracting the I/O card before deploying the flash sequence to avoid triggering an internal I/O Module Mismatch error.

Q: Can non-isolated tip or grounded thermocouples interface directly with this specific internal termination hardware?

A: No, the electrical tracking layout requires isolated tip thermocouples or 3/4-wire resistance temperature devices. Utilizing grounded or non-isolated sensor types breaches the common-mode electrical boundaries, resulting in signal drifting and measurement degradation.

Field Installation Guidelines

1. Guide the rear I/O module into the matching chassis slots at the back of the 3500 rack frame until the pins seat into the backplane.
2. Fasten the integrated top and bottom retention fasteners to isolate the circuit assemblies from machinery deck vibration forces.
3. Dress the sensor shield wires down to the designated internal common grounding bar, keeping them insulated on the field end to prevent a dual ground loop path.
4. Separate the multi-core thermocouple and RTD signal leads inside separate wiring trays away from parallel high-voltage machine power loops.
