Description

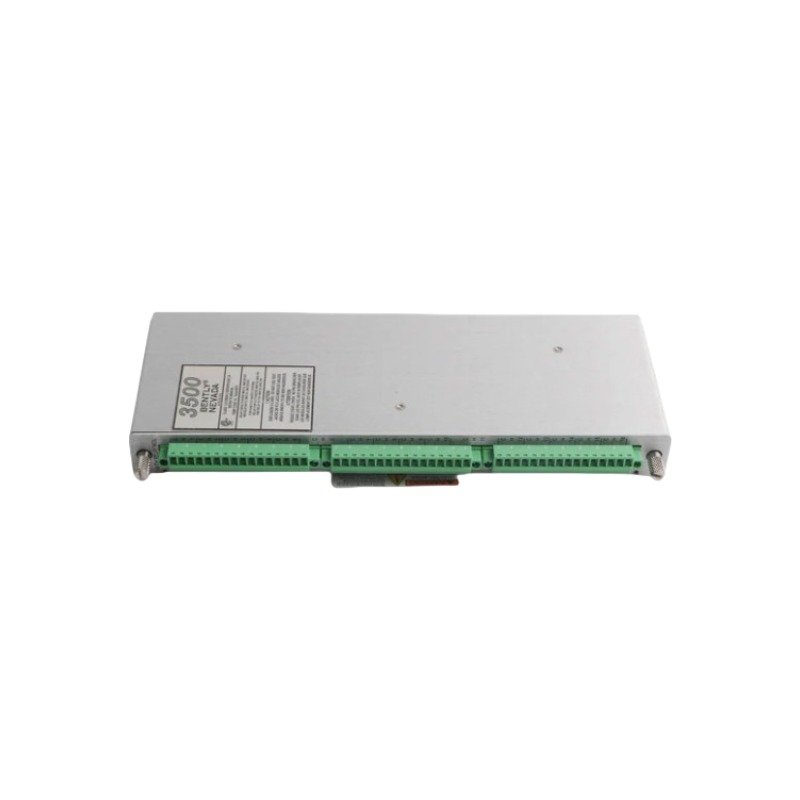

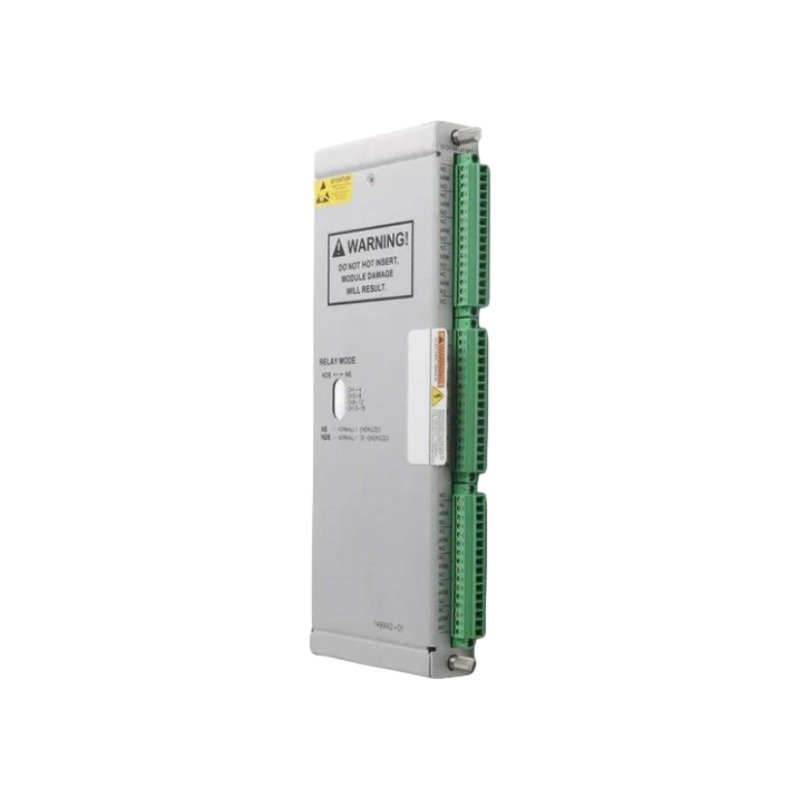

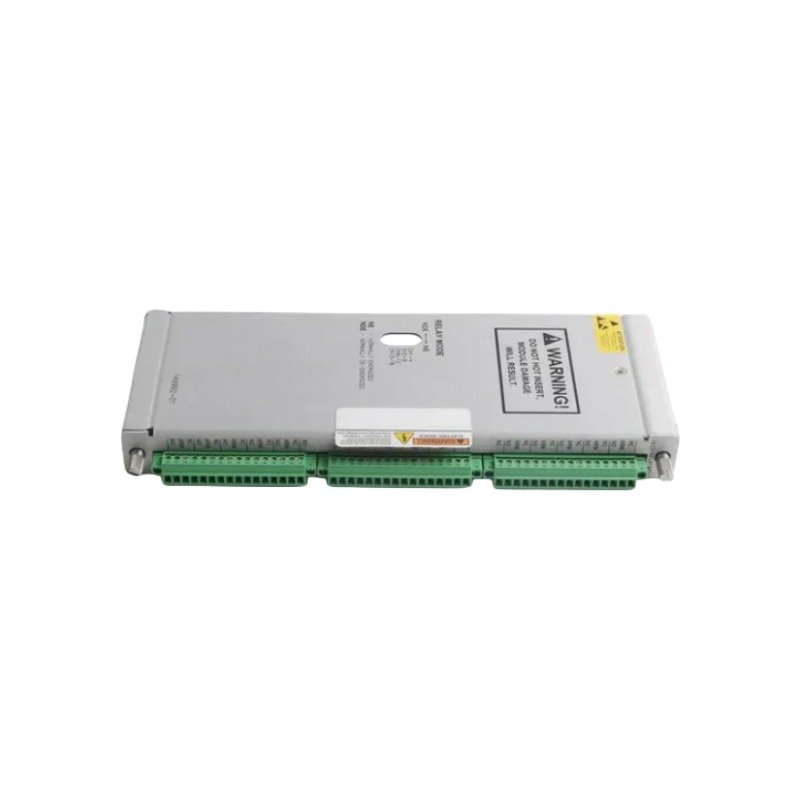

The Bently Nevada 149992-01 serves as the primary 3500/33 16-Channel Relay Output Module utilized to execute protective machinery trip commands across Bently Nevada 3500 Machinery Protection System platforms. Consequently, this full-height hardware component interfaces with the rack backplane to translate programmed voting logic and monitor alarm statuses into physical contact state changes.

Suffix Breakdown & Model Matrix

• 149992-01: Spare component part number designating the standard non-failsafe 16-Channel Relay Output Module card.
• 149992-02: Alternative model variant specifying the 16-Channel Failsafe Relay Output Module hardware layer.

Hardware Specifications

Transducer Interface & Mechanical Monitoring Characteristics

The internal alarm drive logic processor continuously scans the internal chassis bus to cross-reference sensor statuses without disrupting raw eddy-current probe scaling loops. The system evaluates live monitor parameters to trigger automated contact closures based on gap voltage validation (-10 VDC targets) and alarm violations. High galvanic and physical separation within the module paths provides native cross-talk suppression between the adjacent switching circuits, preventing inductive load spikes from introducing noise into the dynamic signal waveforms used to analyze rotor dynamics.

Frequently Asked Questions

Q: How does the alarm drive logic on the 149992-01 execute multi-channel machinery trips?

A: The module utilizes specialized internal logic engines programmed via the 3500 Rack Configuration Software. Each relay independently maps individual or combined variables, Alert/Danger statuses, and Not-OK signals across any monitor channel within the rack through complex Boolean AND/OR configurations.

Q: Can this standard non-failsafe module be swapped with a 149992-02 failsafe module without configuration modifications?

A: No. Standard modules de-energize to trip, whereas failsafe modules remain energized during normal operation and drop potential to trip. Changing the hardware configuration requires updating the relay operating type within the rack software setup to prevent immediate false machine shutdowns.

Field Installation Guidelines

1. Guide the front 149992-01 card into its designated slot position to the right of the Transient Data Interface (TDI) module until the backplane connectors link up completely.
2. Fasten the faceplate thumbscrews by hand to ensure structural grounding compliance between the module chassis and the system rack frame.
3. Wire the external warning and shutdown indicator loops directly to the matching 16-position green terminal headers on the companion rear I/O module.
4. Route the dynamic contact wiring away from high-voltage motor lines to prevent inductive noise from corrupting low-voltage automation control loops.
