Description

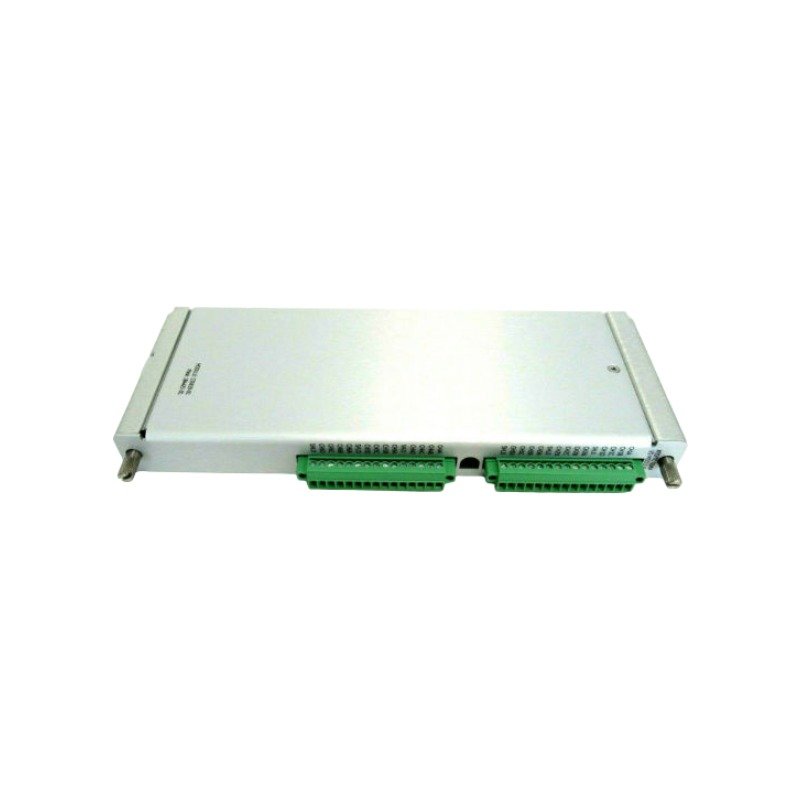

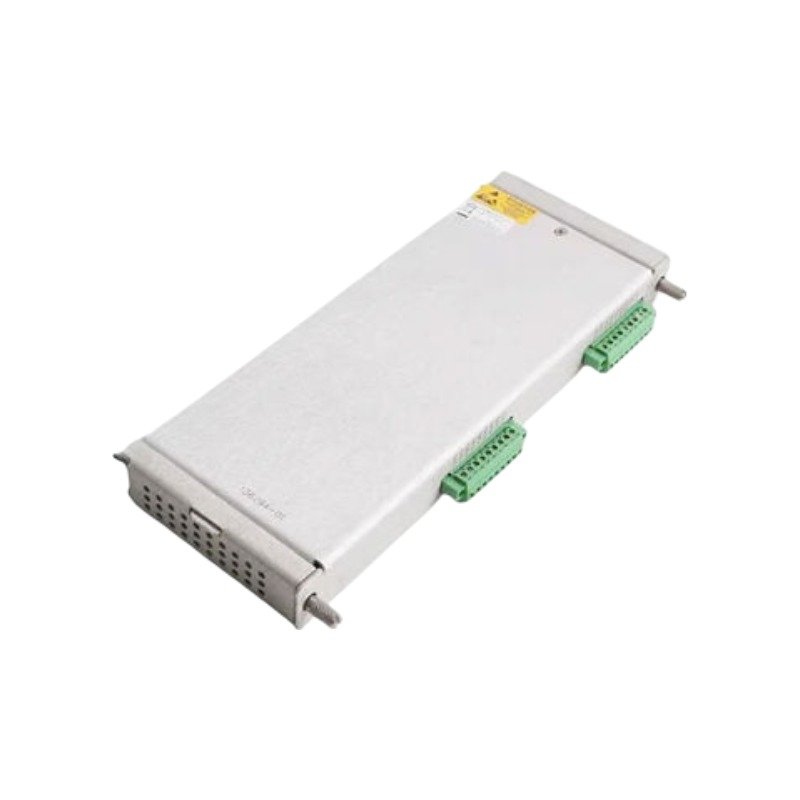

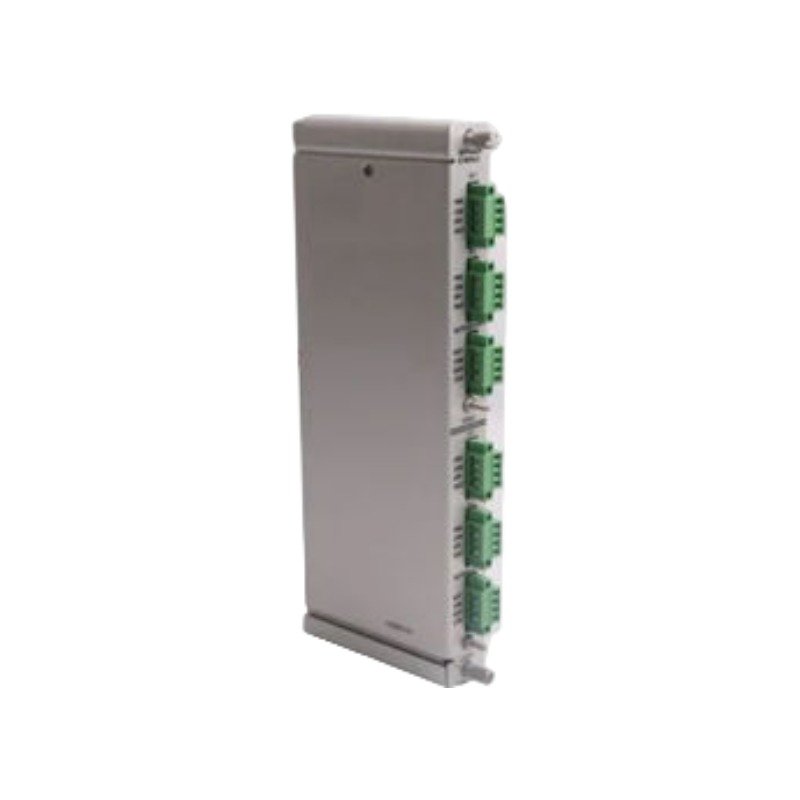

The Bently Nevada 125489-01, also cataloged as the 125489-01 Proximitor Seismic I/O Module with Internal Barriers, serves as the primary 125489 4-channel hardware interface utilized to execute intrinsically safe sensor signal interfacing across Bently Nevada 3500 Series machinery protection system platforms.

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

The hardware subsystem integrates internal zener barriers to restrict electrical energy delivered to hazardous field areas. Consequently, the conditioning circuits maintain specific eddy-current probe scaling when linking Proximitor sensors directly to the main rack backplane. Furthermore, validation routines verify field transducer gap voltage adjustments against -10 VDC targets to ensure noise-free seismic and displacement calculations. Because high-density wiring manifolds are prone to inductive coupling, the architecture incorporates differential filtering to maximize cross-talk suppression during continuous rotor dynamics monitoring under peak load conditions.

Frequently Asked Questions

Q: How do the internal safety barriers on the 125489-01 affect sensor calibration?

A: The internal barriers limit electrical energy without attenuating the AC signal. Consequently, the system preserves the standard 200 mV/mil scaling matrix, provided the extension cables match the calibrated transducer system parameters.

Q: Can this I/O module be paired with standard non-barrier 3500/42M monitor cards?

A: No. You must insert this internal barrier I/O module into the backplane slot directly behind a 3500/42M monitor designed specifically for internal barrier interfaces to prevent hardware mismatch faults.

Field Installation Guidelines

• Intrinsic Safety Earth Grounding: Connect the dedicated intrinsic safety ground terminal to a low-resistance plant earth grid. Consequently, this maintains the safety barrier integrity during an overvoltage fault.
• Cable Separation Constraints: Route hazardous area sensor wiring in dedicated conduits completely isolated from non-intrinsically safe cabling. As a result, this practice avoids dangerous electrostatic or electromagnetic cross-coupling.
• Terminal Block Fastening: Strip insulation back exactly 7 mm before inserting conductor leads into the terminal clamping matrix. Furthermore, tighten all terminal screws to a torque specification of 0.56 Nm.
