Description

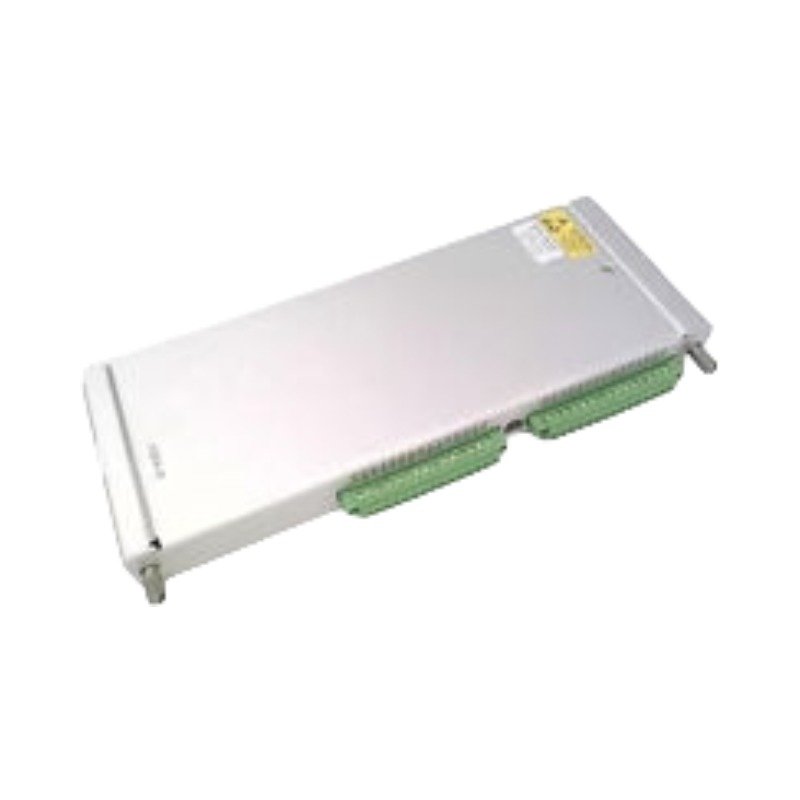

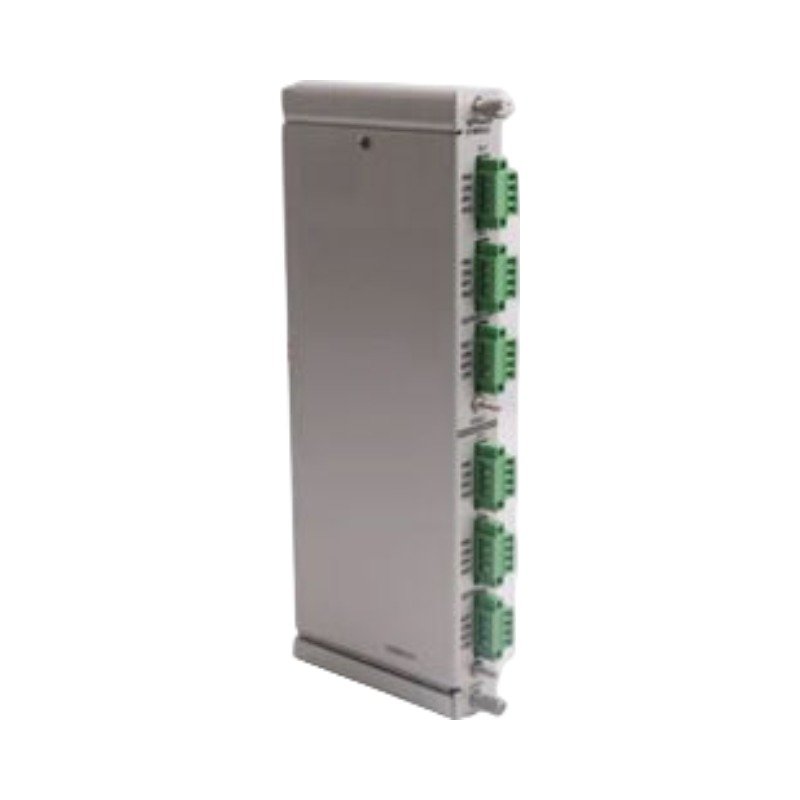

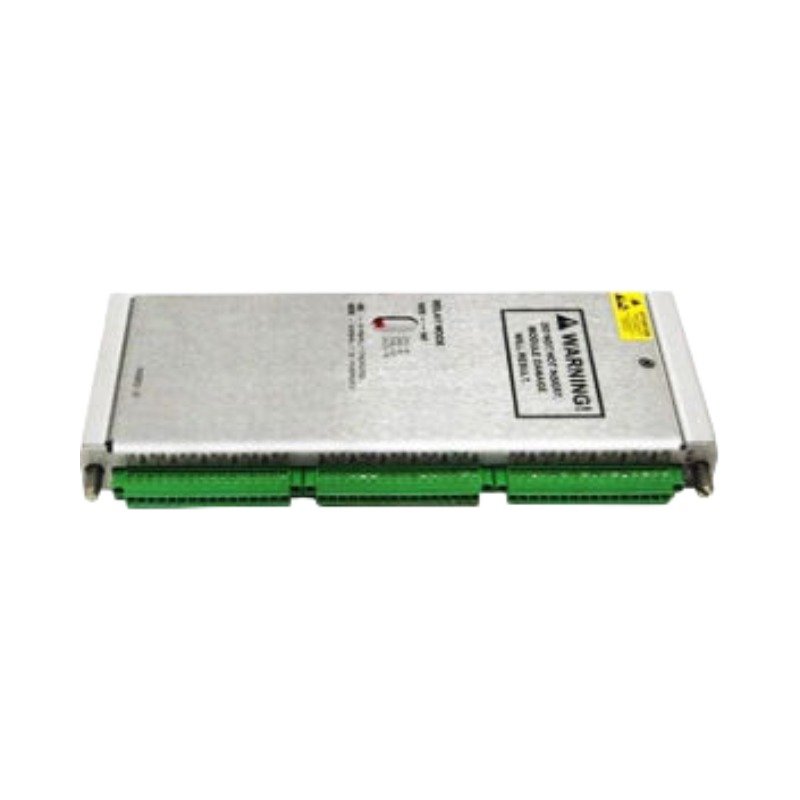

The Bently Nevada 133819-01, also cataloged as the 133819-01 RTD/TC Non-Isolated I/O Module, serves as the primary 133819 hardware interface utilized to execute multi-channel temperature data acquisition across Bently Nevada 3500 Series machinery protection system platforms.

Hardware Specifications

Rotor Dynamics and Cross-Talk Suppression

The 6-channel processing matrix interfaces temperature probes directly with the front-facing 3500/60 or 3500/61 monitor cards. Consequently, this architecture allows continuous monitoring of bearing housings, winding structures, and stator assemblies. Because temperature sensors are frequently deployed alongside high-voltage motor windings, the internal filtering matrix employs dedicated cross-talk suppression circuitry to prevent inductive noise spikes from corrupting active channels. This configuration maintains signal verification integrity while adjacent channels perform localized eddy-current probe scaling or gap voltage validation operations within the same rack structure.

Frequently Asked Questions

Q: Can the 133819-01 I/O module accept a mixture of RTD and Thermocouple inputs simultaneously?

A: Yes. The non-isolated circuit design allows the user to configure individual channels for either RTD or Thermocouple inputs independently through the 3500 Rack Configuration Software.

Q: What happens to the protection loops if an individual temperature sensor fails or open-circuits?

A: The module instantly flags a sensor fault condition and driving the corresponding channel into an under-range or over-range error state. Consequently, the logic bypasses that channel to prevent false machinery shutdown trips.

Field Installation Guidelines

• Terminal Screw Torque: Fasten all field sensor wire leads into the internal terminal blocks. Consequently, you must apply a final tightening torque of exactly 0.56 Nm to secure the connection against mechanical vibration.
• Cable Shield Isolation: Terminate the outer braid shield of the RTD or Thermocouple extension cables solely at the designated chassis ground bus. As a result, this practice eliminates parallel ground loops across the instrumentation framework.
• Cold Junction Accuracy: Avoid placing external heat sources or power modules directly beneath the internal termination area. Additionally, maintain unrestricted ambient air convection around the module faceplate to prevent cold junction compensation tracking errors.
