Description

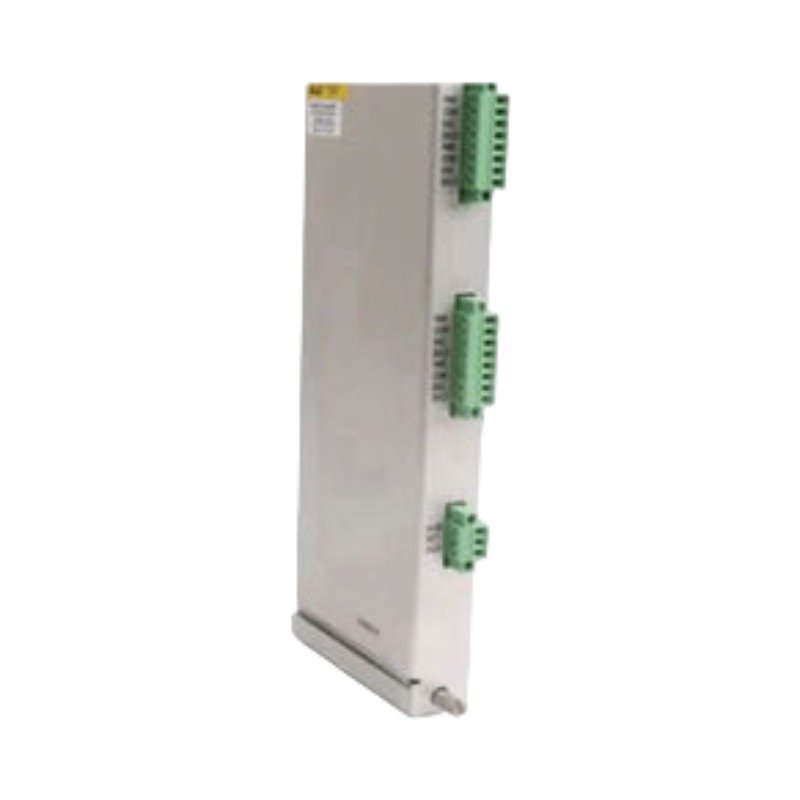

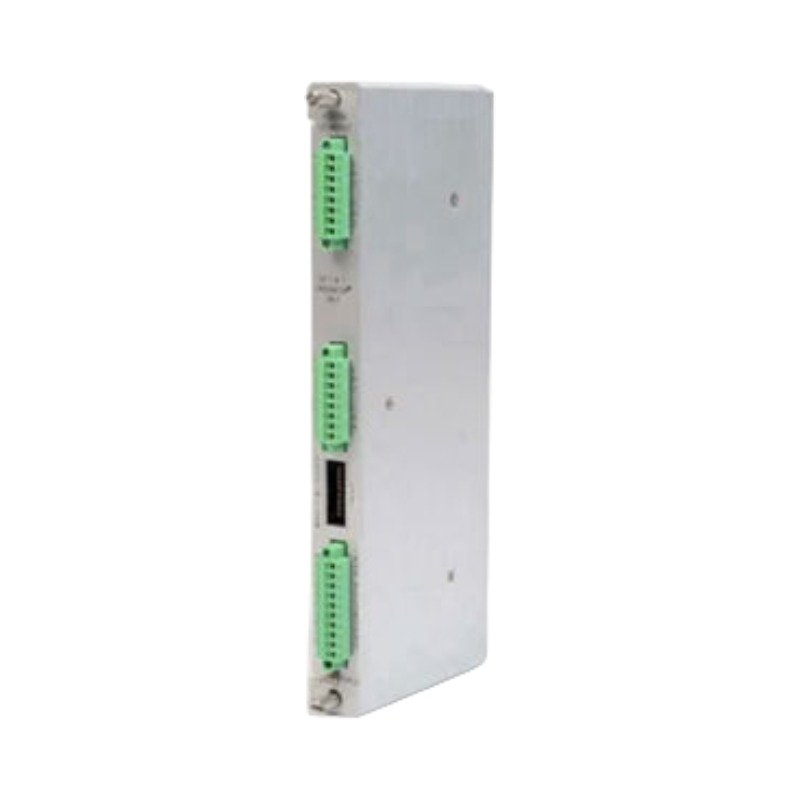

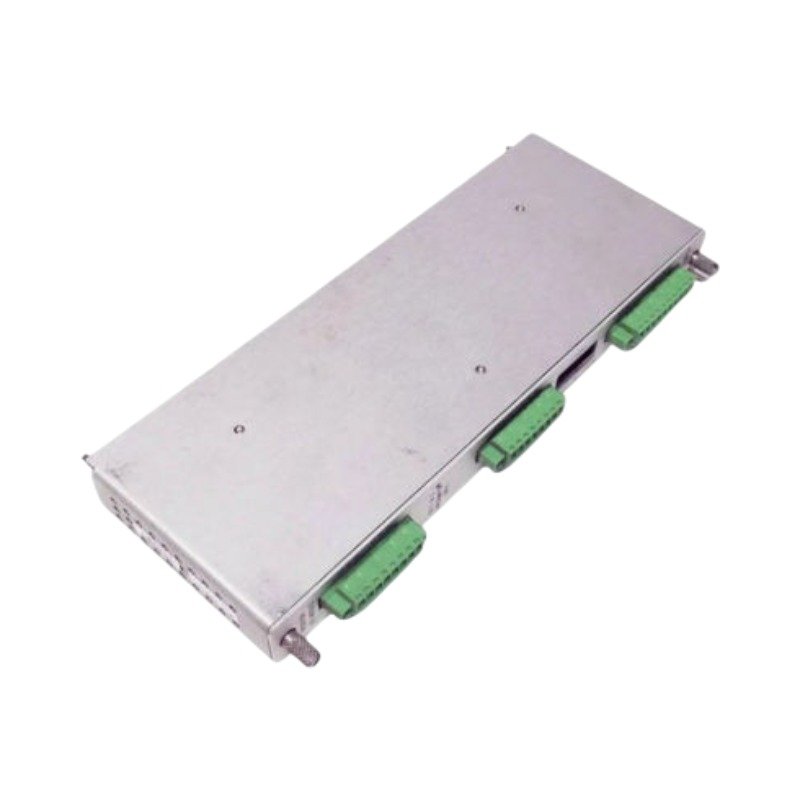

The Bently Nevada 3500/45 135137-01, also cataloged as the 3500/45 Position I/O Module, serves as the primary 3500/45 hardware interface utilized to execute sensor field-wiring termination and signal routing across Bently Nevada 3500 Position Monitor platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 135137-01 I/O module actively channels electrical signals from field sensors straight to the main monitor board to establish exact tracking of thrust position and differential expansion. Consequently, the hardware design enforces strict cross-talk suppression by incorporating internal ground planes between channels, which prevents adjacent signal contamination on single-plane thrust rings.

During commissioning loops, field engineers adjust the configuration parameters to dictate the specific eddy-current probe scaling based on the chosen transducer type. At the same time, technicians perform manual gap voltage validation across the internal terminal strip to ensure that the initial static sensor voltage targets the standard -10 VDC baseline. Reaching this value confirms that the probe resides inside its calibrated linear displacement envelope, thereby allowing the system to monitor critical rotor dynamics without clipping waveforms.

Frequently Asked Questions

Q: How does the 135137-01 handle signal processing for different transducer types?

A: The module routes raw transducer currents directly through designated hardware paths on the internal termination block. At that point, the configuration software adapts the internal filtering to accept inputs from either standard proximity probes, RPTs, or DC LVDTs.

Q: Can an engineer hot-swap the 135137-01 rear I/O module during operation?

A: No, technicians must completely power down the associated 3500 rack slot before removing or replacing the 135137-01 rear I/O module. This step prevents open-circuit transients and eliminates the risk of short-circuit damage to the front-mounted monitor module.

Field Installation Guidelines

1. Insert the 135137-01 module directly into the designated rear slot of the 3500 chassis, ensuring full connector alignment with the front position monitor board before tightening the retaining screws.
2. Strip the individual field wires approximately 7 mm to guarantee proper connection inside the built-in screw clamp termination blocks.
3. Separate the transducer signal wires from the high-voltage AC cables within the wireways, as this spatial division reduces external electromagnetic noise injection.
4. Maintain a minimum of 5-thread engagement when tightening NPT conduit connections directly to the chassis strain reliefs to ensure proper physical isolation.
