Description

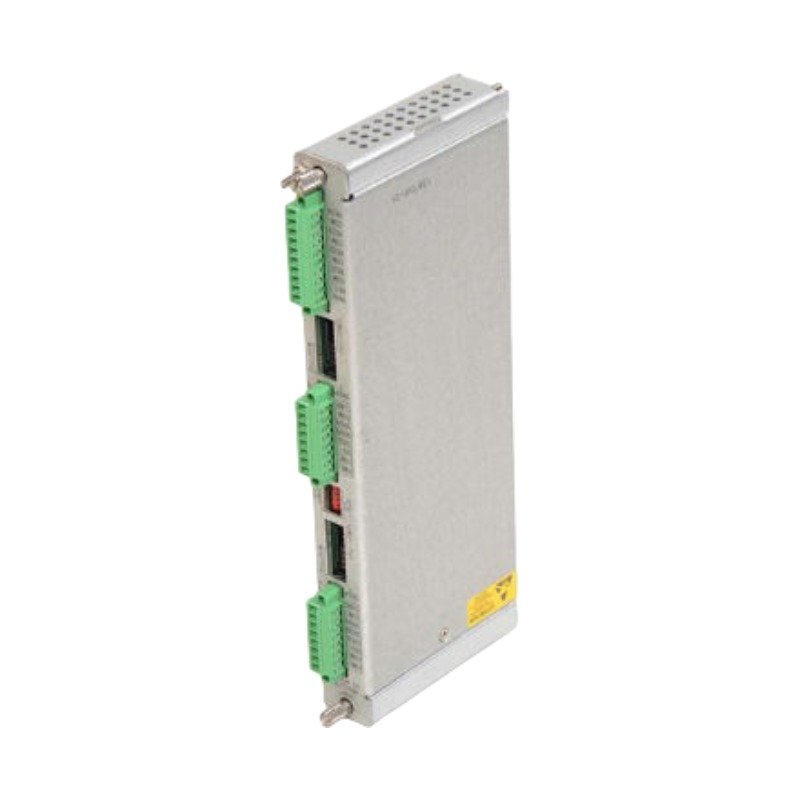

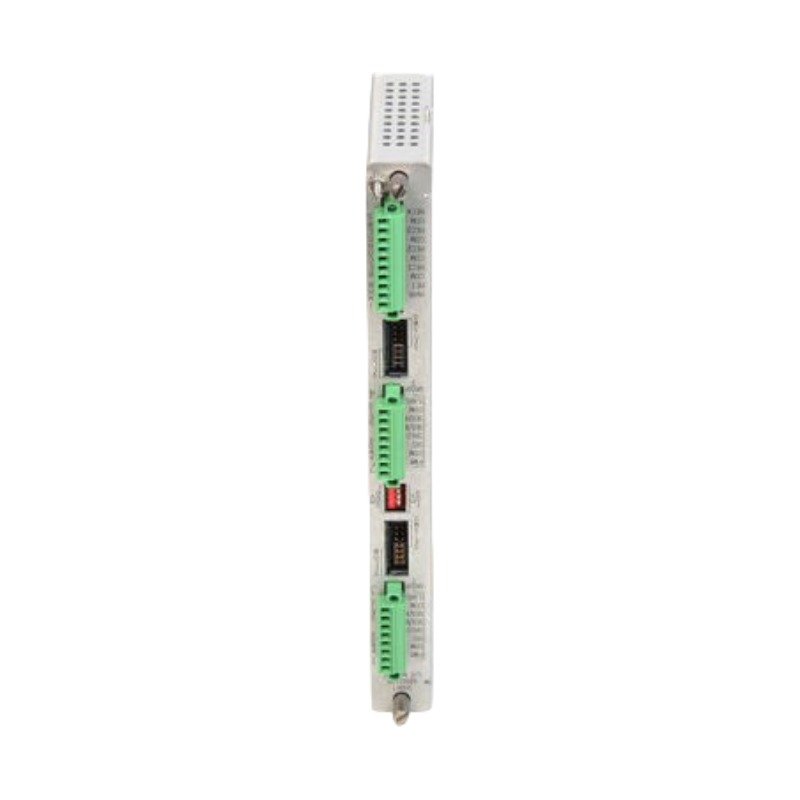

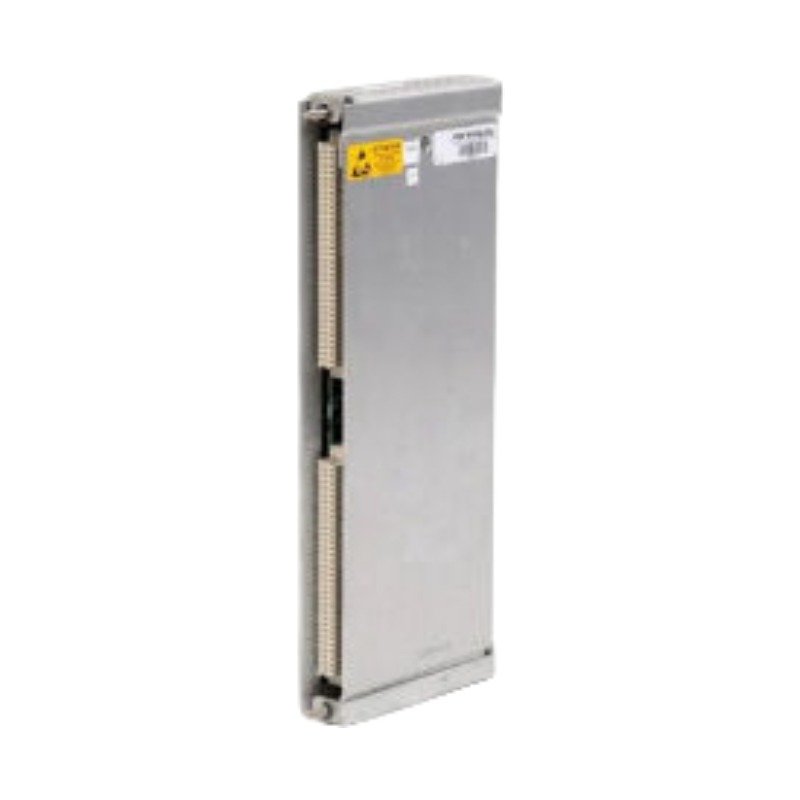

Configured for specific technical tasks in the 3500 Machinery Protection System, the Bently Nevada 3500/42M 138708-01 (3500/42M Shaft Absolute I/O Module with Internal Terminations) provides direct physical/electrical execution. This back-plane interface links the front-mounted 3500/42M monitor card to proximity, velocity, or acceleration transducers to condition raw seismic and proximity data.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 138708-01 I/O module actively processes analog voltage waveforms from Proximitor eddy-current probe systems to track exact rotor dynamics. To maintain measurement precision across variable machine speeds, field engineers execute eddy-current probe scaling within the rack configuration software. This scaling matches the targeted transducer millivolt-per-mil (mV/mil) response profile.

Simultaneously, the physical design routes differential input lines through an internal shield bus to achieve cross-talk suppression between tightly packed proximity channels. During startup loops, technicians perform gap voltage validation to ensure the static DC bias centers on the -10 VDC target, which establishes the correct physical distance between the probe tip and the shaft surface.

Frequently Asked Questions

Q: How does the 138708-01 module execute cross-talk suppression during multi-probe operation?

A: The hardware routes input lines through a grounded, internal termination matrix that effectively isolates adjacent channel fields. This layout suppresses electromagnetic coupling when multiple probes monitor a single rotor plane.

Q: What defines the difference between the 138708-01 internal termination card and standard external termination blocks?

A: The 138708-01 houses its own terminal strips directly on the card body, which allows field wiring to connect straight to the rack backplane without external wiring blocks or intermediate cable assemblies.

Field Installation Guidelines

1. Align the 138708-01 I/O card with the rear slot directly behind the main 3500/42M monitor module, then slide the card forward along the chassis guides.
2. Tighten the rear panel retaining screws to ground the module housing to the common rack frame.
3. Strip field transducer wires exactly 7 mm, insert them into the screw-clamp terminal blocks, and torque each terminal to specification.
4. Maintain a minimum of 5-thread engagement if routing the transducer cables through rigid NPT conduit fittings into the chassis housing.
