Description

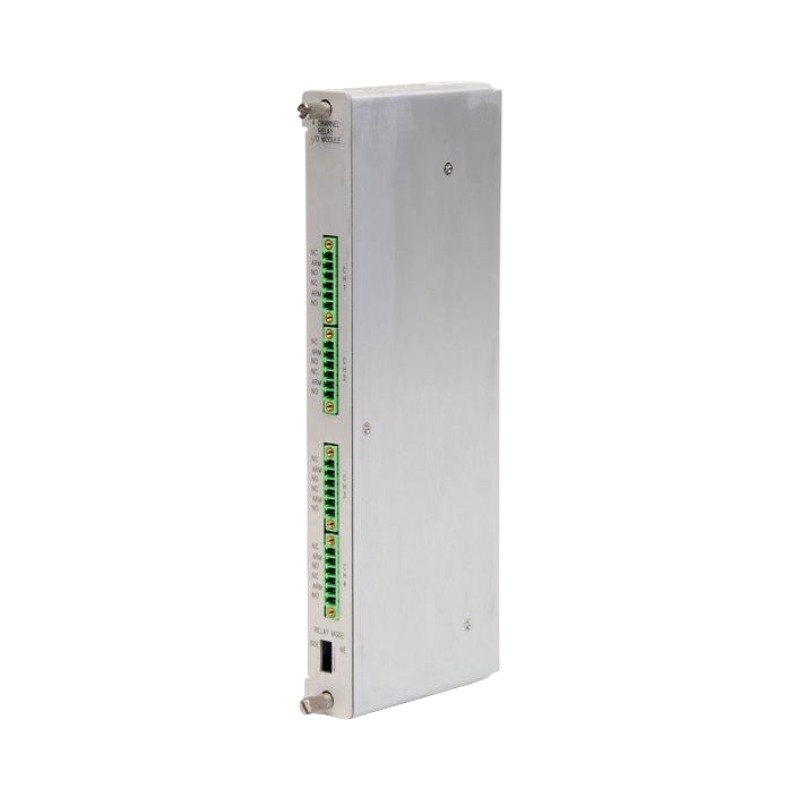

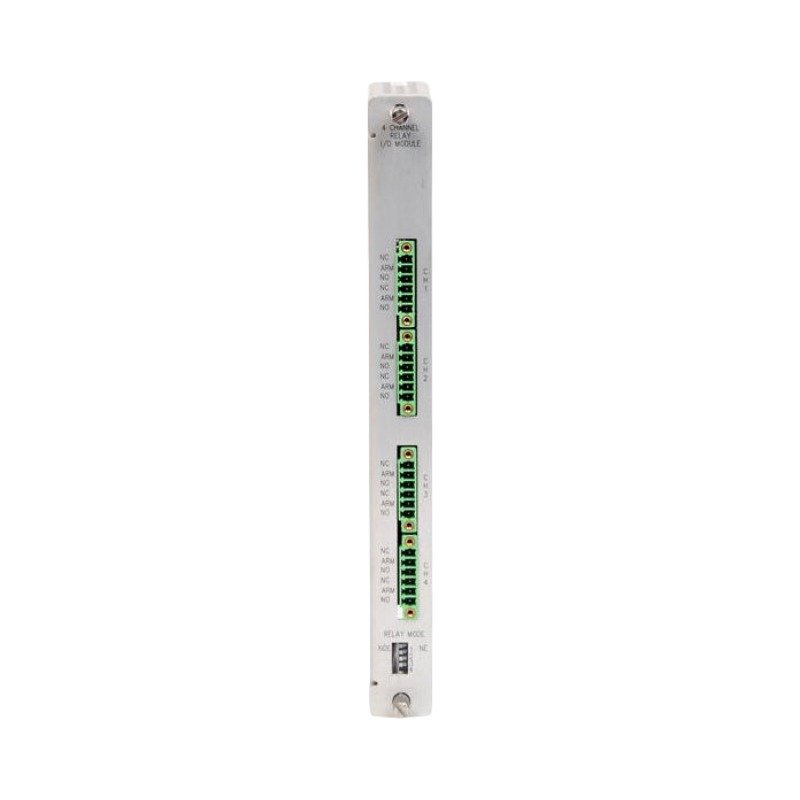

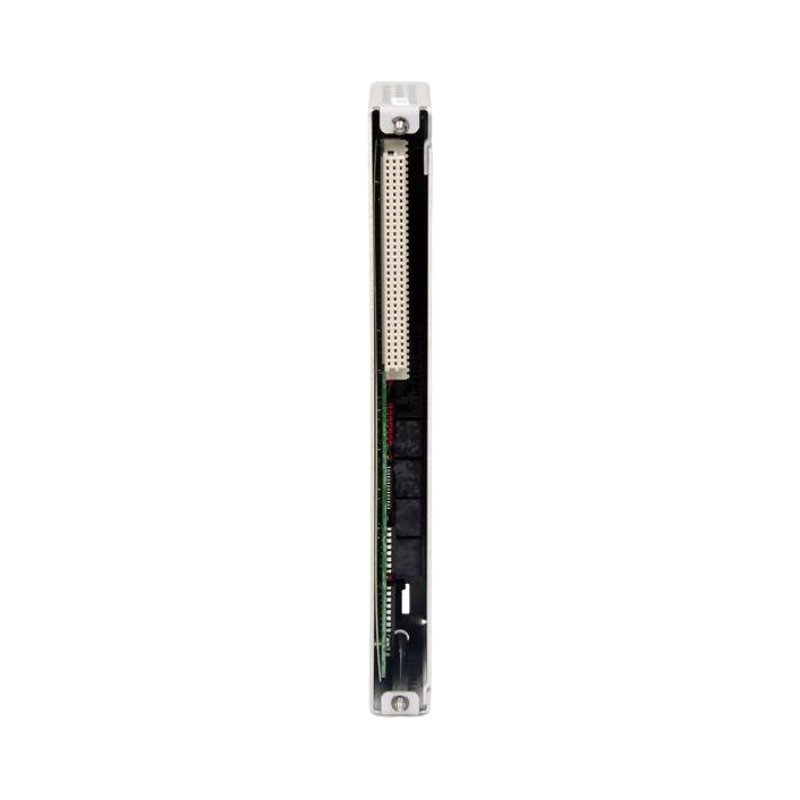

Configured for emergency shutdown execution within 3500 Monitoring Systems, the Bently Nevada 3500/32M 125720-01 (3500/32M 4-Channel Relay I/O Module) provides direct physical/electrical execution. This rear-panel hardware interface maps logical alarm voting states directly to physical external machinery protection control loops.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The I/O terminal board handles discrete output loops wired directly to hardwired industrial trip circuits, depending on precise alarm parameters generated through upstream eddy-current probe scaling. When individual monitor channels exceed thresholds set during initial gap voltage validation (-10 VDC targets), the physical relay contacts open or close to interrupt the control loop. This discrete switching operates independently of the high-speed processing streams that log complex rotor dynamics waveforms, maintaining a clear separation between safety execution and machine diagnostics. Furthermore, the internal board design enforces strict cross-talk suppression between individual contact channels, ensuring inductive switching arcs do not compromise adjacent signal loops.

Frequently Asked Questions

Q: What is the mechanical and electrical relationship between the 125720-01 I/O module and the front-slot 3500/32M main module?

A: The 125720-01 acts as the passive rear termination interface for the active 3500/32M processing card. It houses the physical terminal blocks and mechanical relay devices, while the front card provides the digital control logic.

Q: Can this specific I/O module be hot-swapped while the turbomachinery protection loop is active?

A: No, pulling the 125720-01 I/O module breaks the physical contact paths and can cause an unintentional plant shutdown trip if configured in a normally energized, fail-safe layout.

Field Installation Guidelines

• Slot Alignment Constraints: Slide the I/O module into the rear chassis slot positioned directly behind the corresponding 3500/32M main module housed in the front panel.
• Terminal Screw Tightening: Torque all wiring terminal screws to exactly 0.56 Nm to guarantee a low-resistance electrical connection and avoid physical conductor pulling.
• External Arc Suppression: Install external suppression diodes across connected inductive DC relay loads to prevent contact pitting and premature component degradation from voltage spikes.
