Description

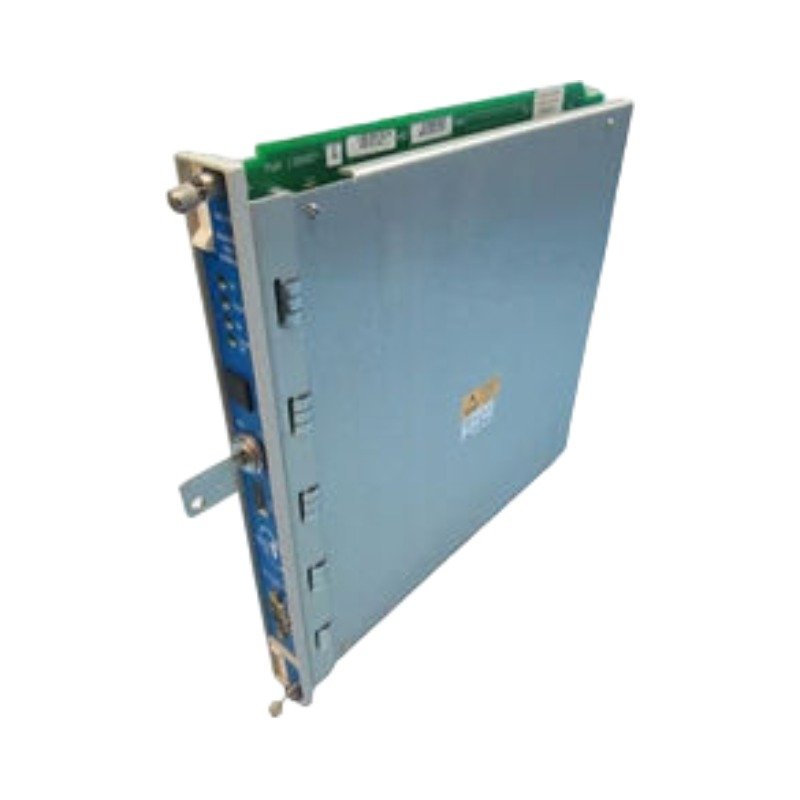

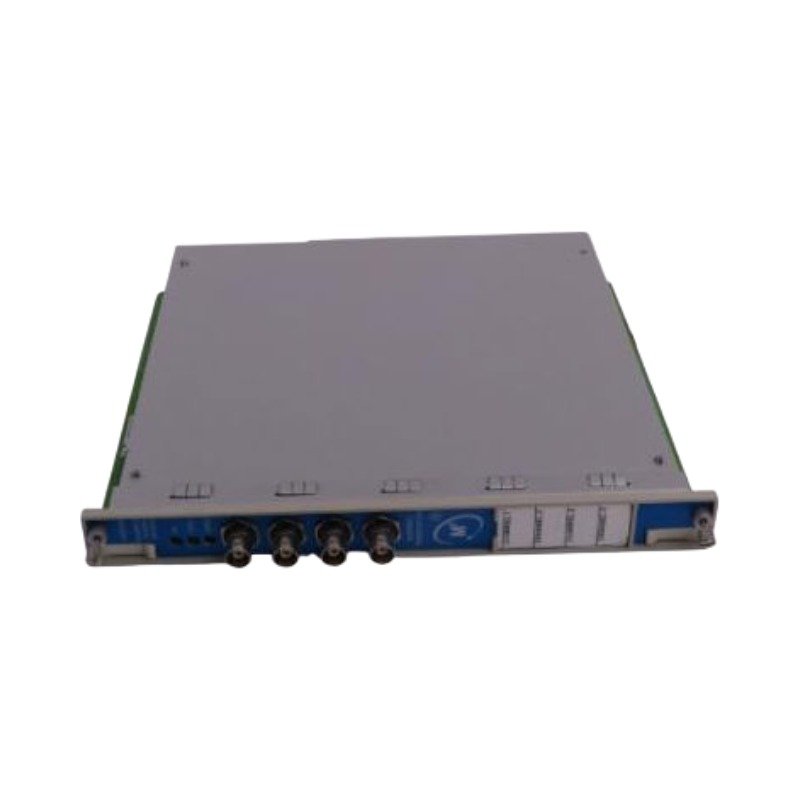

The Bently Nevada 3500/22 125768-01, also cataloged as the 125768-01 Rack Interface I/O Module, operates as a dedicated hardware component for serial data distribution within 3500 Machinery Protection System platforms. This unit establishes the rear backplane physical interface, executing external RS232 and RS422 communication link routing to facilitate configuration tasks and non-critical data extraction.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The hardware processes steady-state information collected from internal slot monitors, mapping specific data variables to align with current eddy-current probe scaling configurations. During installation verify procedures, the serial subsystem relays static voltage feedback to validate hardware gap voltage validation (-10 VDC targets) settings across the entire monitoring layout. While high-frequency signals pass directly along raw paths, this interface converts static components of rotor dynamics waveforms into structured registers without altering safety logic execution. Advanced layout shielding across the module board maintains strict cross-talk suppression metrics, insulating low-voltage serial drivers from high-frequency backplane noise.

Frequently Asked Questions

Q: Does an active physical interface failure on the 125768-01 interrupt automated plant shutdown trips?

A: No, the 125768-01 functions completely outside of the critical machinery safety trip path. An electrical fault or cable disconnection within this module drops serial data transmission to the host computer but does not degrade internal rack monitor protective relay execution.

Q: How do technicians alternate between the active RS232 and RS422 physical hardware links?

A: Physical configuration selection relies on a hardware slide switch mounted directly onto the module circuit board. Technicians must position this switch to match the desired serial standard before completing installation inside the rear chassis slot.

Field Installation Guidelines

• Slot Allocation: Mount the interface component exclusively in the rear chassis slot situated directly behind the primary Rack Interface Module located in slot 1.
• Switch Calibration: Confirm the physical RS232/RS422 option switch sits in the correct protocol position prior to sliding the card rails completely into the backplane matrix.
• Cable Protection: Route all long-distance RS422 differential transmission lines inside dedicated steel conduit runs. Ground the cable shielding network solely at the receiver terminal block to avoid ground loop current distortion.
