Description

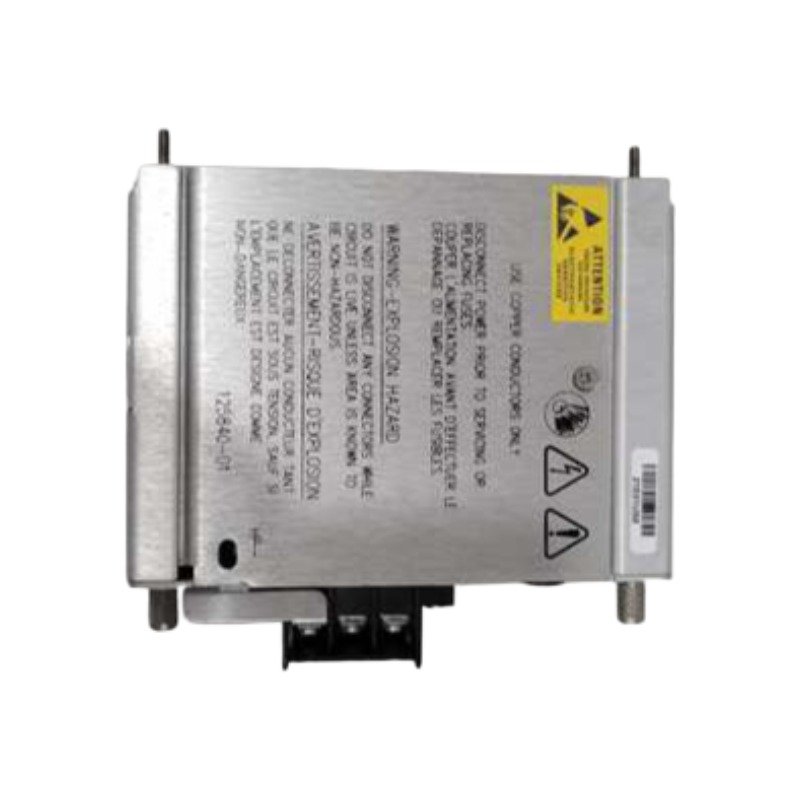

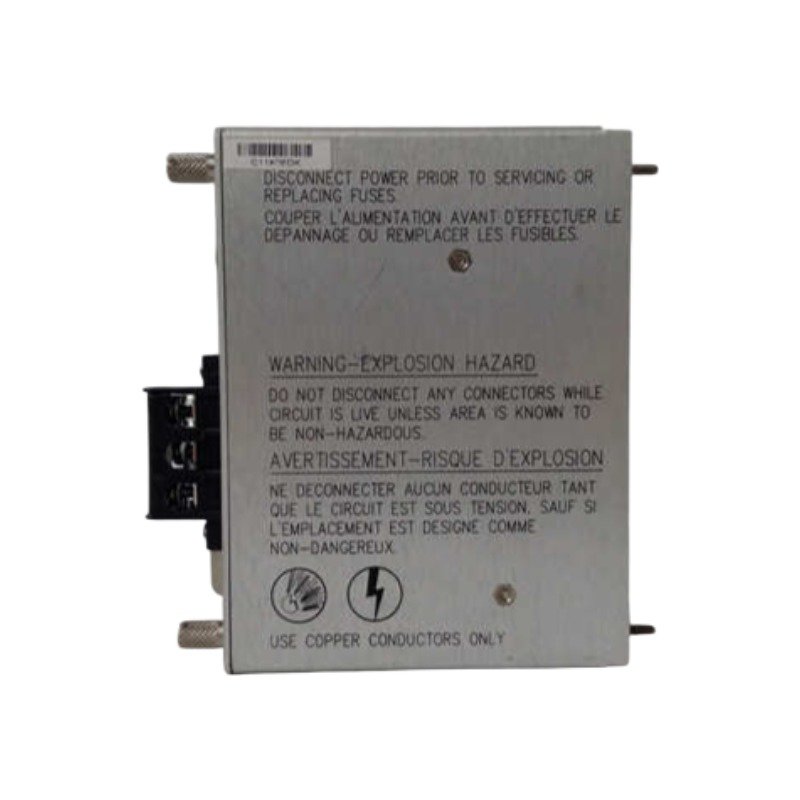

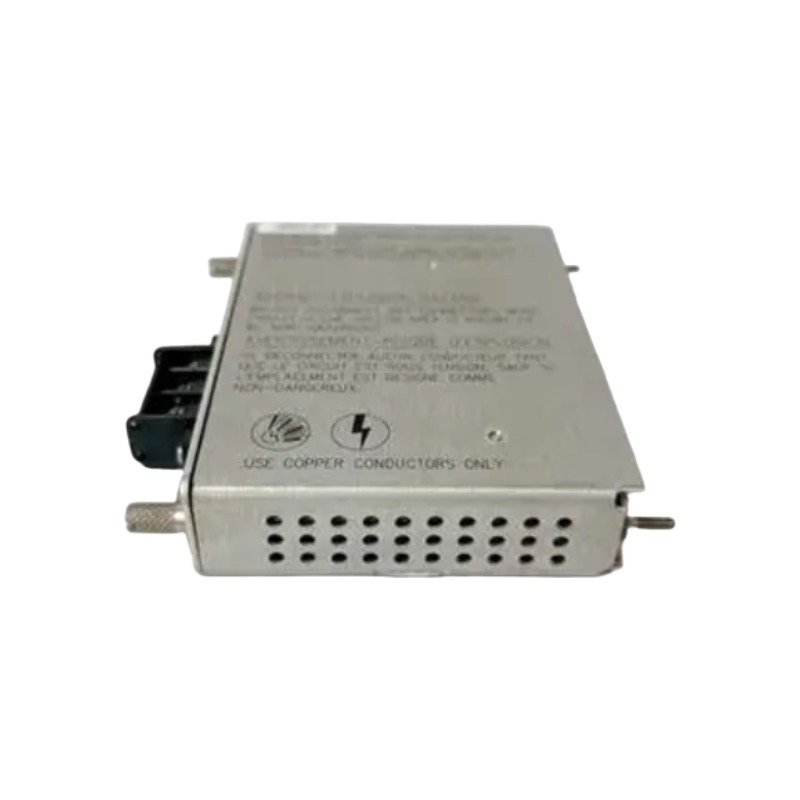

The Bently Nevada 3500/15 125840-02, also cataloged as the 125840-02 Power Input Module, operates as a dedicated hardware component for low-voltage AC power conditioning and entry within 3500 Machinery Protection System platforms. Installed at the rear of the monitoring chassis, the half-height module routes filtered single-phase utility mains into corresponding internal power supply processing modules.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The module supplies structured electrical infrastructure across the backplane to support primary transducer buses managed by eddy-current probe scaling protocols. Stabilized voltage generation prevents input spikes from affecting standard gap voltage validation (-10 VDC targets) on adjacent radial or axial position tracks. By enforcing clean electricity distribution and high-frequency noise mitigation, the circuit provides internal cross-talk suppression between the power distribution lines and low-voltage seismic or proximity processing metrics governing rotor dynamics.

Frequently Asked Questions

Q: Does removing the 125840-02 module interrupt power to the 3500 rack if a redundant supply is present?

A: No. In a fully redundant configuration utilizing dual power supplies and dual input modules, the secondary pairing handles the full electrical load, preventing rack disruption during live extraction.

Q: What physical reaction occurs if an overvoltage condition breaches the 132 VAC upper limit?

A: The onboard overvoltage tracking logic intentionally forces the sacrificial input line fuse to open on the PIM, isolating the internal half-height power supply modules from serious thermal or electrical fault propagation.

Field Installation Guidelines

1. Install the 125840-02 module exclusively into the specialized half-height rear slots located on the left side of the 3500 chassis frame, directly behind the matching power supply module.
2. Confirm the utility line distribution matches the 85 to 132 VAC low-voltage envelope before connecting physical conductors to the terminals.
3. Keep AC power feed lines bundled and routed away from the low-level analog transducer signal cabling to block electromagnetic induction noise.
4. Earth the chassis ground terminal using a heavy-gauge connection in alignment with standard machinery protection installation specifications.
5. Secure the upper and lower panel retention screws to a continuous torque specification to sustain a low-impedance path to the frame ground.
