Description

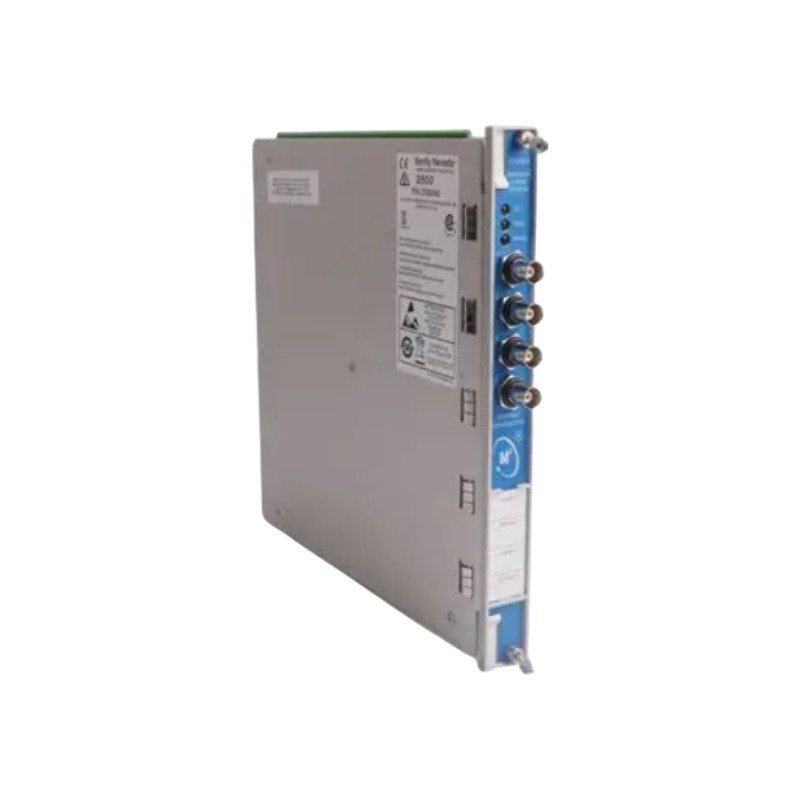

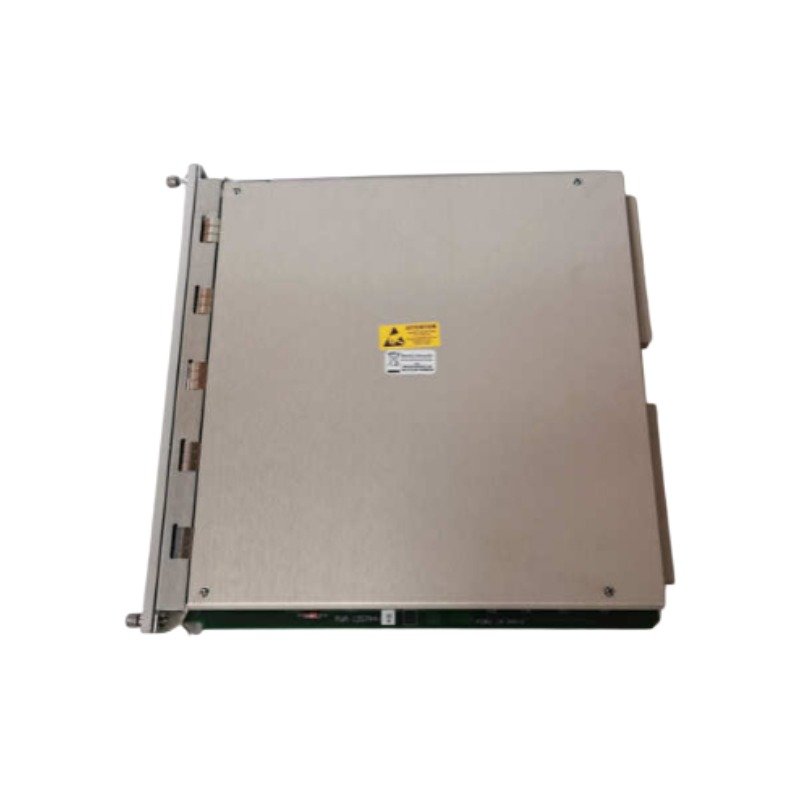

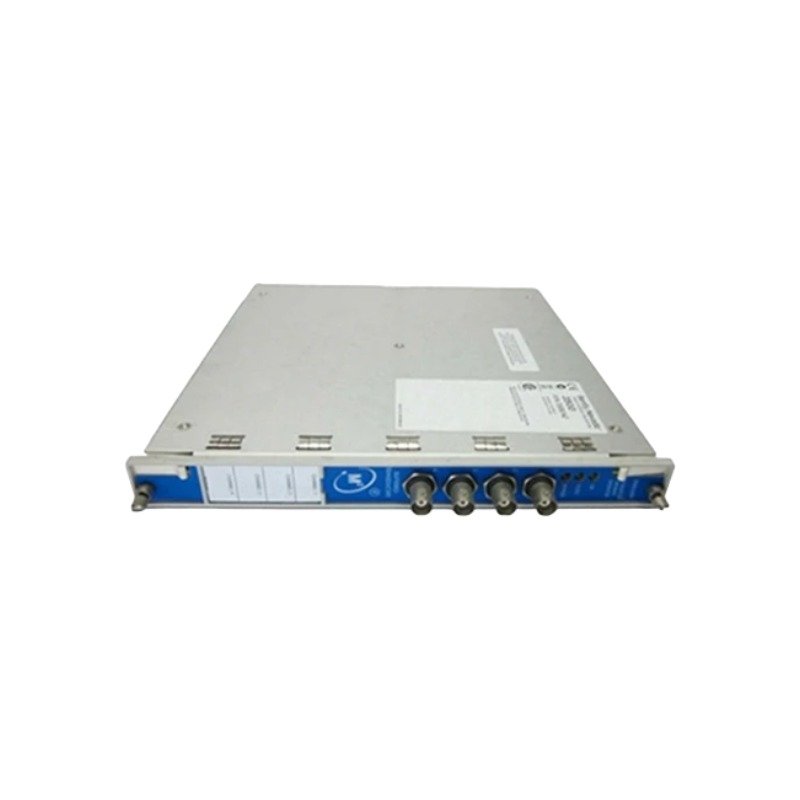

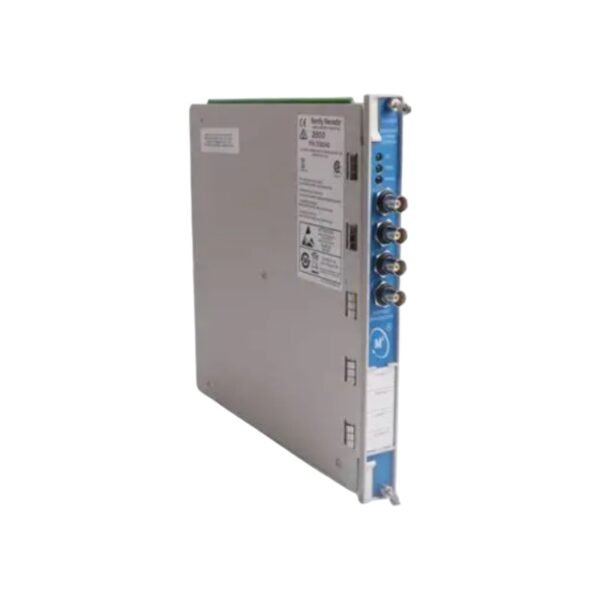

Configured for high-integrity machinery monitoring, the Bently Nevada 3500/42M 138700-01 (138700-01 Shaft Absolute I/O Module) provides direct physical/electrical execution. This full-height backplane interface routes raw, complex transducer waveforms directly into the primary front-facing monitor module. Consequently, the hardware executes real-time diagnostic algorithms to determine structural machinery health variables.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The interface card actively captures dynamic raw waveforms to execute advanced shaft absolute computations. Specifically, the internal circuits combine casing acceleration vectors with standard eddy-current probe scaling metrics. Because the system tracks linear changes calibrated to 7.87 V/mm (200 mV/mil), field engineers must perform gap voltage validation to ensure the baseline proximity signal centers at exactly -10 VDC targets. Furthermore, the specialized hardware layout enforces cross-talk suppression between high-frequency velocity traces and low-voltage displacement indicators, thereby isolating complex rotor dynamics from ambient industrial interference.

Frequently Asked Questions

Q: How does the 138700-01 module handle galvanic isolation for field wiring loops?

A: This specific module utilizes an external termination design without internal galvanic safety barriers. Therefore, technicians must deploy independent external barriers when installing the system within hazardous locations.

Q: Which velocity transducer models interface directly with this hardware configuration?

A: The module accepts direct inputs from both self-generating Seismoprobe velocity sensors and powered Velomitor piezo-velocity sensors, automatically adapting its internal power distribution loops to match.

Field Installation Guidelines

1. Slide the 138700-01 module into the full-height rear chassis slot that aligns precisely with the front-facing 3500/42M monitor card.
2. Connect the multi-pin rear cable interface directly to the designated external termination block before applying system power.
3. Terminate all sensor shield lines at the designated chassis ground studs to maintain clean, single-point earthing protocols.
4. Verify that the combined resistance of the 4-20 mA analog loop wiring does not exceed the maximum 600 Ohm compliance threshold.
5. Tighten both faceplate retention fasteners completely into the rack housing to complete the primary frame grounding path.
