Description

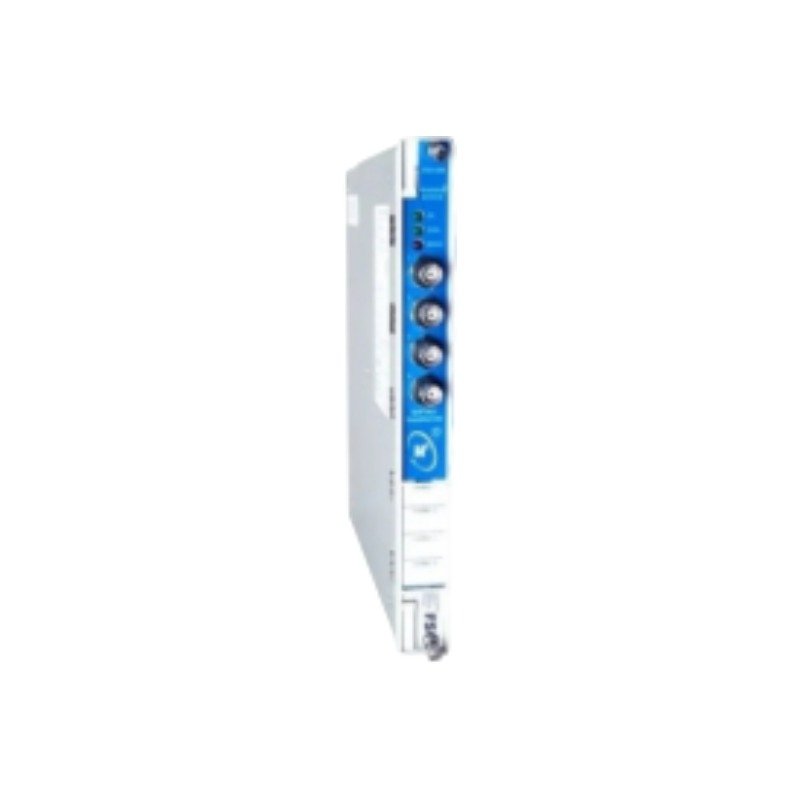

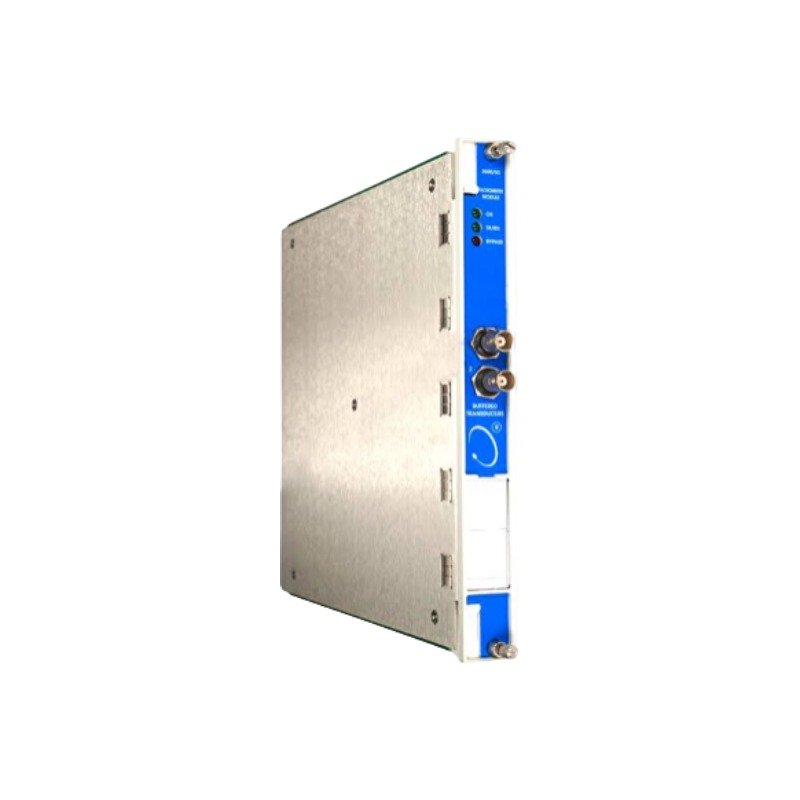

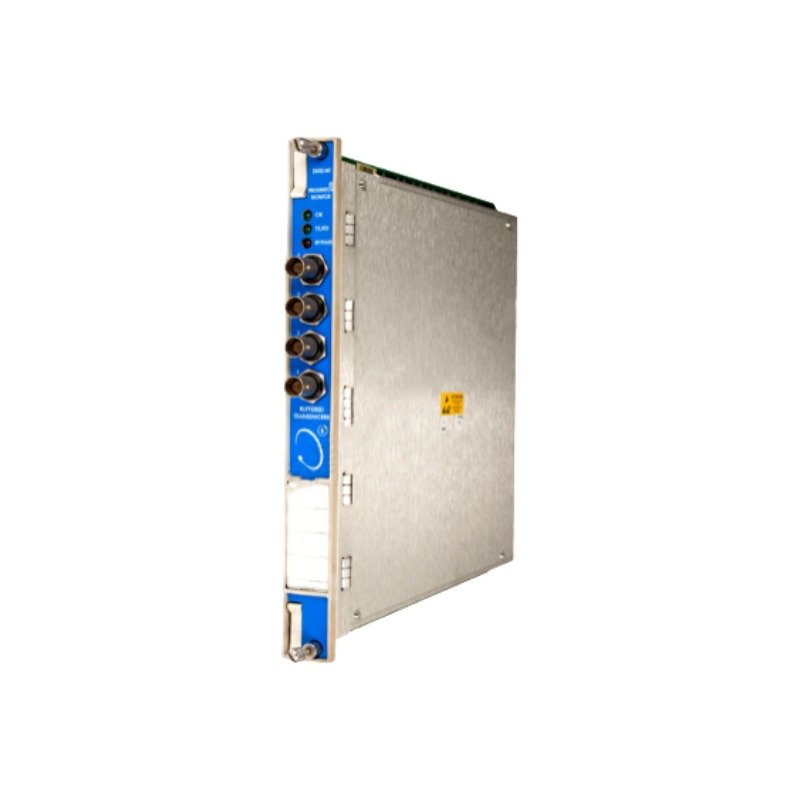

Configured for high-integrity signal acquisition in 3500 Machinery Protection System platforms, the Bently Nevada 3500/40-01-01-00 (140734-01 Proximitor Monitor I/O Module) provides direct physical/electrical execution. The instrument integrates natively with 100Base-FX fiber optic paths to transmit continuous vibration and position indicators directly to the main rack processor.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The module processes multi-channel data generated by standard eddy-current probe scaling configurations, tracking linear changes calibrated to 7.87 V/mm (200 mV/mil). Installation validation requires verifying transducer base outputs against standard -10 VDC targets to secure optimal positioning within the electrical measurement window. The integration of 4 dedicated fiber optic ports provides innate optical cross-talk suppression and total electrical isolation across long-distance routing segments, maintaining signal fidelity for complex rotor dynamics tracking without introducing copper-bound grounding loop noise.

Frequently Asked Questions

Q: What specific advantage does the 140734-01 fiber optic interface have over traditional copper I/O modules?

A: The fiber optic implementation completely isolates the physical signal path from electromagnetic interference (EMI) and radio frequency interference (RFI), making it suitable for deployment near high-voltage machinery arrays.

Q: Can this specific hardware configuration be hot-swapped while the 3500 rack backplane is energized?

A: No, standard engineering practice for the 3500/40 series dictates powering down the system rack or shifting the monitoring channel properties into bypass mode before removing or seating the rear I/O component to prevent false trip execution.

Field Installation Guidelines

1. Install the 140734-01 card into the exact rear panel slot directly corresponding to the front-facing 3500/40M monitor module.
2. Inspect the fiber optic port faces for dust or contaminants, cleaning exclusively with lint-free industrial optical swabs before attaching cables.
3. Ensure the fiber optic cable bend radius does not violate minimum factory specifications during harness routing within the enclosure.
4. Check that the front panel tri-color LED array registers a continuous green indication after backplane power-up initialization.
5. Torquing fasteners to specification is mandatory to maintain proper mechanical chassis ground through the outer metal plate assembly.
