Description

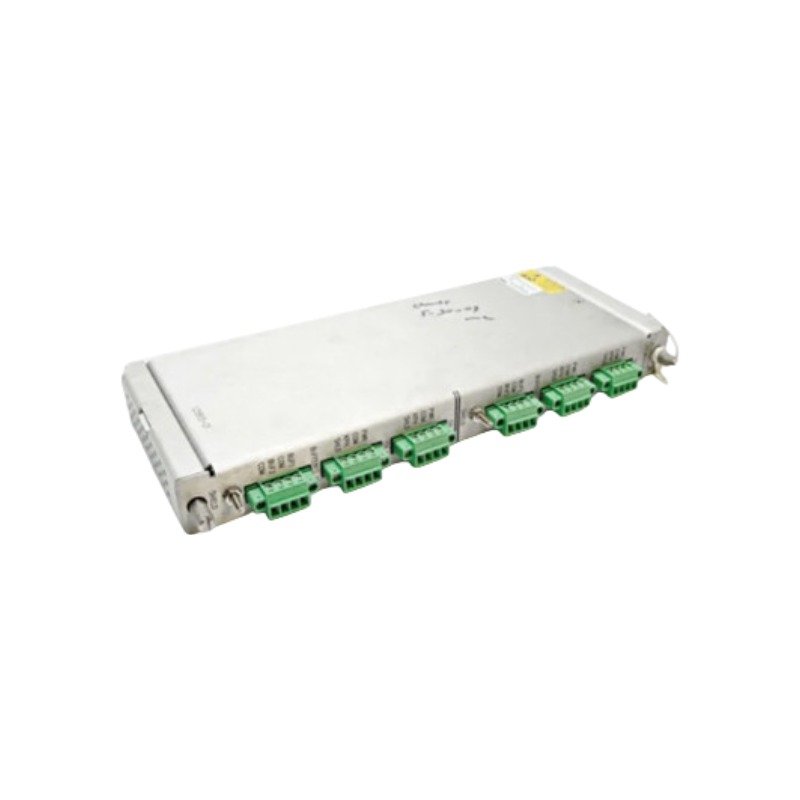

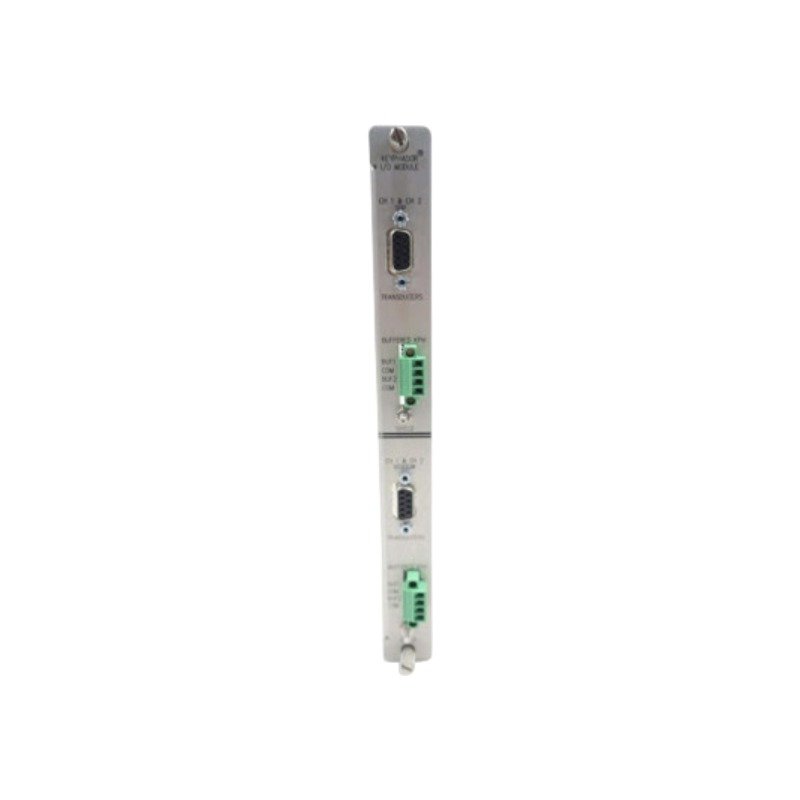

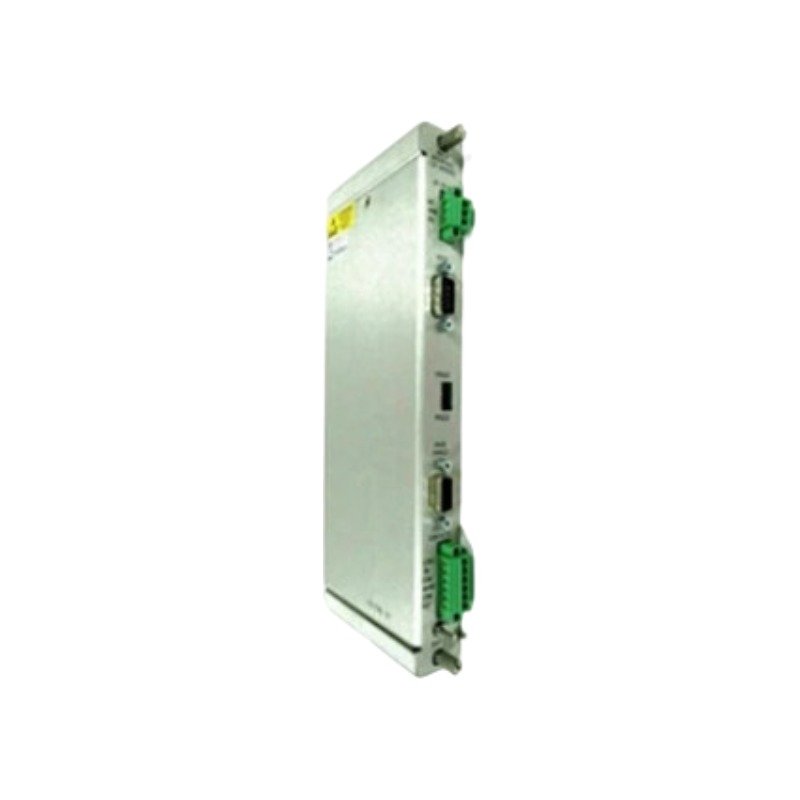

The Bently Nevada 126648-01, also cataloged as the 126648-01 Isolated Keyphasor I/O Module, operates as a dedicated hardware component for processing phase reference and shaft speed inputs within 3500 Machinery Protection System platforms. Configured with external terminations, the half-height component accepts raw pulse signals from physical transducers to generate synchronized digital timing markers across the rack backplane.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The module processes pulse outputs derived from standard eddy-current probe scaling configurations, accommodating nominal 7.87 V/mm (200 mV/mil) proximity sensors aimed at a physical shaft keyway or notch. Mechanical setup requires gap voltage validation of the target probe to ensure the quiescent signal matches standard -10 VDC targets during non-pulse state rotation intervals. Advanced isolation circuitry provides internal cross-talk suppression when parallel device connections share the same Keyphasor bus, mitigating voltage spikes that skew calculated rotor dynamics or phase angle indicators.

Frequently Asked Questions

Q: Does the isolated configuration of the 126648-01 introduce any phase shift into the system metrics?

A: Yes, the isolated I/O design introduces a small phase shift relative to the non-isolated version. It is primarily specified for speed tracking and situations demanding high system-to-system galvanic separation rather than micro-degree phase precision.

Q: Can this module be combined with internal termination terminal blocks in the same rack slot?

A: No, external termination I/O modules are mechanically and electrically incompatible with internal termination blocks; they must route exclusively to external termination panels via dedicated multi-pin cables.

Field Installation Guidelines

1. Mount the module within the designated half-height slot locations situated at the rear of the 3500/05 rack frame.
2. Terminate the multi-conductor interface cable between the module’s rear connector and the external termination block before applying system power.
3. Keep the transducer shield wires connected to the designated chassis ground terminals on the external block, ensuring single-point grounding rules are maintained.
4. Verify that external -24 VDC power is supplied to the loop if utilizing Proximitor transducers through this isolated hardware path.
5. Secure the rear module thumb screws to stabilize the card’s internal backplane connector contact pressure against vibration profiles.
