Description

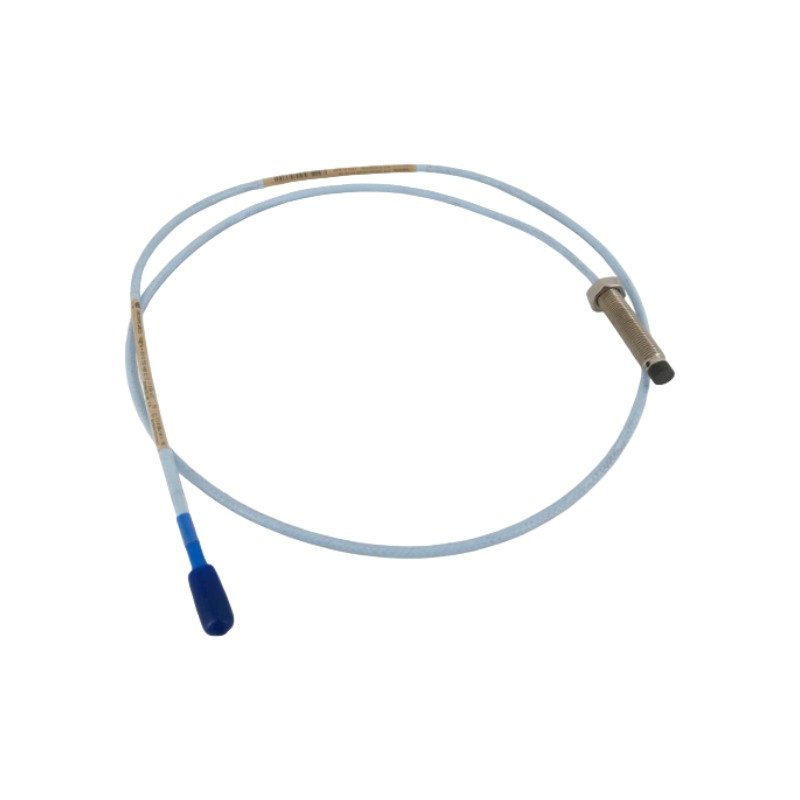

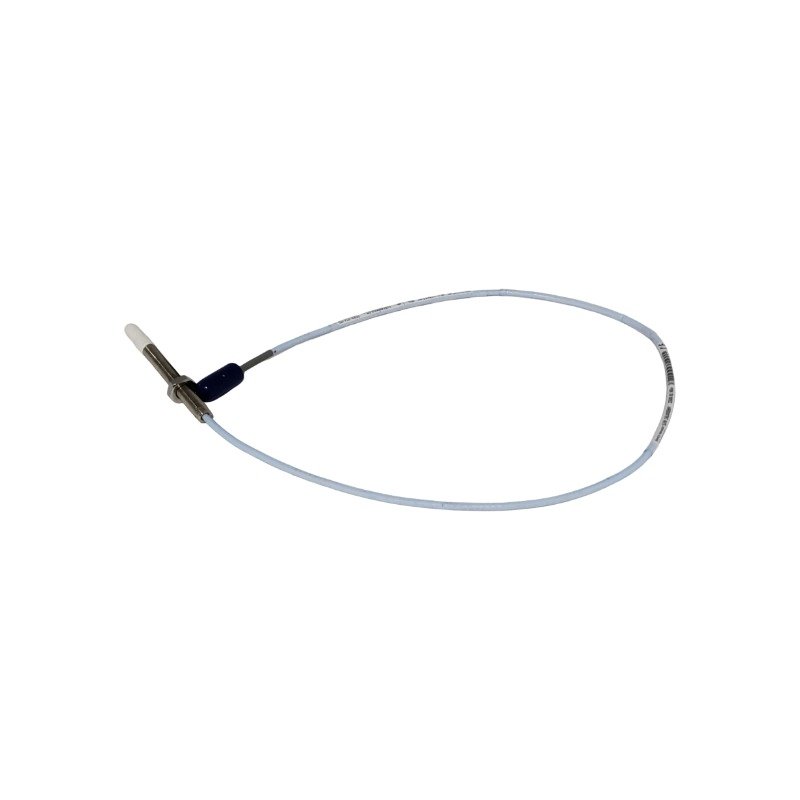

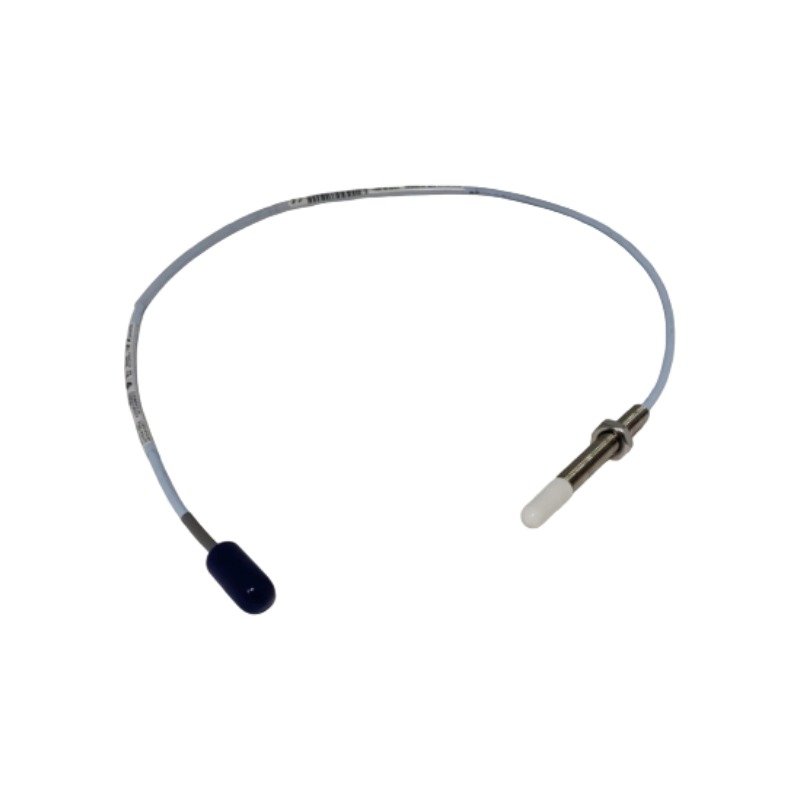

The Bently Nevada 330851-02-000-060-50-00-05, also cataloged as the 330851 Proximity Probe, serves as the primary 330851 Proximity Probe utilized to execute high-frequency eddy-current displacement sensing across 3300 XL 25 mm Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks, specifically for measuring differential expansion on steam turbine generators. The balanced sensor core maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route adjacent signals through close-proximity enclosures. Furthermore, the internal 75 ohm matching provides continuous gap voltage validation. Consequently, the assembly maintains stable targeting around calibrated -10 VDC operational centers and prevents signal attenuation that typically degrades the standard 0.787 V/mm scale factor required to evaluate critical rotor dynamics.

Frequently Asked Questions

Q: What specific hardware profile do the -020 and -060 options establish in this assembly?

A: The option codes dictate the physical mechanical mounting framework. The -02 option configures an M30x2 metric thread with 0 mm of unthreaded length, whereas the -060 code establishes a rigid 60 mm overall case length.

Q: How does the -05 suffix change the hazardous area installation protocol for this probe?

A: The -05 designation signifies multiple international agency approvals for explosive atmospheres. Therefore, the probe meets specific intrinsic safety standards, allowing field technicians to route the integrated FluidLoc cable directly into certified Zone 0 and Zone 1 environments.

Field Installation Guidelines

• Thread Engagement: Technicians must manually thread the M30x2 probe housing into the mounting bracket. Tighten strictly to standard torque guidelines using an open-ended wrench, and avoid over-torqueing to protect the internal PEEK tip assembly.
• Routing Radii: Always route the integrated 5.0 meters FluidLoc probe cable with a minimum bend radius of 25.4 mm (1.0 in). Otherwise, tight bends degrade the internal triaxial insulation layer and trigger signal reflections.
• Terminal Protection: Use the included ClickLoc connector protectors directly over the coaxial junction. This installation blocks moisture contamination and prevents physical metal contact with the machine casing to halt ground loops.
